Application of Use
Human/Veterinary Surgery
Dermatology, Orthopedics, Plastic surgeries;
Cerebral surgery, Microsurgery, ENT surgery and etc.![2.png]()
|
|
ltem Name |
High Frequency Electrosurgical Generator |
Material |
stainless Steel |
Main Frequency |
512KHzZ |
Max Output Power |
100w |
Application |
Human/Veterinary surgery |
Power Supply |
100~240V/50~60Hz |
High Frequency Leaekag |
Mono<150mA;Bip <60mA |
Power readouts |
within+20% or 5W |
Certificate |
CE ISo |
|
Working Mode |
Max.output power |
Monopolar cut |
Pure Cut |
10ow |
Blend Cut |
8ow |
Monopolar Coag |
Contact Coag |
6ow |
Bipolar Coag |
standard Coag |
5ow |
|
![4.jpg]()

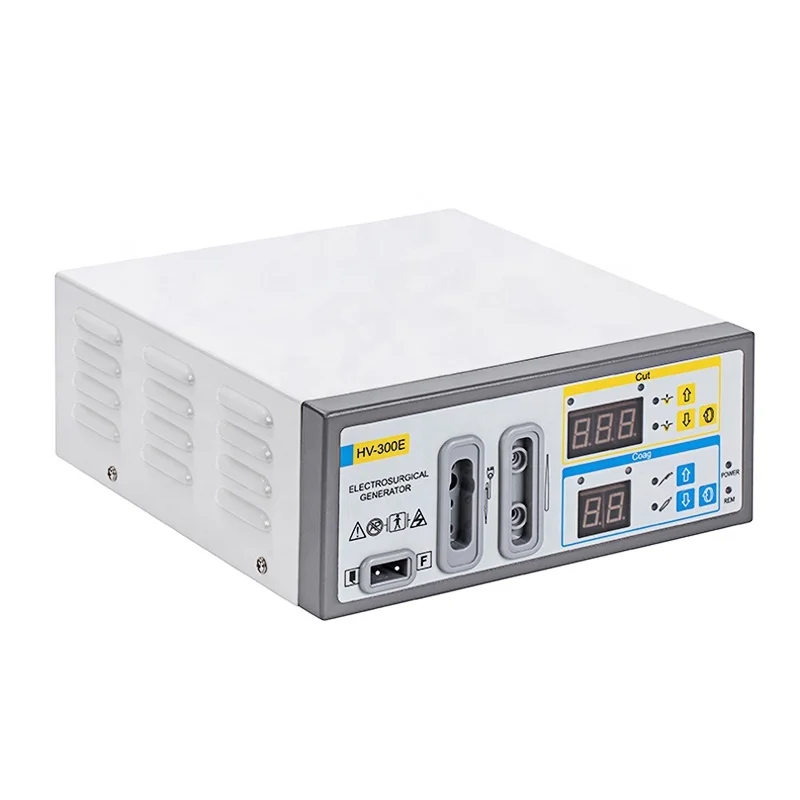

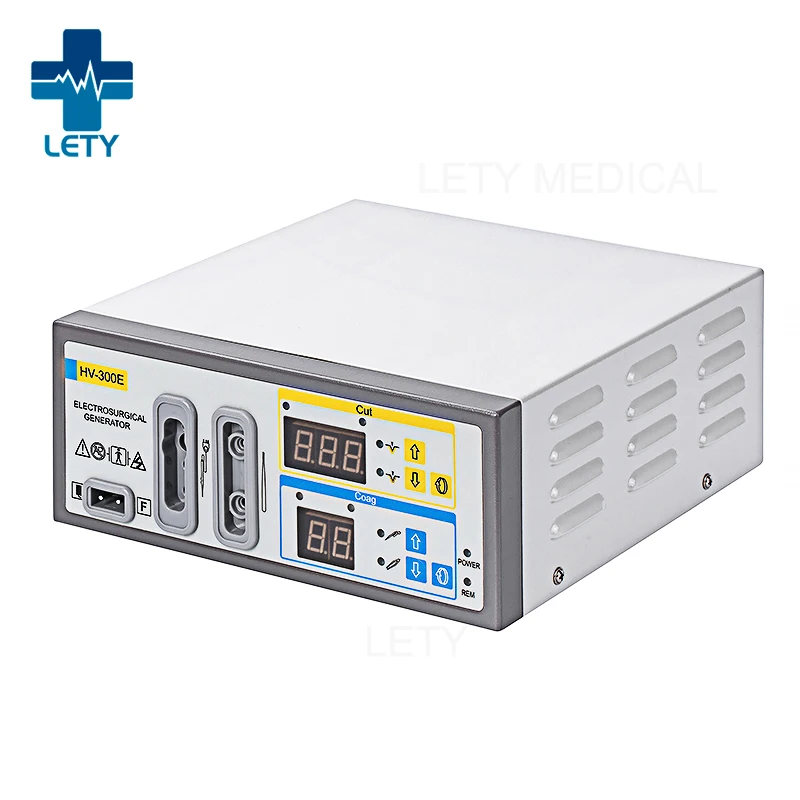

Intelligent Device System
The intuitive design and user-friendly set-up of the AHANVOS Electrosurgical Generator(diathermy)for us in the modern operating room, it features both monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.
Characteristics
Microprocessor controlled Portable Electrosurgical unit, with the ability to automatically adjust, designed for various operations. Especially for Transformation Zone (LLETZ/LEEP); and cervix, vagina, vulva and perinatal region biopsies.
REM(Return Electrode Monitoring)
Return electrode (for Monopolar) with quality monitoring system(REM). This REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, at the same time with Audible and Visual Alarms.
Automatic self-test
When switch on the machine, it will start automatically self-test routine prior to operation.Monopolar Cut
-Monopolar outlet, 3-pin (4mm) standard outlets Different effects for cutting modes , pure cut for fast tissue dissection, while blend cut with a slight coagulation effect.
Monopolar Coagulation
Different coagulation modes provides precise, moderate, enhanced, contactless coagulation effects.
Bipolar
Coagulation with Froceps for contact coagulation without sparking
Compatible with other Equipment
Optimum Smoke Evacuation System
Multilanguage Available
Language options:English, Spanish, Portuguese, Turkish and etc.
Application of Use
Dermatology, Orthopedics, Plastic surgeries Cerebral surgery, Microsurgery, ENT surgery and etc.

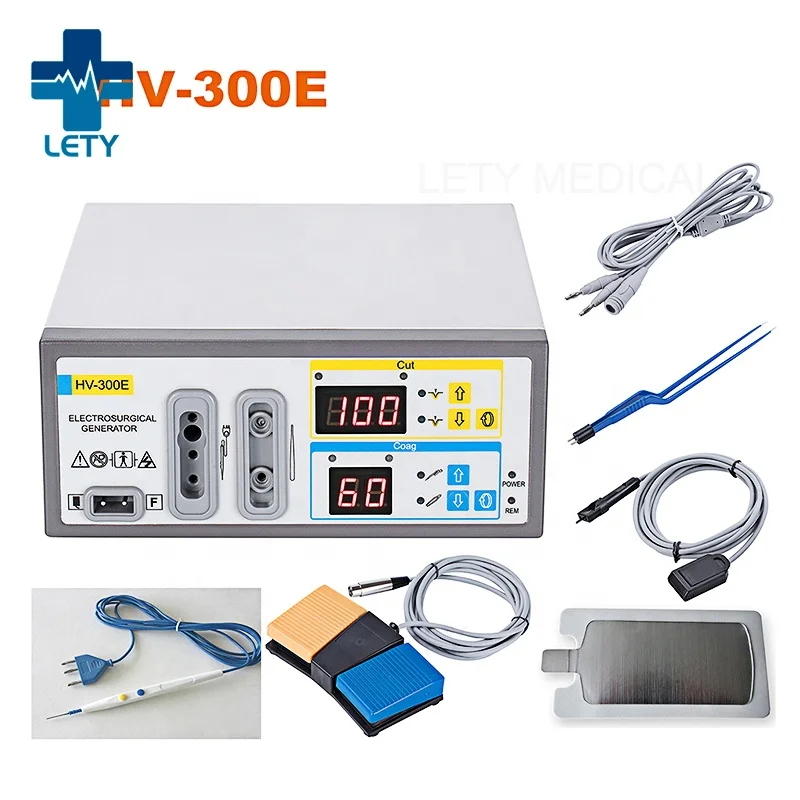

Electrosurgical Accessories
1.Power cable plug2.Disposable ESU pencil
3.Disposable ESU plate
4.Reusable plate cable
5.Two Button Footswitch
6.Reusable Bipolar forceps
7.Reusable Bipolar cable
