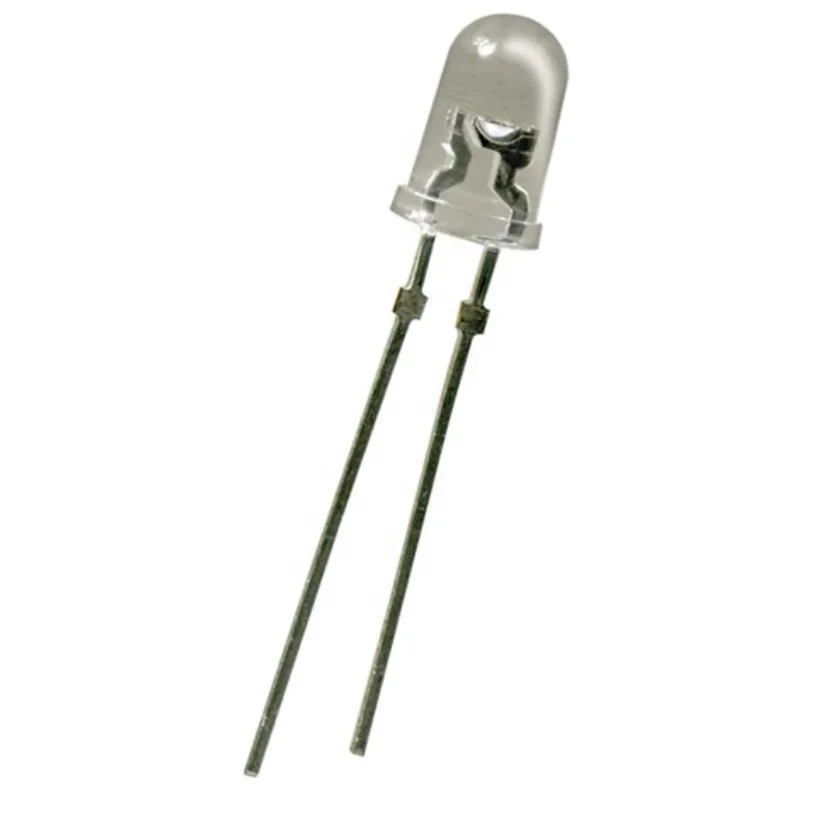

CE Certificated traffic bluish green color 498-500nm 9000-11000mcd Round Head Diode LED 5mm 20deg in diffused lens with
- Категория: Diodes, Transistors and Thyristors >>>
- Поставщик: Demo,Photoelectric,Technology,(Wuxi),Co.,Ltd.,[Jiangsu,China]Demo
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.97 $* | 1.24 $* |
| Jul-18-2025 | 1.72 $* | 1.62 $* |
| Jun-18-2025 | 1.34 $* | 1.98 $* |
| May-18-2025 | 1.44 $* | 1.24 $* |
| Apr-18-2025 | 1.74 $* | 1.59 $* |
| Mar-18-2025 | 1.73 $* | 1.96 $* |
| Feb-18-2025 | 1.84 $* | 1.39 $* |
| Jan-18-2025 | 1.1 $* | 1.85 $* |
Характеристики
Product Description
CE Certificated traffic bluish green color 498-500nm 9000-11000mcd Round Head Diode LED 5mm Through hole 20deg in diffused lens with stopper
CE Certificated traffic bluish green color 498-500nm 9000-11000mcd Round Head Diode LED 5mm Through hole 20deg in diffused lens with stopper
High-Quality Long Lifespan! Low Light Attenuation! Customize Manufacturing!
Product details
| Peak wavelength | 498-500nm |
| Forwar Voltage | 3.0-3.2V |
| Size | 5mm |
| Shape | Round Head |
| Power Dissipation | 150mW |
| Forward Current | 20mA |
| View Angle | 20 deg |
| Luminous Intensity | 9000-11000mcd |
| Port | Shanghai port |
| Lead Time | 7-10 days |
| Packaging Qty | 1000pcs/bag |
How to make customized LED?
The First Choice in LED Customized Manufacturing!
LED Manufacturer with 10+ years Experience!
High-Quality Long Lifespan LED!
Our Service
1)Customized View angles are acceptable! 10deg, 15deg, 30deg, 45deg, 60deg, 90deg, 120deg, 160deg, etc. for options!
2)Customized LED shapes for options, round head shape, bullet head shape, flat head shape, rectangle shape, oval shape, concave shape, straw-hat shape, etc.
3)Various LED size for options, 2mm/3mm/4mm/5mm/8mm/10mm
Notice for LED Handling
1)All personnel in direct contact with the LEDs throughout the process of use shall perform anti ESD measures. Do not touch the LEDs directly with hands
2) When welding, the operator needs to pay attention to the welding time, welding temperature, and the positive and negative poles of LEDs should be clearly distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated value.
Precautions for LED Soldering
1)The welding time should not exceed 3 seconds
2)The welding temperature is less than 260 ℃
3)Reflow welding is allowed only once
4)When welding, distinguish the positive and negative poles and avoid the lens to avoid damaging the lens.
5)When welding, distinguish the positive and negative poles of LEDs, take care to avoid touching the LED lens from lens-damaging.
6)Especially for IR LEDs and UV LEDs, try to take cooling measures as good as possible to provide adequate heat dissipation area.
7)For longer life of IR LEDs and UV LEDs, it is recommended to use a more stable constant current driver instead of a constant voltage driver.
Company Information
About us
Demo Photoelectric Technology (Wuxi) Co., Ltd.is a professional manufacturer in the design, manufacturing and sale of photoelectric light sources,and other photoelectric lighting applications. The company can be dated back to the former small sized manfacturer, Wuxi Demo Lighting Factory, which was established in 2005. Based on initial assembly lines for OEM orders, our main products lines have been successfully expanded to current LED light sources, LED illuminations and other highly-demanding photoelectric products.
Our Vision: Win-win cooperation is the only way to business success in the long run!
Company Certifications
