1 км ядро 2 ядра 4 ftth прямой кабель G657A2
- Категория: >>>
- Поставщик: Hangzhou,Jianye,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 44.79 $* | 45.46 $* |
| Jul-20-2025 | 36.5 $* | 37.65 $* |
| Jun-20-2025 | 44.97 $* | 45.99 $* |
| May-20-2025 | 43.99 $* | 44.18 $* |
| Apr-20-2025 | 35.94 $* | 36.31 $* |
| Mar-20-2025 | 43.15 $* | 44.65 $* |
| Feb-20-2025 | 42.51 $* | 43.14 $* |
| Jan-20-2025 | 42.20 $* | 43.96 $* |
Характеристики
Products Description
Self supporting wire LSZH 1 2 4 core ftth fiber optic drop ftth cable 2 core optic fiber cable
1core 2 core 4 core ftth drop cable 3 seling SM G657A2 Fiber optical drop cable

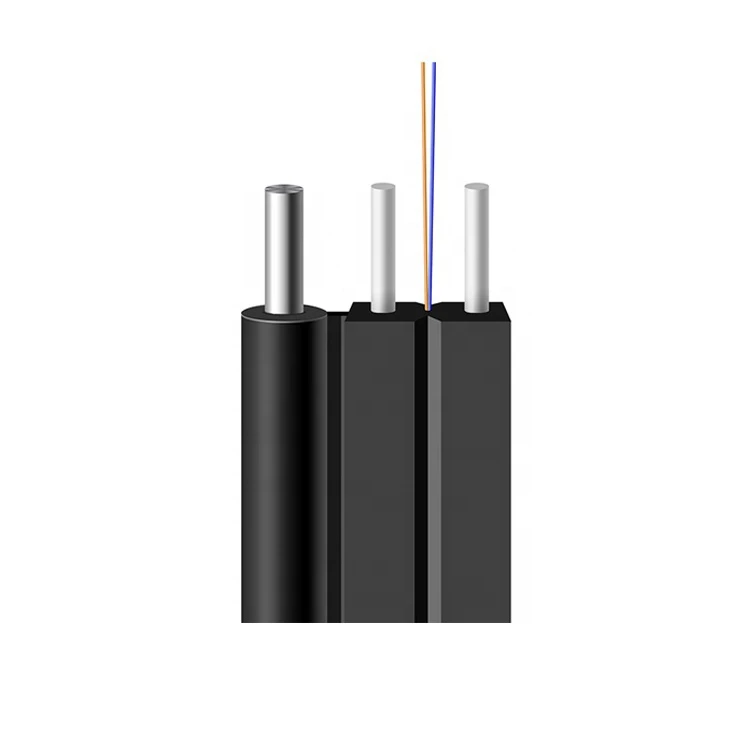

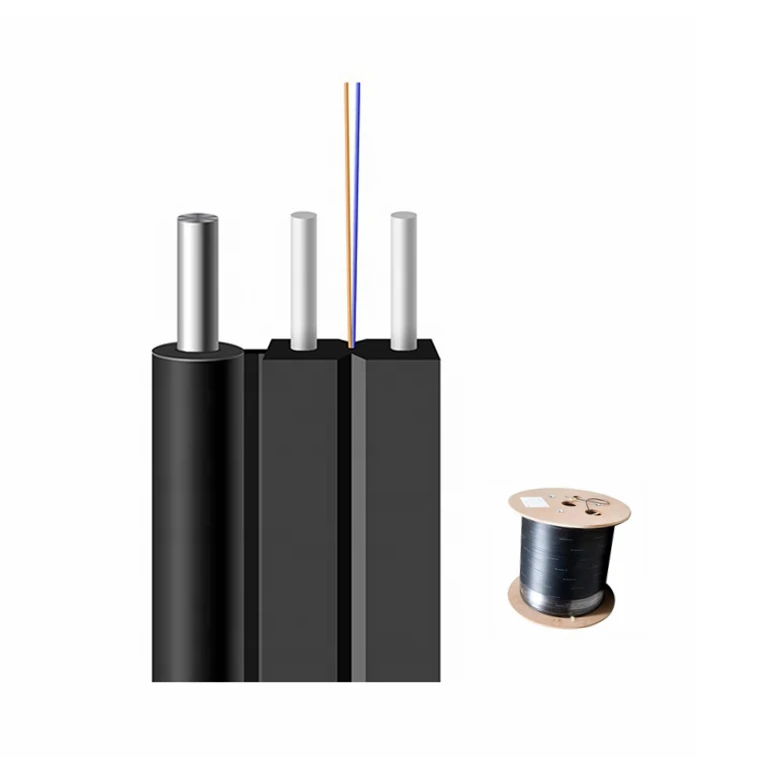

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in
the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally
extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally
extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
Item | Technology parameter |
Cable type | Drop Cable |
Cable Count | 1 2 4 6 8 12 |
Fiber color | Green, Yellow |
Fiber type | 9/125 (G657A2) |
Sheath color | Black and white |
Sheath material | LSZH |
Cable dimension (mm) | 3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1) |
Cable weight (Kg/km) | 15 |
Min. bending radius (mm) | 10 (Static) 25 (Static) 30 (Static) 60 (Static) |
Attenuation (dB/km) | 0.4 at 1310nm, 0.3 at 1550nm |
Short term tensile ( N) | 200; 600 |
Crush resistance (N/100mm) | 1000; 2200 |
Operation temperature (℃) | -20~+70℃ |
strength member | material | Galvanized steel wire/FRP/KFRP | |
diameter | 2*(0.5~0.8)mm | ||
Self support Messenger wire | material | Galvanized steel wire | |
diameter | 1.0mm | ||
Outer sheath | material | LSZH | |
diameter | 1.8±0.2mm | ||
Cable size (Height * width) | 2.0(±0.1) mm × 5.2(±0.2)mm | ||
Cable sheath thickness | Max. 0.8mm/Min. 0.4mm | ||
Messenger sheath thickness | 0.5~0.7mm | ||
Cable weight | 1~2core | 18.2KG | |
4-6 core | 18.5KG | ||
8~24core | 54KG | ||
Details Images
Characteristics:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath.
Application:
Directly installed into houses Aerial Installation Suitable for Condominiuml Office Installation
Access network, fiber to the home
End users use directly cabling.
Support the internet, CATV and telephone, Support more network increase service in futureGood mechanical and enviromental characteristic Anti-UV charateristics meet the requirements of relevant standards The mechanical charateristics meet the requirements of relevant standards Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission Meet various requirements of market and clients
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath.
Application:
Directly installed into houses Aerial Installation Suitable for Condominiuml Office Installation
Access network, fiber to the home
End users use directly cabling.
Support the internet, CATV and telephone, Support more network increase service in futureGood mechanical and enviromental characteristic Anti-UV charateristics meet the requirements of relevant standards The mechanical charateristics meet the requirements of relevant standards Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission Meet various requirements of market and clients
1core 2 core 4 core ftth drop cable 3 seling SM G657A2 Fiber optical drop cable
CLINK HERE FOR BEST PRICE !
Application
OUTDOOR
Aerial
FTTX FTTH
Product packaging
FTTH cable packing :
1). 1km/reel
2). 2km/reel
Color Box and OEM Package available.
20" Container Full Load: 650-680km.
40" Container Full Load: 1100-1180km.
Color Box and OEM Package available.
20" Container Full Load: 650-680km.
40" Container Full Load: 1100-1180km.
