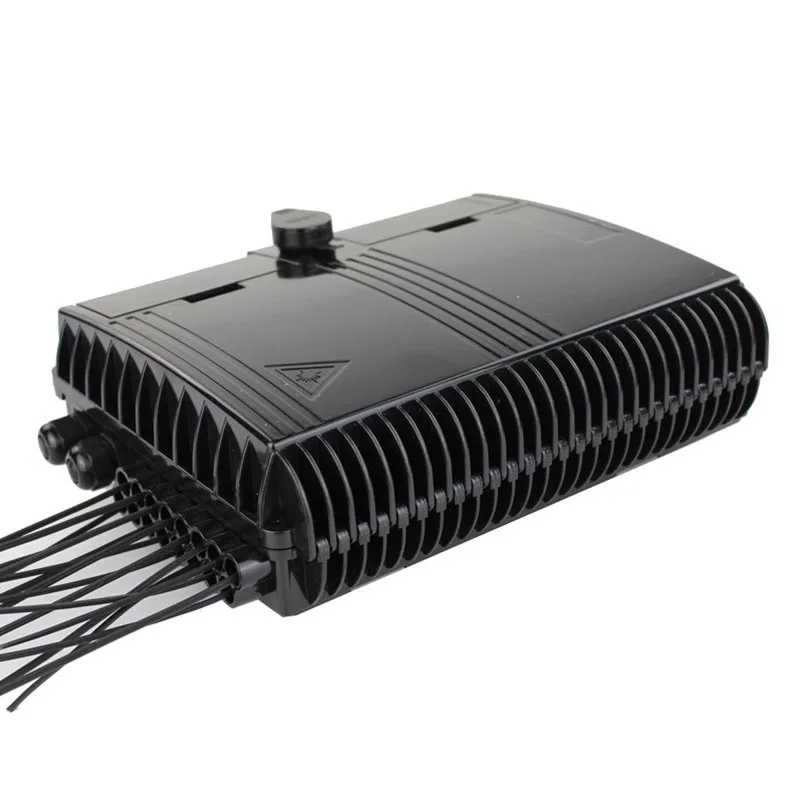

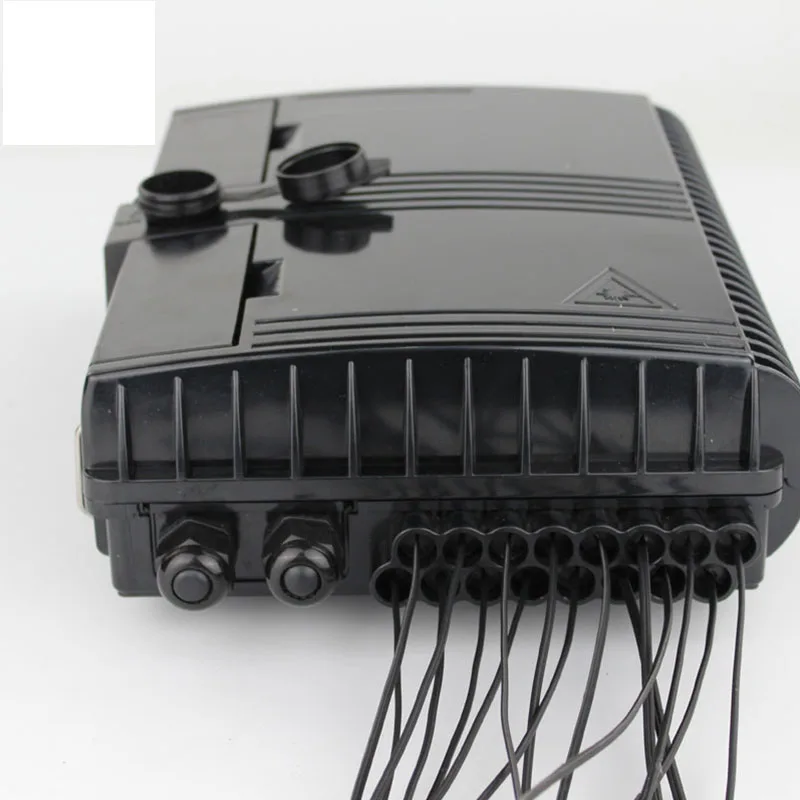

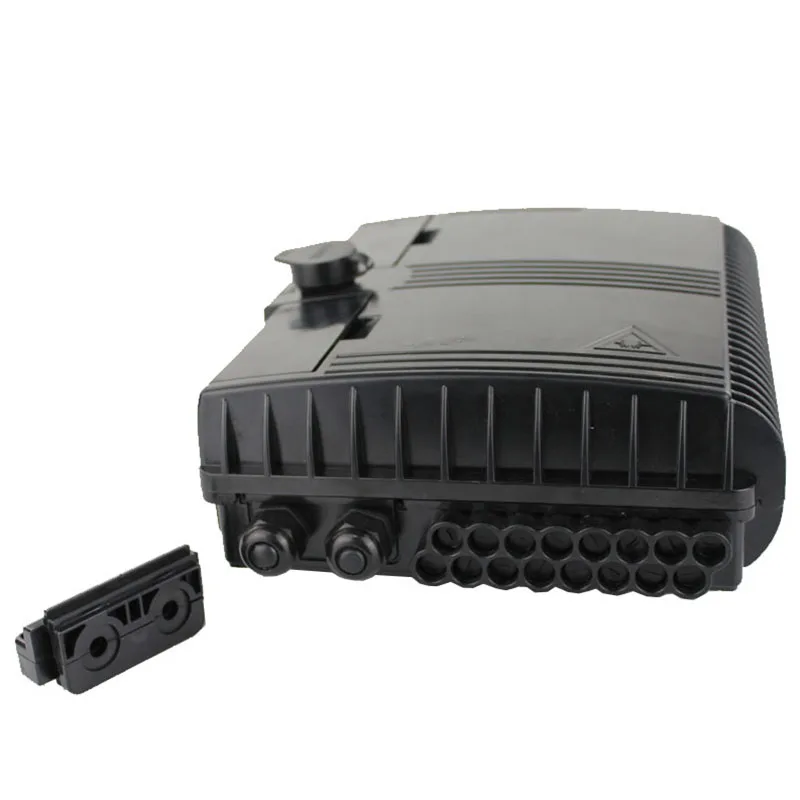

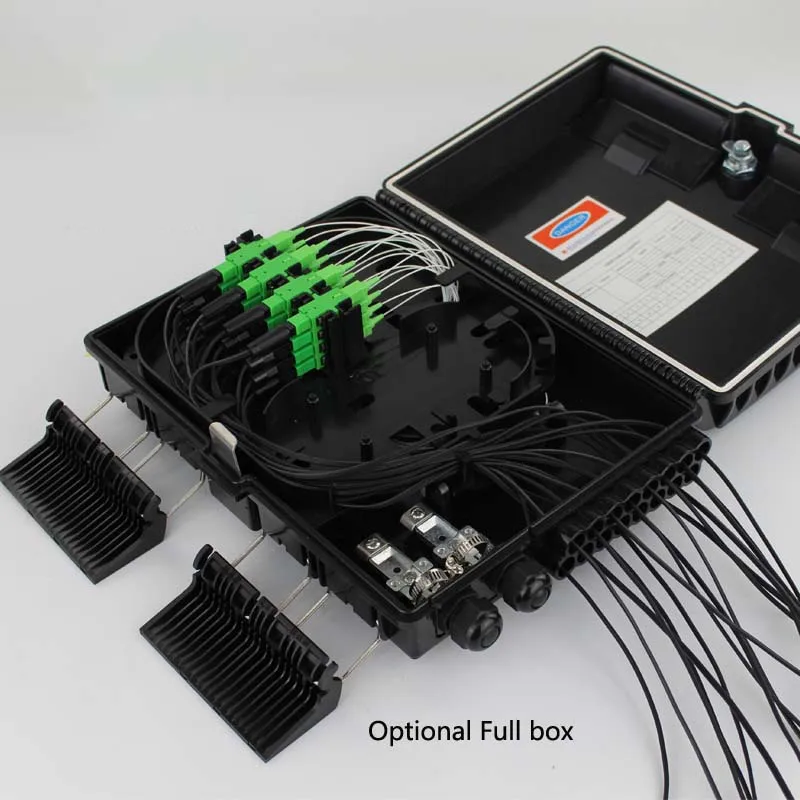

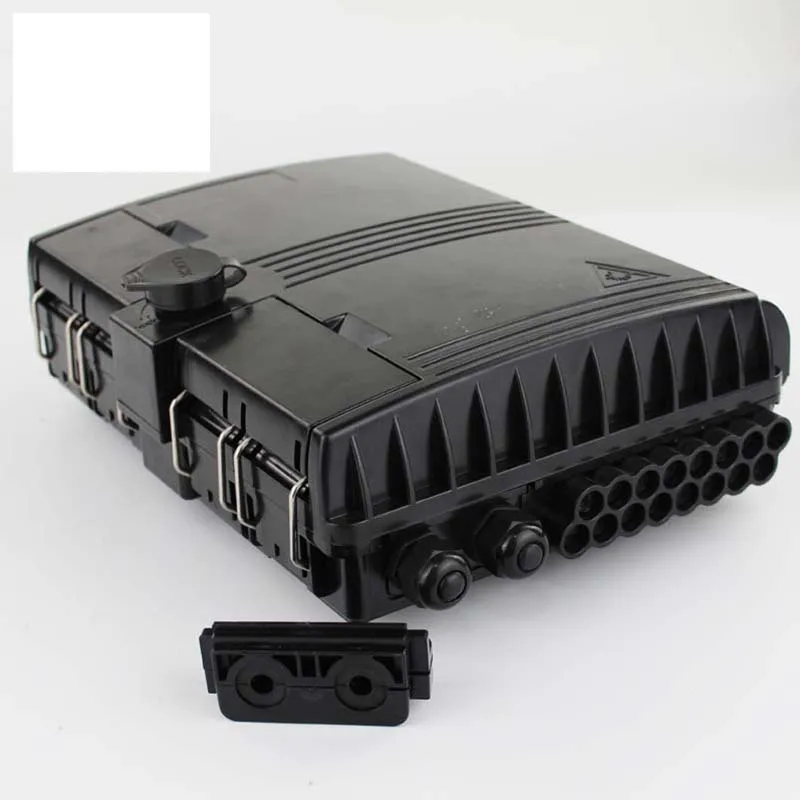

16 core optical fiber terminal box 16 ports ftth fiber optic distribution box outdoor wall mounted FTTH Box With Adapter
Product Description
Description
Optic Fiber Terminal Closure optic provides space and protection for the fiber optic cable splicing and joint.
Optic Fiber Terminal Closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.
Product Name
16 cores outdoor optic Fiber Terminal Closure
Material
ABS/PC+ABS/PC
imension (mm):
300*245*100 mm
Weight
1.565KG
Max Capacity
16 Core
Maximum install tray Number
2
Ports
2 inlet 16 outlet
Certification
Ip65/Ios9001
Features
1). High quality PC, ABS, PC Alloys material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes. 2). Solid structure, perfect outline, thunder, erosion and adding resistance. 3). Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused. 4). Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation. 5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.
Application
Widely used in FTTH access network. Telecommunication Networks CATV Networks Data communications Networks
Local Area Networks
Accessories
1,Stainless steel hoop(for customers chose)
2,wall mount kit 1 set
3,waterproof two dedicated lock key
1. Inter cable port sealing accessory for seal cable port if don't need use all of them.
2. Drop cable sealing accessory for seal drop cable port if don't need use all of them
3. Inter cable diameter adjuster, for cable diameter 8mm, 10mm, 14mm
