MST9000 + производитель автомобилей ECU ремонтный измерительный датчик MST-9000 инструмент для

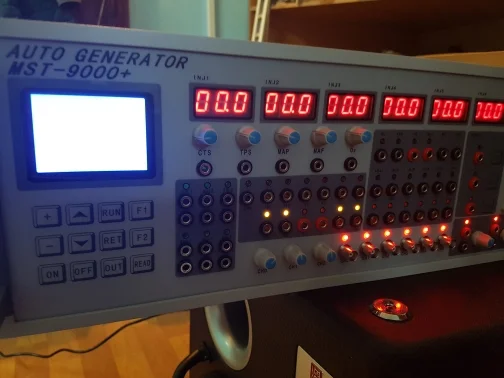

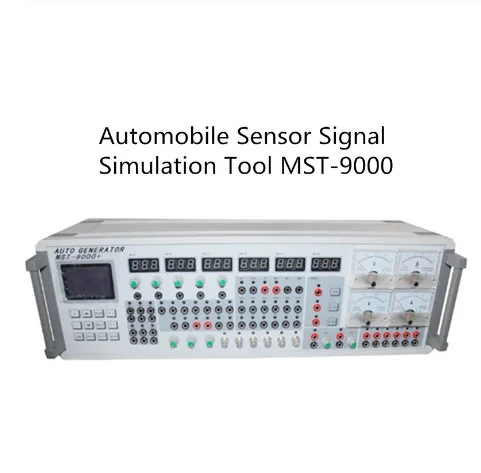

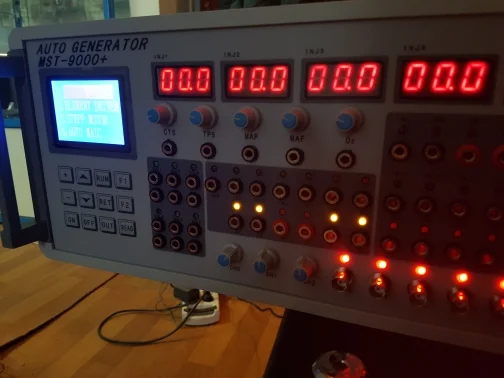

Newly ECU Repair Tool mst-9000 MST-9000 + Automobile Sensor Signal Simulation Tool MST 9000 with free shipping

Increase simulate knock sensor function, output port are KS1, KS2

Increase reserved port X1-X6 stand-by, the customer can set simulation signals as need

Description:

The Automobile Sensor Signal Simulation Tool is an very useful tool for professional technician during car ECU reparing & key programming.

This Automobile Sensor Signal Simulation Tool is an indispensive car ECU repair tool, with newly update and more stable function. After many years R&D and times of upgrades, now our sensor siginal simulation expert has been the most fix purchasing equipment with advance technology for many workshop and automobile training school.

Specifications

1.Sensor Signal Simulation Tool for all makes
2.Ecu repair tools automotive sensor simulator tester mst-9000 + New version 2012

ECU simulater, Automobile Sensor Signal Simulation Tool MST-9000+

Sensor Signal Simulation Tool detailed application range:

On the basis of MST-9000, MST-9000+ add function:

1. Increase simulate knock sensor function, output port are KS1, KS2
2. Increase reserved port X1- stand-by, the customer set simulation signals as need

1.Automobile sensor dynamic diagnosis, engine, transmission, ABS, air-conditin, Immo etc. for ECU repairing, auto teaching aid model driver, automobiles R&D.
2.This Sensor Signal Simulation Tool is fit for multi-brands cars made in Asia, Europe, USA.

1.Sensor Signal Simulation Tool for all makes
2.Ecu repair tools automotive sensor simulator tester mst-9000 + New version 2012
Description:

The Automobile Sensor Signal Simulation Tool is an very useful tool for professional technician during car ECU reparing & key programming.

This Automobile Sensor Signal Simulation Tool is an indispensive car ECU repair tool, with newly update and more stable function. After many years R&D and times of upgrades, now our sensor siginal simulation expert has been the most fix purchasing equipment with advance technology for many workshop and automobile training school.

Major Function:

1. Users set the engine control system, independent of different types of crank signal output (for all models of computer-driven)
2. Automatic transmission input and output shaft signal simulation
3. Set the waveform data is written directly
4. Engine signal output
5. signal output (Hall signal, magnetic signal)
6. Three, four-channel ABS wheel signal output
7. PC board working current test
8. EGR solenoid valve drive
9. Carbon clear the solenoid valve drive
10. Tachometer drive
11. Blower Control Module Driver
12. Idle valve driver
13. Stepper motor drive (4, 6 lines)
14. Injector Driver
15. Ignition coil driver
16. Ignition module drive
17. Parking sensor (ultrasound) probe drive
18. Automatic Shift Valve Drive
19. Shift quality valve drive
20. hydraulic valve drive
21. Water temperature, intake air temperature, outdoor temperature, evaporation temperature sensor signal simulation box
22. Oxygen sensor signal simulation (manual)
23. Oxygen sensor signal simulation (auto signal)
24. Throttle signal simulation
25. Carbon clear the solenoid valve simulation
26. EGR solenoid valve simulation
27. Air flow sensor, intake air pressure sensor (analog, digital) signal simulation
28. Ignition coil simulation
29. Injector simulation
30. Idle stepper motor simulation (four-lane, six-lane)
31. A / C relay simulation
32. Pump relay simulation
33. Radiator fan relay simulation
34. Audio signal outputs, power amplifier driver
35. Automatic Shift Valve, shift quality valves, hydraulic control valve simulation
36. Fuel injection pulse width measurement
37. Central lock server simulation
38. Burglar resistance simulation
39. User Extension

Special Feature:
1. All cars crank signal simulation experts
It be set arbitrary waveform output, produce all the models of today`s engine crankshaft, camshaft signals (Hall, magnetic, optical signals), waveform data, waveform memory card from the long-term preservation, waveform data for free online updates.
2. All cars sensor signal simulation experts
signal, signal (Hall, magnetic, optical signals), ABS wheel signal, the oxygen sensor signal, throttle signal, air flow, inlet pressure sensor (analog, digital) and other signal simulation
3. All cars Actuator experts
Tachometer, odometer, blower control module, injector, ignition coil, ignition module, frequency and pulse width control solenoid valve, stepper motor drive (four-lane, six-lane), car audio amplifiers, etc. etc all cars actuator simulation experts:
Actuators simulation for Ignition coil, injectors, idle stepper motor, ultrasonic generators etc.
Strong domestic first-line five-channel editing functions crank signal
Five arbitrary wave signal analog output


Output signal: magnetic signals, Hall signals, optical signals
1. Actuator
Drive current 3A, 1% ~ 99% duty cycle continuously adjustable frequency continuous adjustment;
2. Sensor Signal Simulation: resistance 100&; ~ 10000&; voltage of 0V ~ 5V × 2 0V ~ 1.5V 0V ~ 12V
3. The implementation of simulated driving: 69-channel simultaneous output
4. Stepper motor drive: current 1A, applicable to all vehicles with four, six, stepping motor driver;
5. Ammeter maximum test current: 5A

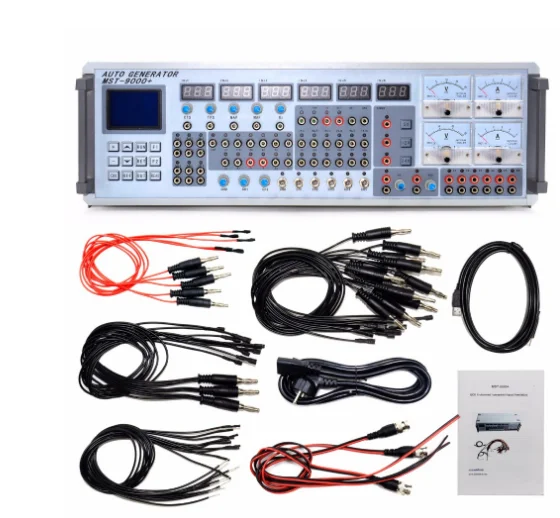

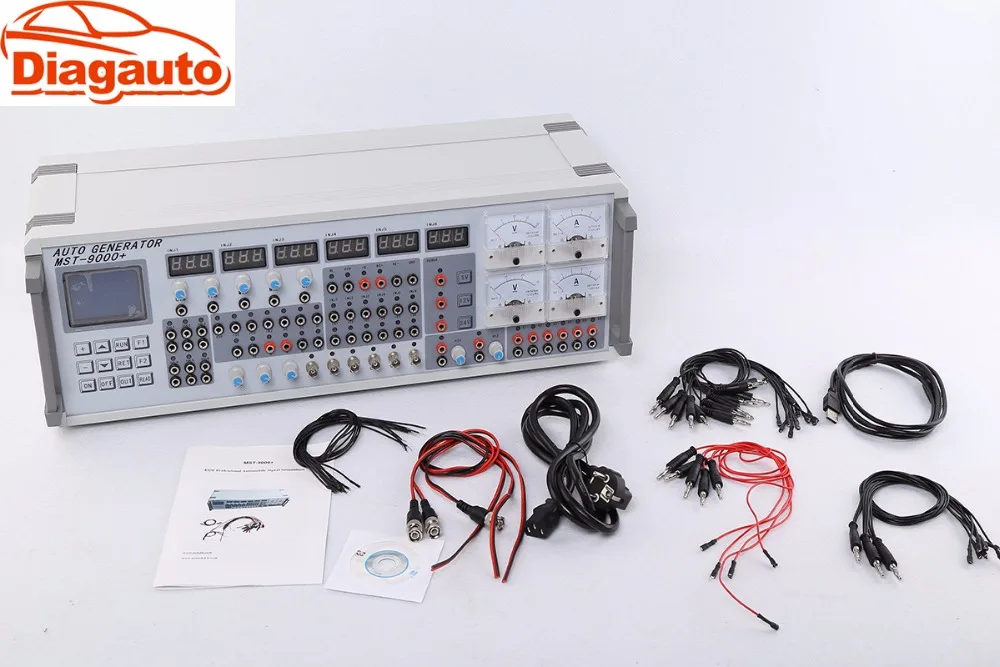

Automobile Sensor Signal Simulation Tool Packing List:

1, sensor signal simulation expert Gold Edition 1 set

2, the data line 2
3, the power line 1
4, waveform memory card 1
5, computer data CD 1
6, equipment manual 1
7, sensor signal simulator driver board 1
8, actuator driver board 1

Panel Instruction:
