5 8 16 24 port 10/100/1000Mbps unmanaged Plug and Play desktop gigabit Ethernet network switch
Introduction
ES1000 series are gigabit unmanaged Ethernet switch. The series offer 5/8/16/24 port 10/100/1000Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using store and-forward technology, combined with dynamic memory allocation, ensures allocate to each port effectively. Its wire speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
There are four main models in this series:
ES1000-5G
5*10/100/1000Mbps Ethernet Ports
ES1000-8G 8*10/100/1000Mbps Ethernet Ports
ES1000-16G 16*10/100/1000Mbps Ethernet Ports
ES1000-24G 24*10/100/1000Mbps Ethernet Ports
Main Features
Ø Complies with IEEE 802.3, IEEE 802.3u standards
Ø 5/8/16/24 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Ø Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex
mode
Ø Supports MAC address auto-learning and auto-aging
Ø LED indicators for monitoring power, link, activity
Ø Plastic case, desktop
Ø External Power Adapter supply
Ø Desktop or wall-mounting design
Ø Plug and Play design simplifies installation
Specifications
Model

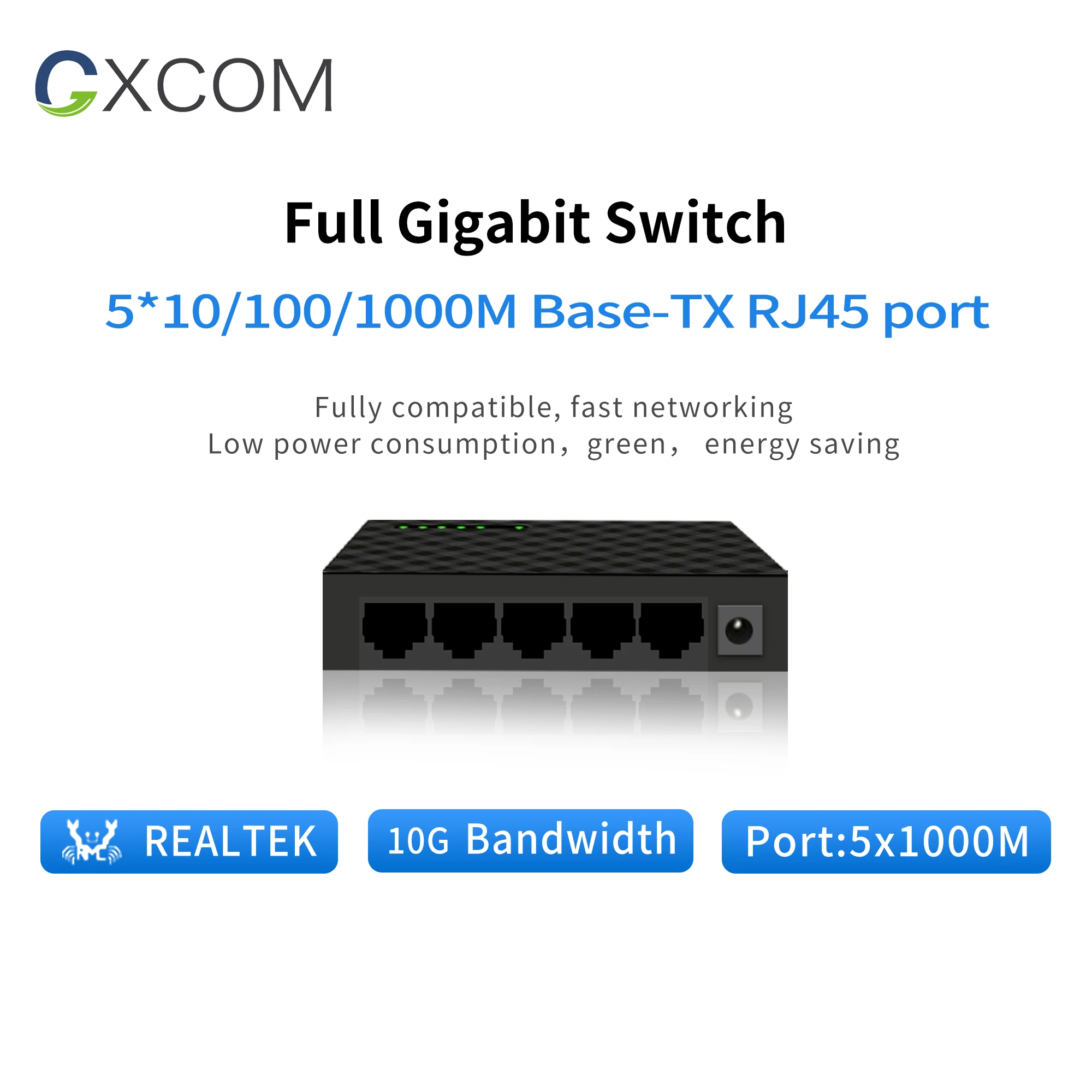

ES1000-5G
Interface
5*10/100/1000Mbps RJ45
Switch Capacity
Bandwidth: 10Gbps
Power Input
DC12V/0.5A
Dimension
120*60*30mm (L*W*H)
Weight
0.5kg
Model

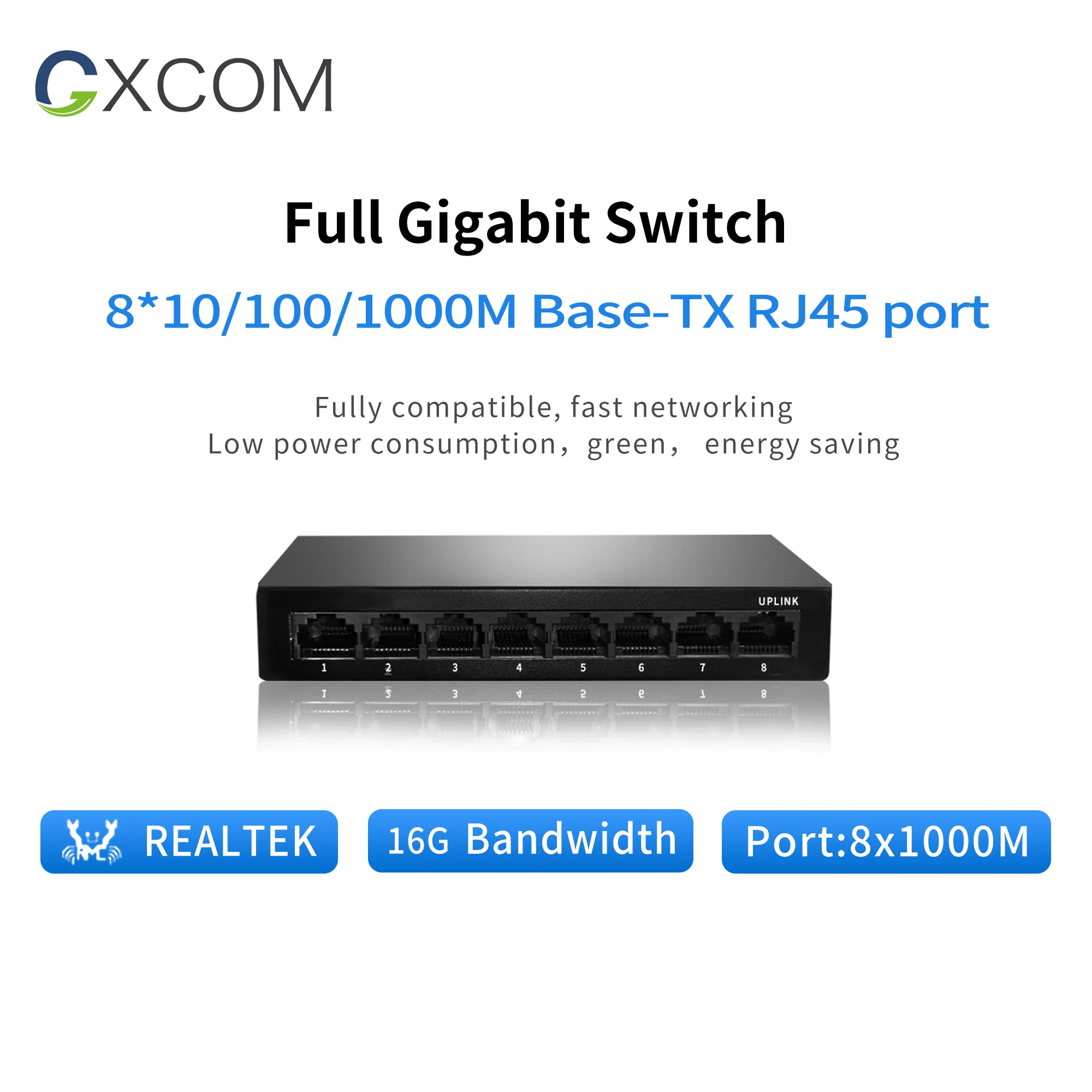

ES1000-8G
Interface
8*10/100/1000Mbps RJ45
Switch Capacity
Bandwidth: 16Gbps
Power Input
DC12V/0.5A
Dimension
160*70*30mm (L*W*H)
Weight
0.85kg
Model

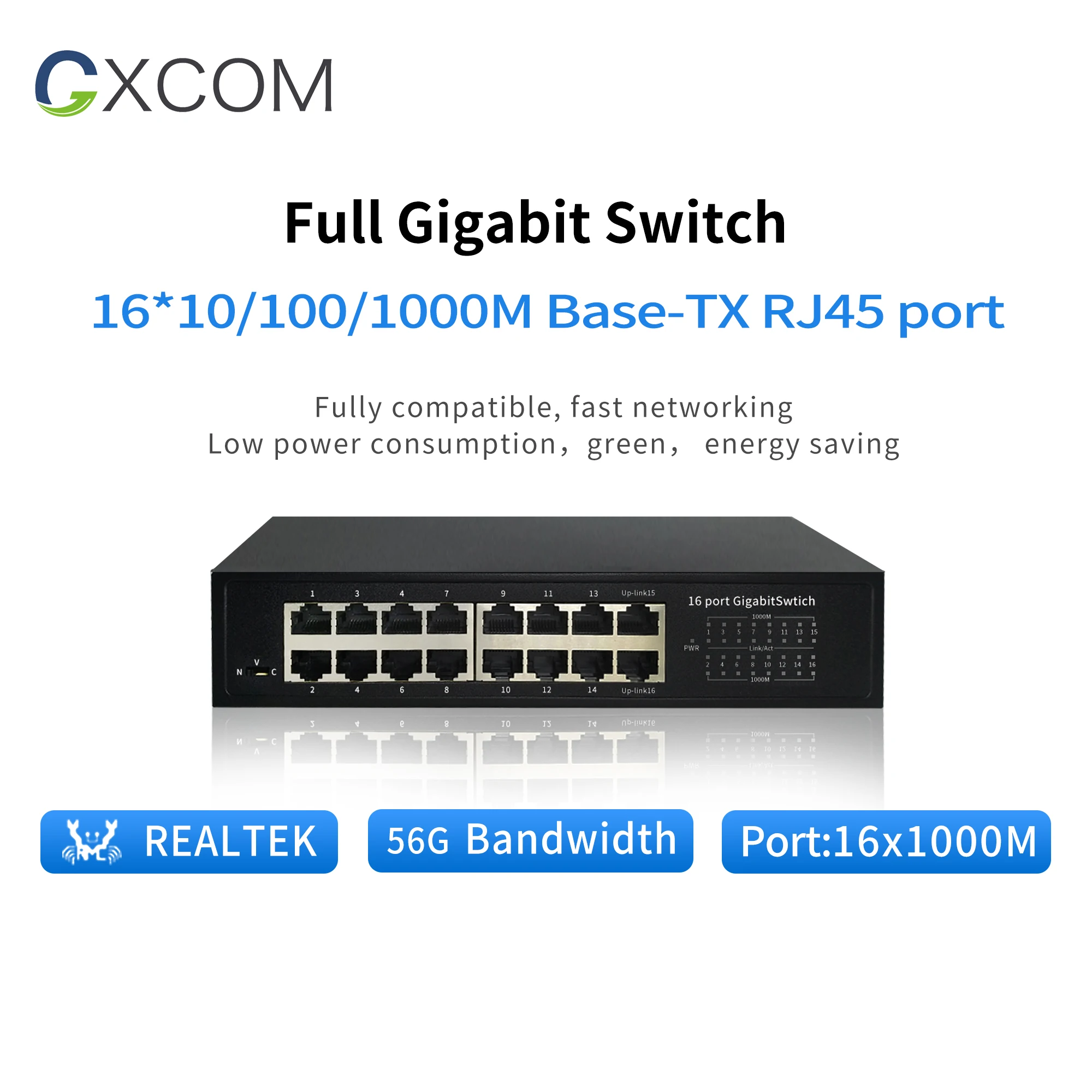

ES1000-16G
Interface
16*10/100/1000Mbps RJ45
Switch Capacity
Bandwidth: 56Gbps
Power Input
DC12V/0.5A
Dimension
210*100*45mm (L*W*H)
Weight
2kg
Model
ES1000-24G
Interface
24*10/100/1000Mbps RJ45
Switch Capacity
Bandwidth: 128Gbps
Power Input
DC12V/0.5A
Dimension
300*150*45mm (L*W*H)
Weight
2.5kg

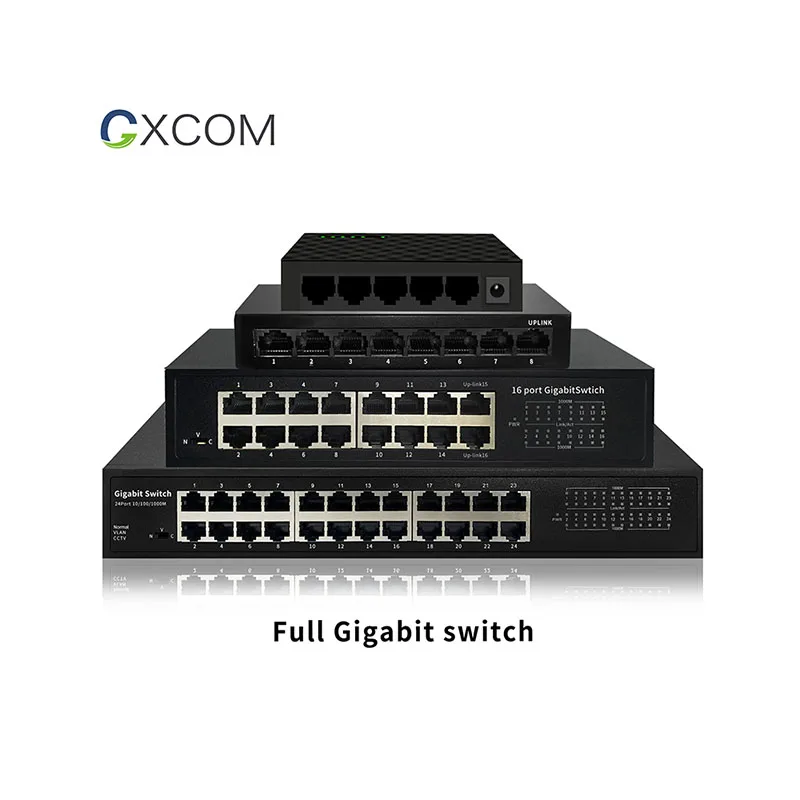

Product Images
