36-38 мм конусные сверла отбойный молоток с конусным

Описание и отзывы

Трекер стоимости

Характеристики

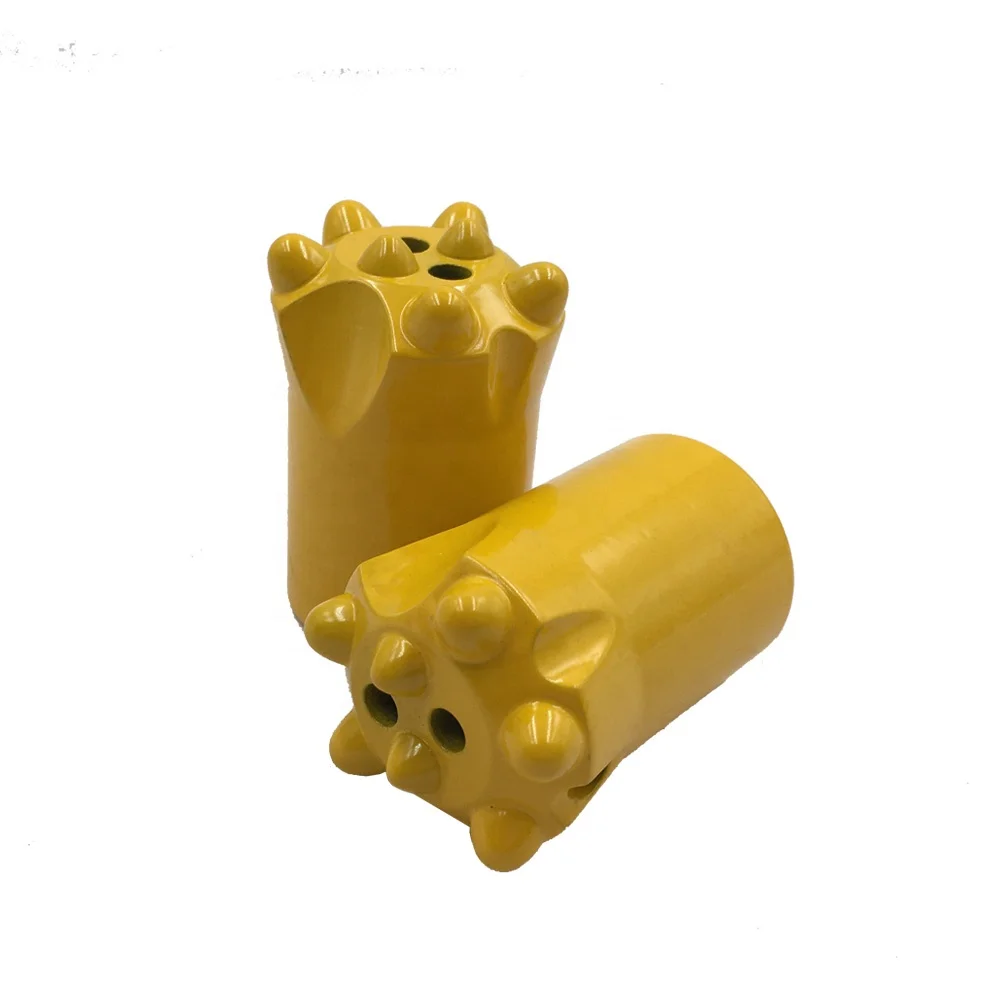

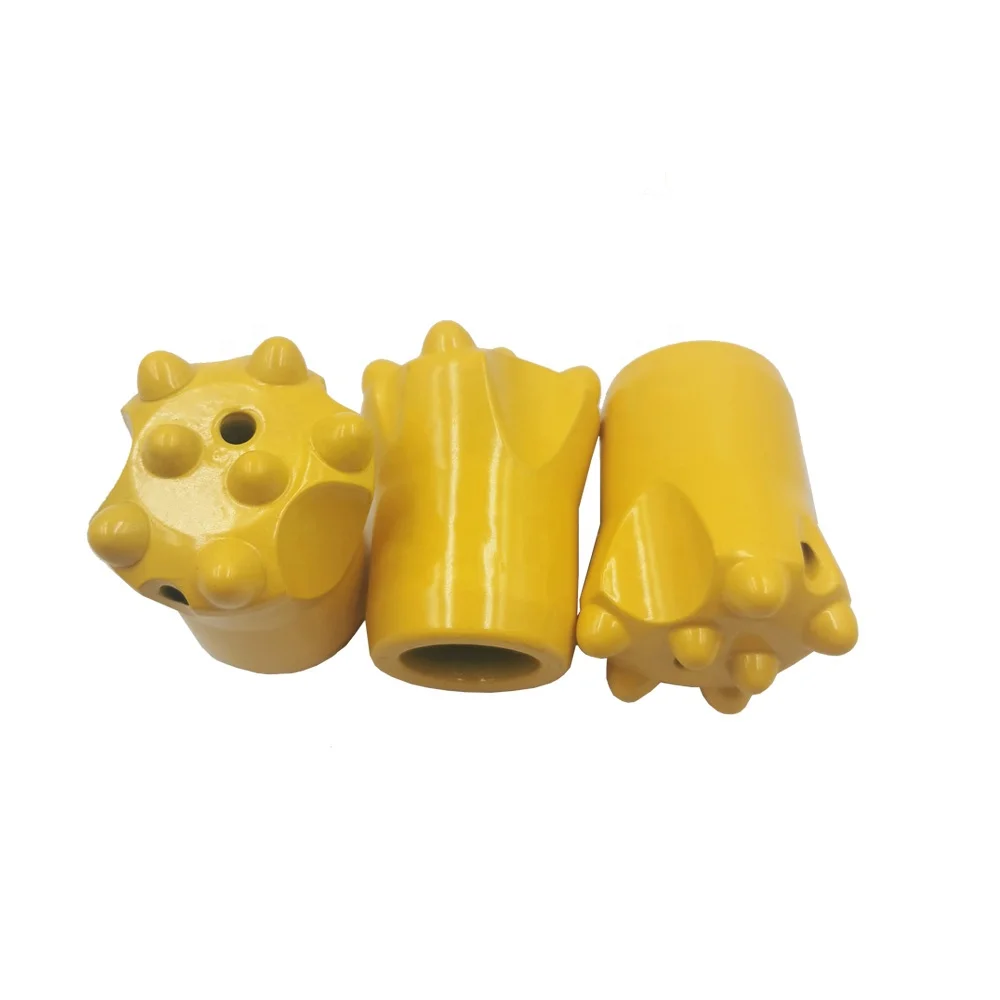

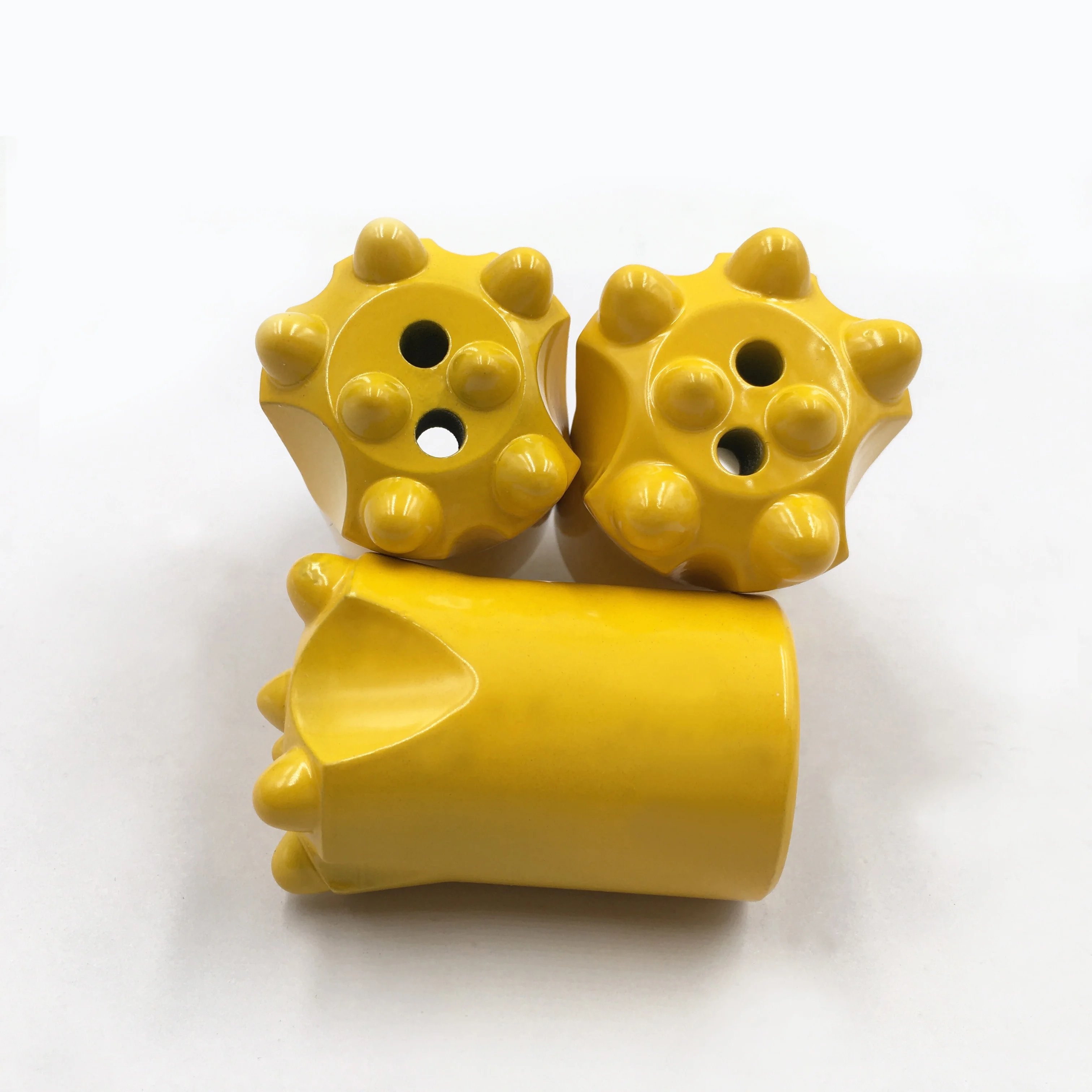

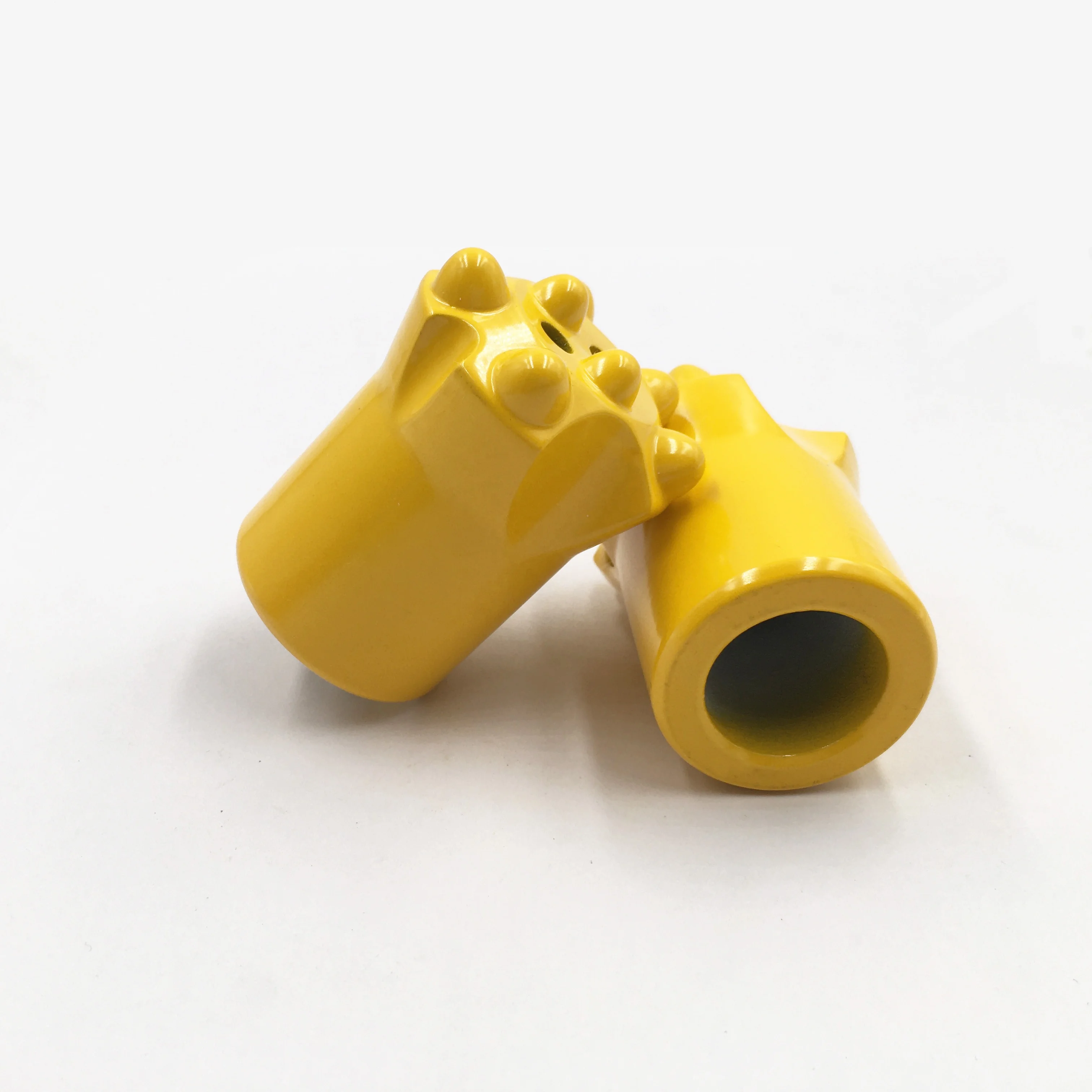

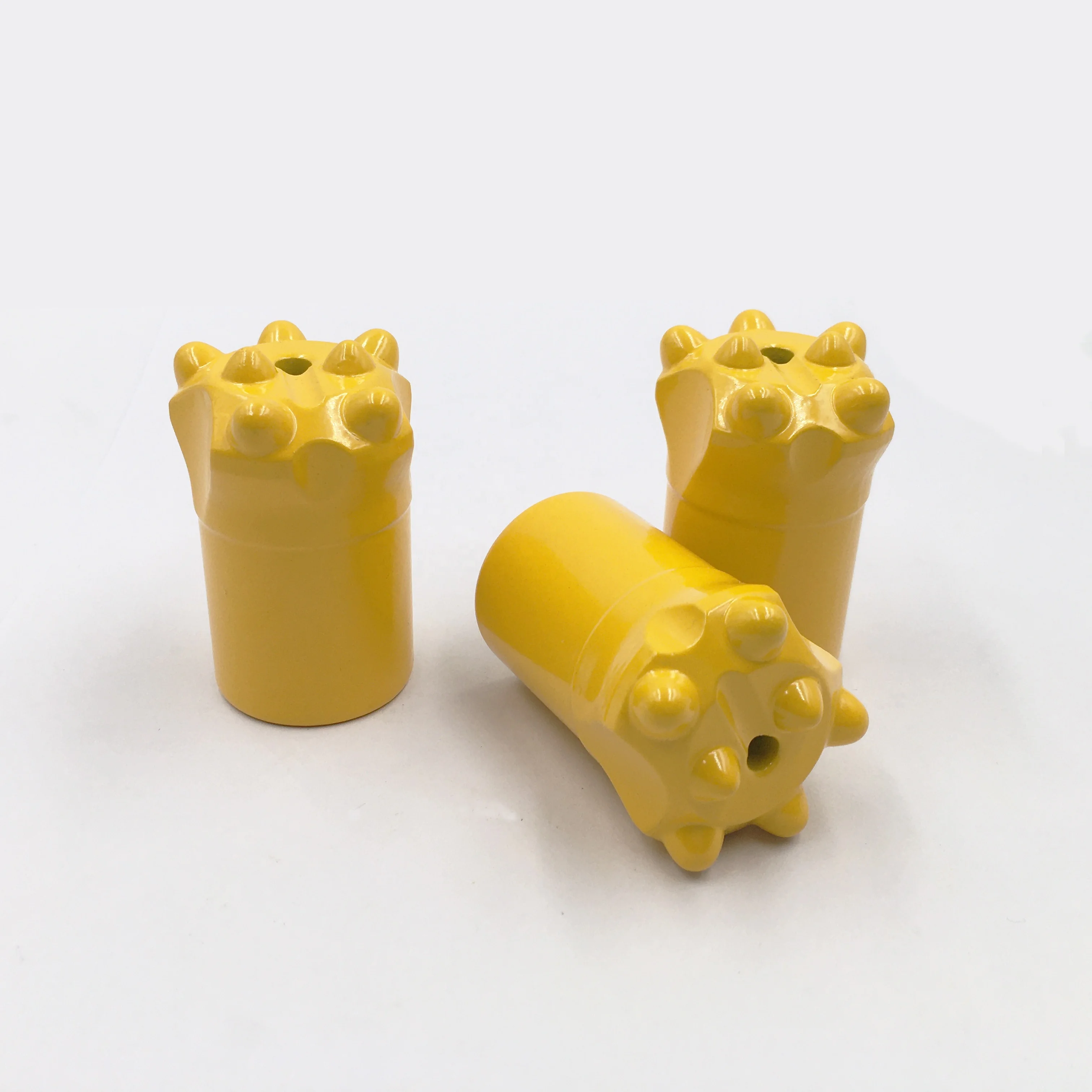

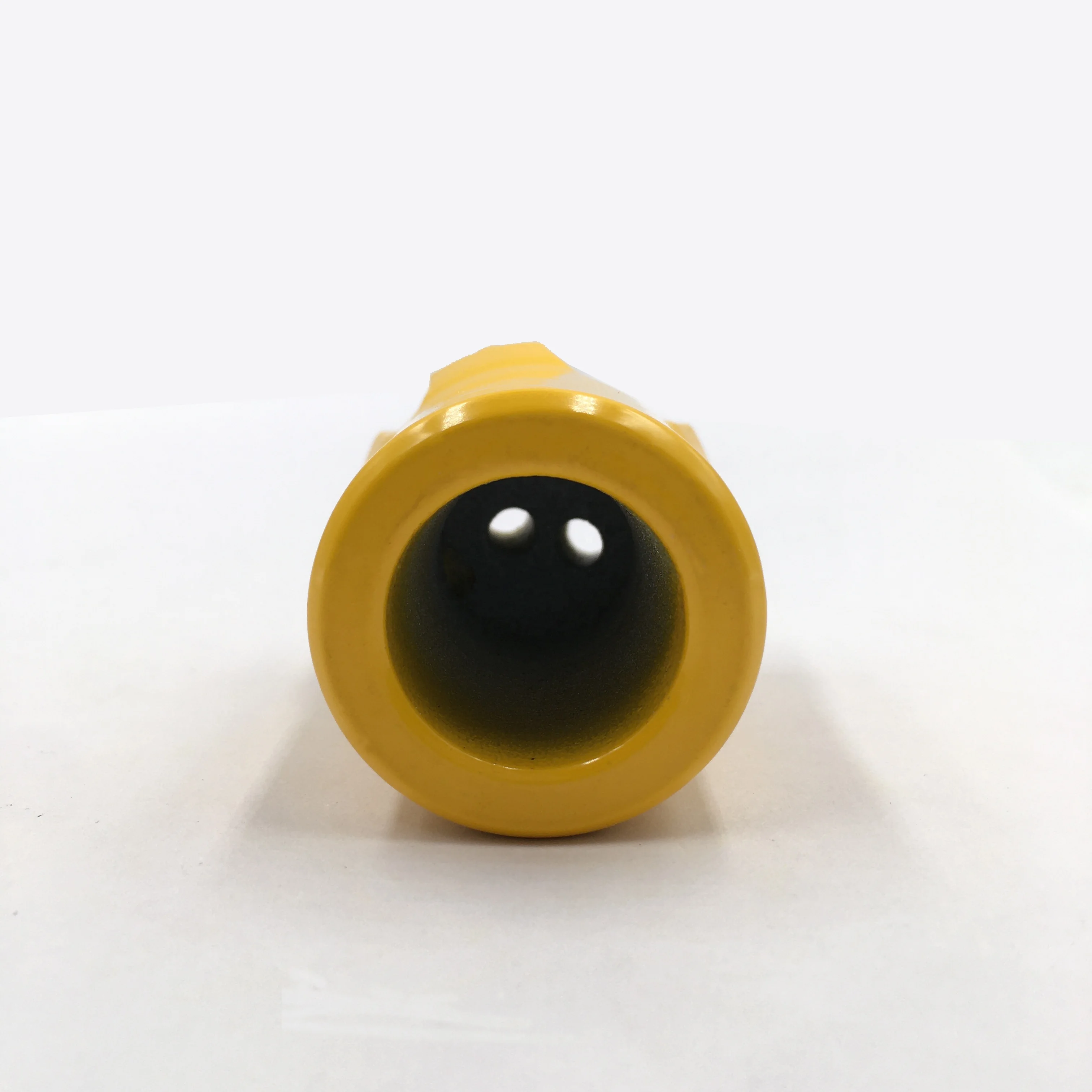

Products Name	36 and 38 mm conical buttons  jack hammer tapered drill bits
Description	Material:Timken steel + Element six carbides  Insert Tech.: Hot pressed carbide inserts
Diameter	26mm to 60mm
Taper Degree	4°46’, 6°, 7°, 11°, 12°;
Carbide Type	Chisel type, Cross type, Button type.
Shank Size	Hex. 19mm, Hex, 22mm and Hex. 25mm
Button type	Hemispherical, Parabolic, Ballistic, Conical
Advantage	80%-90% lifespan of world top brands, reliable quality proved by our customers.
MOQ	No requirements for testing or trail order
Customized service	We can make products as customer's requirements



Taper Button Bits Parameter:



For 22 mm (7/8") rod.  11° taper.  Short Skirt.
Diameter		Buttons		Flushing hole		Length	Part Number	Weight
mm	inch	Gauge	Front	Side	Front	mm		Kg
32	1 1/4	5x7	2x7	1	1	50	TB32H22S11C521	0.35
32	1 1/4	6x7	2x7	1	1	50	TB32H22S11C621	0.35
34	1 11/32	4x8	2x7	1	2	50	TB34H22S11C422	0.39
34	1 11/32	5x7	2x7	1	1	50	TB34H22S11C521	0.40
35	1 3/8	6x7	2x7	1	2	50	TB35H22S11C622	0.41
36	1 27/64	4x8	2x7	1	2	50	TB36H22S11C422	0.45
36	1 27/64	5x8	2x7	1	1	50	TB36H22S11C521	0.45
36	1 27/64	5x8	2x7	1	2	50	TB36H22S11C522	0.45
38	1 1/2	3x9	1x9	1	1	50	TB38H22S11C311	0.45
38	1 1/2	3x9	2x7	1	1	50	TB38H22S11C321	0.45
38	1 1/2	5x9	2x7	1	1	50	TB38H22S11C521	0.45
38	1 1/2	5x9	2x7	1	2	50	TB38H22S11C522	0.45
40	1 37/64	3x9	1x9	1	1	50	TB40H22S11C311	0.48
40	1 37/64	3x9	2x8	1	1	50	TB40H22S11C321	0.48
40	1 37/64	5x9	2x8	1	1	50	TB40H22S11C521	0.48
40	1 37/64	5x9	2x8	1	2	50	TB40H22S11C522	0.48
41	15/8	5x9	2x8	1	2	50	TB41H22S11C522	0.48





























FAQ:



Q1: Are you a manufacturer?

Yes, we own 3 plants to manufacture various drilling products about 17 years .

We are a one-stop supplier of full range of rock drilling products.



Q2: Are your products high quality ?

Yes .Our customers made the test reports proved that.If you need more information,please contact  us.



Q3: What kind of payment terms do you offer and what is your best payment terms?

We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc.

Our best payment terms is 120 days after shipping date for our distributors and sole distributors.



Q4:Do you offer warranty on your products?

Yes, for different products we offer different warranty that cover all manufacturing defects in materials and workmanship.

The longest period of warranty is 2 years after shipping date.



Q5: Do you offer OEM service?

Yes, we can offer OEM service if you have regular requirement.



Q6: Where did you export ?

Till 2020 we have exported to 103 countries.
