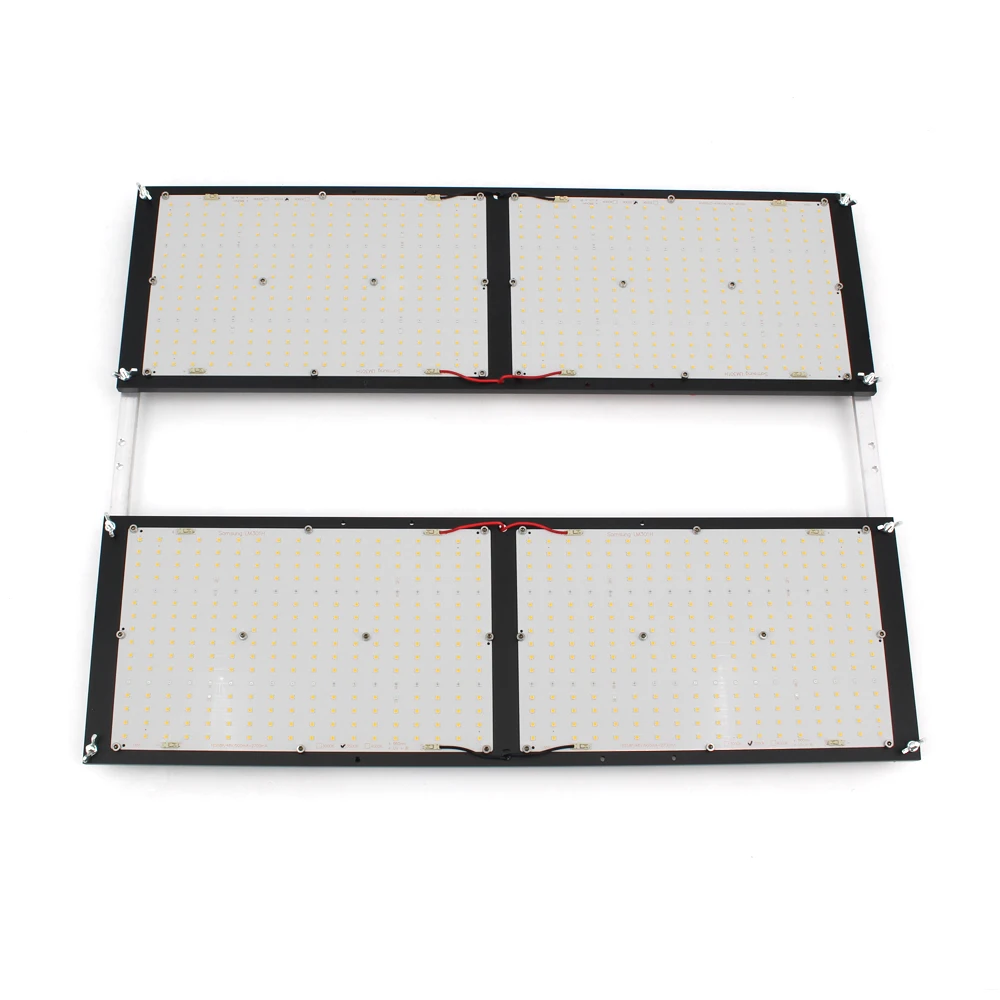

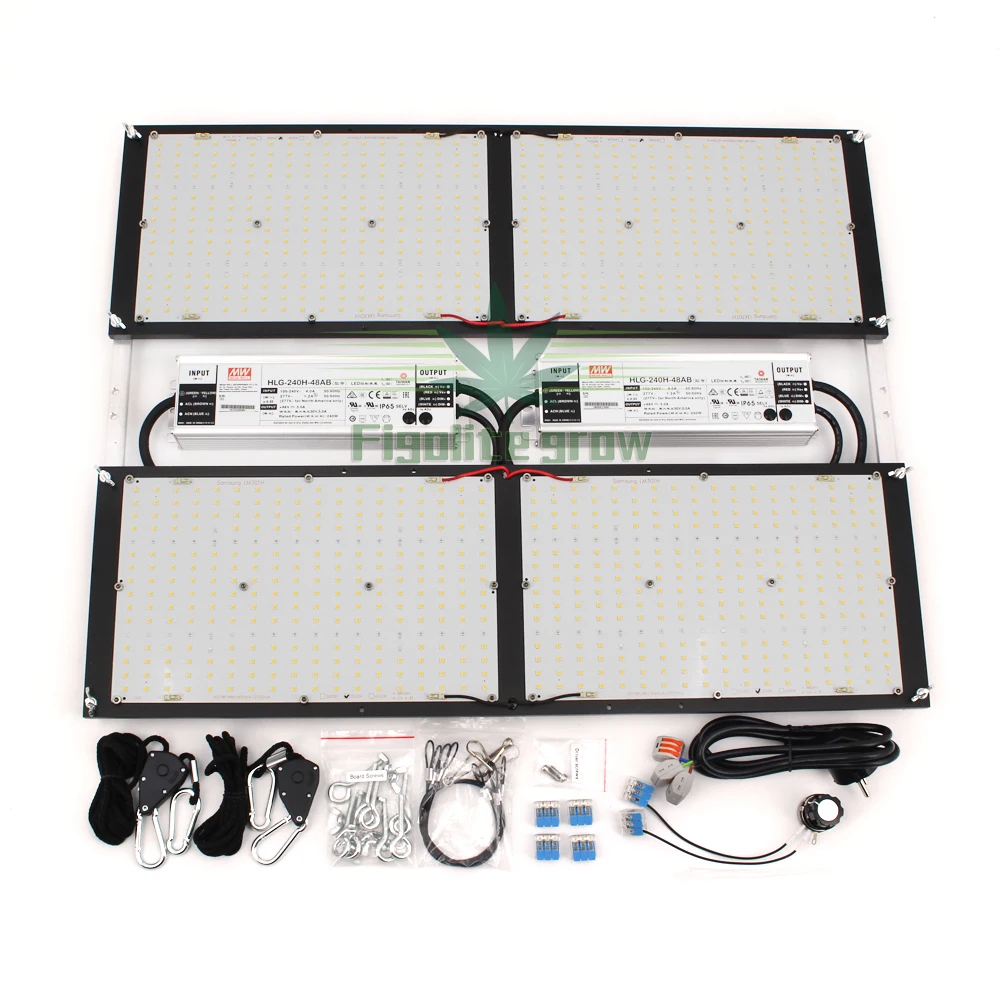

4pcs - LED grow light Board LM301H
2pcs - Heatsink 634*396*10mm
2pcs - Dimmable driver Meanwell 240H-48AB
1pcs - Dimmer 100K linear potentiometer
Other Components (Plug wire+Quick connect terminal+Hanging Rope+Screws)





Top Features

· High-efficiency custom-designed white light LED boards with Samsung LM301H diodes

· 3000K, 3500K or 4000K full spectrum for optimal canopy penetration and easy viewing

· Ideal for seedling to harvest growth

· Reliable passive-cooled design (no cooling fans required)

· Optimal canopy penetration with diffused light via a large form factor

· Optional lenses for narrower beam angle and increased intensity

· Dimmable high-efficiency driver Meanwell



Why LM301H?



Samsung's latest LM301H LEDs which are 16.5% more efficient than the LM301B's!
3.10 μmol/J compared to the LM301B 2.60 µmol/J
Not only does the LM301H diode offer a fuller spectrum light, it also outputs a higher intensity light while using the same amount of electricity as the lm301b diode, meaning powering your tents just got even cheaper. The LM301H diode is the highest μmol/J of any Quantum LED to date. With the combined increased light output with a wider light spectrum that more closely mimics the sun, the lm301h quantum LED will quickly become the new standard diode used in top tier High Performance LED grow lights.

LM301H also has the anti-sulfurization characteristics that LM301B does not have, which makes it have a longer service life under special planting environment.







PAR Chart





Specs

Wattage draw: 480 watts (dimmable on driver)

HID equivalent: 1000 watt single-ended HID fixture

LEDs: 1452 xTop-Bin Samsung LM301H diodes

PPF: 1496 umol/s

Lumens: 80,833

PAR efficacy: 3.1 umol/j

Coverage area:

· Veg: 6' x 6'

· Flower: 4.5' x 4.5' or 5' x 5'

Mounting height:

· Flower: 18"-24"

· Veg: 24"-36"

Thermal management: Passive cooling

Weight: 19 lbs (~8 kg)

Dimensions: 26” x 20” x 2”

Outer packaging: 29" x 24" x 5"

Operating/input voltage: 90-277VAC; 50Hz-60Hz

Amperage: ~4.22A @ 120V; ~2.16A @ 240V

Finish: Clear anodized aluminum

Product includes:

· Fixture with 120V or 240V US cord and plug (UK, AU, or EU cord and plug available on request)

· Dimmable driver

· Rope ratchet hangers

Recommended for:

· Grow tents

· Grow rooms

· Large indoor grows

· Vegetative growth and/or flowering

· Full-cycle growing from seedling to flower

· Soil, hydroponic, aeroponic, or aquaponic systems

Manufacturer's warranty: 7-years



















Trade Terms:

1. Payment term: T/T in Advance. (30% deposit by T/T or Westernunion; 70% before delivery for bulk order.)

2. Delivery time: 3-7 days for regular order; 7-15 days for bulk order.

3. Shipping terms: FOB Shenzhen, China.

4. Discounts will be dertermined by quantity.

5. Welcome distributors to cooperate together.
