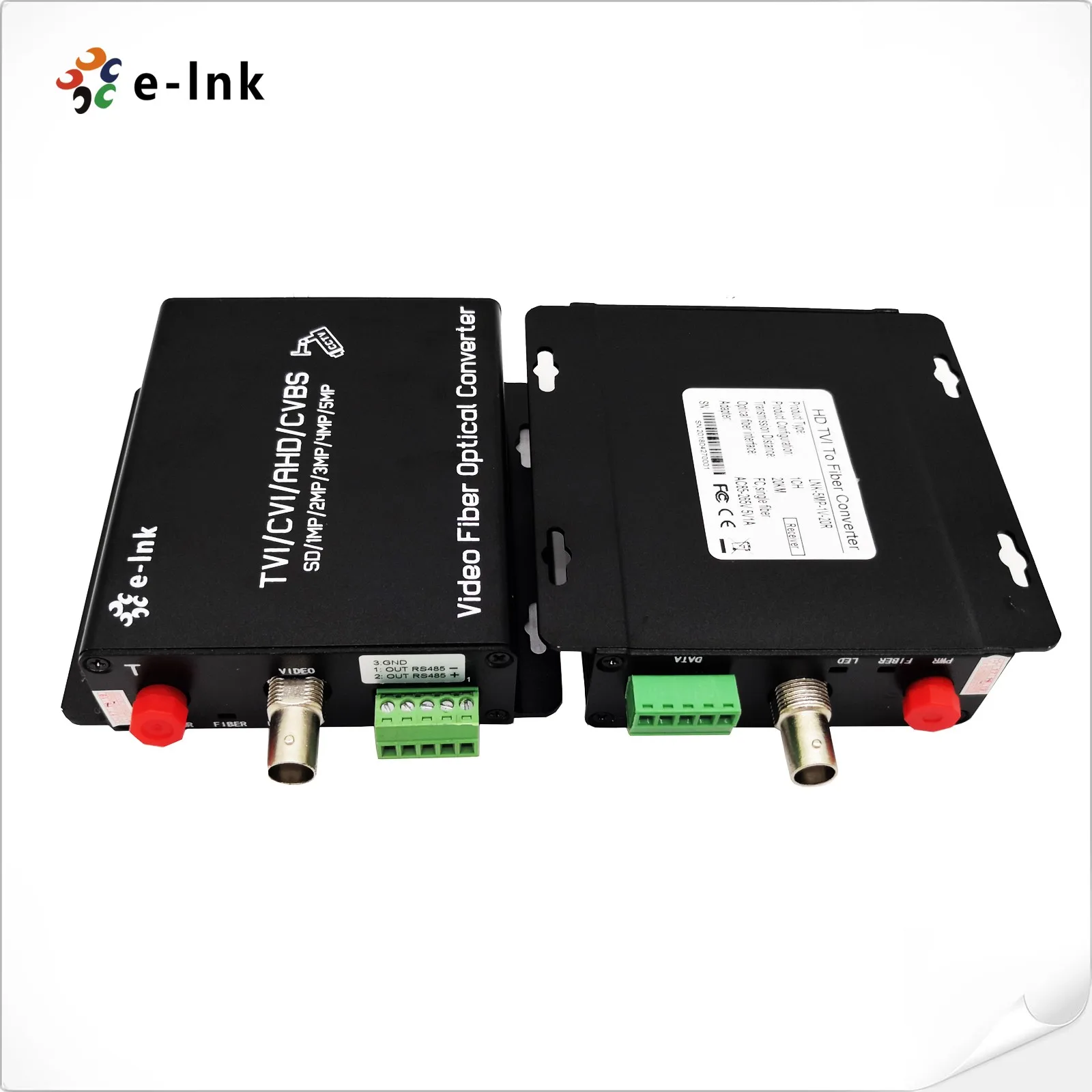

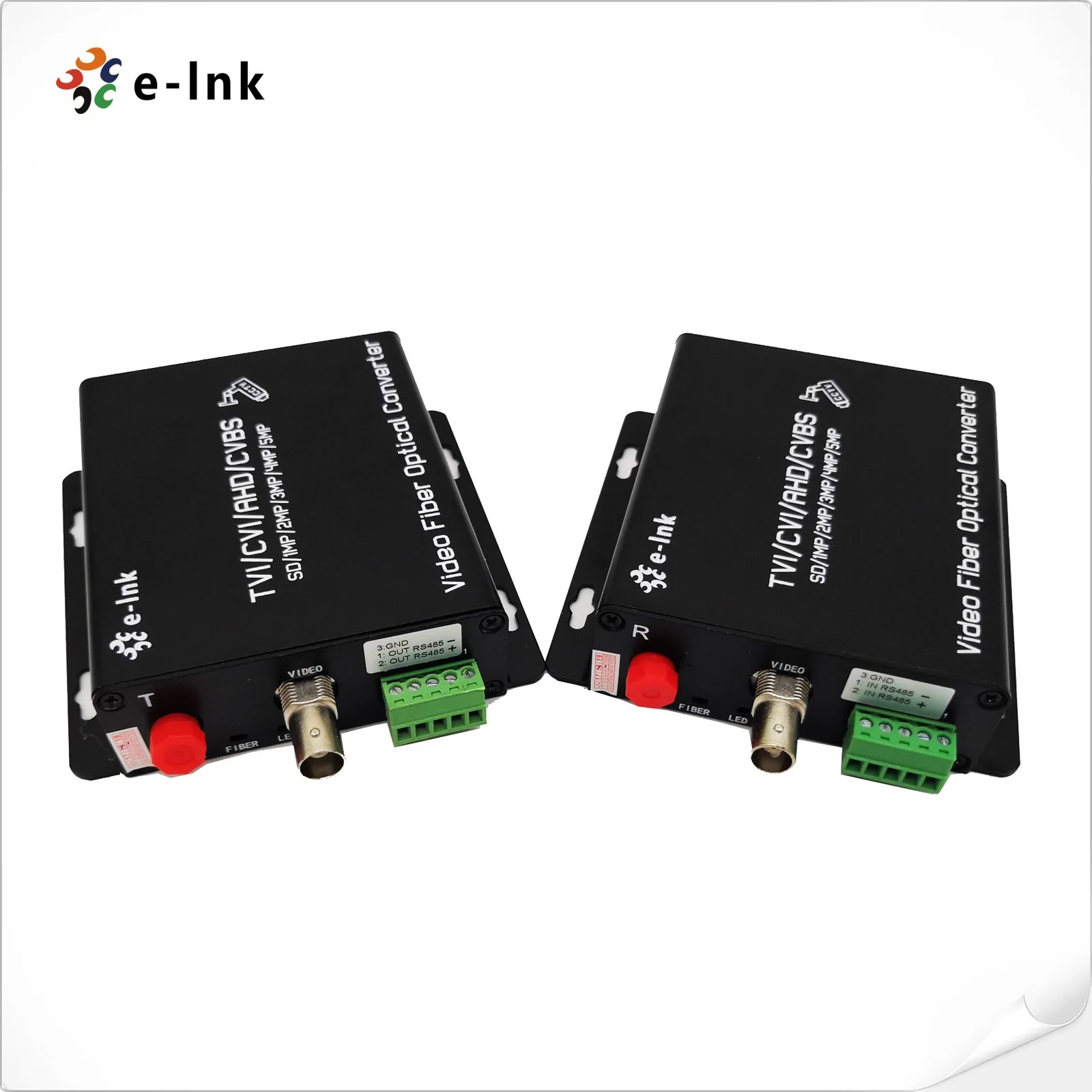

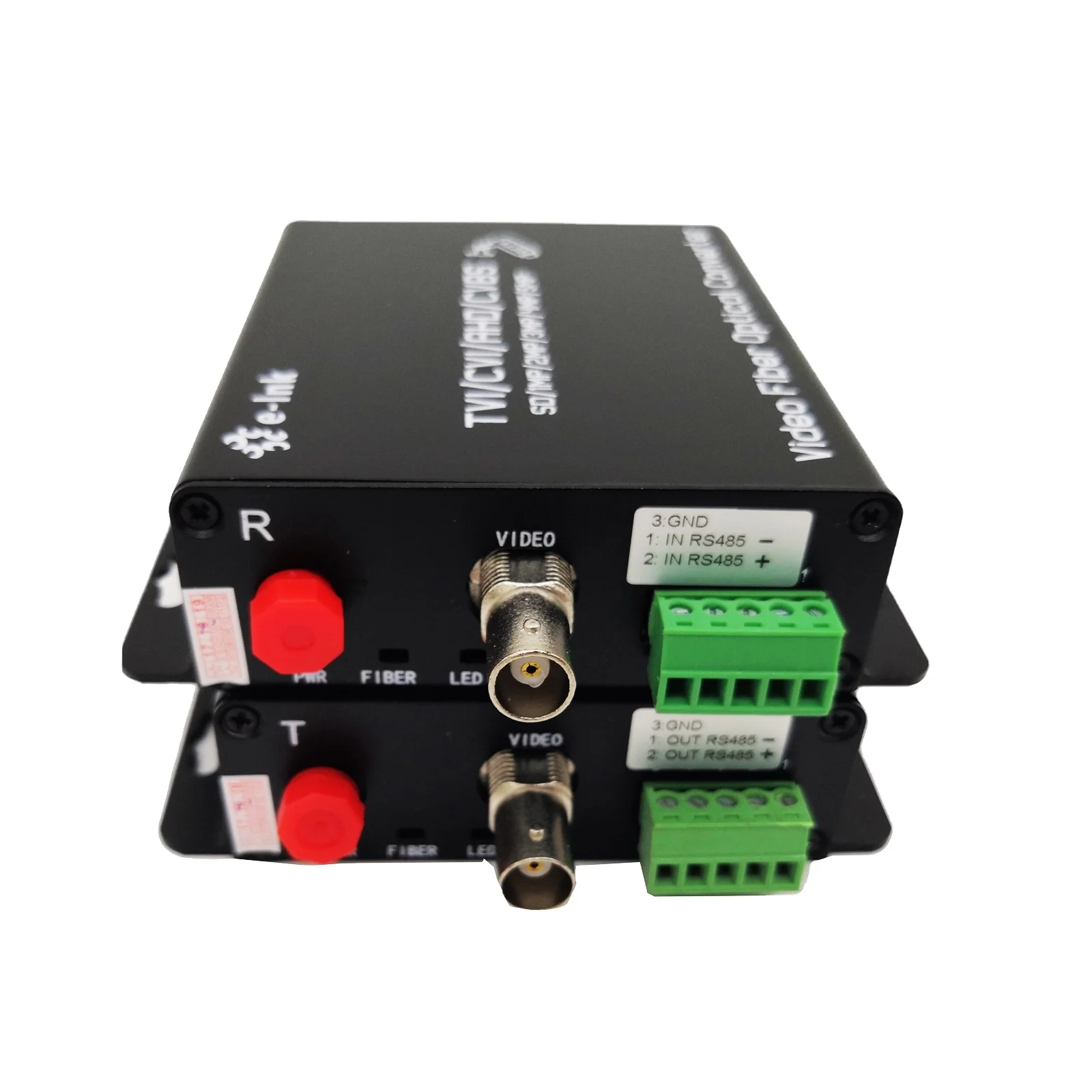

1Ch HD-AHD/CVI/TVI/CVBS Video to Fiber Converter Video Transceiver
Support up to 5MP Cameras
Product Description
Model: LNK-5MP-1V-20
Overview
E-link HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HDCVI, HD-TVI or CVBS composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers.
E-link 1Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 1 channels AHD, HD-CVI, HD-TVIor CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports 5MP 4MP 3MP 1080P 720P Camera.
Features
l Non-compression coding technology
l Automatically identify formats of input videos.
l Support transmission of combined AHD, HDCVI, HD-TVI or CVBS signal and controlling PTZ data RS485 simultaneously though fiber optical cable
l Support 5MP 4MP 3MP 1080P 720P Camera
l Through LED indicators to inform its functional mode
l Industrial wide range of operational temperature
50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity
-26dBm
Optical connector
FC (default), ST or SC (optional)
Transmission Distance
0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)
Video
Number of Channels
1
Input/output impedance
75 Ohm (unbalance)
Standard video input/output voltage
1.0Vp-p
Video Bandwidth
50MHz
Sampling Bandwidth
8bit
Sampling Frequency
108MHz
Signal to noise ratio
>67dB
Rise and Fall time
<0.8ns
Optical Signal Intrinsic Jitter
<0.2 UI
Differential Gain
< ±1.5%
Differential Phase
< ±1°
Connector
BNC
Supporting video
5MP 4MP 3MP 1080P 720P Camera
PTZ Data
Protocol
Default: RS485 (RS232/RS422 Optional)
Number of channels
1
Connector
3pins Terminal Blocks
Data Rate
0-200Kbps
Directions
Default :Simplex from Rx to Tx (BIDI duplex optional)
Environmental
Operating Temperature:
-15°C to 65°C (5°F to 149°F)
Storage Temperature:
-40°C to 85°C (-40°F to 185°F)
Relative Humidity:
5% to 95% non-condensing
MTBF
> 100,000 hrs
Electrical and Mechanical
Input Power:
DC5V 2A
Power Consumption:
≤6W
LED Indicators:
Fiber
Fiber Status
Video
LED
Data
Data status
PWR
Power Status
Dimensions (WxDxH):
104 x 104 x 28 mm
Weight:
1Kg
Casing:
Metal Case
Mounting Options:
Wall-mount/Rack-mount
Ordering Information
LNK-5MP-1V-20
1-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
