Piezoelectric
- Категория: Other Physical Measuring Instruments >>>
- Поставщик: Anhui,Ronds,Science,&,Technology,Incorporated,Company,[Anhui,China]Anhui
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 7654.48 $* | 7807.96 $* |
| Jul-20-2025 | 6208.51 $* | 6332.73 $* |
| Jun-20-2025 | 7534.44 $* | 7685.74 $* |
| May-20-2025 | 7473.18 $* | 7622.32 $* |
| Apr-20-2025 | 5967.82 $* | 6086.39 $* |
| Mar-20-2025 | 7353.88 $* | 7500.13 $* |
| Feb-20-2025 | 7293.13 $* | 7439.76 $* |
| Jan-20-2025 | 7232.68 $* | 7377.24 $* |
Характеристики
Built-in IEPE circuit, isolation output, constant current power supply.
Laser seal welded
IP68 design, outdoor using available
Military connector, can be used in harsh industrial field
Unconditional lifetime warranty
Parameter | Index | Remarks | |||
Sensitivity | 100mV/g | ||||
Acceleration Rnage | 80g | ||||
Amplitude Linearity | 1% | ||||
Frequency Response (±10%) | 0.7~10000Hz | ||||
Frequency Response (±3 dB) | 0.4~15000Hz | ||||
Resonance Frequency | 26KHz | ||||
Transverse Sensitivity | ≤5% | ||||
Mount Screw Thread | 6mm | ||||
Bias Voltage | 10-12VDC | ||||
Constant Current | 2-20mA, Typical 4mA | ||||
Voltage Excitation | 18-30VDC, Typical 24VDC | ||||
Output Impedance | ＜100Ω | ||||
Casting Dielectric Resistance | ＞108Ω | ||||
Maximum Shock Level | 5000g | ||||
Weight | 81g | ||||
Dimensions | DXH, 23x50.9mm | ||||
Sealing Arrangement | Laser welding | ||||
Sensor composition | Plane shear | ||||
IP Grade | IP68 | ||||
Casting Material | 316L Stainless Steel | ||||
Output Mode | Side Output, 2pin Mil-C-5015 | ||||
Temperature Range | -40～+120℃ | ||||
Mount Torque | About 2.7～6.8N.m (M6) | ||||
Certificate | CE | ||||
Anti-explosion option | |||||
Explosion Proof Identification | ExiaIICT4 | RH102 EX, Used for Area 0,1,2 | |||
Temperature Measuring Option | |||||

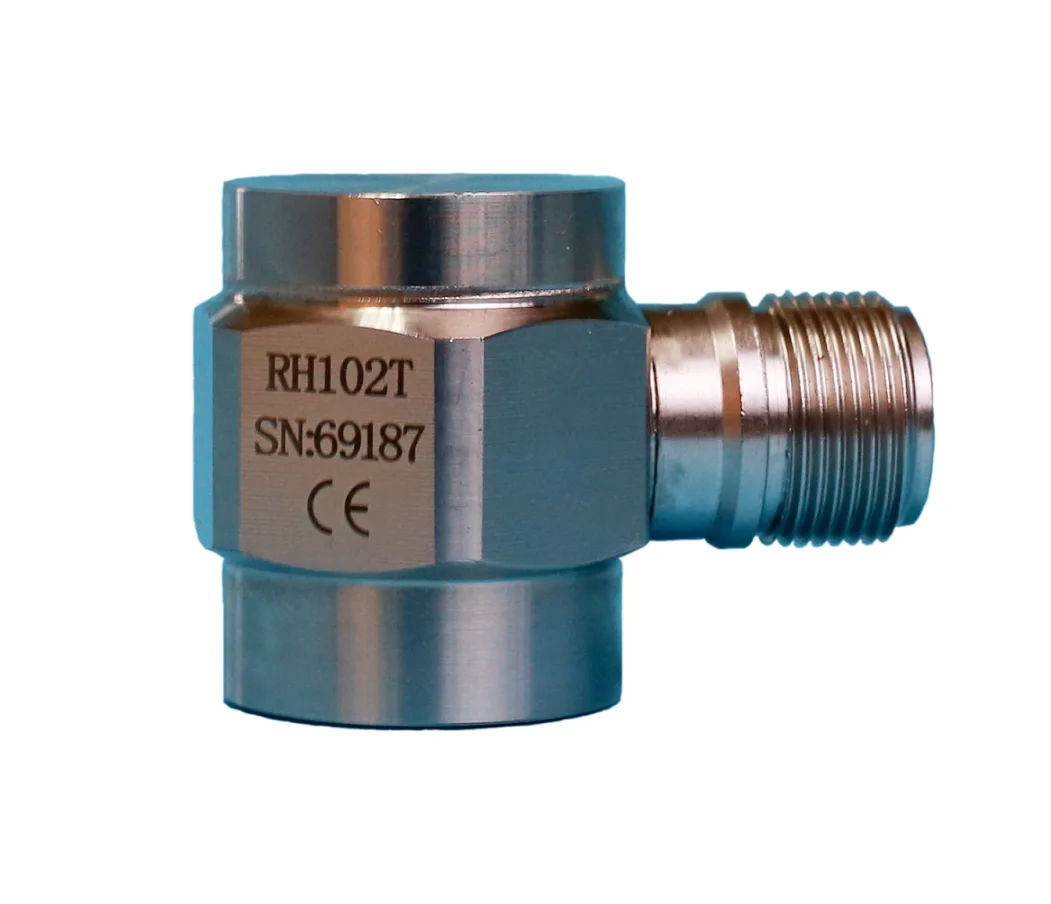

Measuring Range | 0~120℃ | RH102T, Output: 3pin Mil-C-5015 | |||
Projects

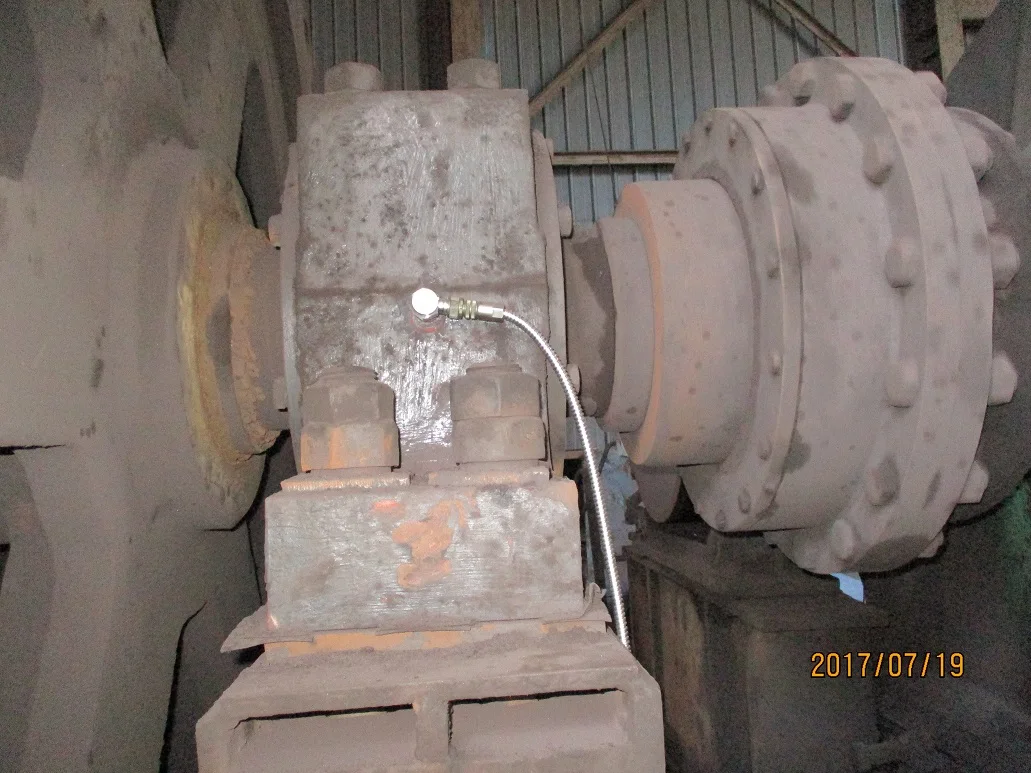

RH102 in xx steel mill
RH102 in xx wind farm
Certifications
![]()
![]()
![]()
RONDS FACTORY

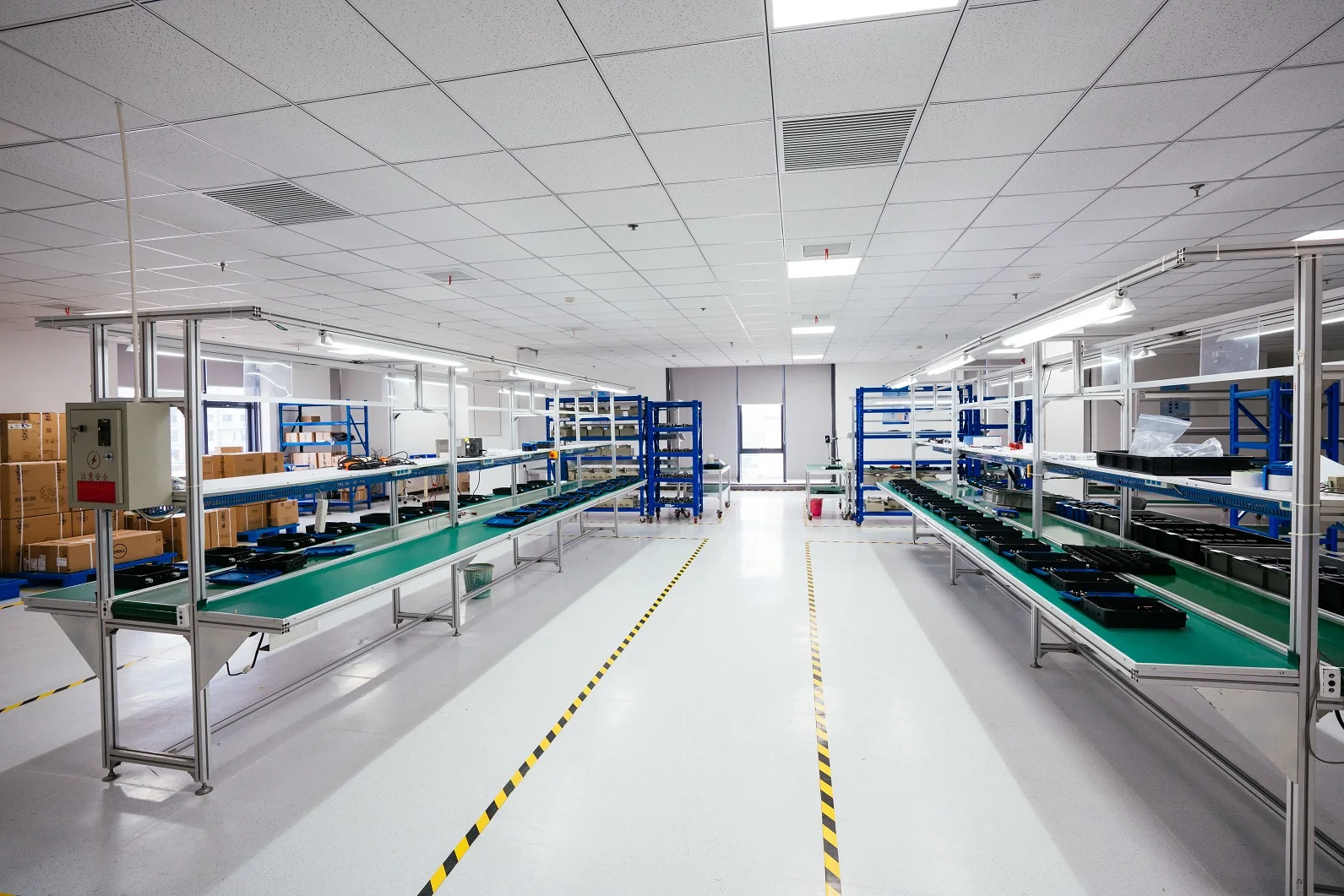

Assembly Workshop
RONDS office
RONDS Exhibition Room

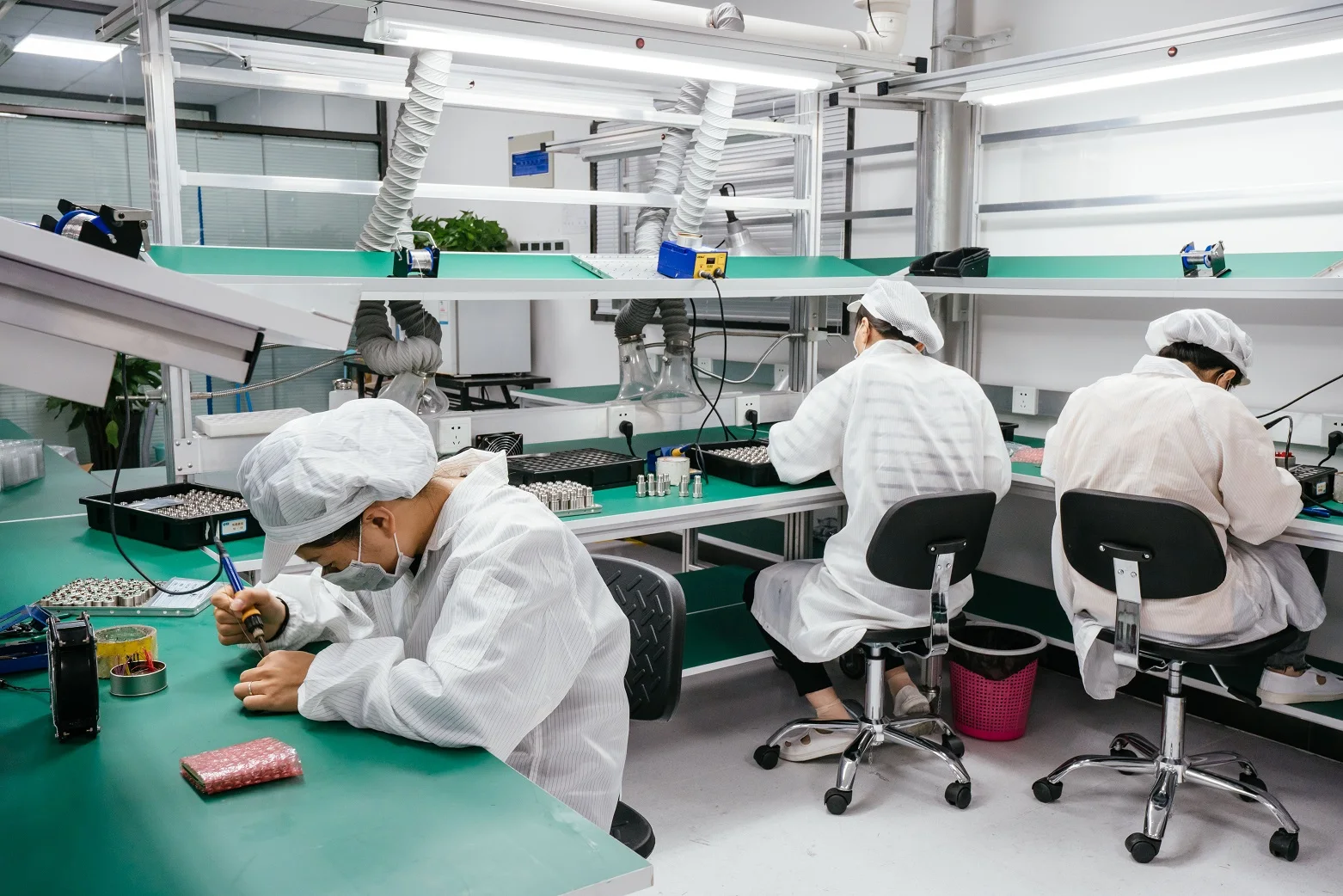

Sensor Welding

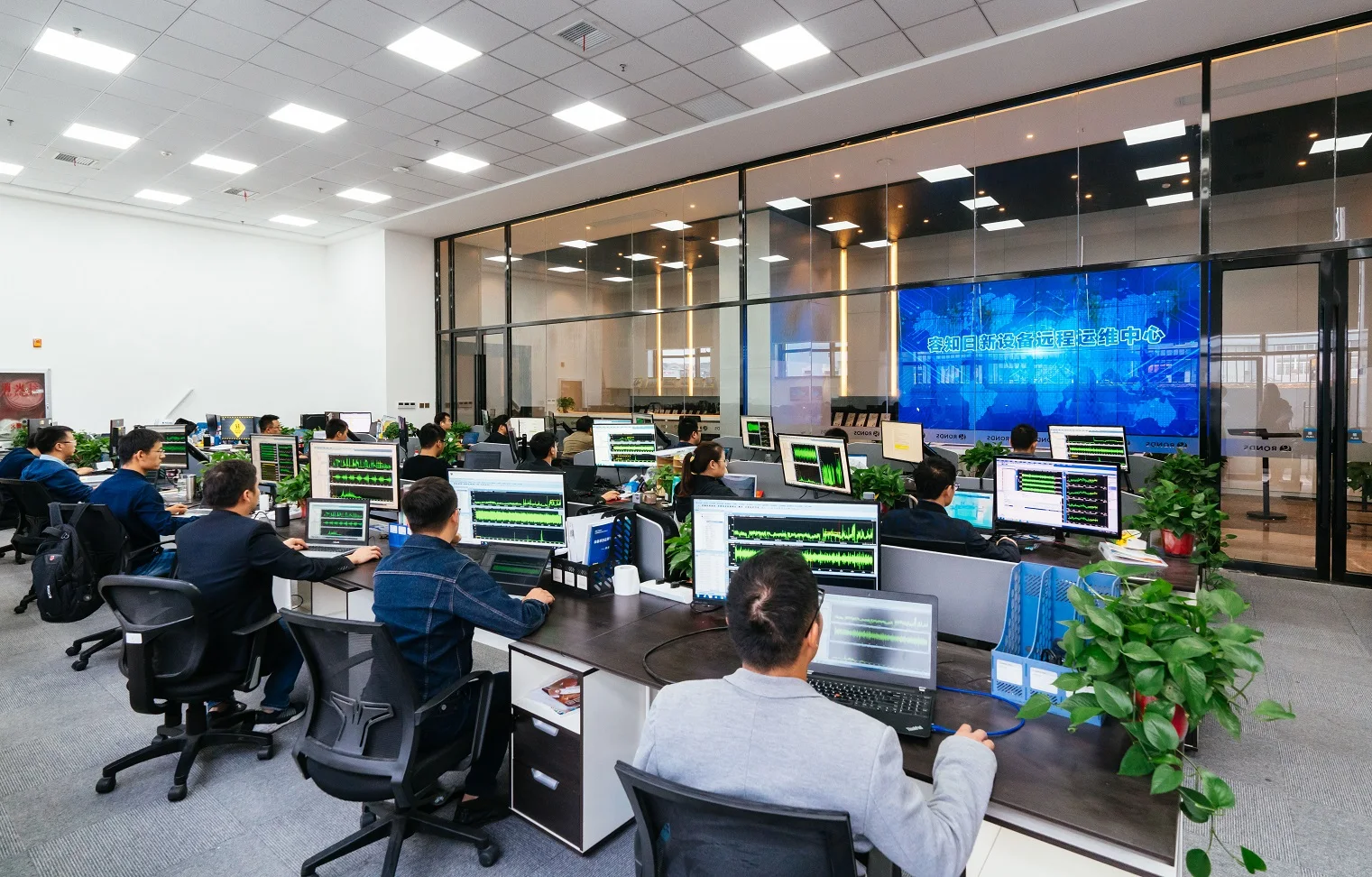

Remote Diagnosis Center
RONDS Data Center
All
Our Company
![]()
30 Professional vibration analysists
Diagnosis experts with more than 20 years’ experience
CAT III vibration analysts
CAT II vibration analysts
Intelligent Algorithm--big data team
Algorithm team with 11members, leading by famous doctoral tutor
Big data team with 13 members
RONDS was first founded in Shanghai in 2004, moved to Hefei in 2007
RONDS has complete product line, including accelerometers, portable vibration analyzers, and online condition monitoring system, which widely applied in : wind energy, petrochemical, steel, mining, cement, power generation, paper industries etc.
RONDS provides predictive maintenance services for key machines for more than 130 enterprises, based on enormous data and big data platform.
Our Service
After-Sales
Pre-Sales
* Technical plan support.
* Inquiry and consulting support.
After-Sales
* Remote training how to install and use the software and hardware
* Professional suggestions on data analysis.
