Hystou Technology Co Limited is a reliable manufacturer and exporter of fanless Mini PC, industrial PC, all in one PC and industrial panel PC.
Details Images
Processor
CPU
Core i5-4200U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.60 GHz)
TDP
15W
CPU Lithography
14 nm for 5th and above cpu, 22 nm for 4th cpu
Memory Specifications
Max Memory Size
16GB
Memory Types
204 Pin DDR3L SO-DIMM Socket
Memory Channels
Dual Channels
ECC Memory
Don’t support
Storage Specification
m.2 SSD
No M.2 slot
SATA
1 x SATA3.0 for 2.5 inch HDD/SSD
mSATA
1 x mSATA slot
Graphics
Processor Graphics
i5 4200u HD Graphics 4400
HDMI
1 x HDMI
VGA
1 x VGA
Power Specification
Power Adapter
12V Power Input, supply 12V 5A power adapter within the package
Auto Power On
Support Auto Power On Function

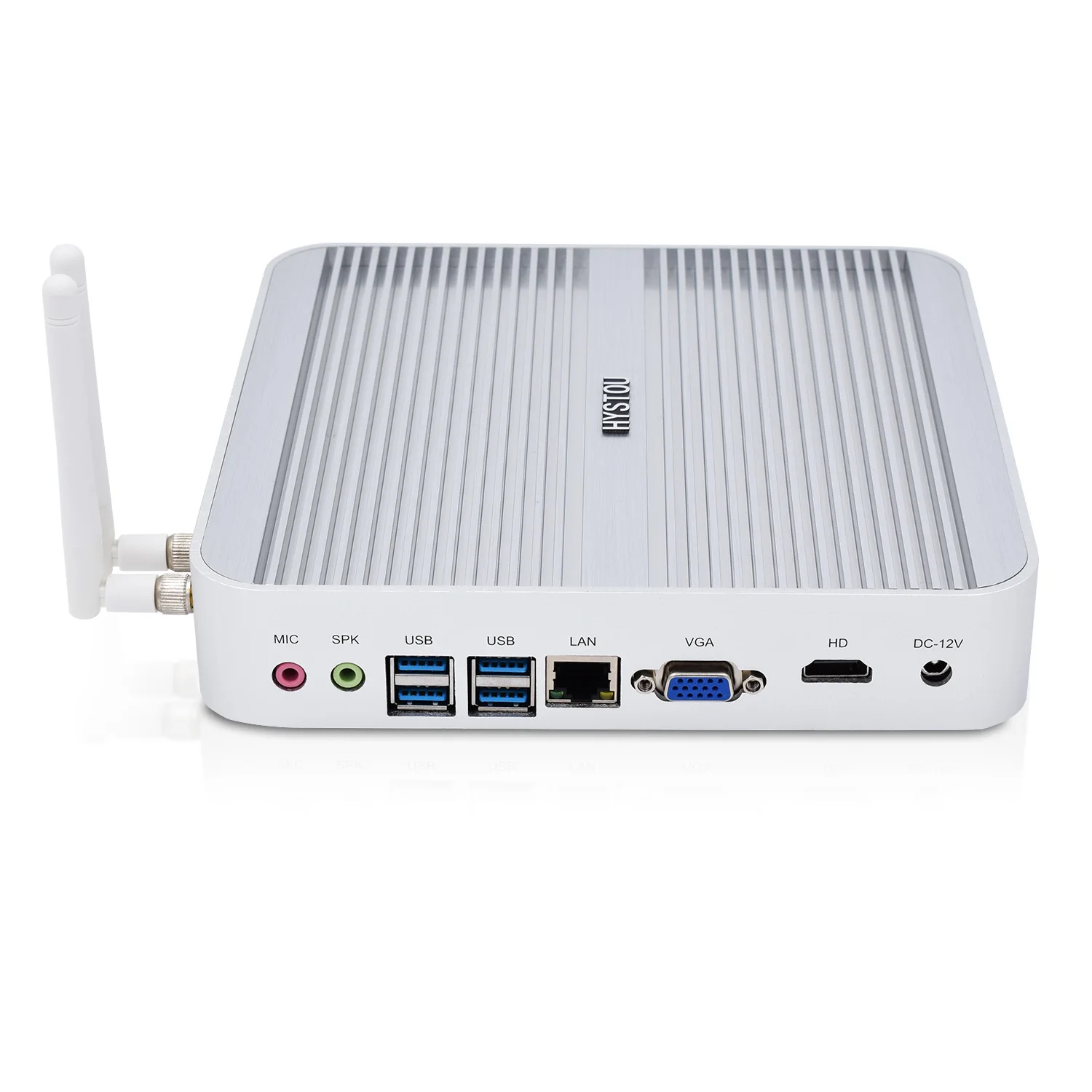

In & Out interfaces
USB Port
4 x USB 3.0 port, 2 x USB 2.0 port
Audio
3.5mm 1 Jack, MIC in/ Line out
Video
VGA + HDMI Daul Display
Power Input
5.5mm 12V In
Lan Port
1 x RTL 8168/8111/8112 Gigabit NIC
Com Port
NO
Others
System
Support Windows 7/10, Linux
Case Material
Aluminium Alloy

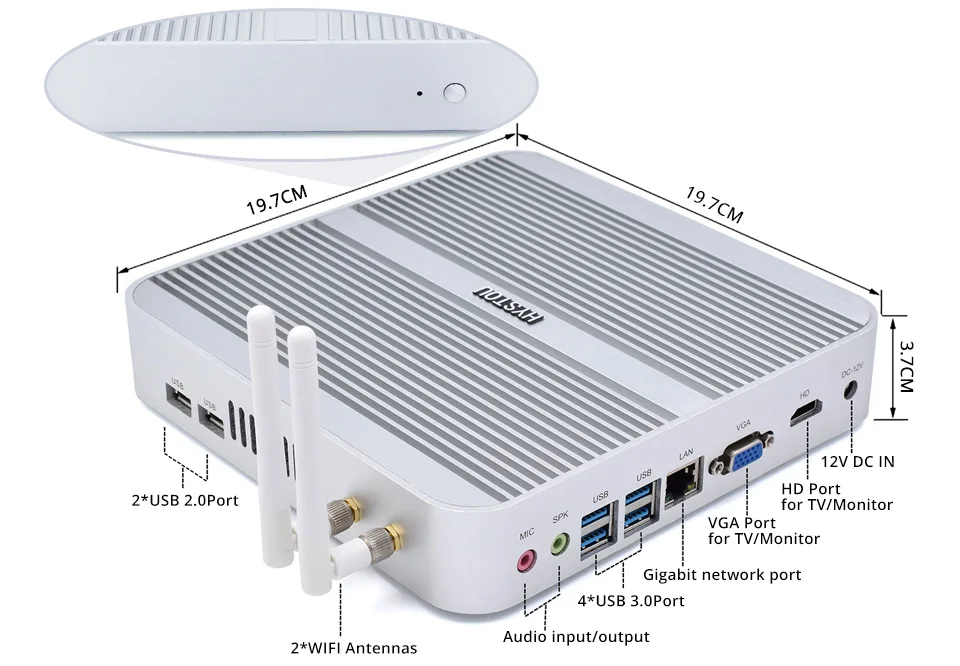

Dimension
Mini PC size 197x197x37mm Package size 321x258x78mm
Weight
Gross weight 2.1 kg
Product Usage
Packing&Shipping
1.All items can be shipped by DHL,UPS,Fedex，EMS,China Post and other Post service, all come with tracking number.
2.Items ship by post service expecially China Post and HK Post reach most countries within 10 to 30 days, but SOME countries will take more than 30 days as for LOCAL POST service delay, if you didn't get the items after 30 days pls contact us,we will investigate and solve the problem.
FAQ
1. Can you put my brand name (logo) on these products? Yes, we can support OEM/ODM service, the process of customization is following: 1) provide your specific requirement. 2) our design engineer draw the design draft. 3) you confirm the design draft. 4) we start produce it. 2. What payment method do you accept? T/T,Western Union,PayPal. 3. What is the Minimum Order Quantity(MOQ)? We can sell one piece sample for your test. 4. What is the lead time of your products? 1-3 days for one sample, 15 working days for a large quantity. 5. How many years for the product warranty? 3 years, we have a professional team work for after-sales services, please kindly feel free to contact us if any questions. 6. What are the shipping methods for it? We can ship by International express, like DHL, UPS, Fedex, TNT, etc; or by Air/ Sea, etc. 7. What kinds of customization can you do? We can do the products as per your configuration of CPU, RAM, hard disks, Wifi, I/O ports, color, size, customized OS, logo, etc. 8. Can you equip the devices with related products or services? Yes, we can offer you mouse and keyboard combo, HD cable, genuine win 10 license, external CD-ROW, USB Hub, BT dongle, etc. 9. What is HS code of Hystou mini pc? 8471494000
