High Precision Miniature Liquid Flowmeter Drinking Water Beer Coffee Machine Pulse Hall Type Switch Sensor 10ma (DC5V)
- Категория: Расходомер >>>
- Поставщик: Anhui Ruiling Meter Manufacturing Co., Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 944.26 $* | 963.62 $* |
| Jul-20-2025 | 765.68 $* | 780.54 $* |
| Jun-20-2025 | 929.10 $* | 948.8 $* |
| May-20-2025 | 921.31 $* | 939.60 $* |
| Apr-20-2025 | 736.22 $* | 751.59 $* |
| Mar-20-2025 | 906.65 $* | 924.59 $* |
| Feb-20-2025 | 899.48 $* | 917.96 $* |
| Jan-20-2025 | 892.39 $* | 910.23 $* |
Характеристики
Product Description:

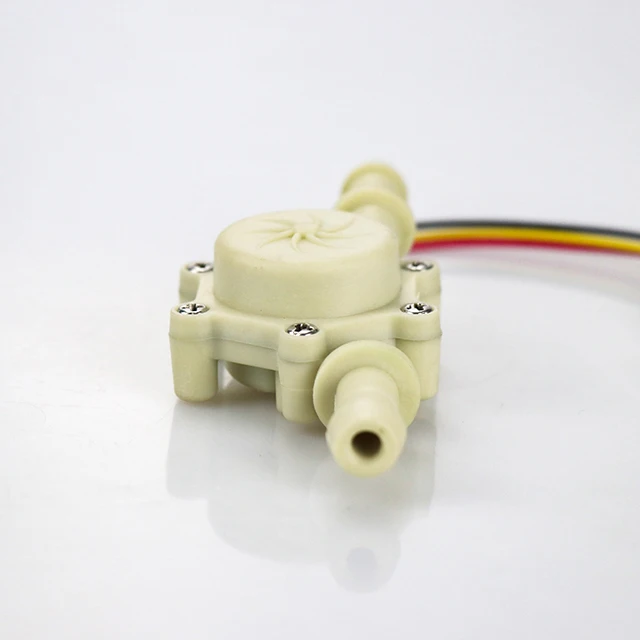

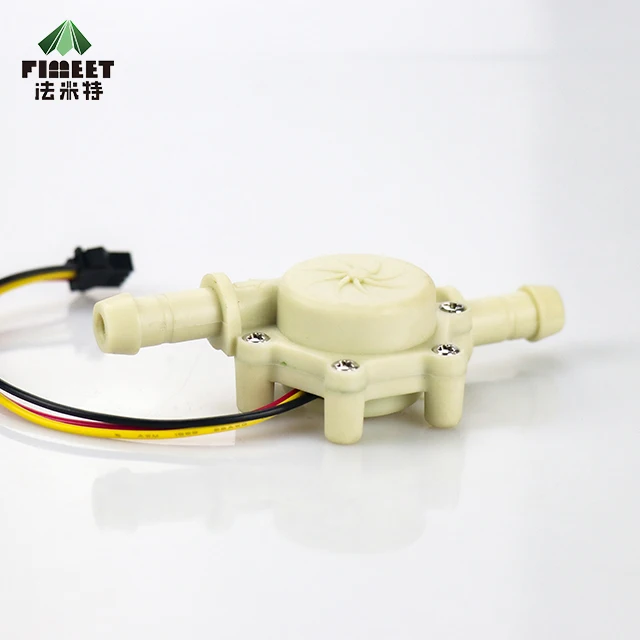

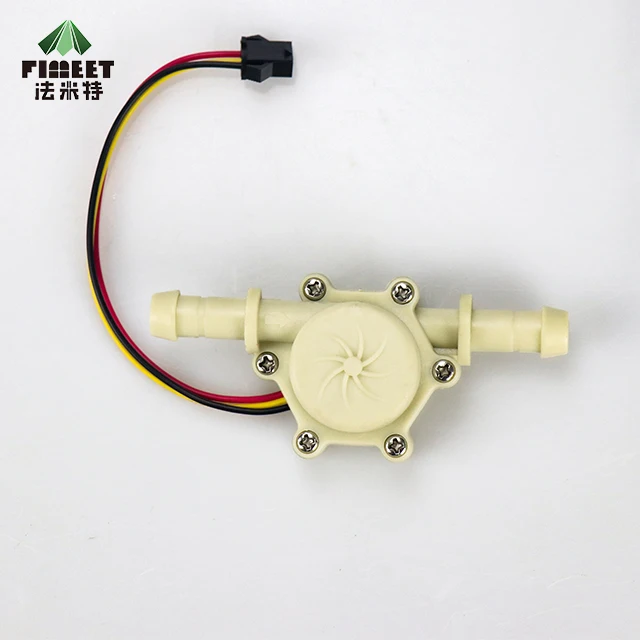

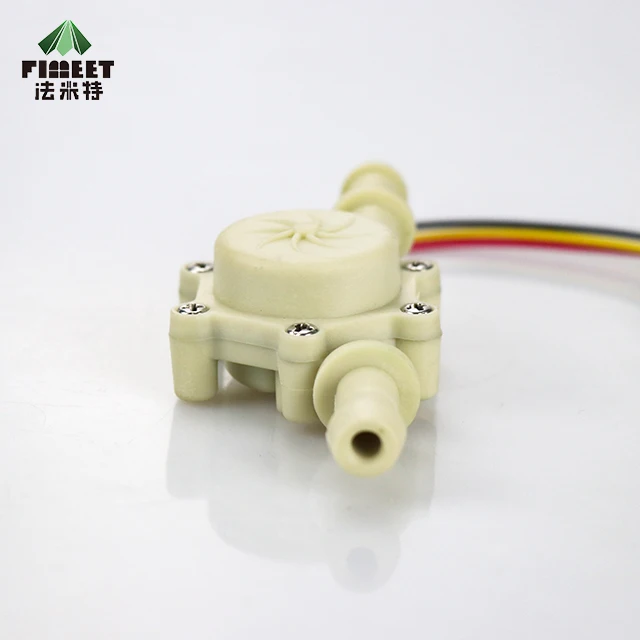

This product is mainly composed of plastic valve body, flow rotor assembly and Hall sensor.It is installed on the water system, can be used for detecting the flow of water through the water by water flow rotor components, drive the magnetic block rotation and speed changes with the flow, hall sensor output pulse signal, feedback to the controller, the controller according to the data of the output pulse equivalent, so as to determine what is by the flow of water.
![]()
Because the key parts inside are high temperature resistant materials, can be used at high temperature for a long time, and has a very good wear resistance function, will ensure the accuracy of the product in a long time, with the previous flow meter does not have many advantages。
![]()
This product can be used in IC card water control intelligent system, water heater, instant hot electric water heater, gas water heater, pipeline machine, filling beverage production line, pharmaceutical product production line, remote water monitoring system and many other fields.
![]()

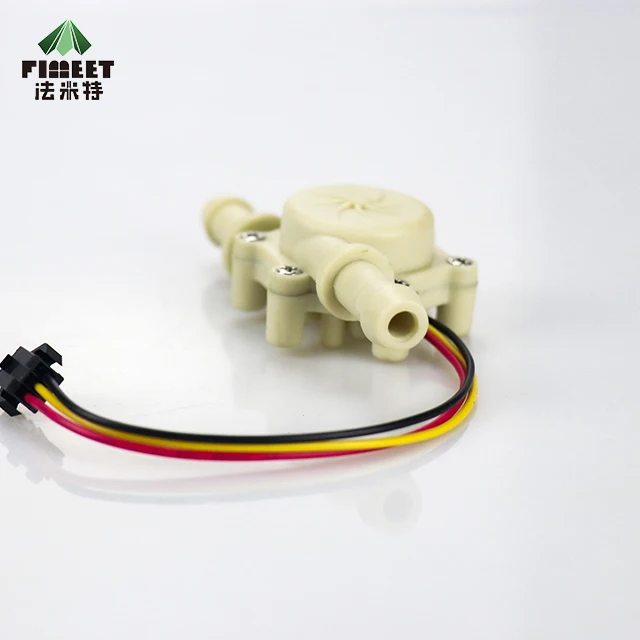

1 red IN is connected to the positive terminal
2 yellow OUT signal output line
3 black GND is connected to the negative electrode
Frequency: F=7.5*Q(L/Min) Error: ±2% Voltage: 3.5-24VDC, current can not exceed 10mA, flow after a liter of water output 450 pulses
That is, frequency calculation = constant 7.5* unit flow (L/min) * time (seconds)
Flow range: 1-30L/min![]()
2 yellow OUT signal output line
3 black GND is connected to the negative electrode
Frequency: F=7.5*Q(L/Min) Error: ±2% Voltage: 3.5-24VDC, current can not exceed 10mA, flow after a liter of water output 450 pulses
That is, frequency calculation = constant 7.5* unit flow (L/min) * time (seconds)
Flow range: 1-30L/min
FHKSC micro flowmeter (special type for water dispenser and coffee machine),

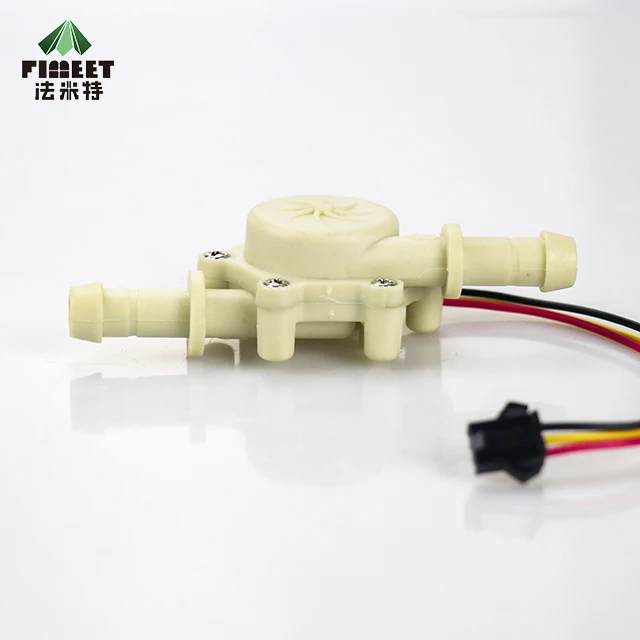

Pipe connection: 6mm hose connection (inlet and outlet can be rotated in four different directions for easy installation)
Diameter :1.0mm, 1.2mm, 1.8mm, 2.0mm
Traffic: 0.041 2 l/min
Pressure: -1bar -- 0.3bar at 20℃
Temperature range: -10℃-65℃
Measurement accuracy: less than 2%, repeated measurement: < +/-0.25%
Driving voltage: 3.8-20VDC
Pipe connection: 6mm hose connection (inlet and outlet can be rotated in four different directions for easy installation)
Diameter :1.0mm, 1.2mm, 1.8mm, 2.0mm
Traffic: 0.041 2 l/min
Pressure: -1bar -- 0.3bar at 20℃
Temperature range: -10℃-65℃
Measurement accuracy: less than 2%, repeated measurement: < +/-0.25%
Driving voltage: 3.8-20VDC
Main fluids: water, red wine, spirits, slightly corrosive chemicals.
The patented product is specially developed and designed for the coffee machine with vibration pump, which is installed between the water tank and the inlet of the water pump, thus eliminating the disadvantage of large error of the pump and ensuring the mellow and thick coffee produced by the coffee machine.At the same time, the selection of different materials, the series can be used to measure mineral water, red wine, spirits, and slightly corrosive chemicals.![]()
The patented product is specially developed and designed for the coffee machine with vibration pump, which is installed between the water tank and the inlet of the water pump, thus eliminating the disadvantage of large error of the pump and ensuring the mellow and thick coffee produced by the coffee machine.At the same time, the selection of different materials, the series can be used to measure mineral water, red wine, spirits, and slightly corrosive chemicals.
Our Company/Factory
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Anhui Ruiling Meter Manufacturing Co., Ltd., was established in 2006; which is an industrial sensor and National high-tech enterprises that exhibit applications, focusing on manufacturing and sales of various types of industrial sensors, intelligent metering integrated equipment,R&D, and IoT applications.
The company was listed on the Anhui Equity Exchange Center in May 2015. The company has passed ISO9001 quality management certification and GB/T29490-2013 intellectual property management system certification. Ruiling have established close cooperation with Tianjin University, Hebei University, Hefei University of Technology and other universities successively, Now R&D personnel in company accounted for 33% of the total number of employees; and employees with bachelor’s degree accounted for above 40% of the total number of employees; in addition to, research and development expenses account for 11% of annual sales.
Our Team & Production Equipment
![]()
![]()
![]()
![]()
![]()
![]()
![]()
R&D personnel in company accounted for 33% of the total number of employees; and employees with bachelor’s degree accounted for above 40% of the total number of employees; in addition to, research and development expenses account for 11% of annual sales.
Exhibition
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
R&B
![]()
It has established close cooperation
with Tianjin University, Hebei University,
Hefei University of Technology and other
universities. At present, the company's
R&D personnel account for 33% of the
total workforce; Employees with bachelor
degree or above account for 40% of the
total number of employees; Spending on
research and development accounted for
11 per cent of annual sales.
QC/Certificate
![]()
SENSOR
Multiple inspection procedures, strict control of materials Select molding
Stainless steel material inspection
Parts position accuracy detection
Welding quality inspection
CONVERTER
Sampling inspections are strictly controlled according to standard standards
High and low temperature detection
