Двухрядный несколько шпинделей деревообрабатывающий сверлильный
- Категория: Wood Boring Machines >>>
- Поставщик: Qingdao,WINTOP,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3094.6 $* | 3249.60 $* |
| Aug-18-2025 | 3068.99 $* | 3221.14 $* |
| Jul-18-2025 | 2574.26 $* | 2703.42 $* |
| Jun-18-2025 | 3016.97 $* | 3167.60 $* |
| May-18-2025 | 2626.73 $* | 2757.22 $* |
| Apr-18-2025 | 2964.36 $* | 3112.91 $* |
| Mar-18-2025 | 2938.80 $* | 3085.84 $* |
| Feb-18-2025 | 2912.45 $* | 3058.61 $* |
| Jan-18-2025 | 2886.67 $* | 3030.19 $* |
Характеристики
Double rows multiple spindles woodworking drilling machine
Product Description
The power is equipped with a high-speed motor to improve the working efficiency and further improve the quality of the punching. The drilling head has high precision, small amplitude and long service life. The high-speed speed boring tool can adjust the drilling rate for different hardness plates, so that the equipment runs stably and the working efficiency is improved. The air pressure adjustment button is upgraded to directly adjust the air pressure and change the past air pressure adjustment.
▬▬Technical parameter
Overall Size | 2000*1300*1700mm |
Package size | 1500*1100*1800mm |
Machine weight | 450kg |
Maximum drilling diameter | 35mm |
Maximum drilling depth | 60mm |
Drill spindle number | 21 |
Motor power | 1.5kw*2 |
Rotational speed | 2800r/min |
Working pressure | 0.6-0.8 Mpa |

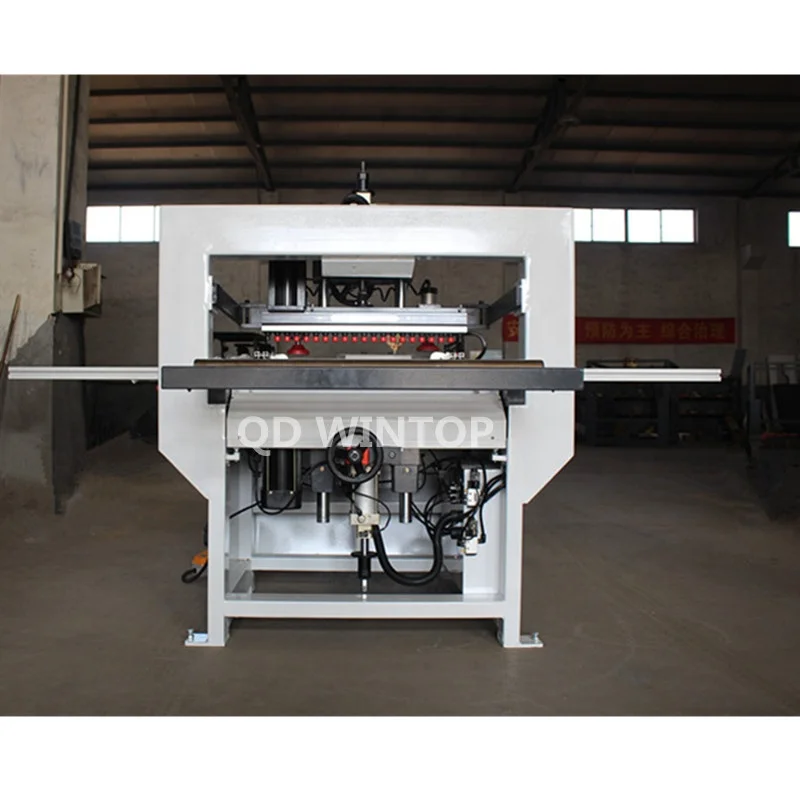

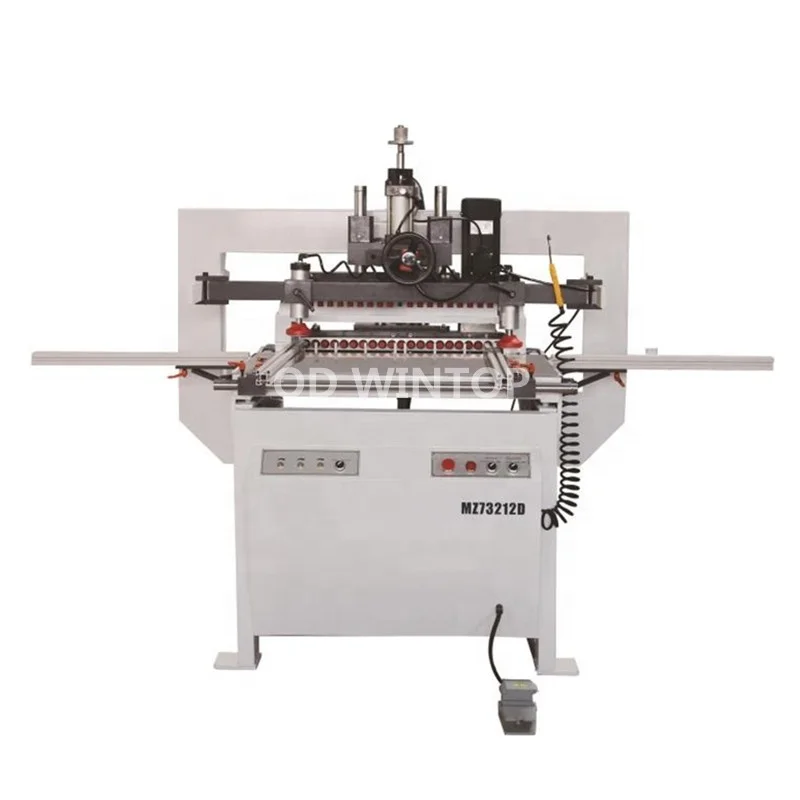

▬▬Machine Show
▬▬Details show
Hinge drill package
Adopt imported drill bag design, less noise, durable, it can be changed according to the need of different types of drill bit.
Adopt imported drill bag design, less noise, durable, it can be changed according to the need of different types of drill bit.
Location baffle
Accurate scale, it can be adjusted according to the needs of the work.
Accurate scale, it can be adjusted according to the needs of the work.
Oil-water separator
It can prevent moisture into the cylinder, it will be more stable when the machine is in operation. Furthermore, extending the
service life of the machine.
It can prevent moisture into the cylinder, it will be more stable when the machine is in operation. Furthermore, extending the
service life of the machine.
Pure copper motor
The machine uses the high-power motor, the use safety, the service life is long.
The machine uses the high-power motor, the use safety, the service life is long.

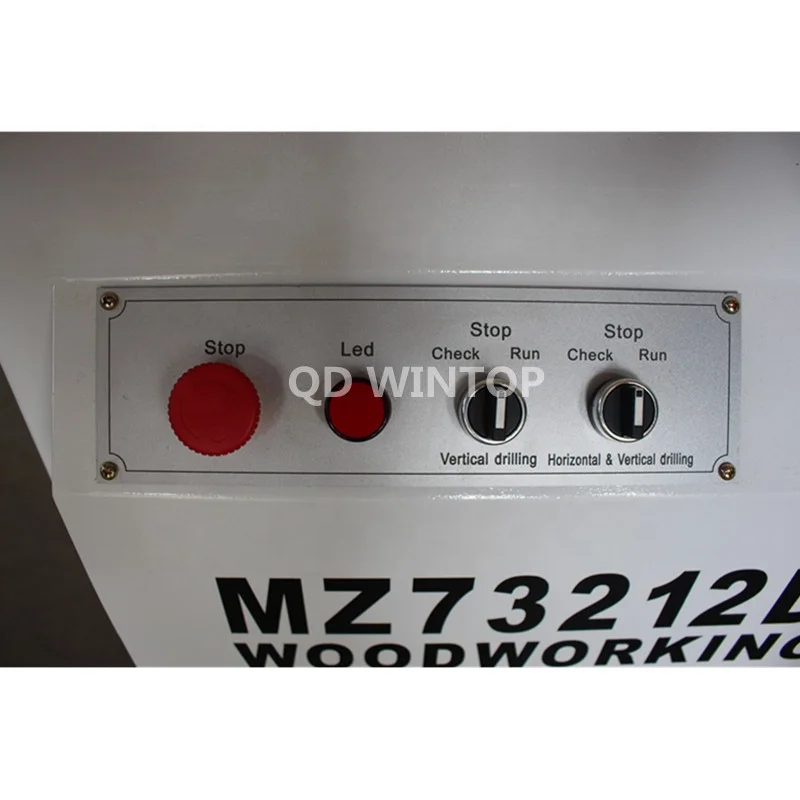

Control panel
Easy to operate.Humanized design.
Easy to operate.Humanized design.

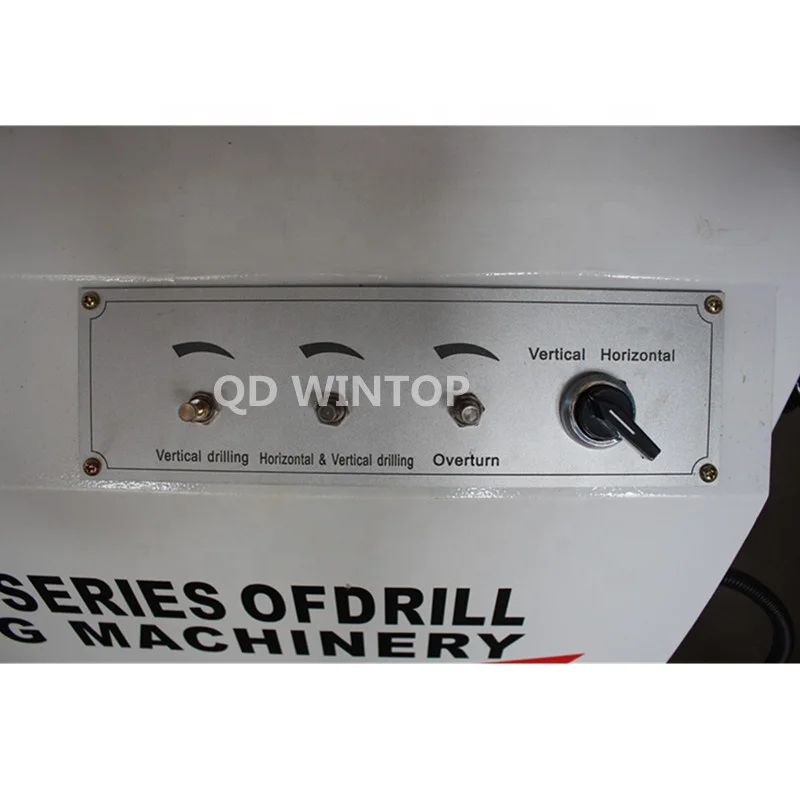

Control panel
Easy to operate.Humanized design. Adjust 45 and 90 degrees.
Easy to operate.Humanized design. Adjust 45 and 90 degrees.

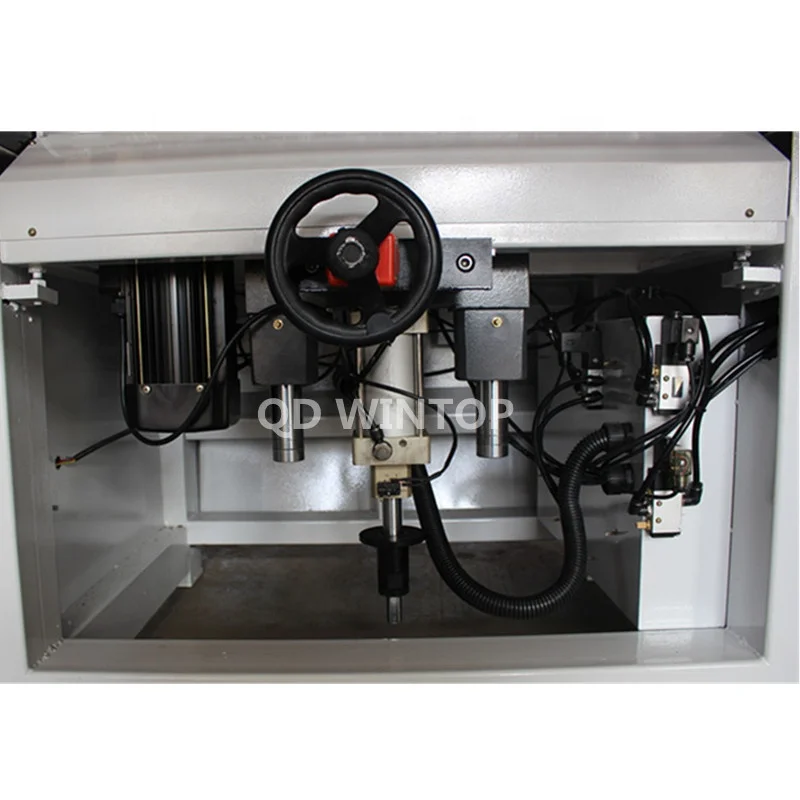

Double drilling row
Double drilling row, can work at the same time, high efficiency.The drilling head has high precision, small amplitude and long service life.
Pneumatic pressing device
The machine adopts pneumatic pressing cylinder in the pressing device, which is used for pressing the plate to prevent the plate
from running off during the working process. Meanwhile, the cylinder pressure can also be adjusted.
The machine adopts pneumatic pressing cylinder in the pressing device, which is used for pressing the plate to prevent the plate
from running off during the working process. Meanwhile, the cylinder pressure can also be adjusted.
Electric parts
The internal part of the machine is the integrated part of electrical circuit components, including the main power value, external socket, power failure protection, etc., all of which are made of optimized materials, durable, clear wiring, and easy to repair.
The internal part of the machine is the integrated part of electrical circuit components, including the main power value, external socket, power failure protection, etc., all of which are made of optimized materials, durable, clear wiring, and easy to repair.
Metal Foot-switch
Aluminum alloy material, strong and durable, safe and labor-saving.
Equipped with numerical display, adjustable drilling depth
Equipped with calibration value, adjustable drilling depth
Packing & Delivery
Professional Packing And Shipping
packing with plastic films and plywood box, or as you requirement
