high quality half cell pv module 440w 450w black solar panels for

Цена:18,84 ₽*

Количество:

ELECTRICAL DATA(STC)
Peak Power Watts-Pmax(Wp)	430W	435W	440W	445W	450W
Power Output Tolerance-P MAX (W)	0~+5W
Maximum Power Voltage-V MPP (V)	38.2	38.5	38.9	39.2	39.6
Maximum Power Current-l MPP (A)	11.25	11.30	11.31	11.35	11.36
Open Circuit Voltage-VOC (V)	46.98	47.35	47.85	48.21	48.71
Short Circuit Current-l SC (A)	12.04	12.09	12.10	12.15	12.16
Module Efficiencyηm (%)	19.4	19.6	19.8	20.1	20.3
STC	Irradiance 1000w/m²,module temperature 25℃,air mass 1.5

TEMPERATURE RATINGS
Nominal Operating Cell Temperature (NOCT)	44℃(±2℃)
Temperature Coefficient of PMAX	- 0.39%/℃
Temperature Coefficient of VOC	- 0.29%/℃
Temperature Coefficient of ISC	0.05%/℃

MECHANICAL DATA
Solar cells	Monocrystalline 166×83mm
Cell orientation	144cells (6×24)
Module dimensions	2094×1038×40mm
Weight	26kgs
Glass	3.2mm (0.13 inches), HighTransmission, AR Coated Tempered Glass
Frame	Silver anodized alunnium alloy
Backsheet	White
J-Box	IP67 rated (3 or 6 diodes)

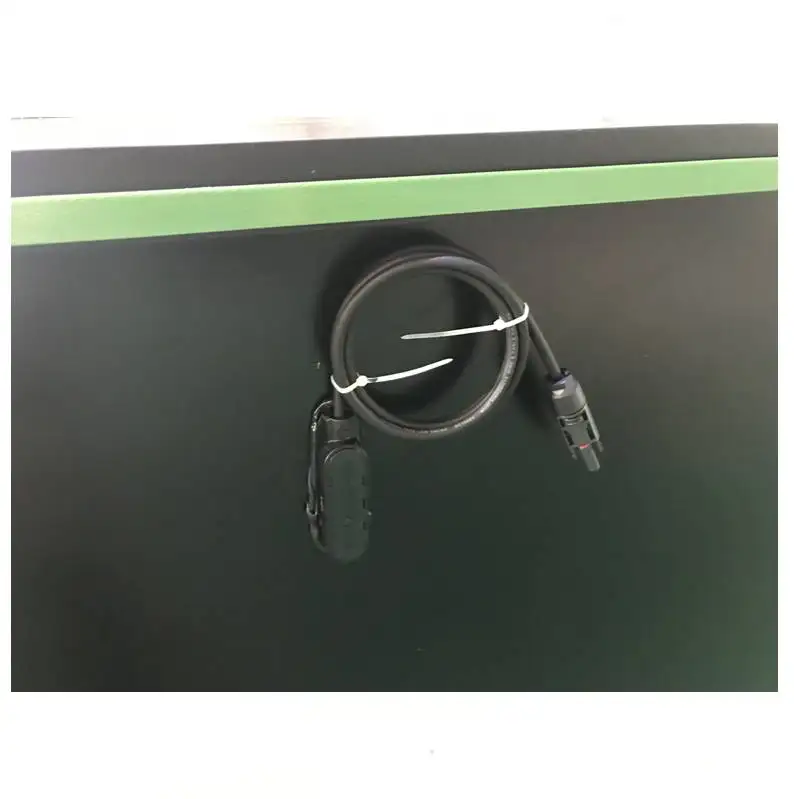

Cables	Photovoltaic Technology cable 4.0mm2 (0.006 inches2), 300mm (11.82 inches)
Connector	MC4 or MC4 Compatible

Payment
Payment Term	T/T	EXW	30% T/T advance,paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000usd,we can accept L/C at sight
	West Union	Amount lower than 5000usd
	West Union
Delivery time	7-10 working days after receiving payment for one container

FAQ

1. Q: Do you have your own factory?

A: Yes, we do. Our loctation is in Tangshan city, Hebei province.

2. Q: How can I visit your factory?

A: Please let us konw bofore you go there. We will arrange time to pick you up and show you around.

3. Q: Do you provide free sample?

A: Usually we do not provide free sample.

4. Q: Could you print our company LOGO on the nameplate and package?

A: Yes, we can.

5. Q: Do you accept custom design on size?

A: Yes, if the size is feasible.

6. Q: Do you have solar project engineer who can guide me to install system?

A: Yes, we have a professional engineer team. They can teach you how to install a solar system.

PS:Our factory can produce all kinds of solar panels and solar moudles according to customers' needs.
