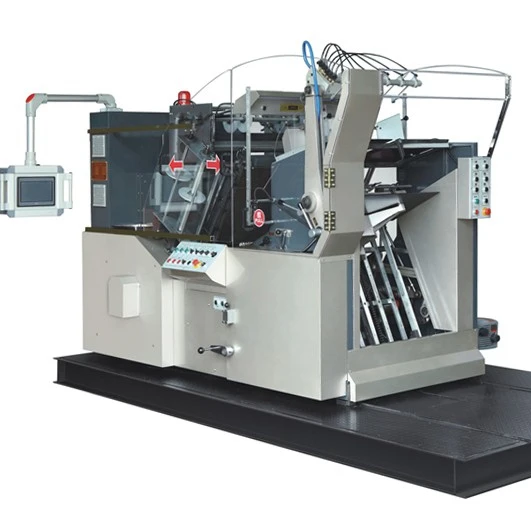

MSTL-780 Hot Sale Automatic Foil Stamping and Die Cutting Machine
Product Description
The working principle of hot stamping machine
At a certain temperature and pressure, The aluminum foil transfer to the product surface, different patterns and words with different Zinc or Copper corrosion version.
Product Application
Hot foil stamping machine belongs to printing and packaging equipment. They are used for hot stamping all kinds of colored aluminum foil and embossing or die cutting different kinds of pictures, clothing ticketing, greeting cards, trade mark, books cover, note book, packaging cartons, paper boxes, paper bags, Cork pad, folders, and other high grade decoration and printing materials, etc. The suitable product materials are including paper, cardboard, plastic (PVC,PP,PE), etc.,So that they are necessary equipment for printing factory, packaging Enterprise and Office stationery manufacturer.
Specifications of MSTL-780 Hot Sale Automatic Foil Stamping and Die Cutting Machine
Name
Automatic stamping and die cutting
Automatic stamping and die cutting
Model
MSTL-780mm
MSTL-930mm
Max. sheet size
780*560mm
930*660mm
Min. sheet size
200*300mm
450*350mm
Max. feeding pile height
700mm
750mm
Max. collect pile height
160mm
160mm
Max. working pressure
110*104 N
220*104 N
Power
14kw
16kw
Air pump displacement
40 m3/h
40 m3/h
Paper range
100 -2000 g/m2
120-2000 g/m2
Max. mechanical speed
1500s/h paper<150g/m2
2800s/h paper>150g/m2
1500s/h paper<150g/m2
2500s/h paper>150g/m2
Machine weight
6000kg
7500kg
Machine noise
<77db
<77db
Electric power plate
8kw
9kw
Electric plate area
4 groups
4 groups
Foil-routing axle number
4
4
Overall machine dimensions
3850*1920*2200mm
4120*2100*2300mm
Detailed Images

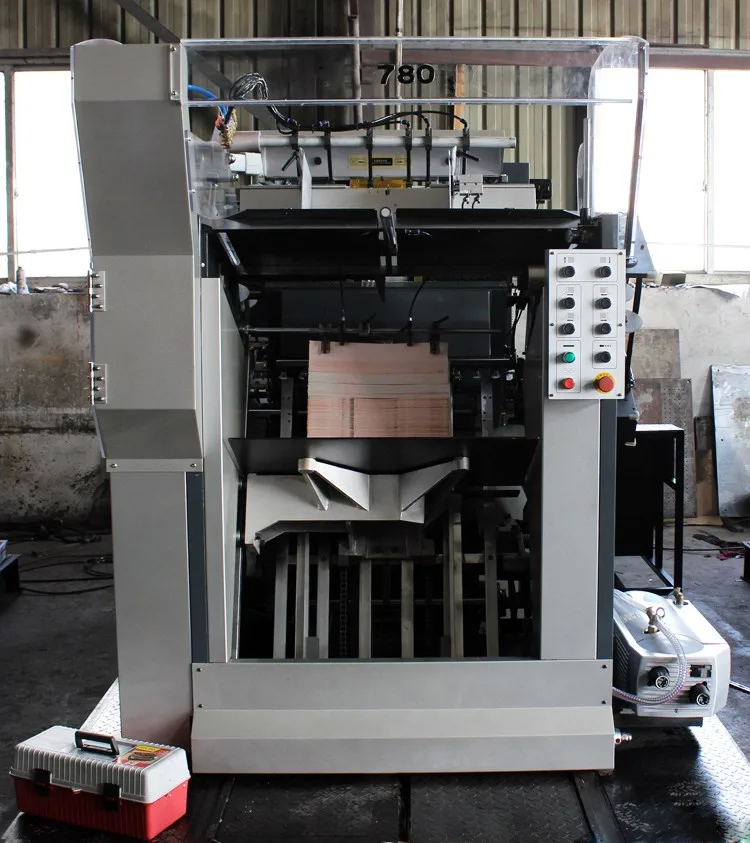

1.Automatic paper feeding and collecting
Inteligent Manipulator
2. FOIL HOLDER: 4 groups; up and down, left and right.
Longitudinal width of aluminum foil:90mm
Lateral width aluminum foil:160mm
Longitudinal length of aluminum foil:240m
Lateral aluminum foil length: more than 480m
3. Automatic paper feeding and collecting part:
This part moving controlled by servo motor, convenient adjusting and detecting equipment.

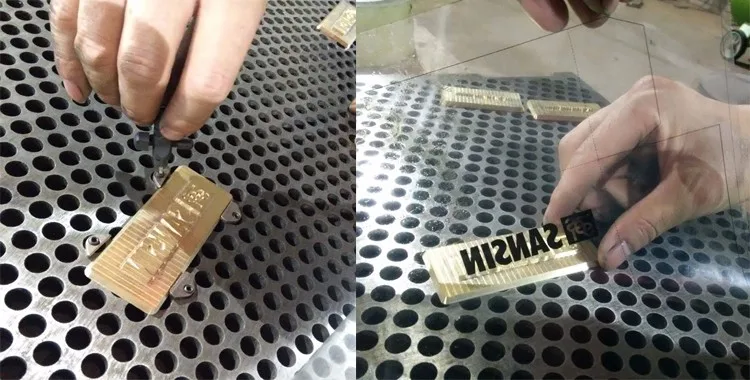

4. Honeycomb heat plate:
Convenient and accurate installation the stamping dies.

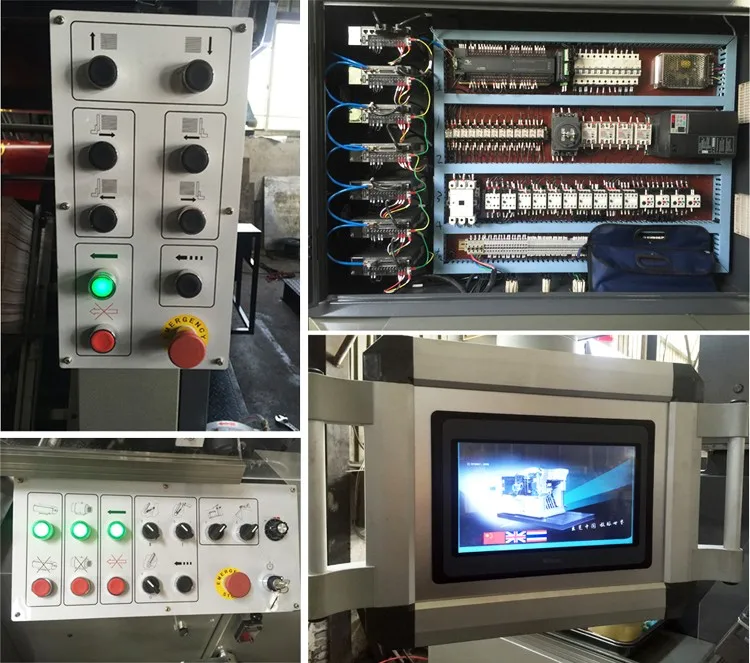

5. AUTOMATIC ELECTRIC CONTROL SYSTEM:
the machine pressure could control by one Key, also, we could set the foil stamping times of automatic stop depend on work need.
* Training how to install the machine, training how to use the machine. * Engineers available to service machinery overseas.
Warranty
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
