Многофункциональный Ультразвуковой фрезерный станок с
- Категория: Фрезерные станки с ЧПУ >>>
- Поставщик: Conprofe,Technology,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.48 $* | 0.2 $* |
| Aug-18-2025 | 0.55 $* | 0.46 $* |
| Jul-18-2025 | 0.79 $* | 0.15 $* |
| Jun-18-2025 | 0.91 $* | 0.18 $* |
| May-18-2025 | 0.1 $* | 0.46 $* |
| Apr-18-2025 | 0.32 $* | 0.37 $* |
| Mar-18-2025 | 0.29 $* | 0.64 $* |
| Feb-18-2025 | 0.71 $* | 0.82 $* |
| Jan-18-2025 | 0.72 $* | 0.81 $* |
Характеристики

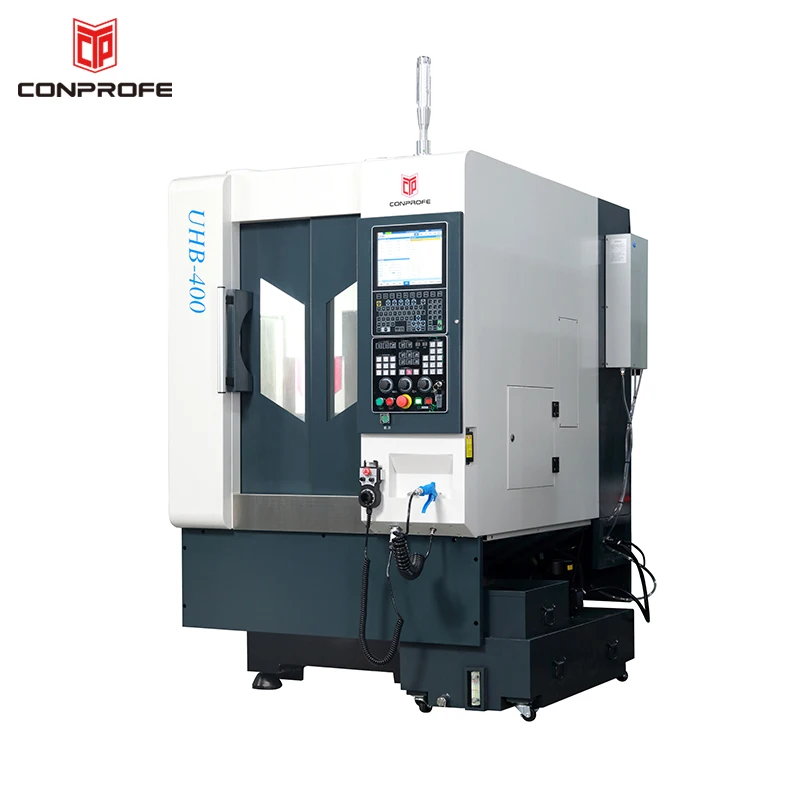

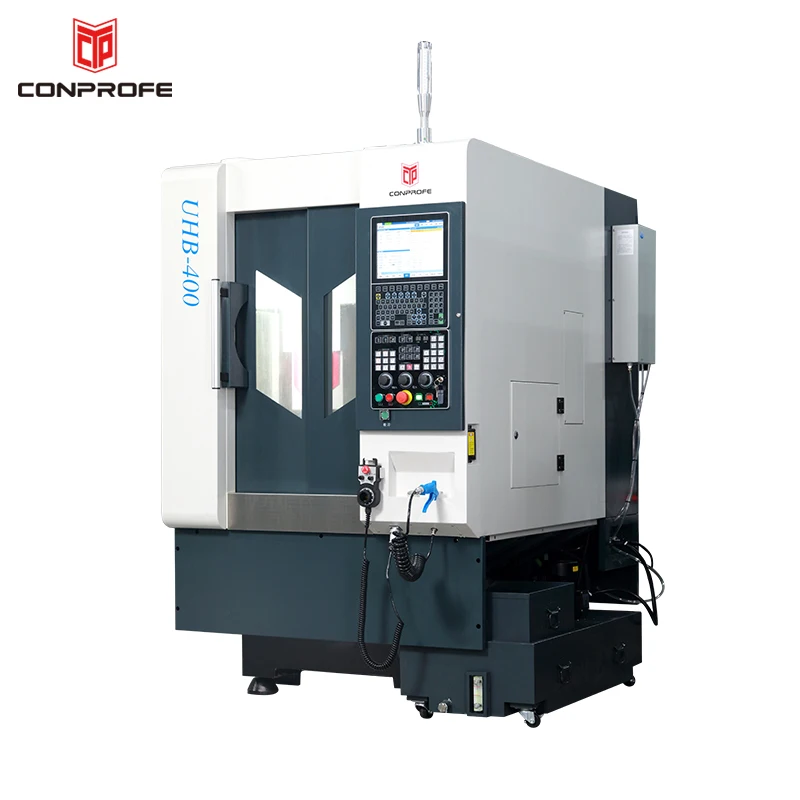

China Manufacturer Multifunction Ultrasonic Small Thread CNC Milling Machine Price
Product Description
| Description | Package Detail |
| System | Siemens 808D System |
| Worktable | |
| Dimension (mm) | 400x400 |
| Max. Load (kg) | 100 |
| Travel | |
| Max.X/Y/Z Travel (mm) | 400x400x150 |
| Feed Rate | |
| X/Y/Z Rapid Traverse (m/min) | 15/15/12 |
| Spindle | |
| Diameter (mm) | 80 |
| Power Rating (kW) | 3.7 |
| Max. Speed (rpm) | 40,000 |
| Magazine | |
| Tool Capacity (pockets) | 12 |
| Tool Holder Type | HSK-25E |
| Tool Overhang (mm) | 70 |
| Accuracy | |
| X/Y/Z Positioning Accuracy (mm) | 0.005 |
| X/Y/Z Repeatability (mm) | 0.003 |
| Power Supply and Dimensions | |
| Power Supply | 3-Phase AC, 380V/50Hz/18A |
| Weight (kg) | 2,100 |
| Required Compressed Air Connection (MPa) | ≥0.6 |

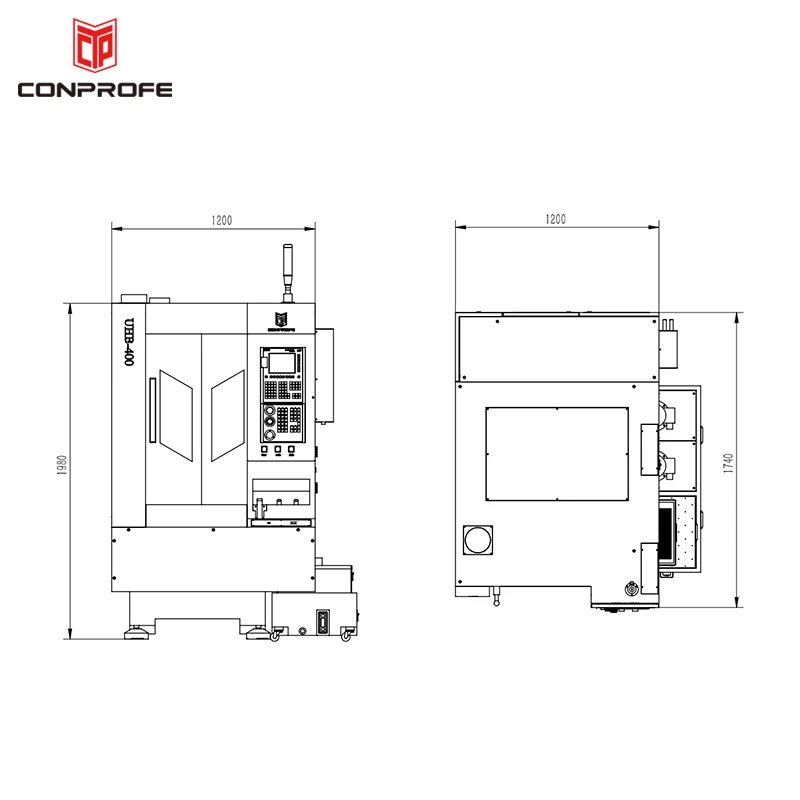

| X/Y/Z Dimensions (mm) | 1,450×1,750×1,960 |
| Warranty (Months) | 12 |
Make the Impossible Possible
- 130% output with 30% CAPEX
- Sub-surface damage reduced by 40%
- Tool life improved by 3~10 times
- Cutting force down by 50%
- Cutting heat down by 30%
1. Most Economical 2-in-1 Ultrasonic Precision Machining Center for Hard-Brittle & Small Metal Parts Processing

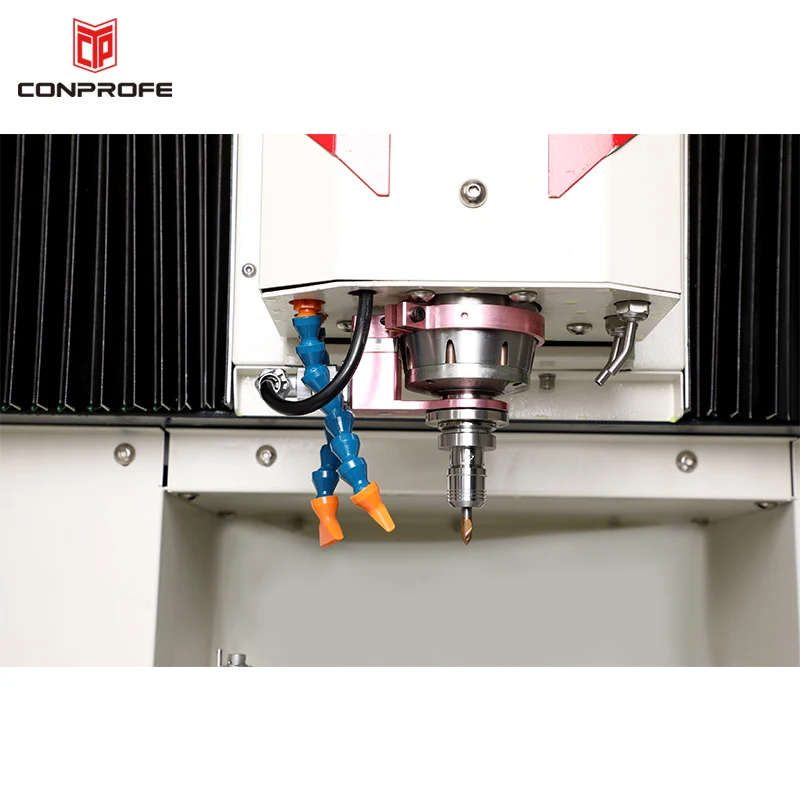

2. Ultrasonic (spindle / tool holder) technologies for high precision and efficiency
3. The most subminiature 5th axis rotary table in the world available for multi-sided machining in one clamping
4. Optional Renishaw 3D Probe to realize innovative process and in-process control

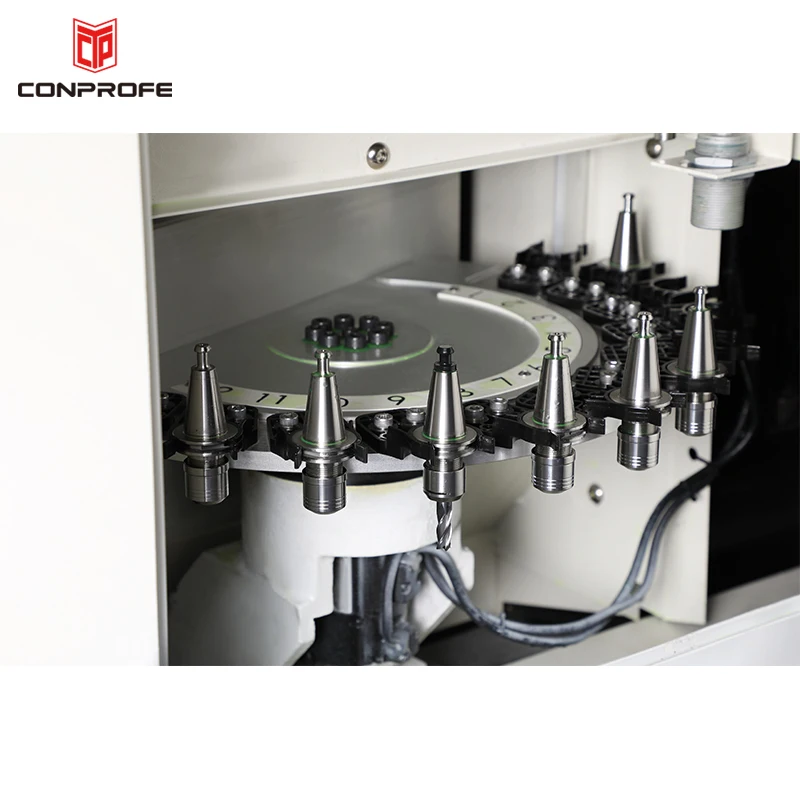

5. Optional single or dual ATC:12/24 tools
6. Free workpiece testing
