Multibeam PP Spun Bonded Non Woven Fabric Making Machine

 Multibeam PP sun bond non woven fabric machine is one of our mature products. The flow steps are as below: feeding, melting and extrusion, spinning, quenching, closure air stretching, web formation, hot-bonding, winding and slitting as per requirements and then packed for storage and delivery.

YAOAN has sold this machine successfully in Mainland of China,also exported to Russia,India,Colombia, Mexico, Peru,South Africa,Kenya,Bangladesh,UAE and so on



	Model	Fabric Width	Line Speed	Weight	Capacity	Dimension
	1.6S	1600mm	≤150m/min	15-200	4-5	20M*10M*10M
	2.4S	2400mm	≤150m/min	15-200	7-8	20M*11M*10M
	3.2S	3200mm	≤150m/min	15-200	9-10	20M*13M*10M
	1.6SS	1600mm	≤250m/min	15-150	8-10	35M*12M*10M
	2.4SS	2400mm	≤250m/min	15-150	13-15	35M*15M*10M
	3.2SS	3200mm	≤250m/min	15-150	18-20	35M*17M*10M
	1.6SSS	1600mm	≤350m/min	15-100	9-13	45M*12M*10M
	2.4SSS	2400mm	≤350m/min	15-100	14-20	45M*15M*10M
	3.2SSS	3200mm	≤350m/min	15-100	22-28	45M*17M*10M
	1.6SMS	1600mm	≤400m/min	15-100	6-10	35M*18M*10M
	2.4SMS	2400mm	≤400m/min	15-100	10-15	35M*22M*10M
	3.2SMS	3200mm	≤400m/min	15-100	12-20	35M*25M*10M
	1.6SMMS	1600mm	≤450m/min	15-100	7-12	45M*18M*10M
	2.4SMMS	2400mm	≤450m/min	15-100	10-18	45M*22M*10M
	3.2SMMS	3200mm	≤450m/min	15-100	14-24	45M*25M*10M

Features:
1)It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labor and widely compatibility and so on.
The equipment produces non-woven fabric with polypropylene(PP), adopts the technology of formating the web by negative pressure, make into PP spun-bonded non-woven fabric, the product is featured by uniform cover, great intensity, good ventilation and good feeling and so on. It has been in wide use in medical clothes, package and architecture and so on.

2)The lower investment can reduce some unnecessary additional auxiliary facilities, and under the conditions of guaranteeing the technology requirement and safe production, can reduce the cost of the manufacture, so that we can reduce the investment lower.

3)Its easy and reliable to making technics adjustment, the line adopts the method of computer controlling assistant systems combines with human control to make the technics adjustment become more easier and reliable, and the machine can adapt to different raw materials to gain more widely usage.

4)The requirement of the workshop and equipment is very simple, it reduces the fixed assets investment, and efficiently take the advantage of the room of the platform, and enlarge the utilization of the workshop and the steel platform.

5)More specialty in processing the main equipment increasing the procession precious and capacity of the machine, this reduces the manufacture cost and to undertake the quality of the product more well.



Raw material specifications (PP granule)

Item	Unit	Technical index
Melting index	g/10min	30~40
Melting point	°C	162~166
Density	g/cm3	0.90~0.91
Molecular weight distribution	Mw/Mn	≤4
Content of grey	PPm	≤250
No equal normality	%	≤3.5
Content of water	%	<0.05
Stretch strength	Mpa	≥31

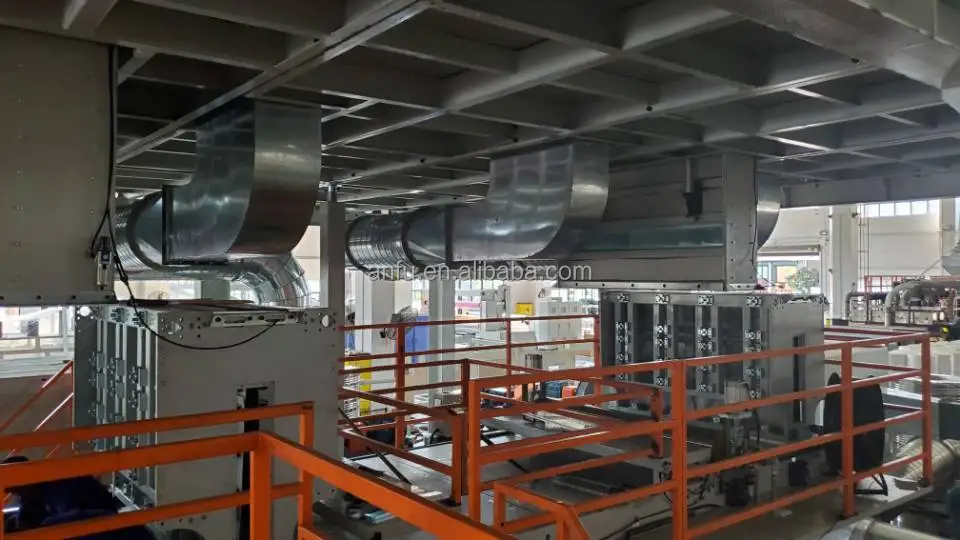

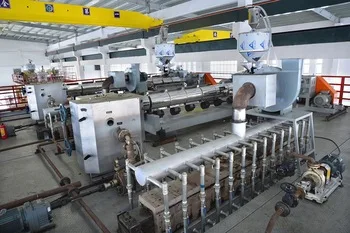

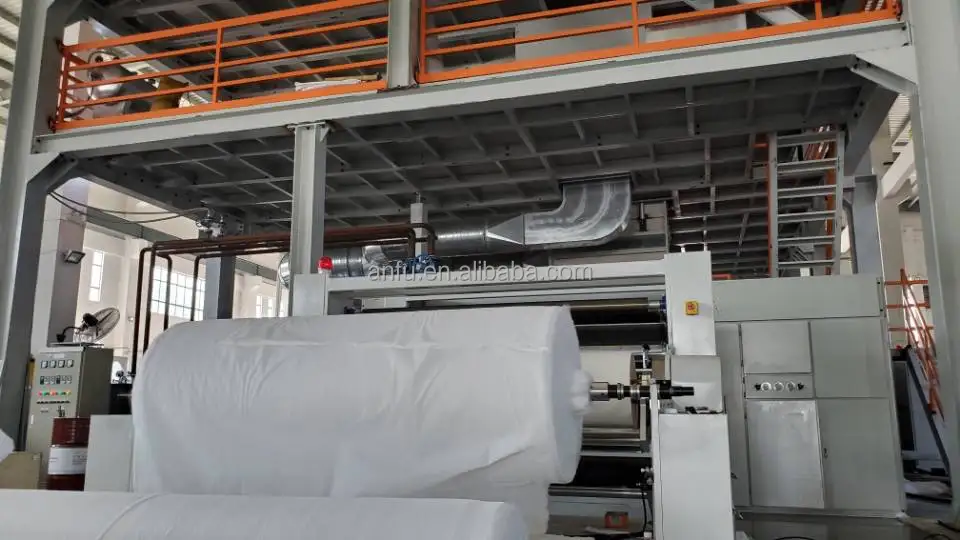

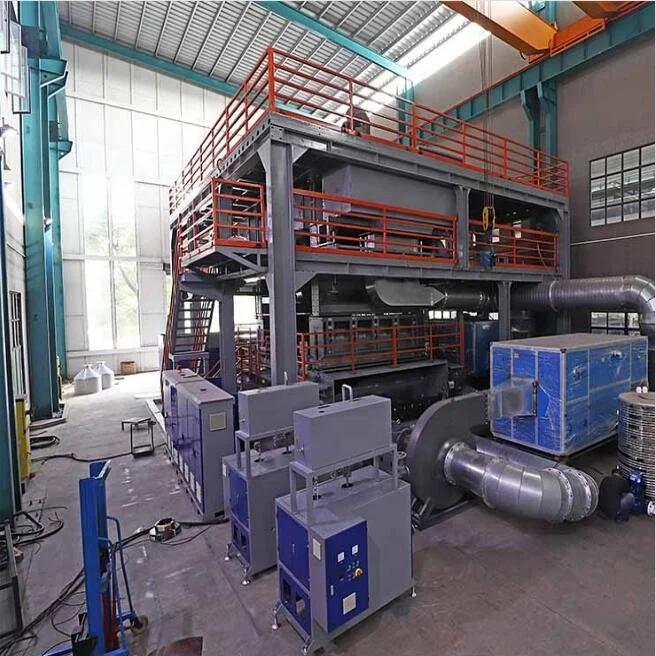

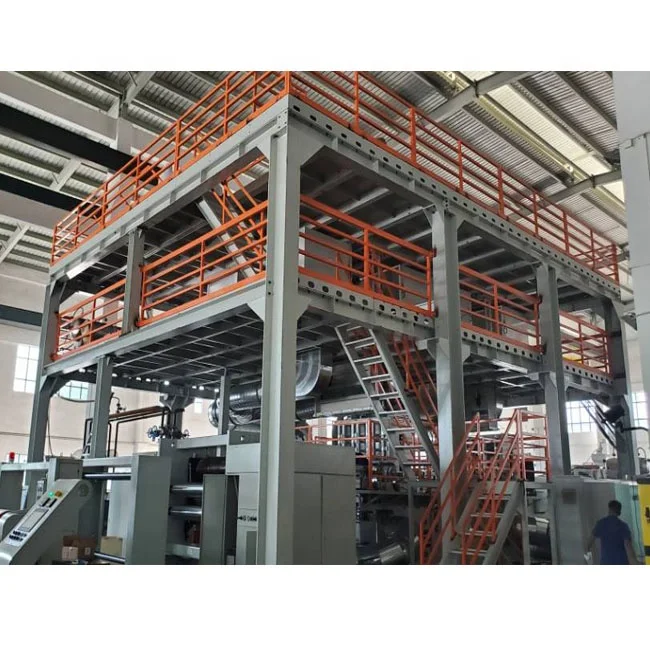

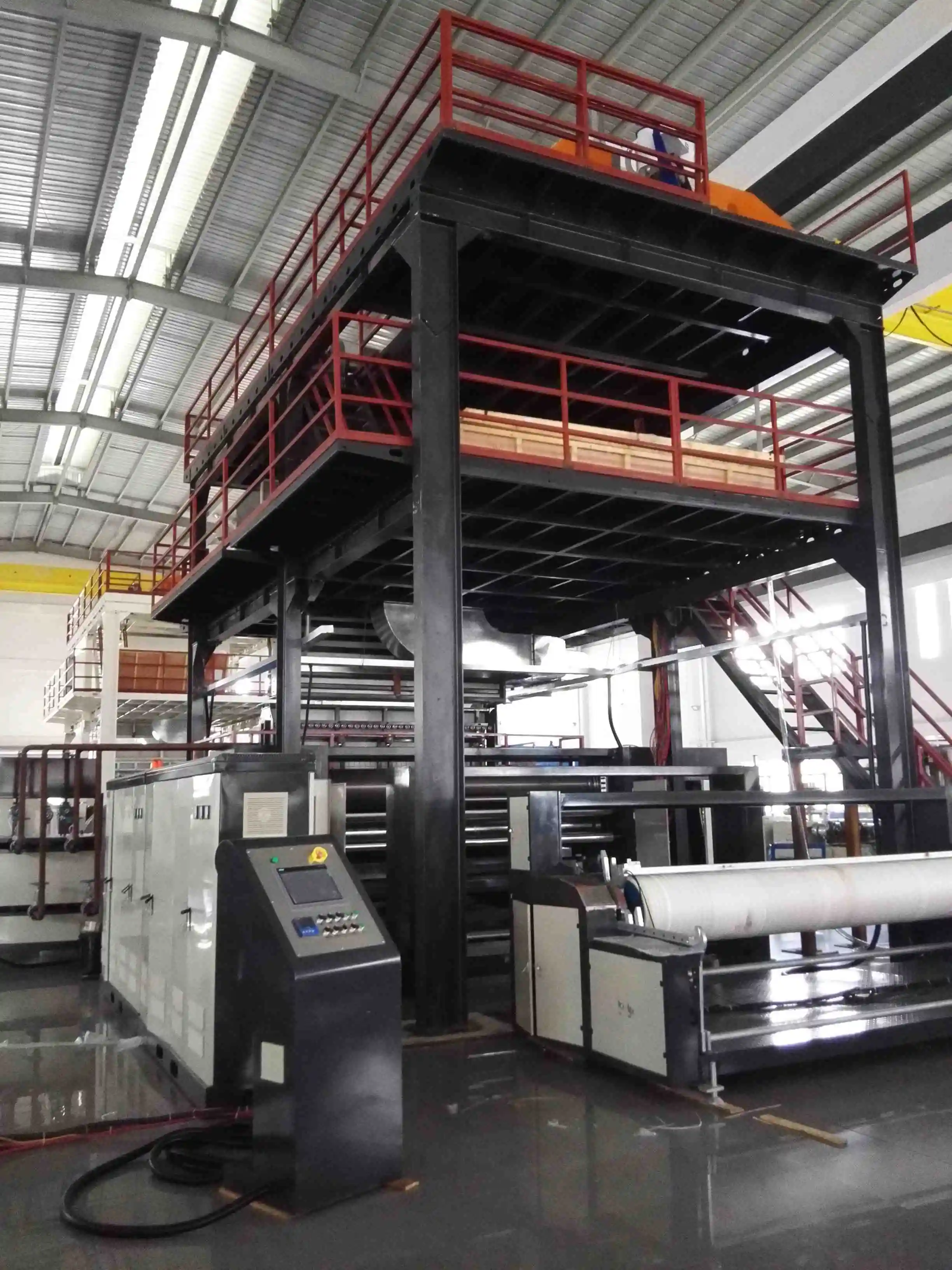

Machine Pictures:





Nonwoven fabric machine shipment:



Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
