Плата контроллера ЖК-дисплея FHD AV USB Type C
US $50.00-$99.00
Новые товары 2 4 дюймов 240x320 RGB tft Универсальный ЖК-контроллер Плата дисплея для
- Категория: LCD Boards & Accessories >>>
- Поставщик: Zhejiang,Kaihang,Display,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 4.52 $* | 4.3 $* |
| Jul-20-2025 | 3.73 $* | 3.14 $* |
| Jun-20-2025 | 4.90 $* | 4.91 $* |
| May-20-2025 | 4.83 $* | 4.81 $* |
| Apr-20-2025 | 3.38 $* | 3.92 $* |
| Mar-20-2025 | 4.53 $* | 4.24 $* |
| Feb-20-2025 | 4.19 $* | 4.65 $* |
| Jan-20-2025 | 4.92 $* | 4.10 $* |
Характеристики

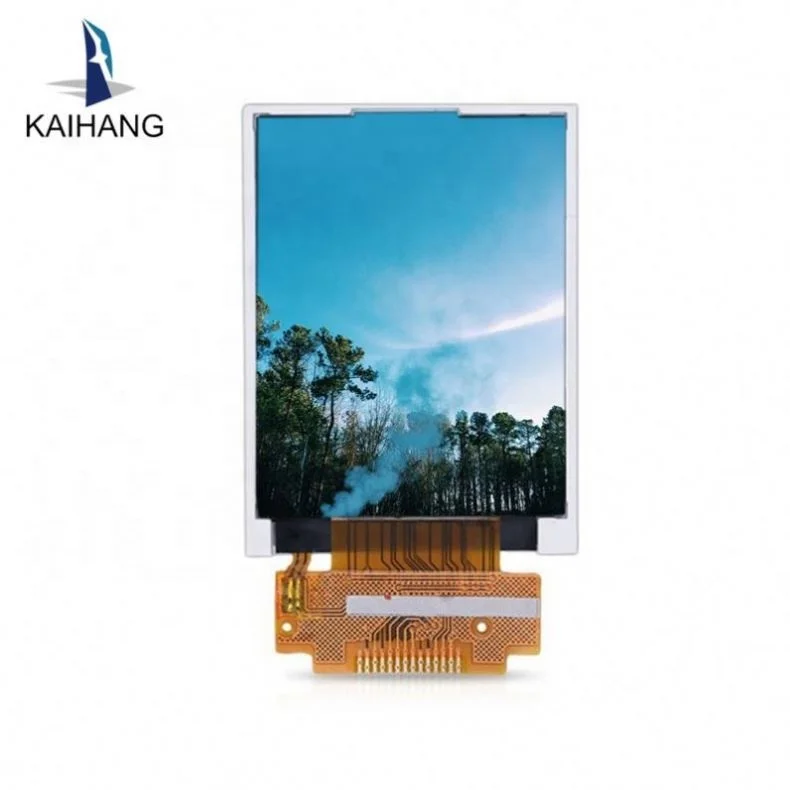

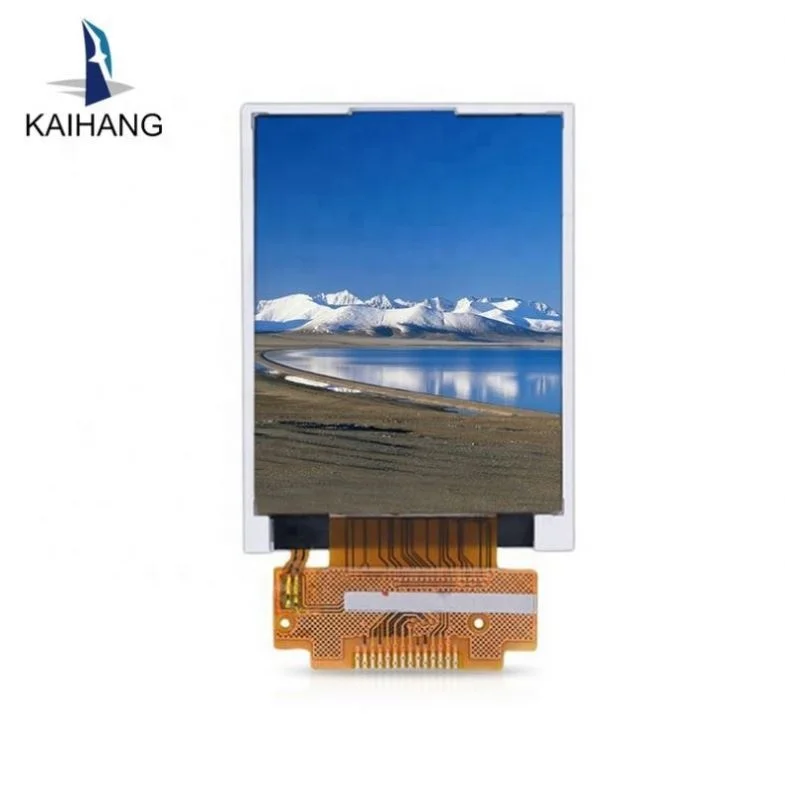

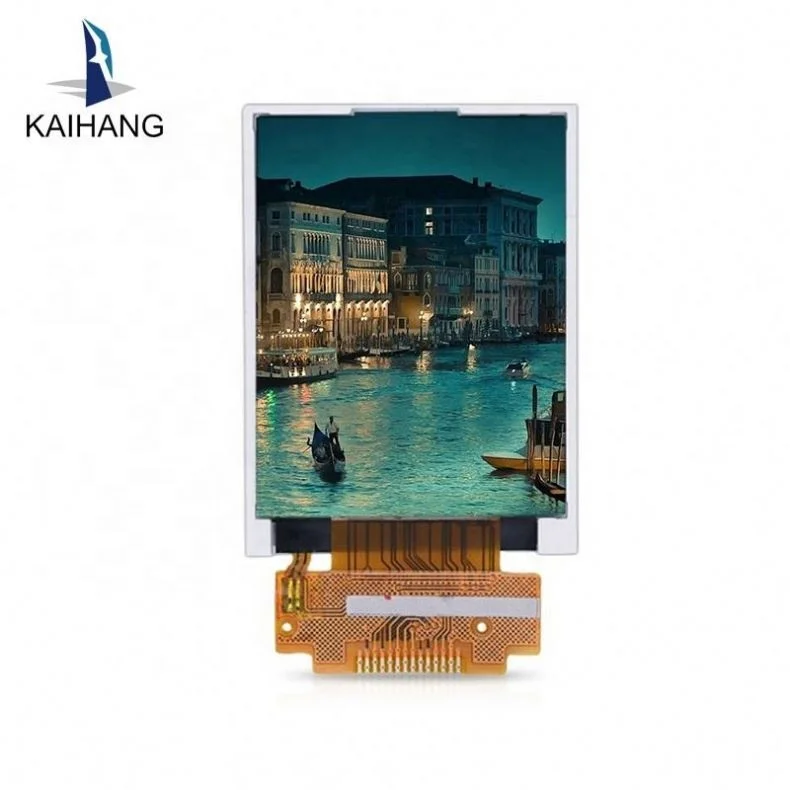

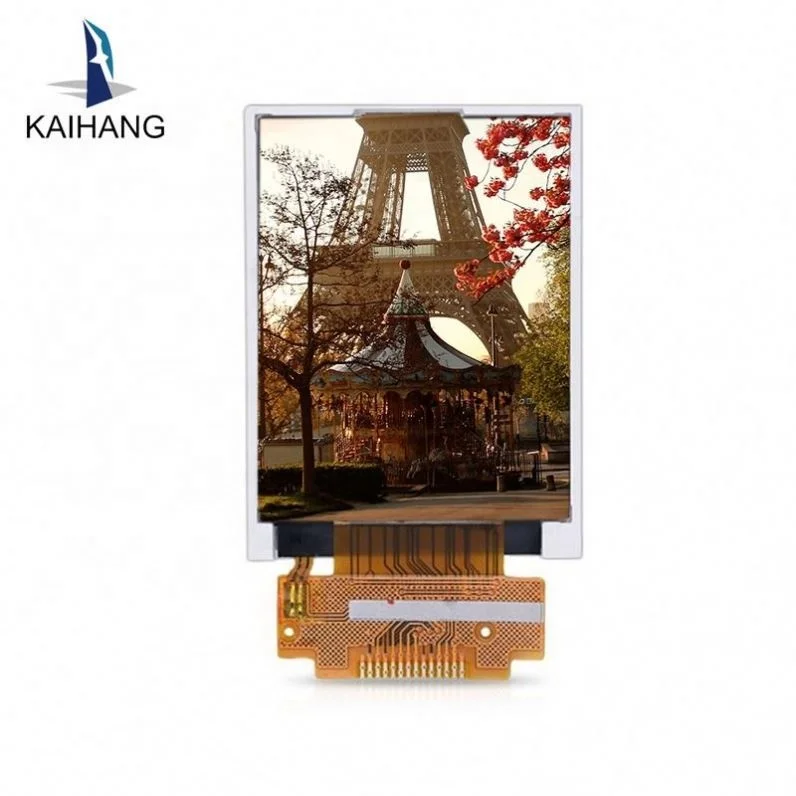

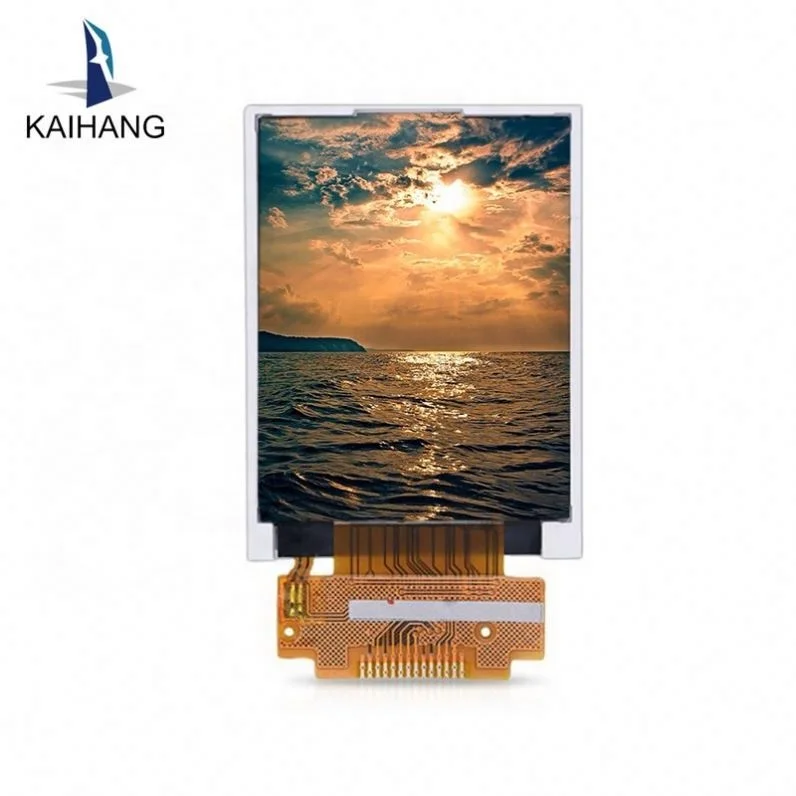

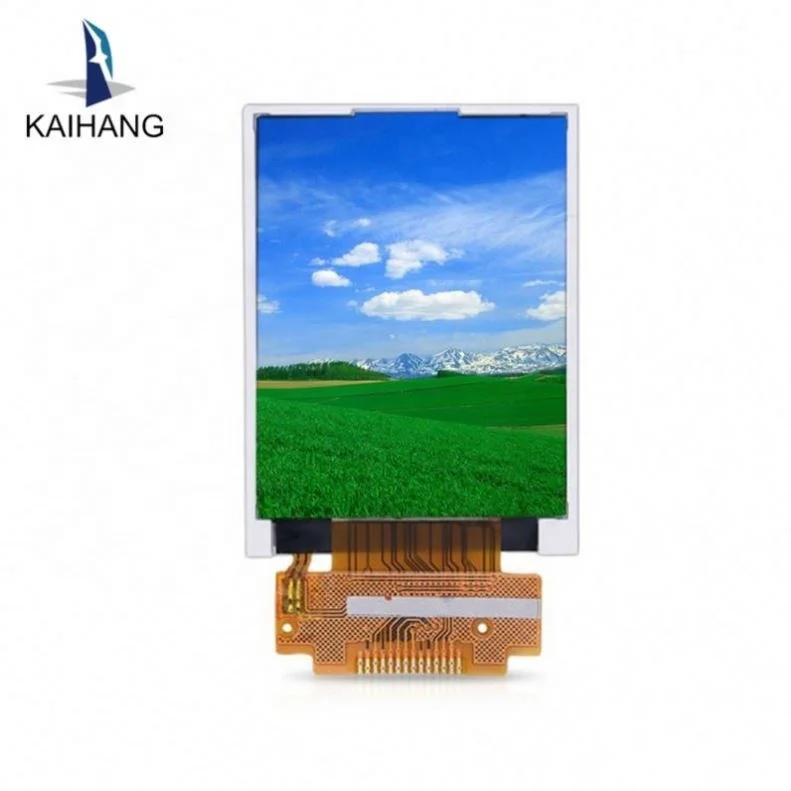

2.4 Inch 240x320 RGB tft universal lcd controller board display for clock
Product Description
| Item No. | FD024DEX01 |
| Size: | 2.4 Inch |
| Display Mode: | Normal white Transmissive |
| Resolution: | 240 x 320 |
| Interface: | RGB |
| Backlight: | 6 White LED |
| Brightness: | 750cd/m2 |
| Connection: | FPC |
| Outline Dimension: | 42.72 x 59.00 x 2.3 mm |
| Active Area: | 36.72 x 48.96 mm |
| Viewing Direction: | TN |
| Drive IC: | ILI9341V |
| Color: | 262K |
| Response Time: | 1 ms |
| Assy Type: | COG+FPC+Bl |
| Contrast Ration: | 500 |
| Operating Temperature: | -20°C - 70°C |
| Storage Temperature: | -20°C - 80°C |
| Original: | China |
| HS Code: | 9013803010 |
FAQ
Q: What is your MOQ?
A: Our MOQ is 1 piece.
Q: Do you have data sheets?
A: Yes, we have data sheets of our LCD modules. You may ask our sales for help.
Q: Do yo have LCD modules in stock?
A: We don’t have products in stock now. But we may prepare some later on, please feel free to ask our staff to check.
Q: How can I know which size is suitable for our application?
A: Please ask your engineer for guidance to make sure the size of your product(length*width*thickness in mm) and the function of it. Based on the above information, we will suggest the ideal size of the LCD module for your product.
Q: How to choose a suitable model of LCD display for a new project?
A: Think about the following key points to define a model you need, such as size/resolution/thickness/LCD interface/view angle/brightness/operation temperature and so on.
Q: When I get the LCD display sample, how can I tell its performance meets up with our standard or not?
A: You can ask us for a demo board, if possible, and check by yourself. If you need any guidance, we are willing to help.
Q: What is the normal payment terms?
A: For samples and small-quantity orders, we recommend 100% payment in advance. As for mass orders, we require 30% in advance, and balance before our delivery.
Q: What is the normal lead time?
A: If we still have samples in stock, delivery can be made within one week. If not, it generally takes about one month to manufacture the samples. Please confirm with us to check.
