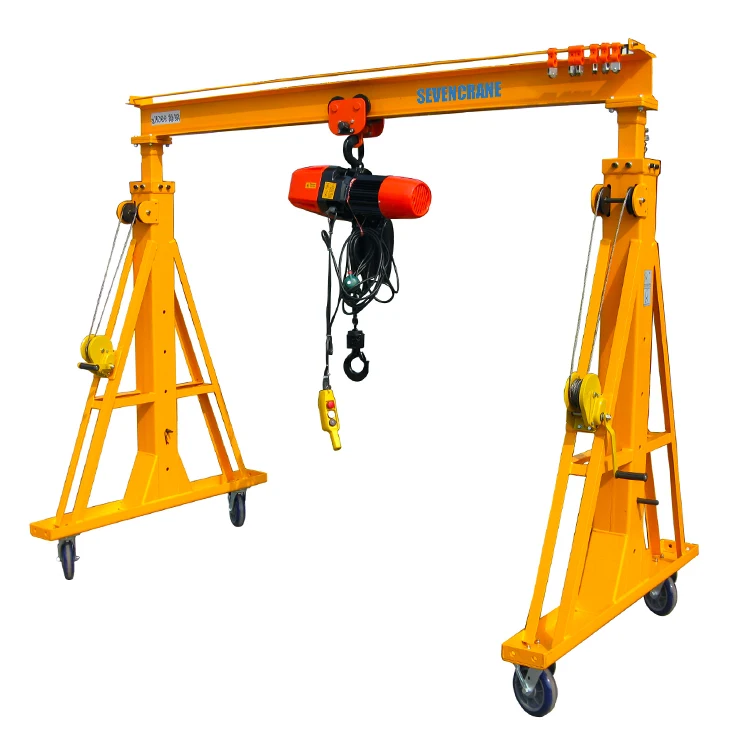

500kg 1ton 2ton 3ton mobile portable mini 4 wheels gantry crane with hoist
Product Description
Portable gantry crane are designed for transporting and lifting materials.
The small electric gantry crane can move easily, disassemble and install quickly, cover little area. The structure design reasonably, can withstand 500 ~ 20000 kg weight, span up to 20 meters.
Especially apply to yard and workshop equipment installation, transportation.
The small gantry hoisting belt brake on bearing universal wheel can move on the ground, with electric hoist or manual hoist, chain blocks or monorail car accessory, realize the mechanization of hoisting, can reduce manpower and production costs, improve work efficiency.
Non-Rail Travelling
It is designed with rubber wheel ,by which, it can run on concrete floor. The universal wheel on front can lead the gantry to any point by any direction. The driving wheels can be electrical or manual type according to the site situation.
Beam Height Adjusted
The beam height can be rasied to different height. It is very useful when certain area has some low roof. As a result, you do not have to buy different cranes or tools. We provide 3 type of height adjusted gantry: Lever raising; Winch raising and Turbine raising model.
1. Lever raise model:
Two(2) levers are installed on both side, and it is more compact and convinient to raise the beam. It is most popular among our clients.
2.Winch raise model:
By using 2 sets of winch on both side of the leg, the beam can be raised by different height accoring to the requirement.
3. Turbine raise model:
This is a patend designing from our company, and it is the only designing among our competitors all around the world. The raising is precisely by mm and can be raised to any point according to the site situation. In many cases, the user can raise the beam as close as possible to the roof, then, give a maximum of lift height than any other lifting equippment.
Assemble and Disamemble
1. Bolt connection
All loose parts are connected by high-strength bolts. 2 worker can assemble them at site easily.
2. Nut embeded design
Ground beam has a nut embeded designing. This makes the assemble work very simple. All bolts and nuts are matched perfectly.
3. Span alternative
Clinet can order differnet span of beams to meet the same legs. It can be assembled according to different working site.
4. Other features
Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection.
| Model | Lifting Capacity | Lifting Height | Span | Hoist Type | Traveling Type | Marerial | Feature |
| PT | 0.5t-20t | 2m-20m | 2m-15m | Electric or Manual | Electric or Manual | Steel | Adjustable height or not Adjustable span or not |
| LT | 0.5t-5t | 2m-8m | 2m-8m | Electric or Manual | Electric or Manual | Aluminium | Adjustable height or not Adjustable span or not |
| LG | 0.1t-5t | 1m-5m | 2.5m-9m | Manual | Manual | Aluminium | Adjustable height or not Adjustable span or not Folding |
Advantages of portable gantry crane / mobile gantry crane / mini gantry crane
- Light weight ,five times the safety factor
- Easy operation ,wireless controller available
- move under load ,Smooth starting and stopping
- Every steel tube is detachable, disassembly and assembly are easy
- Easy operation Control by Pendent controller with push buttons or wireless controller ,control the gantry moved front and back , the hoist travelling left and right , lift up and down.
- Portable design allows for relocation for use in more than one facility or work area.

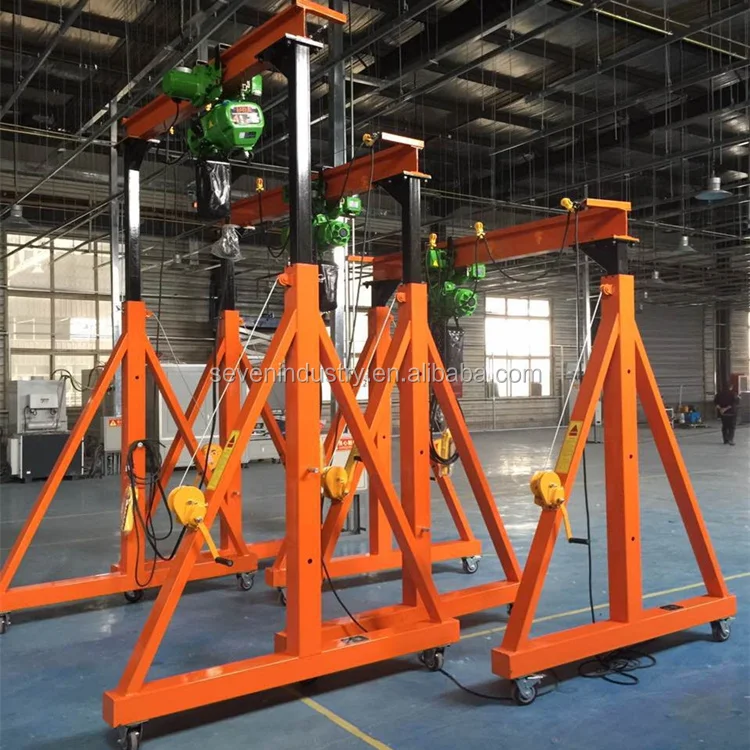

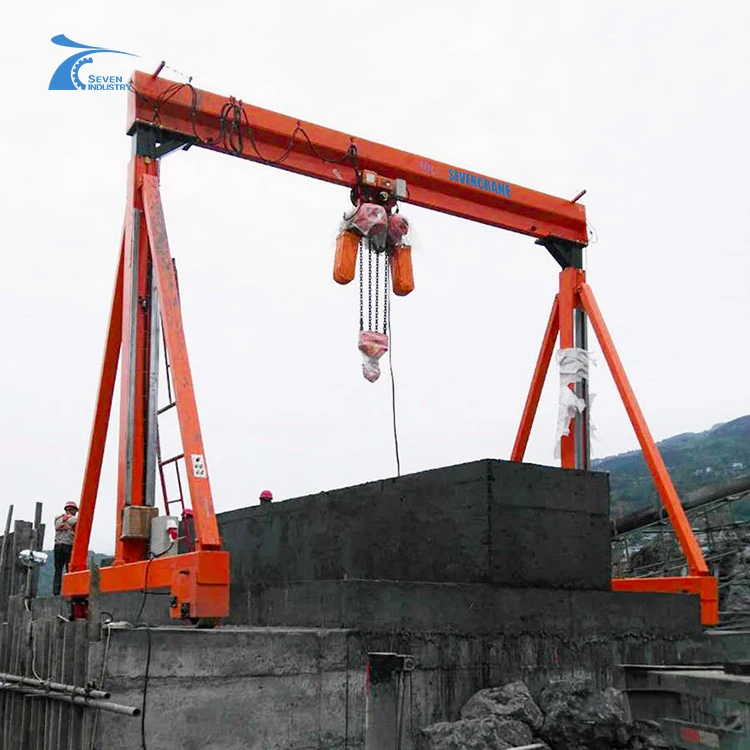

Product Galley
Company Information
Henan Seven Industry Co., Ltd is located in Zhengzhou, Henan, China, which has more than 30 years’ experiences in the lifting machinery industry. Our company focus on new type industry crane designing, researching & developing, own many patents, and approved the CE and other certificates. Our portal gantry crane can be adjusted the height & span, drove to walk by electric. If you need, it also can be controlled by wireless remote. We have more than 60 scientific technicians, standard testing equipment. We can provide satisfied solutions and drawings according your operating environment, customized your crane. Our products had been exported to Southeast Asia, Europe, the United States, Australia, South America and many other countries, and got much satisfied feedback from our clients.
FAQ
1. Can you send me your price list?
Sorry dear friend, as you know, if u are end user, we can customize your gantry crane according your working environment. So please tell me your information bellow, we can give your quick offer.
a: Lift capacity
b: Lift height
c: Span length
d: Power source f: Working environment.
2. Can you draw for us?
Yes, we have good experienced technicians, we can design and draw for your own portal gantry crane according your requirements to solution your problems.
3. Operating methods for selection?
A : Pendent controller with push buttons
B : wireless controller
C : Manual
We integrate all circuit in the controller to control the gantry crane move front and back, the hoist lift up and down, travel left and right.
4. Can you provide the lifting tools series?
Sure, we can provide any other lifting machinery you need, such as overhead crane, gantry crane, jib crane, electric hoist, electric winch, KBK crane Spider crane, and so on.
5. How to install the mobile gantry crane?
We can send u the install operates manual or video, it’s easy to install the crane, but if u need our engineer can be your side.
6. What is your lead time?
The lead time is 7-15 days for one set.
