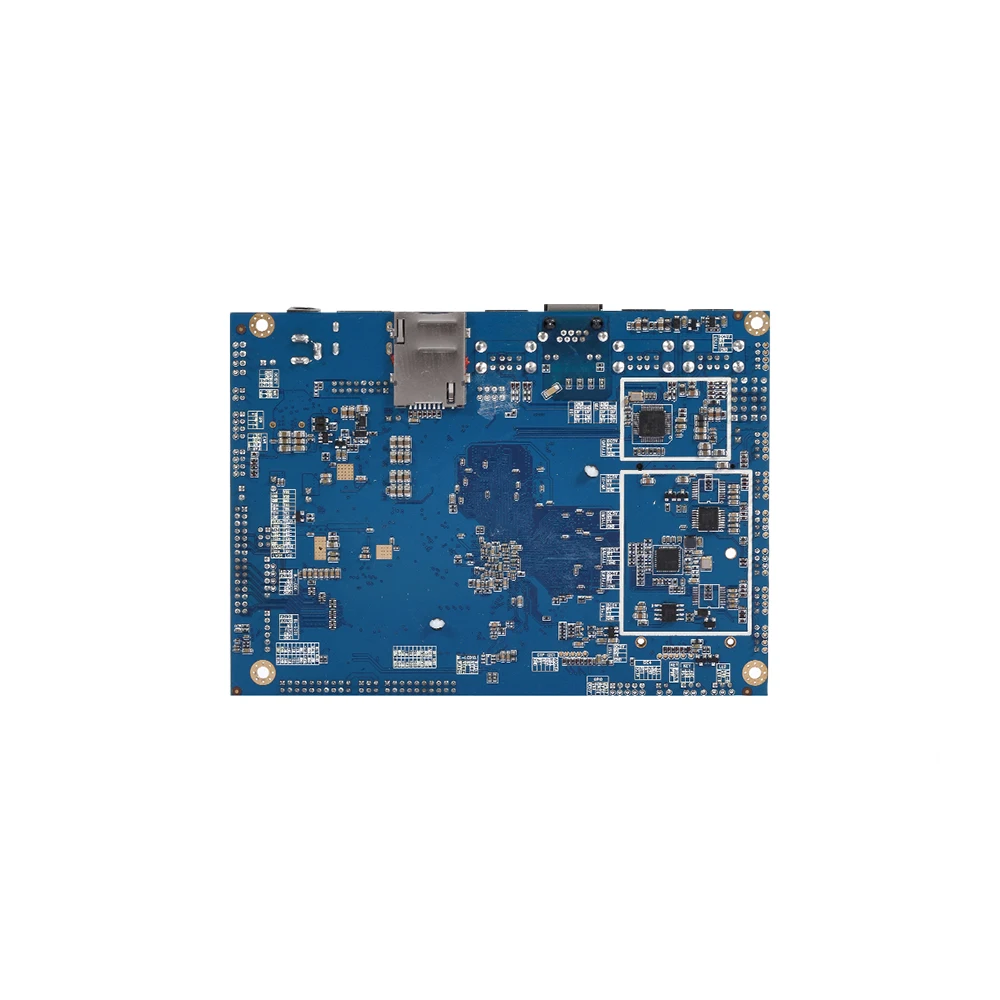

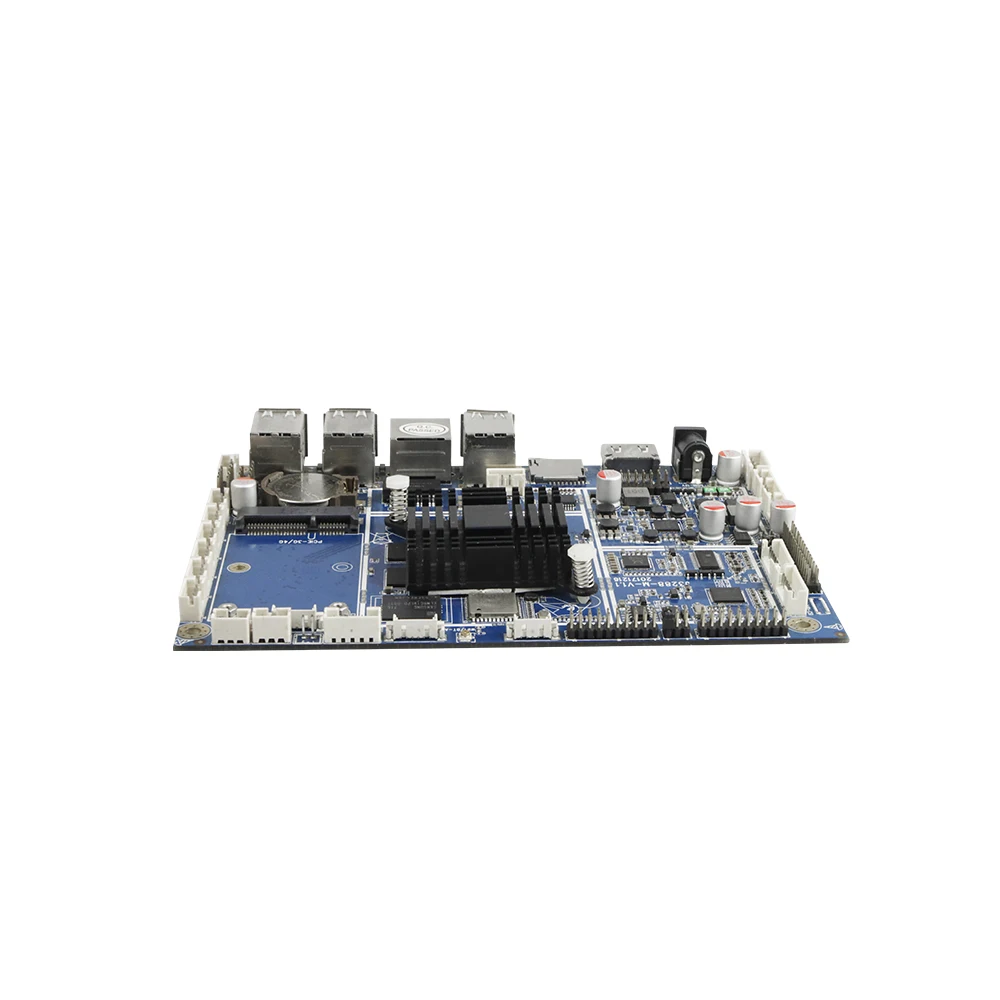

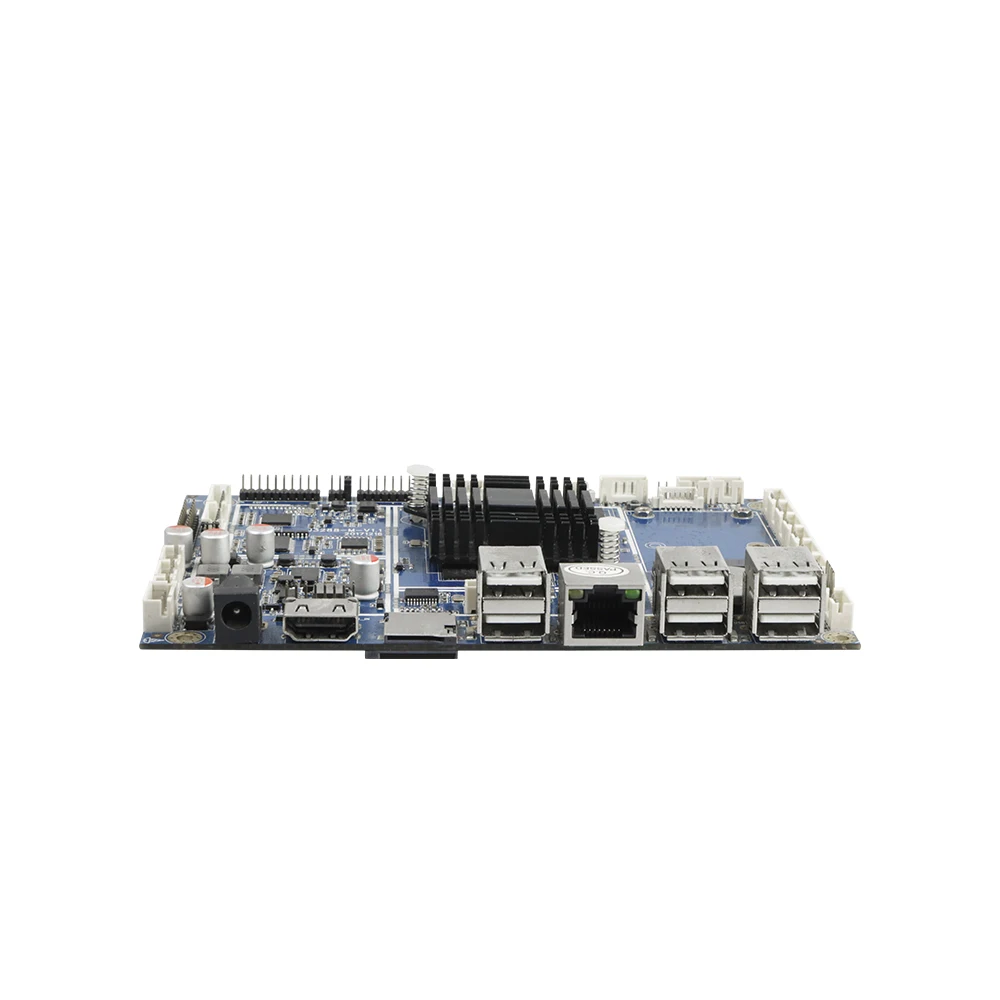

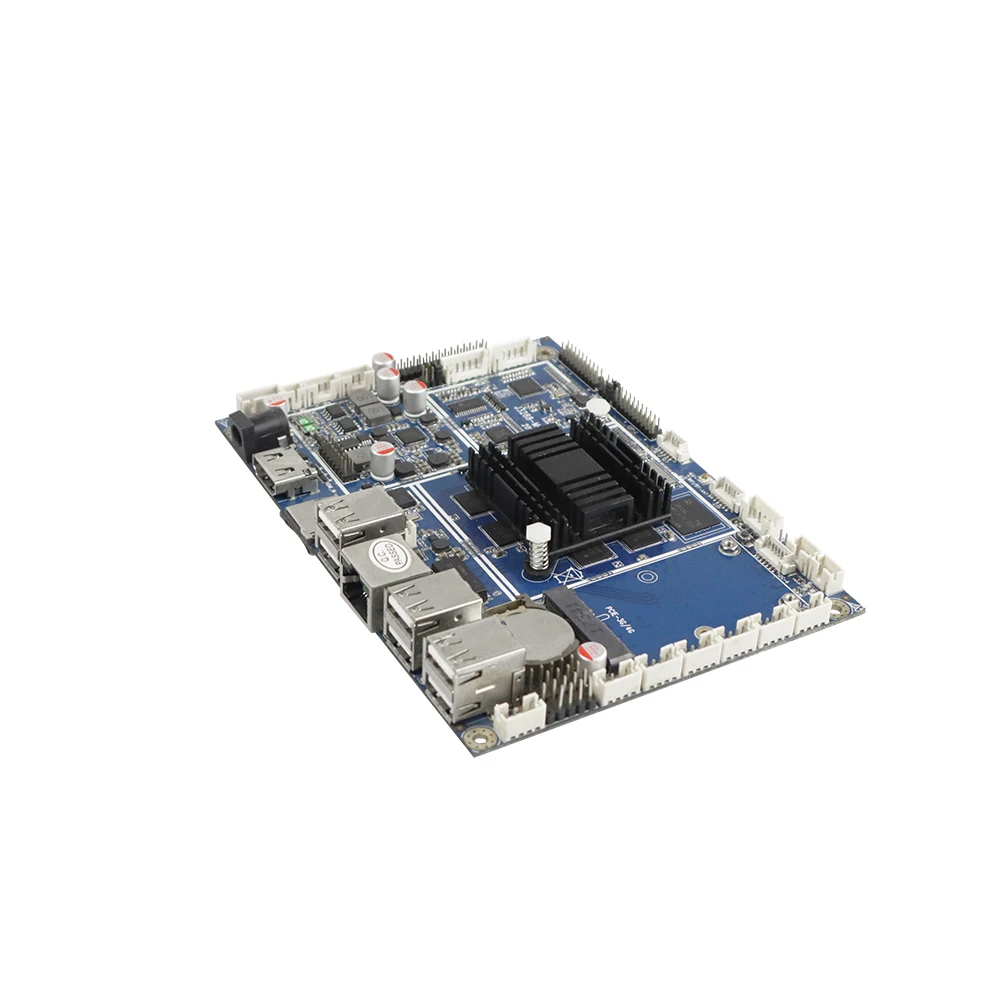

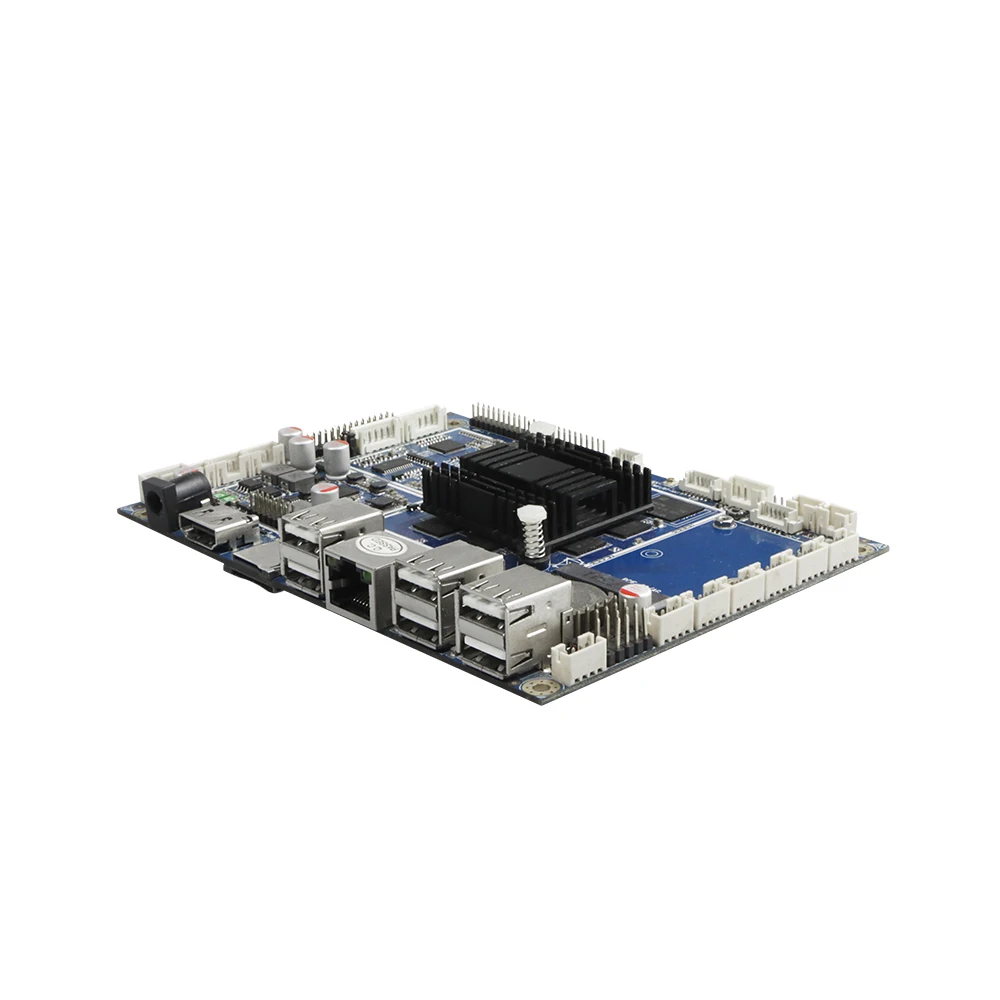

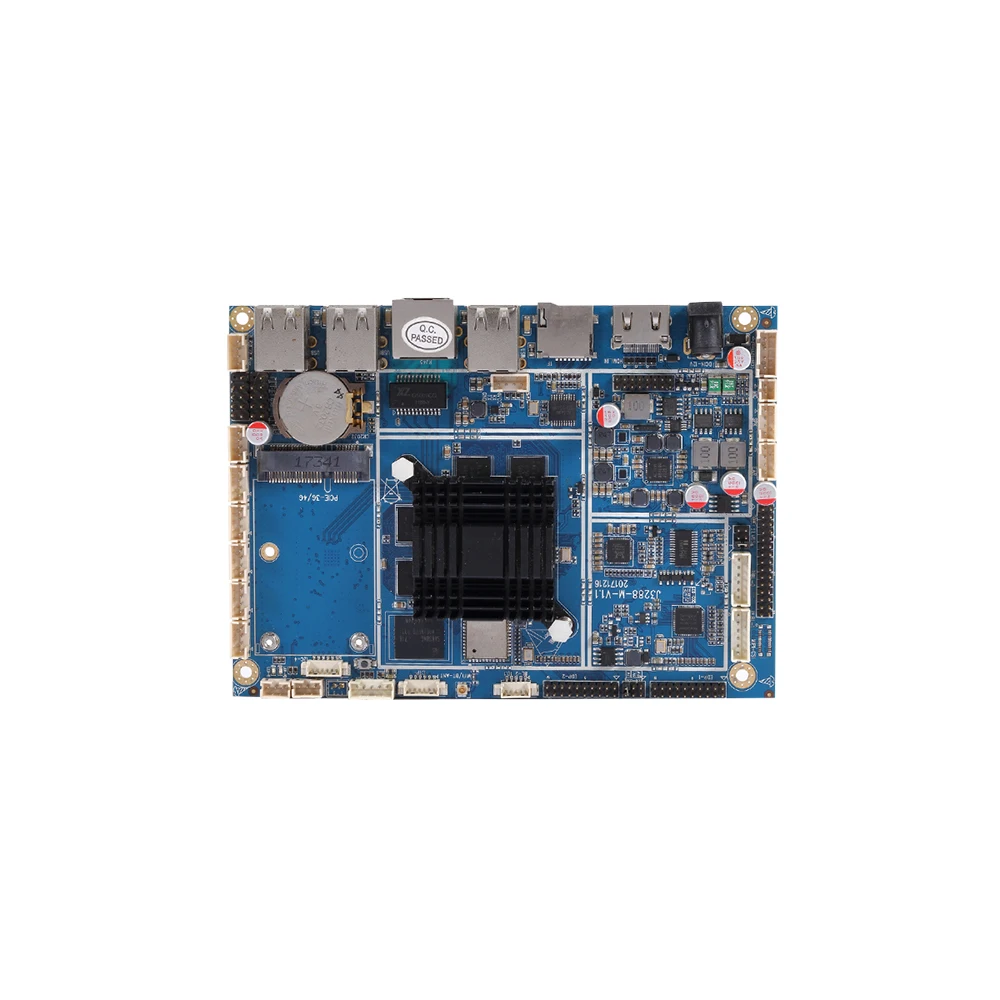

Rockchip RK3288 четырехъядерная материнская плата Android для цифровых вывесок/рекламной
- Категория: Motherboards >>>
- Поставщик: Shenzhen,JLD,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 95.2 $* | 97.86 $* |
| Jul-18-2025 | 77.51 $* | 79.54 $* |
| Jun-18-2025 | 94.16 $* | 96.76 $* |
| May-18-2025 | 93.88 $* | 95.21 $* |
| Apr-18-2025 | 74.66 $* | 75.37 $* |
| Mar-18-2025 | 92.61 $* | 94.20 $* |
| Feb-18-2025 | 91.83 $* | 93.82 $* |
| Jan-18-2025 | 90.21 $* | 92.50 $* |
Характеристики
CPU | RK3288 maximum frequency1.8 HZ |
GPU | Mali-T764 |
OS | Android 5.1/7.1 |
Memory | DDR3 2G |
Video output | Suport LVDS, EDP and MIPI video output and the highest resolution 3840*2160 |
Audio output | stereo, left and right channels |
Network | support 10/100/1000 WLAN and 2.4G wireless WIFI |
Power input | 12V-28V/3A |
RTC | support clock memory when it is power off, support automatic restart and shut down |
PCB size | 146mm*105.5mm*1.6mm |
Product Description
Specification
item | value |
Supplier Type | factory supply |
Model Number | JLD076 |
Place of Origin | China |
Products Status | Stock |
Memory | DDR3 2G Highest support 4 G |
USB interface | USB2.0*8(OTG*1) |
Serial port | 8(TTL/RS232 option) |
Network | Support wireless WIFI 2.4G/5.8G; support 1000MHZ LAN |
Watchdog | Support |
ESD | 8KV |
Other port | POWER-KEY, ADC, RST |
Application:
(1)Digital signage;
(2)Vending machine
(3)POS machine;
(4)Videophone;
(5)Education terminal, Traffic terminal, Medical terminal, etc
(2)Vending machine
(3)POS machine;
(4)Videophone;
(5)Education terminal, Traffic terminal, Medical terminal, etc
Packing & Delivery
Pay term: By T/T ter
Delivery time: 5-30 days after deposit
Trade term: EXW / FOB trade term
Shipping: By air, by sea and express
Packing: Inner is vacuum package and outer is export carton
Payment condition: 50% deposit in advance and the balance after production finished
Delivery time: 5-30 days after deposit
Trade term: EXW / FOB trade term
Shipping: By air, by sea and express
Packing: Inner is vacuum package and outer is export carton
Payment condition: 50% deposit in advance and the balance after production finished
