Ормт пильное оборудование мотор 3.0kw

Категория: Двигатель переменного тока >>>
Поставщик: Shandong,Pengchuan,Electromechanical,Technology,Co.,Ltd.

Цена:212,00 $ - 249,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	252.46 $*	265.48 $*
Aug-19-2025	250.55 $*	263.45 $*
Jul-19-2025	210.76 $*	221.89 $*
Jun-19-2025	246.8 $*	258.72 $*
May-19-2025	214.11 $*	225.55 $*
Apr-19-2025	242.27 $*	254.41 $*
Mar-19-2025	240.33 $*	252.57 $*
Feb-19-2025	237.32 $*	249.97 $*
Jan-19-2025	235.17 $*	247.11 $*

Характеристики

Product description

ORMT motor adopts grinding process, which can improve the concentricity of spindle motor and prolong its service life High precision motor, fast heat dissipation, low noise, rated speed 3000rpm

Core advantage

ORMT motor supports multi-national voltage. It can adjust the running speed according to different industries and run smoothly,
Easy installation, high performance, long service life, complete motor models, support non-standard customization

Scope of application

extensive use

Wood machinery, aluminum machinery, plastic machinery, glass machinery, stone machinery
Automation equipment, light metal machinery and other machinery manufacturers

Product Paramenters

Basic product parameters

Ormt sawing motor
[power range] 3.0kw
[motor enclosure protection level] IP54
[operating ambient temperature] - 15 + 40 ℃
[working voltage] three phase 220 V / 380 V (three phase 440 V / 480 V can be customized)
[rotation direction] L is left rotation,

R is right rotation
[cooling mode] air cooling (coaxial fan)
Note: this series of motors have many specifications. Please contact our company to confirm the motor parameters and installation dimensions before ordering

Ord 63lb2b34 3.0kw L (left rotation) drawing

TYPE TIPO TYP	POWER POTENZA LEISTUNG	POLE POLI POLE	VOLTAGE TENSIONE SPANNUNG	FREQ.	SPEED VELOCITA DREHZAHL	ABSORB. ASSORB. AMP AUFN
TYPE TIPO TYP		KW	-	V	HZ	RPM	A
ORD63MB	2.2	2	220/380	50	3000	8.60/4.95
ORD63MB	2.2	2	220/380	100	6000	9.70/5.80
ORD63LB	3.0	2	220/380	50	3000	11.60/6.70
ORD63LB	3.0	2	220/380	100	6000	11.80/6.80

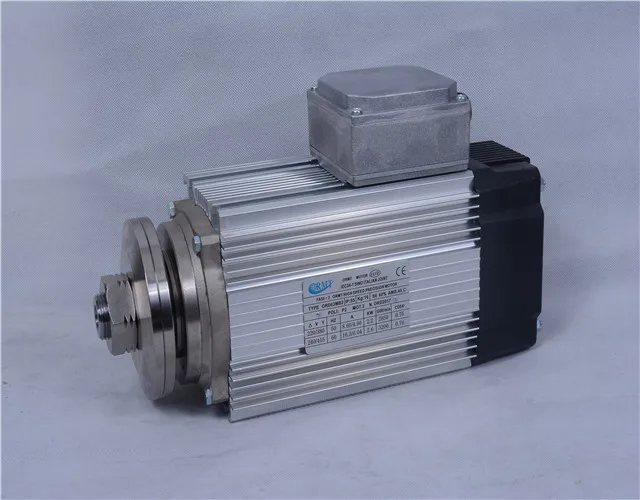

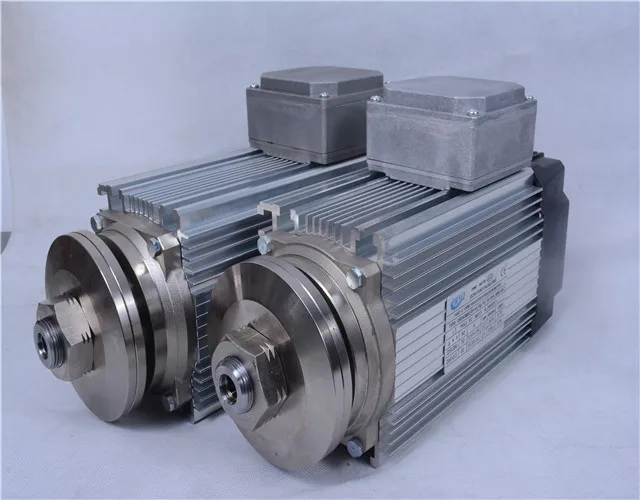

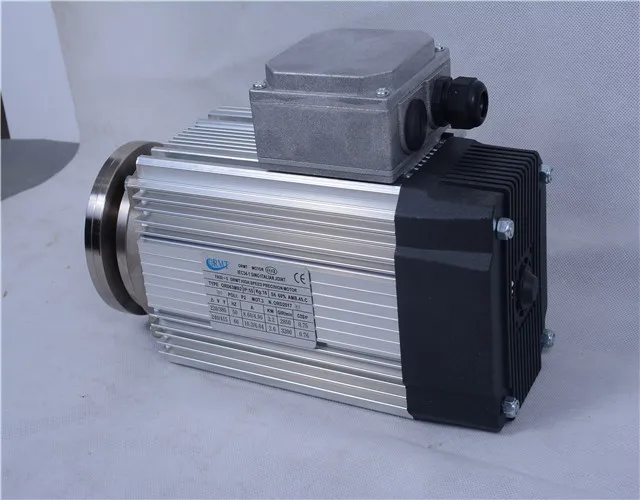

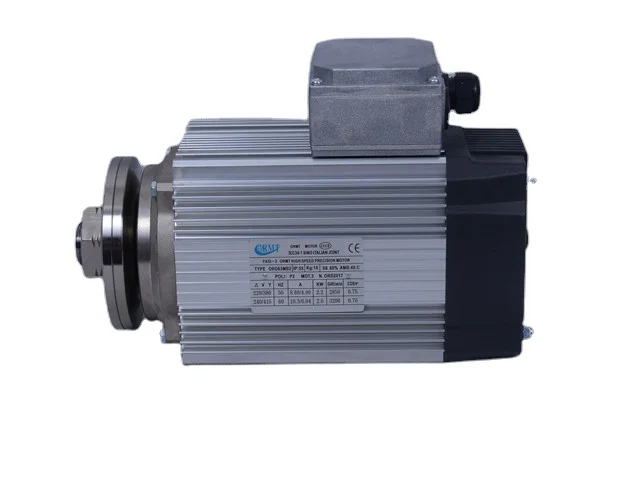

Product details display

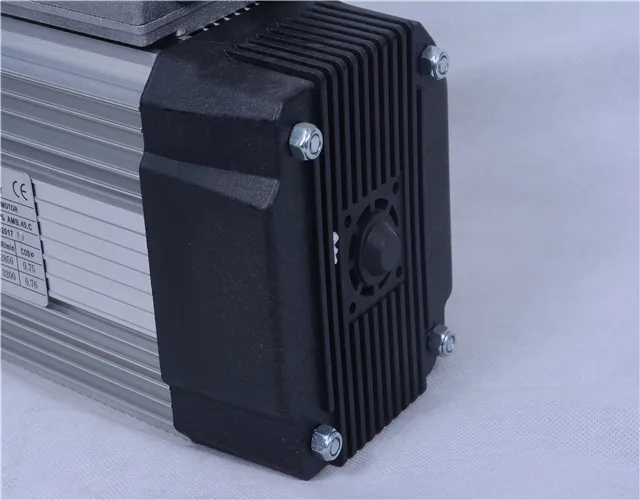

Air cooling to improve work efficiency

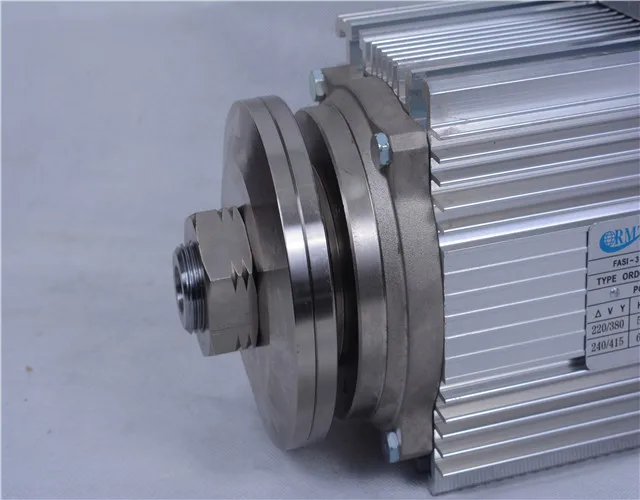

Saw blade or grinding wheel blade can be clamped directly for sawing and grinding

Pure copper wire, strong power, stable operation

Application equipment
