C/z сменный прогонами станок полностью automatiz c z обрешетку
- Категория: Обрешечивающие машины и машины для стальной рамы >>>
- Поставщик: Wuxi,Hai,Roll,Fone,Science,And,Technology,Co.,Ltd.Wuxi,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 4518984.5 $* | 4609364.2 $* |
| Jul-17-2025 | 3665003.71 $* | 3738303.96 $* |
| Jun-17-2025 | 4447819.74 $* | 4536775.58 $* |
| May-17-2025 | 4412236.86 $* | 4500481.93 $* |
| Apr-17-2025 | 3522672.73 $* | 3593125.12 $* |
| Mar-17-2025 | 4341071.6 $* | 4427892.95 $* |
| Feb-17-2025 | 4305489.73 $* | 4391599.55 $* |
| Jan-17-2025 | 4269906.2 $* | 4355304.90 $* |
Характеристики
Video display

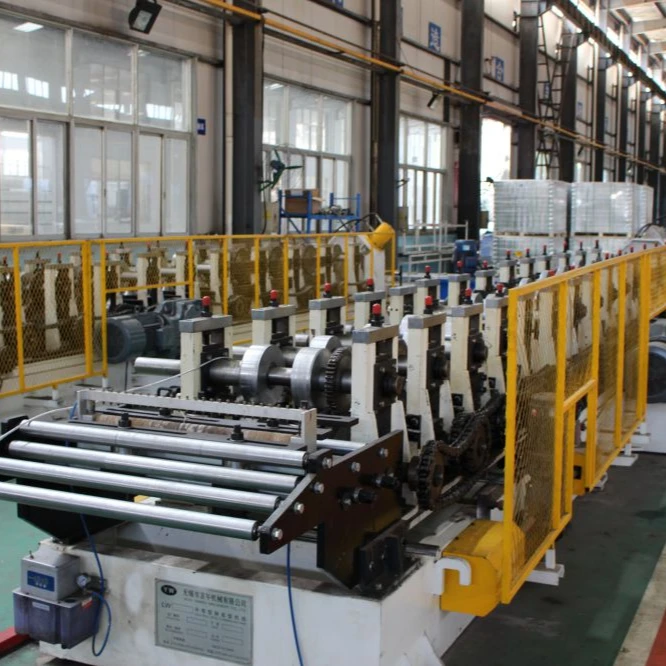

Automatic cz purlin roll forming machine

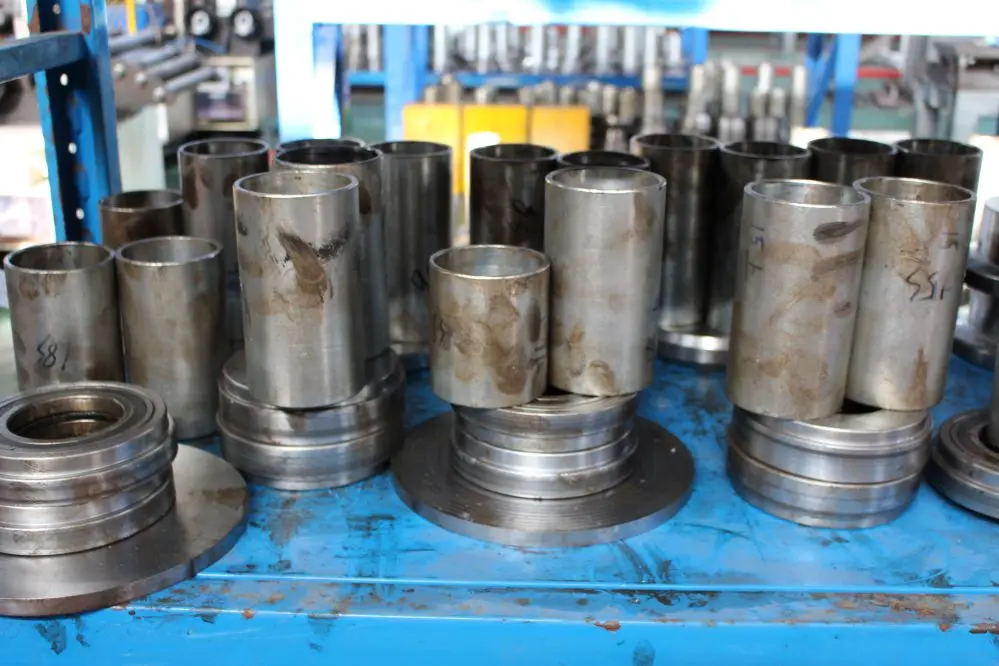

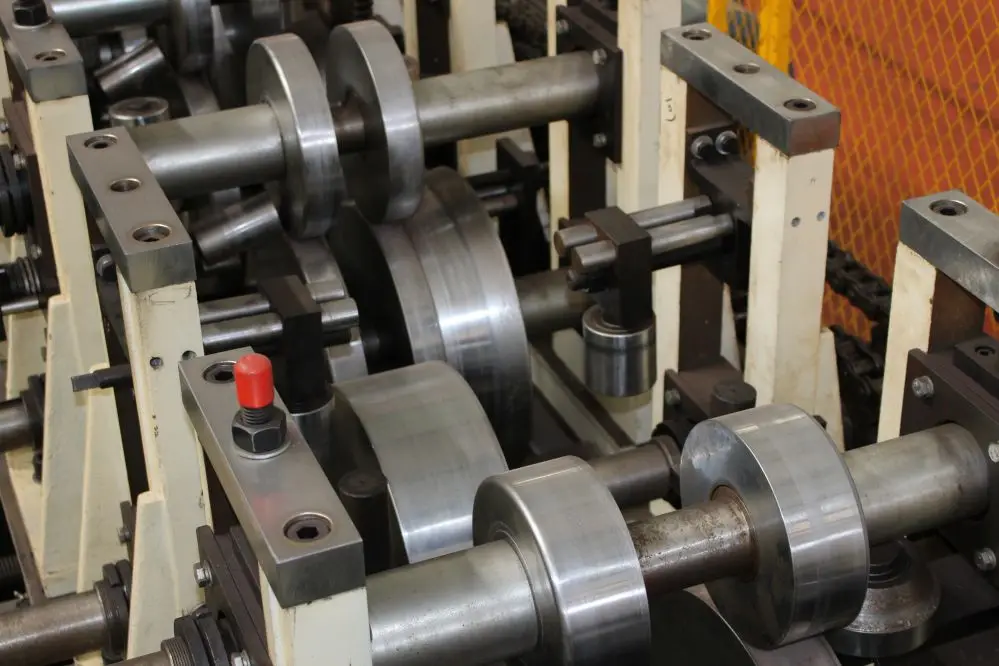

Detail picture
Product parameter
NO | ITEM | PARAMETER | REMARK | ||
1. | Suitable material | Type | Galvanized Coil,cold rolled steel coil,S350 | ||
Tensile stress( Mpa) | Yield strength: 330MPa, Tensile strength 480Mpa | ||||
2. | Fisnished C purlin demension | 1) C purlin width: 80- 300mm variable controlled by PLC automatically 2) C purlin flange height:50-80mm vairable and controlled by PLC 3）Lip size: 10-25mm variable marked with C in the drawing 5) Thickness: 1.5-3.0mm | |||
3. | Roll Forming stands | 18 | Cast iron stands | ||
4. | Main forming machine motor power(kw) | 18.5kw | Chinese brand motor | |
5. | 2 pinch rolls stations &7 rolls Leveling motor | 4kw | Chinese brand motor | |
6. | Hydraulic station power(kw) for main forming machine | 7.5kw | Chinese brand motor | |
9. | Motors for the height adjustment | 1.5kw( 2- 0.75kw) | Chinese brand motor | |
10 | Motor for purlin width adjustment | 1-3kw | Chinese brand motor | |
11. | Total power(kw) | About 46.5kw | ||
12. | Power supply requirement | 380V,50Hz,3Ph | ||
13. | Machine dimension(LxWxH,m) | About 10mx1mx1.2m | ||
14. | Machine color | Blue with yellow color combination | ||
Company profile
Established in 2009 Wuxi HRF Science & Technology Co.,Ltd located in Wuxi city,Jiangsu province is close to Shanghai international airport .we enjoy convenient transportation and advantageous location with which it can supply good business opportunities for the investors home and abroad.
We are specialized in designing,manufacturing the roll forming machines e.g cable tray forming machine,supermarket rack forming machine,expressway guardrail forming machine,grain silo forming machine,solar strut forming machine etc. These products are used widely in the field of steel structure ,building construction,supermarkets,factory warehouses,schools roofing,grain silos etc . In addition we also can manufacture all types of steel coils slitting machine,coils cut to length machines and tube mills
We are ready to establish the business relations with the overseas customers and we also believe" the opportunity here,here you are"
Our commitment is high-quality and in-time service , our goal is customer satisfaction.
We are specialized in designing,manufacturing the roll forming machines e.g cable tray forming machine,supermarket rack forming machine,expressway guardrail forming machine,grain silo forming machine,solar strut forming machine etc. These products are used widely in the field of steel structure ,building construction,supermarkets,factory warehouses,schools roofing,grain silos etc . In addition we also can manufacture all types of steel coils slitting machine,coils cut to length machines and tube mills
We are ready to establish the business relations with the overseas customers and we also believe" the opportunity here,here you are"
Our commitment is high-quality and in-time service , our goal is customer satisfaction.
Service Concept
Pragmatic and innovative service spirit
Modest and prudent service attitude
Professional and high-quality service team
A keen sense of service
Modest and prudent service attitude
Professional and high-quality service team
A keen sense of service
Advantage
1. Convenient transportation: our factory is located in Wuxi city, closed to Shanghai City (two hours away), which provide short time and low-cost transportation expenses for you.
2. Full range of products: we can provide all kind of roll forming equipment which can be used to forming all kinds of shape as you required. The company can make non-standard products for client's requirement.
3. Specialized: There are specialized technical personnel and a list of experienced team responsible for quality assurance. Here are technical and skilled specialists, senior foreign trade staff and engineers.
4. Advanced and practical: For example, wall/ roof panel roll forming equipment solves the problem of roof leakage that conventional machine can not be able to handle with.
And also, the forming machines are national inspection-exempted products after external supervision and sampling inspection.
5. Professional and on time service:
As to pre-sale service, the company provides sample version for free. Well, that which party bears freight charges is consultative.
As to sales service, our company offers sales discounts and allowances to customers for the vulnerable parts. There is about 3-month delivery cycle from the beginning of orders. Foreign delivery cycle is almost the same as domestic one.
As to after-sale, there is one-year warranty period. During the warranty period, machine maintenance and repair will be provided for free.
What's more, our company can offer OEM business and provide simple for free for customers with our roll forming equipment and slitting line, cut to length line.
2. Full range of products: we can provide all kind of roll forming equipment which can be used to forming all kinds of shape as you required. The company can make non-standard products for client's requirement.
3. Specialized: There are specialized technical personnel and a list of experienced team responsible for quality assurance. Here are technical and skilled specialists, senior foreign trade staff and engineers.
4. Advanced and practical: For example, wall/ roof panel roll forming equipment solves the problem of roof leakage that conventional machine can not be able to handle with.
And also, the forming machines are national inspection-exempted products after external supervision and sampling inspection.
5. Professional and on time service:
As to pre-sale service, the company provides sample version for free. Well, that which party bears freight charges is consultative.
As to sales service, our company offers sales discounts and allowances to customers for the vulnerable parts. There is about 3-month delivery cycle from the beginning of orders. Foreign delivery cycle is almost the same as domestic one.
As to after-sale, there is one-year warranty period. During the warranty period, machine maintenance and repair will be provided for free.
What's more, our company can offer OEM business and provide simple for free for customers with our roll forming equipment and slitting line, cut to length line.
Authentication
Our exhibition
FAQ
1.Does one machine can only produce one size?
Not exactly, it depends on the machine.
2. Do you have after-sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4. What can you do if the machine is broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6. You are a trade company or factory?
We are a Manufacturer.
7. Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.
8. Do you have overseas engineers?
Yes, we not only provide overseas engineers but also provide technical training.
9. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
Not exactly, it depends on the machine.
2. Do you have after-sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4. What can you do if the machine is broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6. You are a trade company or factory?
We are a Manufacturer.
7. Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.
8. Do you have overseas engineers?
Yes, we not only provide overseas engineers but also provide technical training.
9. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
