Удлинительный кабель для материнской платы
US $7.19-$8.56
SATA Блок питания от 1 до 6 вентиляторов концентратор 5 В 4 контакта ШИМ 3-контактный разделитель ARGB для ПК светодиодный светильник контроллер охлаждения беспроводной ИК-пульт дистанционного
- Категория: Other Computer Accessories >>>
- Поставщик: Siwei,E-Commerce,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 6.11 $* | 6.17 $* |
| Jul-19-2025 | 5.39 $* | 5.18 $* |
| Jun-19-2025 | 6.57 $* | 6.5 $* |
| May-19-2025 | 6.20 $* | 6.58 $* |
| Apr-19-2025 | 5.12 $* | 5.57 $* |
| Mar-19-2025 | 6.33 $* | 6.87 $* |
| Feb-19-2025 | 6.77 $* | 6.15 $* |
| Jan-19-2025 | 6.51 $* | 6.85 $* |
Характеристики
Product Description
Introduction:
Size：100×62×12MM
RGB fan port：6（4PIN/3PIN）
PWM rated voltage：12V
5V light interface：7PCS（3PIN ARGB）
Rated voltage of light：5V
Power supply port：SATA
Power supply safety current：3A

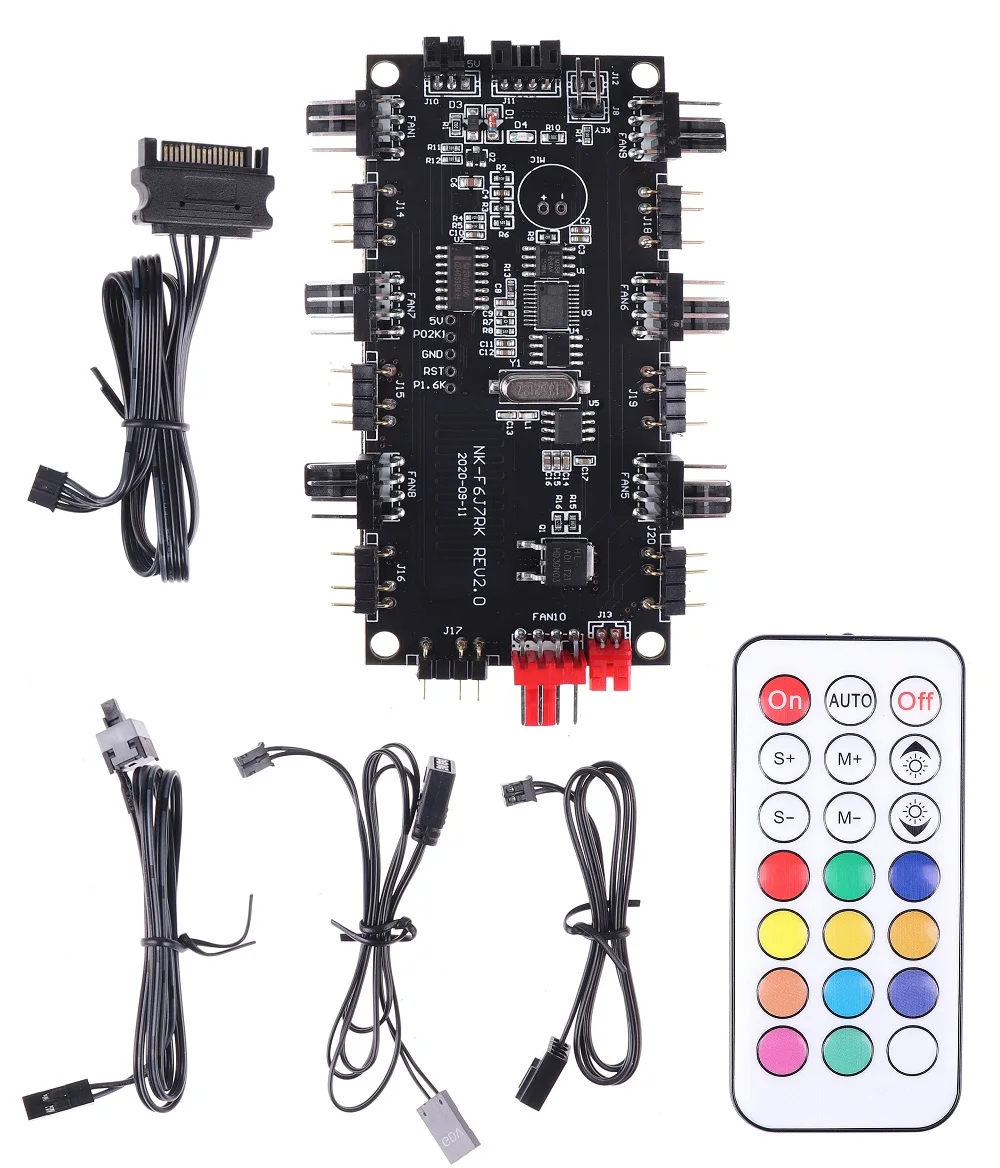

Enclosure：Instruction manual, 4 connecting wires.
Size：100×62×12MM
RGB fan port：6（4PIN/3PIN）
PWM rated voltage：12V
5V light interface：7PCS（3PIN ARGB）
Rated voltage of light：5V
Power supply port：SATA
Power supply safety current：3A
Enclosure：Instruction manual, 4 connecting wires.
PRODUCT FEATURES：
The controller has two options: AURA SYNC mode and wireless remote control mode
It can connect the motherboard supporting AURA SYNC function, and centrally control RGB fans, light bars, and other ARGB lighting
devices.
The motherboard does not support the AURA SYNC function. It can also centrally control multiple ARGB lighting devices through the
built-in mode of the controller.
Two fixation modes: magnetic suction and adhesive are provided, can be either sucked to the iron surface of chassis or stuck to
other material surfaces.
The controller has two options: AURA SYNC mode and wireless remote control mode
It can connect the motherboard supporting AURA SYNC function, and centrally control RGB fans, light bars, and other ARGB lighting
devices.
The motherboard does not support the AURA SYNC function. It can also centrally control multiple ARGB lighting devices through the
built-in mode of the controller.
Two fixation modes: magnetic suction and adhesive are provided, can be either sucked to the iron surface of chassis or stuck to
other material surfaces.

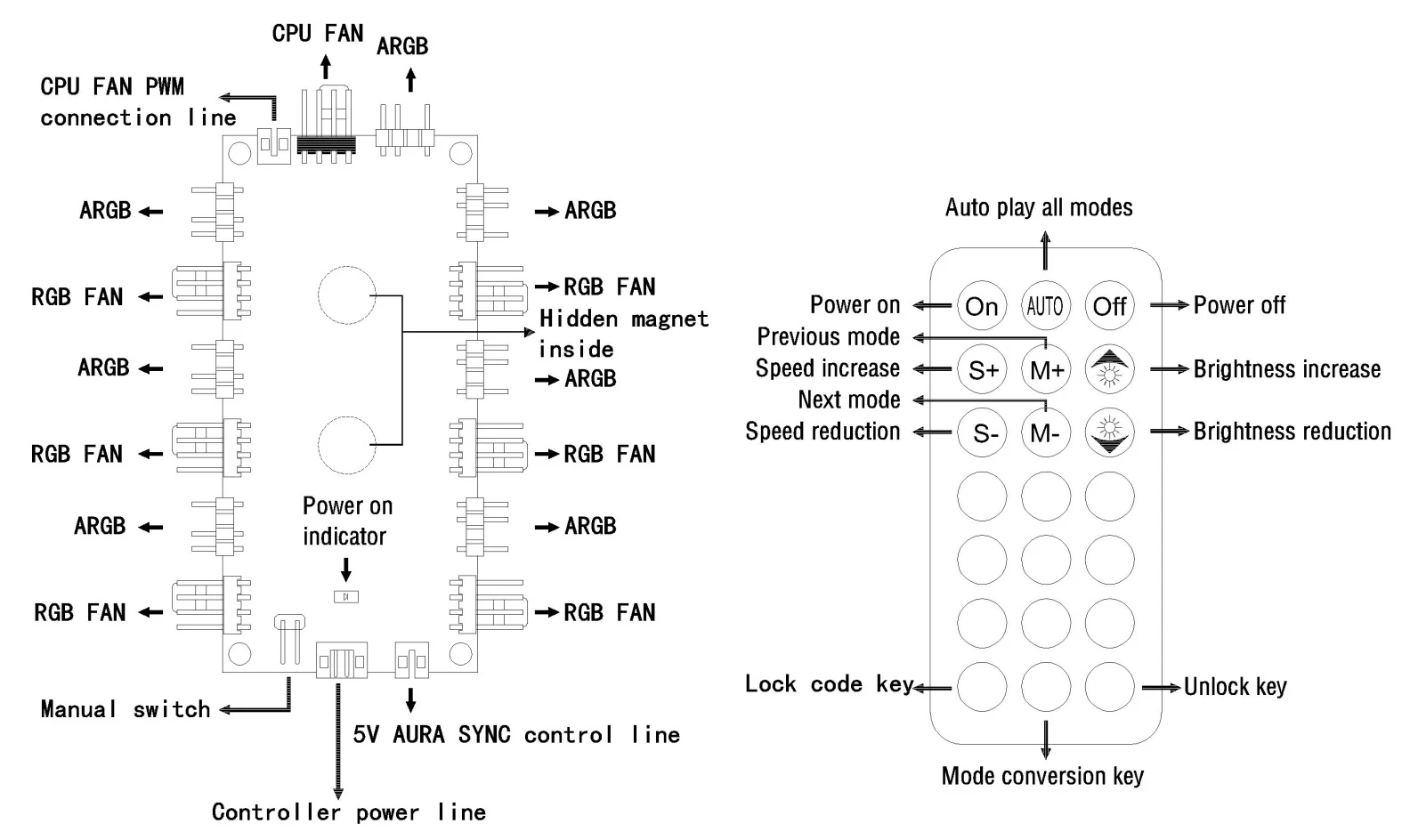

CONTROLLER INSTALLATION：
Connect the controller power cable to the SATA interface of the PC power supply
Connect the controller 5V ARGB control line to the main board supporting aura sync function, 5V ADD_ HEADER interface, ordinary
motherboard does not need to be connected
Connect the CPU FAN to the red CPU FAN seat of the controller
Connect the CPU FAN PWM cable of the controller to the CPU FAN base of the motherboard
The RGB FAN 4PIN / 3PIN cable is connected to the black RGB FAN seat of the controller
The 5V 3-PIN control line of RGB FAN is connected to the ARGB seat of the controller
Fix the controller in a proper position in the cabinet by dipping glue or magnetic suction
Connect the controller power cable to the SATA interface of the PC power supply
Connect the controller 5V ARGB control line to the main board supporting aura sync function, 5V ADD_ HEADER interface, ordinary
motherboard does not need to be connected
Connect the CPU FAN to the red CPU FAN seat of the controller
Connect the CPU FAN PWM cable of the controller to the CPU FAN base of the motherboard
The RGB FAN 4PIN / 3PIN cable is connected to the black RGB FAN seat of the controller
The 5V 3-PIN control line of RGB FAN is connected to the ARGB seat of the controller
Fix the controller in a proper position in the cabinet by dipping glue or magnetic suction
REMOTE CONTROL BUTTON FUNCTION:
12 color keys: corresponding key color light
Mode switch key: Light green key (bottom middle key), Press and hold for 3 seconds, Switch to AURA SYNC mode of the main board,
Press and hold for 3 seconds to switch to remote control mode, (the factory default mode is remote control mode).
Lock code key: Press and hold the purple key for 3 seconds (the bottom left key), The light flashes once, and the code is locked
successfully.
Note: after the lock code key function is activated, The remote controller and the controller complete one to one lock code. Other
remote controllers will not be able to remotely control the controller, Please take good care of the remote control to avoid
losing it.
Unlock key: Long press the white key for 3 seconds (the bottom right key), The light flashes once, and the unlocking is
successful(factory default is unlock).
12 color keys: corresponding key color light
Mode switch key: Light green key (bottom middle key), Press and hold for 3 seconds, Switch to AURA SYNC mode of the main board,
Press and hold for 3 seconds to switch to remote control mode, (the factory default mode is remote control mode).
Lock code key: Press and hold the purple key for 3 seconds (the bottom left key), The light flashes once, and the code is locked
successfully.
Note: after the lock code key function is activated, The remote controller and the controller complete one to one lock code. Other
remote controllers will not be able to remotely control the controller, Please take good care of the remote control to avoid
losing it.
Unlock key: Long press the white key for 3 seconds (the bottom right key), The light flashes once, and the unlocking is
successful(factory default is unlock).
