Характеристики
Pneumatic drilling rig
HQZ220L (CRAWLER TYPE)
The drilling rig is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering
Drilling Rock:20M~40M/Hour
Drilling Rock:20M~40M/Hour
Product Description
DTH DRILLING RIG.
HW series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 300mm,drilling depth 200m. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console,easy to operate.
Specification
Specification of 200m DTH Drilling Rig | ||
The weight(T) | 6.5 | |
Dimensions(mm) | 3442*2200*2800 | |
The hole diameter(mm) | 100~300 | |
Drilling depth(m) | 220 | |
Once-time advance length(mm) | 3000 | |
Walking speed(km/h) | 2.5~5 | |
Climbing angles(Max.) | 30 | |
Minimum clearance clearance(mm) | 250 | |
Using air pressure(Mpa) | 1.7-3.5 | |
Air consumption(m³/min) | 17-31 | |
Equipped capacitor(Kw) | 100 | |
Swing speed(rpm) | 55-115 | |
Swing torque(N.m) | 8660-11150 | |
Drill pipe diameter(mm) | Φ76 Φ89 Φ102 | |
Drill pipe length(m) | 1.5 2.0 3.0 | |
Rig lifting force(T) | 20 | |
Adapt to conditions | Loose layers and bedrock | |
Drilling mode | Hydraulic rotary top drive and propulsion, DTH hammer drilling rig or mud | |
Impactor | Middle and high pressure series | |
Optional accessories | After circulating means, mud pumps, centrifugal pumps, generators, foam | |
Main Features
1.High drilling efficiency, power provided by 60KW Yunnei diesel engine
2.High efficiency(20M~40M/Hour), large rotary torque(6000-6500N.m)
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,easy to operating.
1.High drilling efficiency, power provided by 60KW Yunnei diesel engine
2.High efficiency(20M~40M/Hour), large rotary torque(6000-6500N.m)
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,easy to operating.

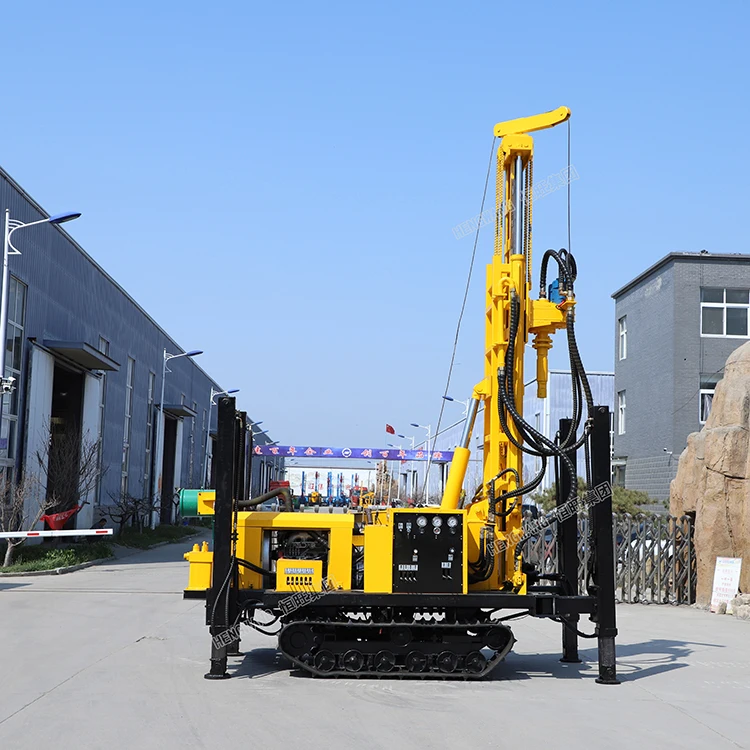

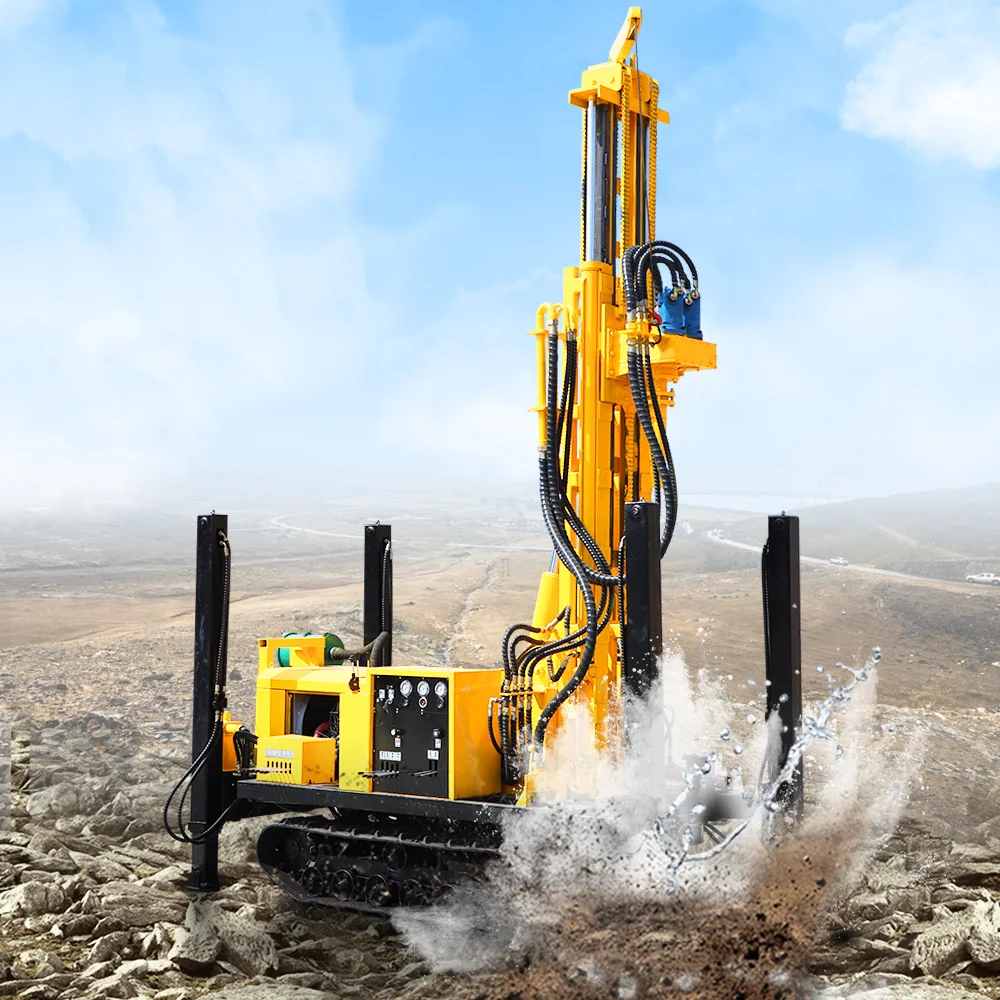

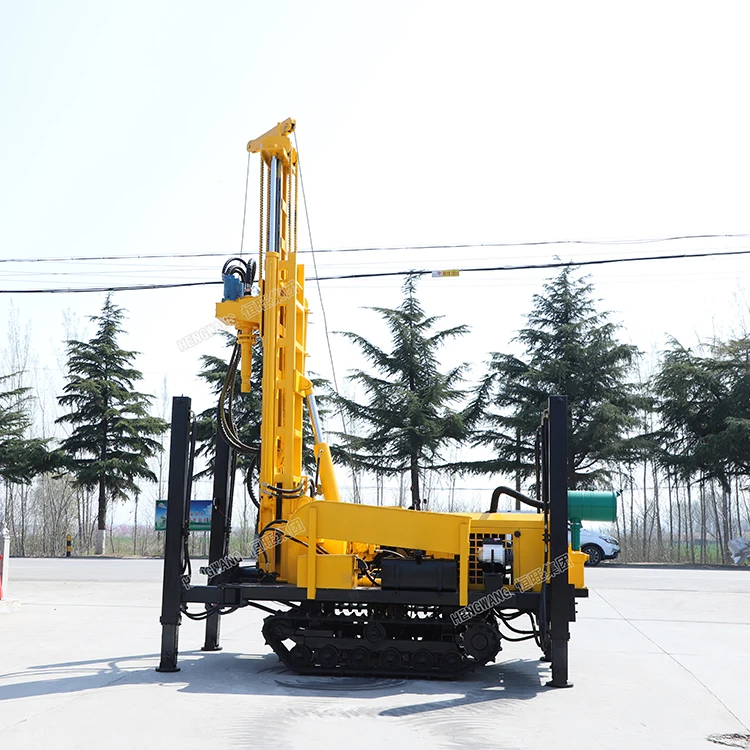

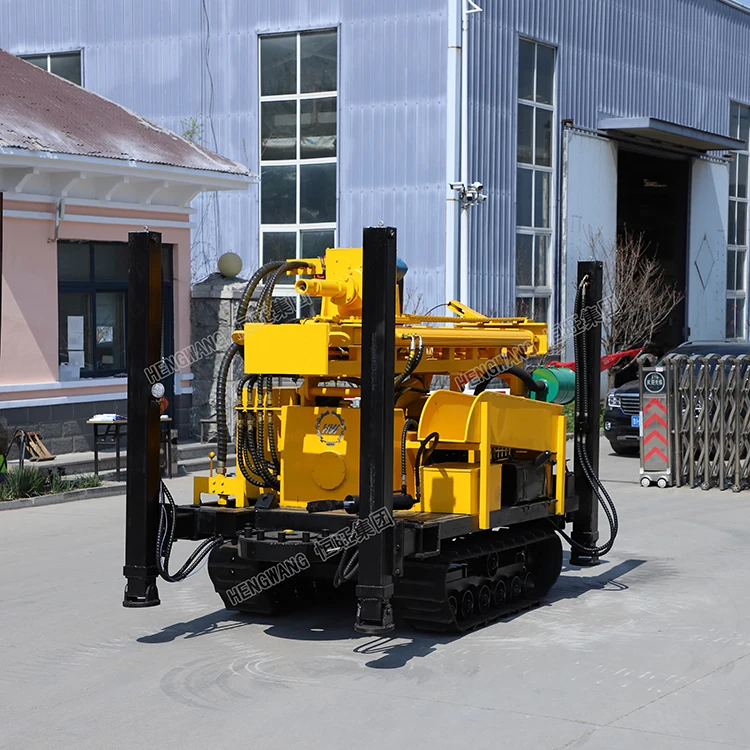

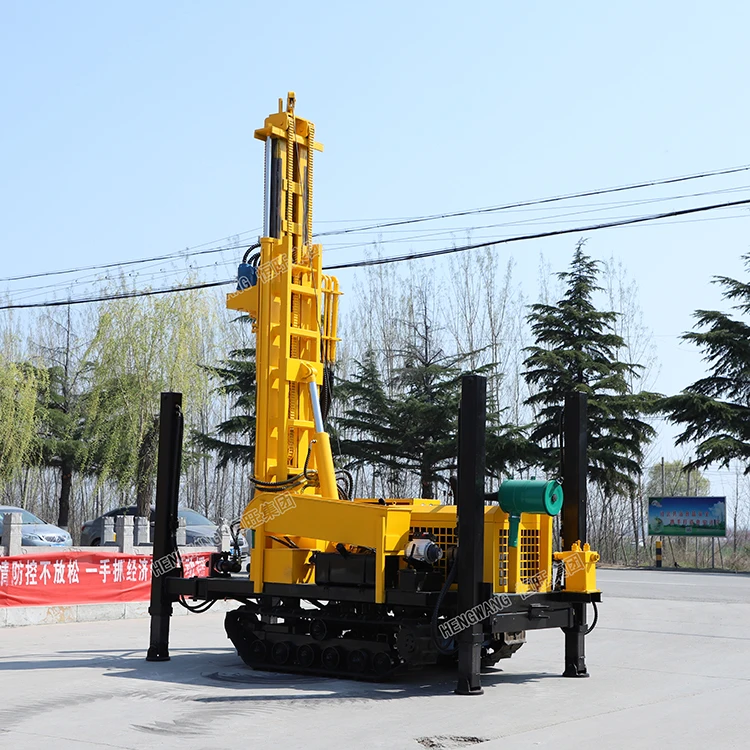

Details Images
Packing & Delivery
Water well drilling rig loading instruction
HQZ180L/220L/260L /320L drilling rig 20GP/1pc container
HQZ180L/220L/260L /320L drilling rig 20GP/1pc container
HQZ450L/HQZ500L drilling rig 40GP/1pc container
HQZ180L/220L/260L /320L/450L/500L+Air compressor drilling rig 40GP/1SET
HQZ180L/220L/260L /320L/450L/500L+Air compressor drilling rig 40GP/1SET
Recommend Products
Model | HQZ-180L |
Type | Pneumatic Water Well Drilling Rig |
Drilling depth | 180m |
Drilling diameter | 130-245mm |
Engine Power | 42Kw |
Model | HQZ-260L |
Type | Pneumatic Water Well Drilling Rig |
Drilling depth | 260m |
Drilling diameter | 140-300mm |
Engine Power | 76Kw |
Model | HQZ-320L |
Type | Pneumatic Water Well Drilling Rig |
Drilling depth | 320m |
Drilling diameter | 140-320mm |
Engine Power | 92Kw |
Model | HQZ-450L |
Type | Pneumatic Water Well Drilling Rig |
Drilling depth | 450m |
Drilling diameter | 140-400mm |
Engine Power | 105Kw |
Related Product
Hengwang Group, as a history manufacturer of drilling rigs in China, could offer hydraulic water well drilling rgs, peumatic water well drilling rigs, dth rock drilling rig, geological exploration drilling rig, and series of engineering drilling rigs. Classified from the chassis, we have portable type, wheeled type, crawler type, tractor type, truck type for choice. Click to find the suitable one!!!
Hydraulic water well drilling rig.
Suitable for soil and few rocks
Used for drilling wells and borehole
DTH drilling rig.
Suitable for rocks
Used for making blasting holes
Reverse eirculation drilling rig.
Suitable for soil
Used for drilling wells
