Характеристики







Place of Origin
CN；HENAN
Model Number
Large diameter steel wire hose
Brand Name
VIPOORUBBER
Product name
Flange dredge suction hose
Inner layer
rubber
Reinforcement layer
steel wire (cloth, cord)
Outer layer
rubber
Size
6‘’-52‘’
Temperature range
-30℃-120℃
Working pressure
5 bar - 12 bar
Length
6-20m
Application
Suitable for harbor, river, lake and other dredging engineering dredger with mud pipe connection hose
Features
It has good elasticity, abrasion resistance, weather resistance and seawater erosion resistance
OEM
Can be customized


Large-diameter sand suction (water, mud) hose structure:
     The large-diameter sand-absorbing (water, mud) hose is composed of a thick abrasion-resistant rubber inner rubber layer, a cloth / cord reinforcement layer, a spiral metal wire skeleton layer, a middle rubber layer, and a weather-resistant outer rubber layer.

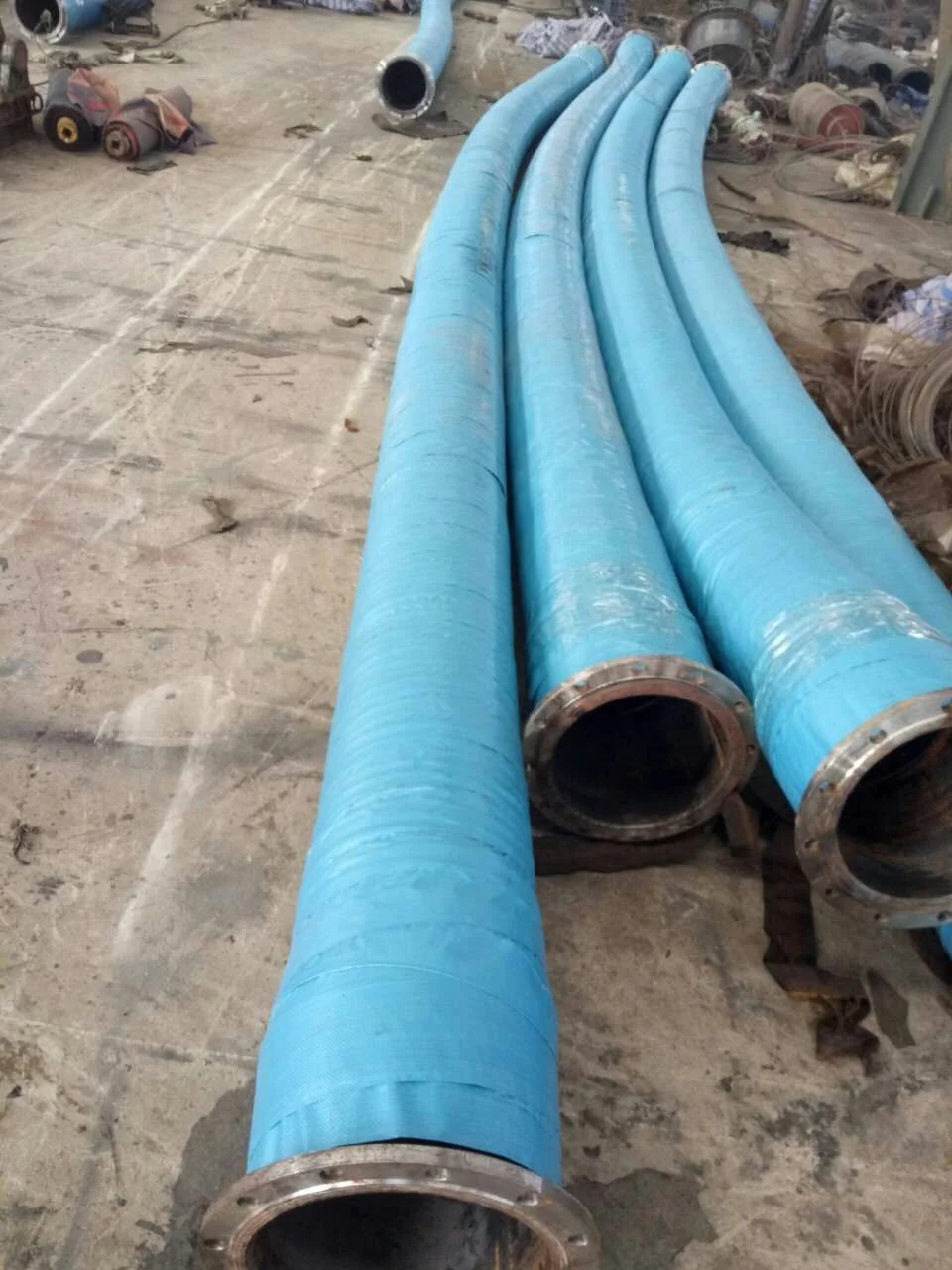

Large-diameter sand suction (water, mud) hose
     Large diameter sand suction (water, mud) hoses are used for dredgers to suction and discharge mortar, and can also be used in harbors, wharves, river dredging, urban drainage, etc. Powder, mineral powder and other materials.
Suction and drainage hose

Operating temperature: -20 ~ + 120 (-4 ~ + 248)
Structure: The rubber-resistant layer is black or light-colored synthetic rubber; the skeleton layer is a synthetic fabric layer and a spiral steel wire layer; the outer rubber layer can be selected from black or red, yellow, and blue light-colored rubber.
Uses: Suitable for transporting gasoline, kerosene, diesel, engine oil, lubricating oil and other mineral oils below 40 ° C.
Features: The hose is made of rubber with good oil resistance. The burst pressure of the hose is not less than four times the working pressure.
Executive standard: HG4-761


ID
OD
WP
BP
vacuum pressure
length
mm
inch
mm
inch
Mpa
bar
Mpa
bar
bar
m
152
6"
182
7-1/4"
1.2
12
2.4
24
0.8
20
203
8"
233
9-1/5"
1.2
12
2.4
24
0.8
20
254
10"
284
11-1/5"
1
12
2
20
0.8
10
304
12"
340
13-2/5"
1
10
2
20
0.8
6-10
350
14"
390
15-2/5"
1
10
2
20
0.8
6-10
450
18"
486
19-1/5"
0.7
10
1.5
15
0.8
6-10
550
22"
590
23-3/5"
0.7
7
1.5
15
0.8
6-10
600
24"
640
25-3/5"
0.7
7
1.5
15
0.8
6-10
700
28"
750
29-3/5"
0.7
7
1.5
15
0.8
6-10
800
32"
850
33-1/2"
0.5
7
1
10
0.8
6-10
1000
40"
1050
41-1/2"
0.5
5
1
10
0.8
6
1200
48"
1250
49-1/5"
0.5
5
1
10
0.8
6
1300
52"
1350
53-1/5"
0.5
5
1
10
0.8
6






According to the skeleton layer, the common hoses are:
Full rubber hose (non-woven material)
Cloth hose (framework layer is cloth layer)
Suction hose (There is also a metal spiral outside the cloth layer, suitable for work under negative pressure)
Braided hose (framework is braided steel wire or fabric)
Winding hose (framework layer is steel wire or wire rope winding layer, the bearing capacity is usually 80 ~ 600MPa or higher)
Knitted hose (framework is knitted fabric)
Short fiber hose (blended with short fiber and rubber)












Multiple workstations work together to improve timeliness, achieve the best standards, and deliver the fastest.




Packaging is according to the international transport standards for packaging, if necessary,can be customized
Customizable logo






After the production of the goods is completed, the goods will be delivered in order of the order

The completion time of the goods depends on the size of the order quantity: 5-30 working days








Henan vipoorubber co., LTD., has 30 years of experience in production and sales
Main production and manufacturing rubber hose (tube flange dredging, sediment delivery hose (water), absorption), sand blasting hose, concrete pump pipe, oxygen acetylene hose, chemical resistant hose, PVC hose, fuel hose, hydraulic hose, steel wire braided hose,Industrial hose ,steel wire winding), high-pressure hose, peristaltic pump hose, garden hose expansion, hose connectors and other products, we are industry and trade integration company, has its own factory, a professional research and development technical team and efficient staff conscientiously.






\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t


Q1. What is your terms of packing?


A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q2. What is your terms of payment?

A: We'll show you the photos of the products and packages before you pay the balance.


Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.


Q4. How about your delivery time?

A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery



Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
