Ручная машина для изготовления сотовых брикетов
US $60.00-$300.00
High efficient Bamboo Charcoal Production Line Coconut Shell
- Категория: Energy Saving Equipment >>>
- Поставщик: Zhengzhou,Huayu,Briquette,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 13080.27 $* | 13342.37 $* |
| Jul-18-2025 | 10608.99 $* | 10820.48 $* |
| Jun-18-2025 | 12874.96 $* | 13131.30 $* |
| May-18-2025 | 12771.30 $* | 13026.34 $* |
| Apr-18-2025 | 10196.66 $* | 10400.73 $* |
| Mar-18-2025 | 12565.3 $* | 12816.86 $* |
| Feb-18-2025 | 12462.62 $* | 12711.32 $* |
| Jan-18-2025 | 12359.99 $* | 12606.10 $* |
Характеристики
Product Description

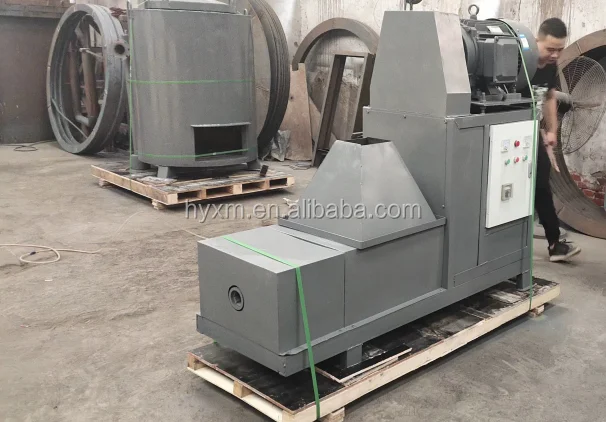

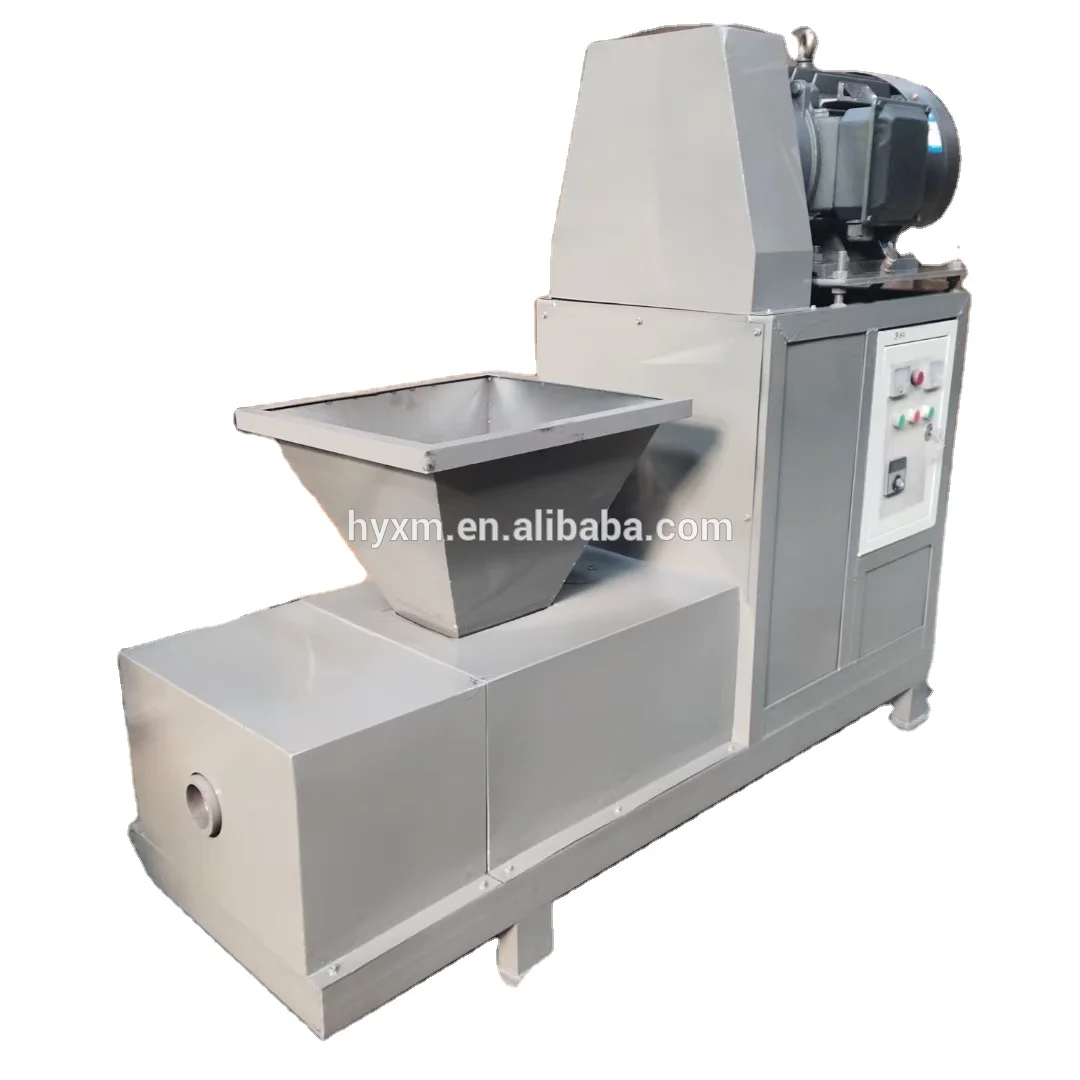

Huayu wood charcoal briquette production line
Biomass rod making machine is to press biomass, rice husk, crops straw (maize straw, soybean straw and others) or other carbonic materials into solid fuel rods under the condition of high temperature and high pressure. The machine is widely used in power plants, chemical, energy, heating industry.
Working Process:
After putting powdery materials into the forming machine inlet, the motor drives the screw to rotate to press them into different shapes of six arris or other forms.
Sleeves can be easily changed. Different shapes of sleeves make different shapes of products.
Raw material (biomass) → Wood sawdust crusher machine → dryer → sawdust briquette machine → Charcoal furnace → Charcoal briquettes
Step 2 Drying
Dry the material by the dryer machine or dried it in the sun, till the moisture is less than 8%- 12%;
Produce the briquette from the dried material without any additive by the wood briquette machine;
The material is made into a wooden rod by high pressure molding at a high temperature of 300 to 350 degrees.
After the sawdust briquette is formed, the shape is uniform and the humidity is right, so that it can be directly carbonized.
Raw materials:
The raw materials could be any waste from agriculture or forestry. Such as: wheat straw, sunflower husk, coffee husk, soybean husk, rice husk, wood chips, sawdust, tae waste, cotton stalk, paddy straw, peanut husk, and any other type of agro-forestry waste.
The raw materials could be any waste from agriculture or forestry. Such as: wheat straw, sunflower husk, coffee husk, soybean husk, rice husk, wood chips, sawdust, tae waste, cotton stalk, paddy straw, peanut husk, and any other type of agro-forestry waste.

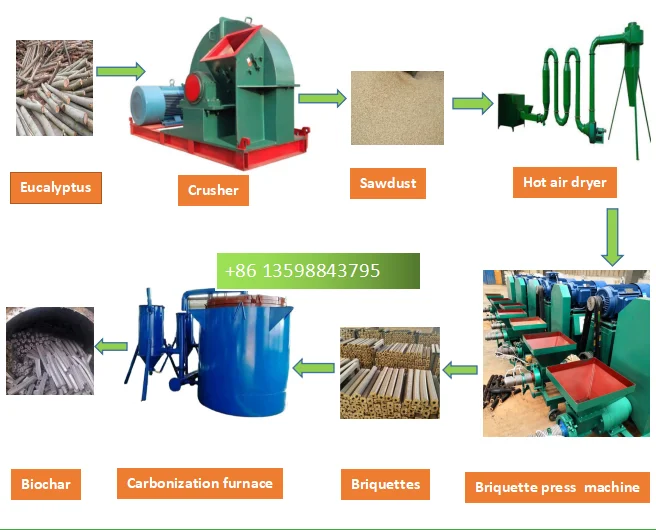

The whole flow chart
Technical Parameters
Main data of the sawdust briquette machine | ||||||||||
Model | Capacity (kg/h) | Power (kw) | Material temperature | Weigh(kg) | Packing dimension (mm) | |||||
ZBJ50-9 | 120-220 | 11-15 | 8-12% | 550 | 2200×600×1300 | |||||
ZBJ50-C | 350-420 | 22 | 8-12% | 750 | 2700×700×1550 | |||||
ZBJ60-9 | 220-250 | 15-18.5 | 8-12% | 650 | 2400×700×1350 | |||||
ZBJ70-9 | 280-340 | 18.5-22 | 8-12% | 780 | 2400×700×1400 | |||||
ZBJ80-9 | 320-360 | 22 | 8-12% | 850 | 2400×750×1400 | |||||
ZBJ90-9 | 380-450 | 30 | 8-12% | 980 | 2600×800×1500 | |||||
In addition, there are other models which have different yield for you to choose from.
Types of Materials
Many kinds of raw materials can be put into the machine, which include sawdust, iron, coal powder, etc.
Forms of Products
The biomass rod making machine can output many shapes of finished products by different shapes of sleeves, and the size of finished products can also be customized as your requirements.
Advantages
* Many kinds of materials can be put into the machine
* High yield, high efficiency and non-pollution
* More durable because of abrasion resistant paint
* Fully automatic control and electric heating device to ensure the stability of forming
Company Information
Zhengzhou HUAYU Briquette Equipment Co., Ltd.
Specialize in the development and production of briquette machines, located in No. 169 Taojia Road, Xingyang Zhengzhou, Henan, China. our factory covers an area of 66000 square meters, has over 100 workers and 23 engineers at work for research and development. We make machines with high quality and the most favorable price, widely sold at home and abroad and enjoy good
reputation.
Our company has more than 100 experienced workers and a complete set of production line which includes assembling, pressing, roller processing, case processing, and other workshops.
The follow pictures are our factory and workshops.
Please trust us. We have the best factory price and we have the enough ability and strength to manufacture high-quality machines in a timely and efficient manner.
Packing & Delivery
Packing: We can install machines in the factory first or send the installation instructions to assist you.
Delivery: We usually deliver machines by One Touch of Alibaba Company in order to guarantee the delivery time and the quality of machines. We can also use other ways as your requirements.
Our Serice
Pre-Sales Service
* Inquiry and consulting support swiftly
* View our factory
* Using your mailed sample to test the machine
After-Sales Service
* Training how to install the machine and how to use the machine
* Engineers available to service machinery overseas
If you have any questions about the machine or our company, please contact us freely. We will response swiftly and do our best to meet your demand.
Great Service is our mission and making high-quality machines is our duty.
