4-портовый PoE коммутатор OEM/ODM с ии 4 портами + 1 исходящим каналом 802 3af/at 100 Мбит/с мощность 52 Вт дальнее расстояние 250
- Категория: Network Switches >>>
- Поставщик: HUOYI,Technology,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 14.80 $* | 15.47 $* |
| Aug-20-2025 | 14.43 $* | 15.74 $* |
| Jul-20-2025 | 12.47 $* | 13.44 $* |
| Jun-20-2025 | 14.26 $* | 15.19 $* |
| May-20-2025 | 12.51 $* | 13.94 $* |
| Apr-20-2025 | 14.19 $* | 15.46 $* |
| Mar-20-2025 | 14.91 $* | 15.62 $* |
| Feb-20-2025 | 13.35 $* | 14.45 $* |
| Jan-20-2025 | 13.11 $* | 14.6 $* |
Характеристики
Product Description
Product performance description：
This is an active Poe switch,
Automatically detect required PoE power for your device and protect your Non-PoE equipment from being damaged. The mini size gives it more flexibility
Automatically detect required PoE power for your device and protect your Non-PoE equipment from being damaged. The mini size gives it more flexibility
Product Features ：
1.【poe switch with 802.3af/at compliant】
2.【4 port poe switch*100M@W 】
3.【AI 250 meters Extend function】
4.【AI Watchdog function of poe port】
5.【AI PD Detection】
6.【Mini Size】
Product Features
PD Detection:Automatically detect required PoE power device and protect Non-PoE equipment from being damaged.
LED Indicators:Quickly check and troubleshoot Ip ports with data and PoE lights for each.
High-quality power adapter:Stable and sufficient power supply, make Poe switch application more reliable.
Easy to Use:Requires no configuration, just plug-and-play, automatic connect to device.
Durable Metal Housing:Compact design, sturdy metal case makes it safe to use in various environments.
Fanless Design:Built to high heat tolerances, Bilateral heat dissipation, keeps stable and quiet.
LED Indicators:Quickly check and troubleshoot Ip ports with data and PoE lights for each.
High-quality power adapter:Stable and sufficient power supply, make Poe switch application more reliable.
Easy to Use:Requires no configuration, just plug-and-play, automatic connect to device.
Durable Metal Housing:Compact design, sturdy metal case makes it safe to use in various environments.
Fanless Design:Built to high heat tolerances, Bilateral heat dissipation, keeps stable and quiet.
PoE Standard | IEEE 802.3af/at POE / PSE PD\\POE type: POE pass (pines 1.2 V +, pines 3.6 V-). |
Power Input | 100~220V/AC |
PoE Power Output | Per Port 52V DC, 30Watts(Max) |
Ports | 1*10/100Mbps RJ-45 Uplink Ports, 4*10/100 RJ-45 PoE Ports |
Power Consumption | 52Watts(Max) |
power consumption of idle switch | 3W(Max) |
Operating Temperature | -10°--55°C |
Switch Capability | up to 1.0Gbps |
Details Images

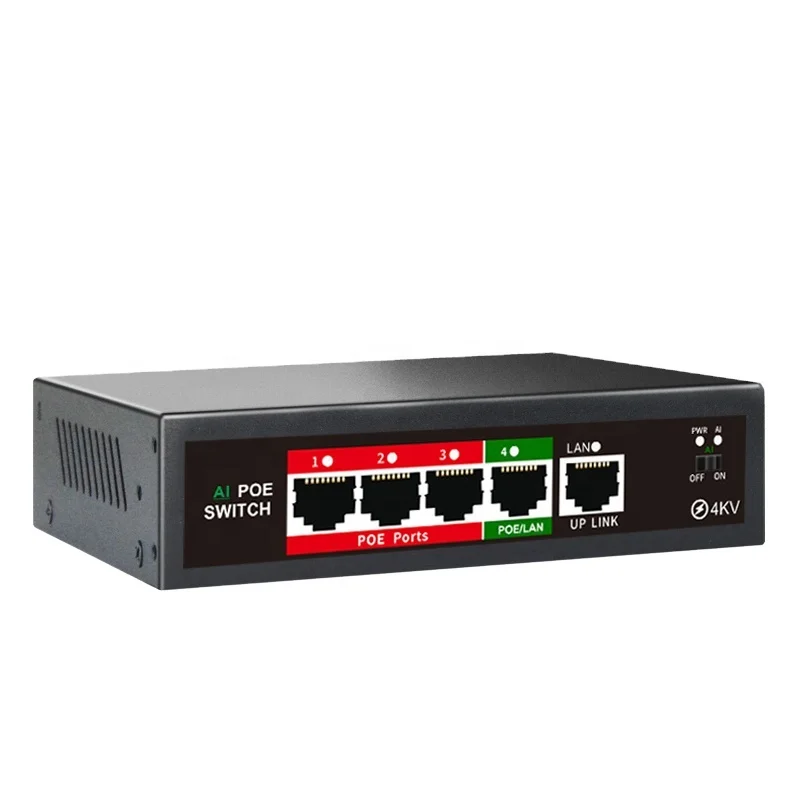

5 Port Poe Switch max100Mbs
PoE switch with 3×port PoE + 1×Uplink+1×two-use port, 4×PoE ports providing up to 30W per port,1×two-use port can use as poe/uplink,total PoE budget 52W, 2 port uplink ideal for connecting NVR and Internet, etc.
4KV Lightning Protection
PoE switch have professional lightning protection design-up 4KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence.

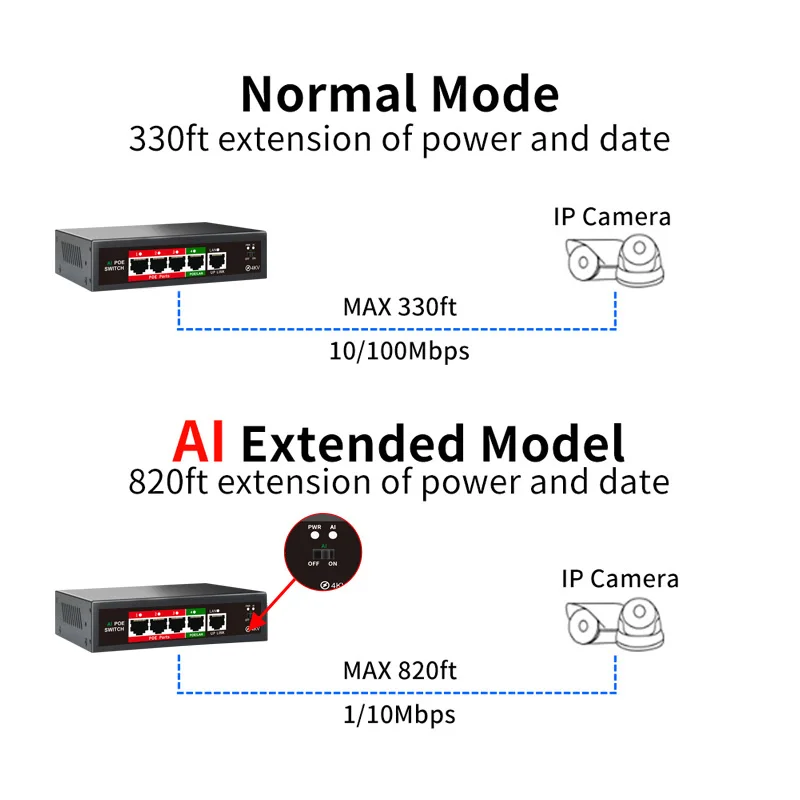

AI 250 meters Extend function
Turn on the extension switch, if enters the AI mode, POE port will judge whether it enters the ultra-long distance mode according to the actual situation.Extend function extending max power and data transmission distance from 100 meters(330ft) to 250 meters(820ft).which is easy to expand network via ethernet cable to somewhere without power supply but need fix device such as IP Cameras.
Network cable short-circuit protection mechanism
POE switch is stable and has strong anti-interference ability, protect the fault caused by the short circuit of the network port.Short Circuit, Over Current and Over Voltage Protection.
AI Watchdog function of poe port
When the data or electrical transmission between the poe port and the terminal device is abnormal, the corresponding poe port of the device will automatically detect the problem and restart the connection.
Company Introduction
HUOYI Technology (Shenzhen) Co., Ltd.was a professional Poe switch ,ethernet switch,IP camera and NVR manufacturer with more than 10 years experience in CCTV and network communication fields ,have a professional team of about 200 workers and The production of dust-free workshop can reach 3500 units per day. For years,Our research and development achievements have SPOE,PSE,CCTV managed system,CCTV smart router,IPC tester and cable tester products.
Our Services & Strength
We are a team with 10 years of experience in R&D and production,Focus on the R&D, production and sales of network equipment, POE equipment, 4G/5G and wireless routers etc..Efficient R&D, low failure rate (0.04%) , and low prices are our biggest advantages.
FAQ
Q:What after-sales service do you offer?
A:We aim to provide buyers with low-priced and high-quality products. All products have been strictly inspected and have various certifications. If it is a quality problem of the product itself, please contact us. We are willing to take all the responsibilities; For questions about how to use the product, please contact us. We have professional staff to answer you.
Q:When can the goods be shipped?
Q:When can the goods be shipped?
A:Generally the goods will be shipped within 3-5 days, if there are special circumstances we will explain to you, when the goods are issued, we will inform you as soon as possible.
Q:Do you support OEM / ODM?
A:We support OEM/ODM as long as your number reaches 200 pieces, you can tell customer service your customization requirements.
