Характеристики
product presentation
Non-magnetic pulse water meter is a non-magnetic long-distance water meter with no permanent magnet and other magnetic components inside, which is less affected by internal and external magnetic force. It can measure the speed and judge the rotation direction by using the principle of LC oscillation, detect the distance and measure accurately.
Non-magnetic water meter is mainly composed of base meter, non-magnetic sensor, remote control module, battery and other accessories. It adopts electromechanical separation structure, and the sampling unit can be as small as the water meter with liter accuracy.
Non-magnetic water meter is mainly composed of base meter, non-magnetic sensor, remote control module, battery and other accessories. It adopts electromechanical separation structure, and the sampling unit can be as small as the water meter with liter accuracy.

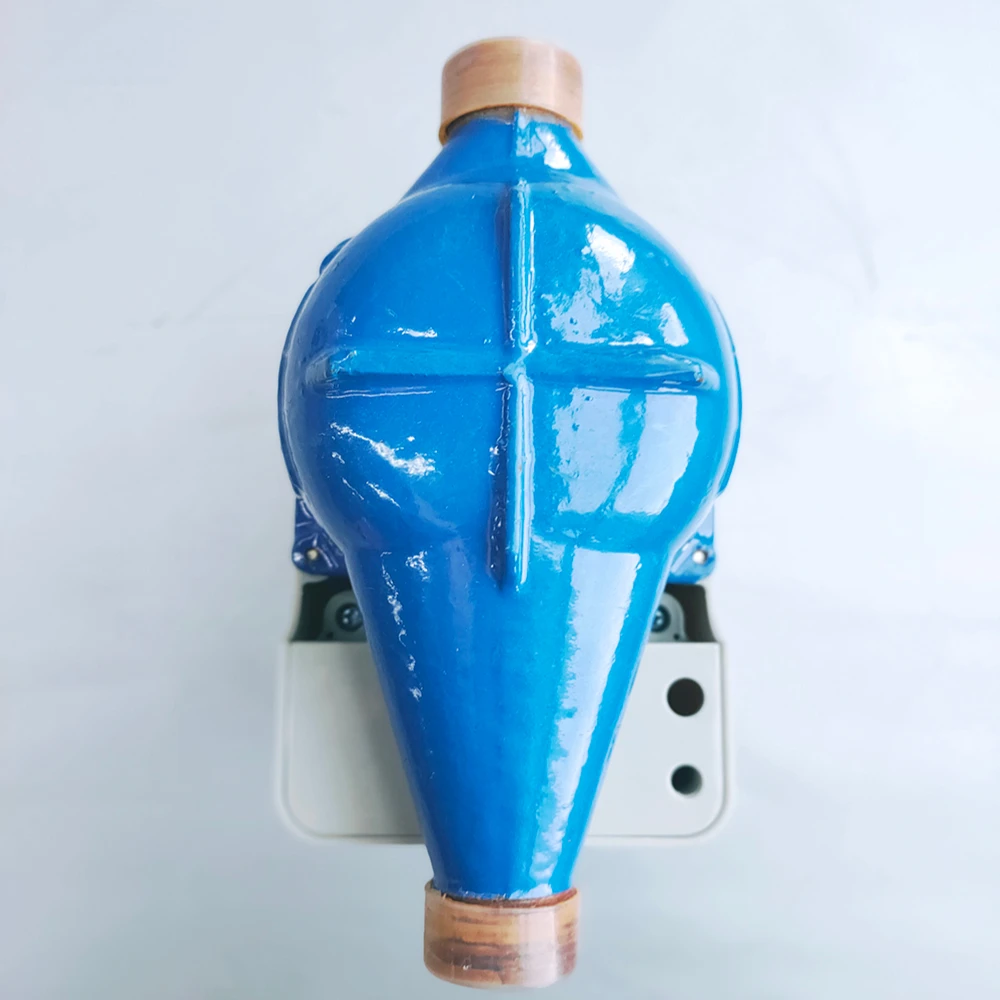

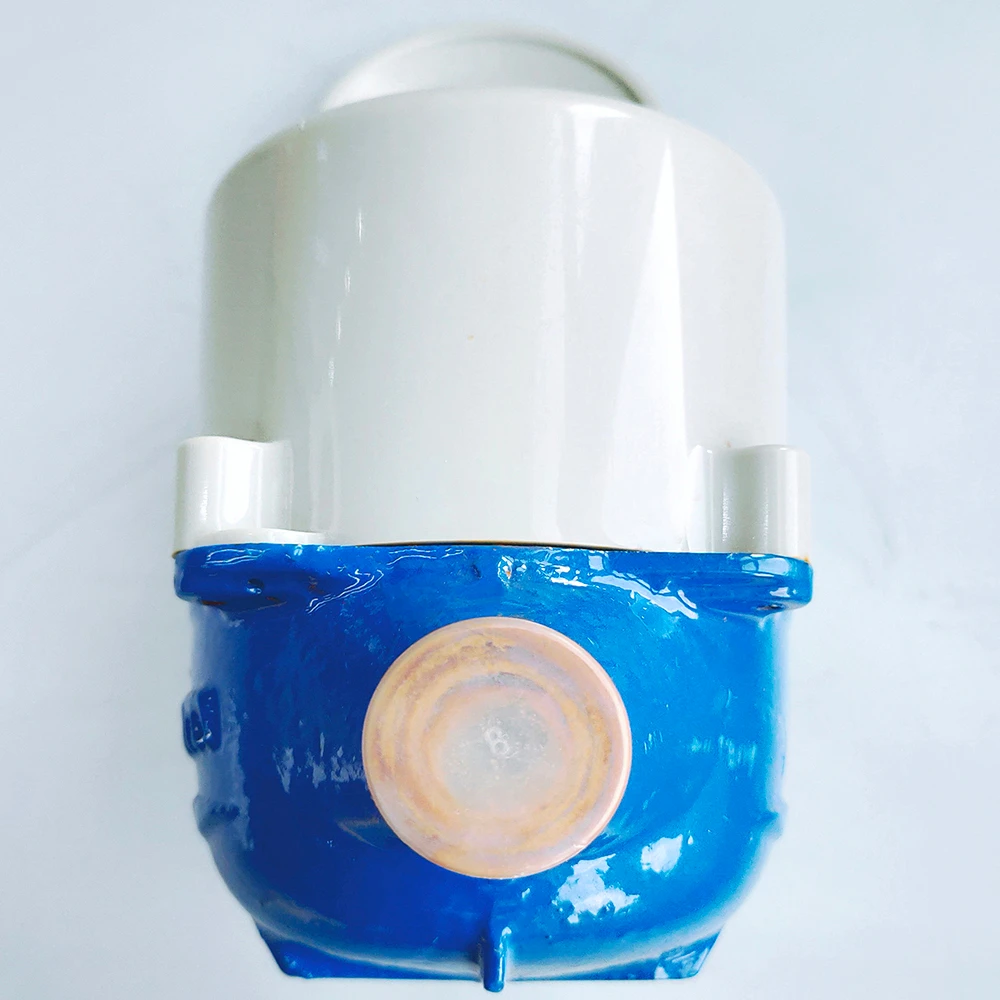

product appearance：
technical parameter
Measuring range（ Q3/Q1 ） | 160 or 100 |
Mechanical minimum reading | 0.0001 m³ |
Mechanical maximum reading | 99999 m³ |
unit of measurement | 1 m³ |
operating temperature | Cold water meter： 0.1 ℃～ 30 ℃ |
water pressure | 0.03MPa ～ 1 MPa |
Loss of pressure level | △ p63 |
Sensitivity level of flow profile | U10,D5 |
Climate and mechanical environment safety rating | Class B |
Electromagnetic compatibility level | E1 |
Protection grade | IP68 |
No magnetic reflection pointer | The non-magnetic reflection pointer is synchronized with the 0.0001 pointer |
The meter body seal | Body anti - tear seal hole |
dust cover | The body has a dust cover |
Electronic part minimum reading | 1 L |
Non-magnetic remote transmission module can be in need of remote transmission, later installation, set the water meter base number (mechanical table has run water, to set the number of electrons in the module, so that mechanical reading and electronic reading is consistent) and can be used when enabled.
Measurement introduction:
No magnetic pulse: pulse type remote meter measuring water flow in pipes, water meter in the microcomputer automatic storage of water use, when the timing to send data to the time or have the meter signal detected, through wireless spectrum data are sent using spectrum is the WuWei will be issued special meter frequencies, there would be no
interference, instead of manual meter reading, and more convenient, more efficient and meter high success rate.
interference, instead of manual meter reading, and more convenient, more efficient and meter high success rate.
product superiority：
1、With self-maintaining function, the self-maintaining function can ensure that the special magnetic needle can only send out a pulse signal every 360 degrees of rotation. With the self-resolving function of magnetic interference of the remote water meter,it can effectively overcome the weakness of the critical point such as water hammer phenomenon, and has the function of preventing external magnetic interference.
2、High accuracy: the measurement accuracy is in accordance with ISO4046 standard, and there is no error in the transmitted signal.
3、High versatility: applicable to all national standard water meters, can fully adapt to the technical requirements of different meter reading system, far water meter output pulse width is greater than 80ms.
4、Strong anti-interference ability: stainless steel shell, with stainless steel hose protection, to prevent human damage. The magnetic interference self-solution function enables the remote water meter to work normally in the case of artificial strong magnetic interference, and the magnetic needle life can reach more than 6 years.
5、Without damaging the structure and performance of ordinary water meter, the whole remote water meter can reach the performance index of ordinary water meter.
6、Signal transmission mode: passive switch on and off, with short line alarm function, according to customer needs, can use two or three wire system and remote water meter outdoor display device combination reading more convenient.
7、Long service life. The whole remote expressed to the ordinary meter life, the remote part can be used for ten years.
1、With self-maintaining function, the self-maintaining function can ensure that the special magnetic needle can only send out a pulse signal every 360 degrees of rotation. With the self-resolving function of magnetic interference of the remote water meter,it can effectively overcome the weakness of the critical point such as water hammer phenomenon, and has the function of preventing external magnetic interference.
2、High accuracy: the measurement accuracy is in accordance with ISO4046 standard, and there is no error in the transmitted signal.
3、High versatility: applicable to all national standard water meters, can fully adapt to the technical requirements of different meter reading system, far water meter output pulse width is greater than 80ms.
4、Strong anti-interference ability: stainless steel shell, with stainless steel hose protection, to prevent human damage. The magnetic interference self-solution function enables the remote water meter to work normally in the case of artificial strong magnetic interference, and the magnetic needle life can reach more than 6 years.
5、Without damaging the structure and performance of ordinary water meter, the whole remote water meter can reach the performance index of ordinary water meter.
6、Signal transmission mode: passive switch on and off, with short line alarm function, according to customer needs, can use two or three wire system and remote water meter outdoor display device combination reading more convenient.
7、Long service life. The whole remote expressed to the ordinary meter life, the remote part can be used for ten years.
Communication mode :
1. LORAWAN
（1）Component: Lorawan has four parts
Node: gas meter, water meter, position , alertor etc.
Gateway: receiving data
Network platform : Management of equipment in base station, DNSEG control etc.
User’s data background : data storage and application processing for user
（1）Component: Lorawan has four parts
Node: gas meter, water meter, position , alertor etc.
Gateway: receiving data
Network platform : Management of equipment in base station, DNSEG control etc.
User’s data background : data storage and application processing for user
The main chip of LORAWAN communication module adopts the high-performance embedded ARM cortex-m3 32-bit RISC controller, which
ensures the stability of the device with multilevel software detection and multiple hardware protection mechanisms.It is composed
of the powerful ARM cortex-m3 32-bit RISC microcontroller and Lorawan wireless spread spectrum chip .
（2）Product features：
1. measurement function
* real-time pulse counter accumulates flow
* strong magnetic detection trigger alarming info.
2. historical data store locally
* the data during latest 90 days store every one hour
* the data during the latest 180 days stores everyday
* the data during the latest 1 year stores every month
3. Power supply: one main battery for supplying daily , another one for spare battery
4. Main battery capacity level indicator
* In each measurement data consumption on the road up the service reported to the battery capacity level suffixü
* Low battery threshold ：when the battery capacity is less than 20%, it will trigger low battery alarm and the low battery
alarming info.will be reported every 24 hours untill spare battery switch threshold
* Battery switch threshold : capacity of 10% will trigger the switch of spare battery
5. Spare battery switch only in the following cases; otherwise, use the main battery.
* Pull out the battery or the battery does not exist
* the main battery theshold is 10%
* The switch of spare battery is automatic so that i will not be outage
6. Spare battery function
* Water flow control partial measurement
* historical data storage
* spare battery exceeds 7 days at least
* When spare battery is used , the alarming info. Of spare battery will be reported to server
7. The spare battery protection in transportation
* Prior to on-site activation, the meter is equipped with only spare batteries, and in the warehouse or during transportation,
protection will be provided to prevent the consumption of the spare batteries.
8. Battery life: 6
9. operating temp.：-5~+ 85℃
10. LED indicator: indicates LORA event
11. Manual triggering lorawan uplink for testing
12. Wireless technology: lorawan in EU868
13. LoRaWAN class: class A
14. LoRaWAN reports regularly measured data for a period of 24 hours by default
The message payload includes
* the latest accumulated measured data
* statue of meter: valve,power, strong magnetic detection
* battery capacity
* lorawan downlink signal indicator RSSI/SNR
15. LoRaWAN fixed time metering data report (ON/OFFconfigurable).LoRaWAN metering data report is triggered every day at fixed time
(e.g. 23:00, configurable), and the message payload is the same as the periodic report
* the latest accumulated measured data
* statue of meter: valve,power, strong magnetic detection
* battery capacity
* lorawan downlink signal indicator RSSI/SNR
16. LoRaWAN alarming info. Uplink report
* low battery alarm
* spare battery switch alarm
* valve error alarm
* strong magnetic detection alarm
17. LoRaWAN downlink set/inquire
* Set up/query LoRaWAN periodic metering data report cycle
* Fixed time measurement data report/switch/set up/inquiry/time
* Modify accumulated water flow data for calibration
* read the data of current accumulated water flow
* battery capacity reading
* valve control switch
ensures the stability of the device with multilevel software detection and multiple hardware protection mechanisms.It is composed
of the powerful ARM cortex-m3 32-bit RISC microcontroller and Lorawan wireless spread spectrum chip .
（2）Product features：
1. measurement function
* real-time pulse counter accumulates flow
* strong magnetic detection trigger alarming info.
2. historical data store locally
* the data during latest 90 days store every one hour
* the data during the latest 180 days stores everyday
* the data during the latest 1 year stores every month
3. Power supply: one main battery for supplying daily , another one for spare battery
4. Main battery capacity level indicator
* In each measurement data consumption on the road up the service reported to the battery capacity level suffixü
* Low battery threshold ：when the battery capacity is less than 20%, it will trigger low battery alarm and the low battery
alarming info.will be reported every 24 hours untill spare battery switch threshold
* Battery switch threshold : capacity of 10% will trigger the switch of spare battery
5. Spare battery switch only in the following cases; otherwise, use the main battery.
* Pull out the battery or the battery does not exist
* the main battery theshold is 10%
* The switch of spare battery is automatic so that i will not be outage
6. Spare battery function
* Water flow control partial measurement
* historical data storage
* spare battery exceeds 7 days at least
* When spare battery is used , the alarming info. Of spare battery will be reported to server
7. The spare battery protection in transportation
* Prior to on-site activation, the meter is equipped with only spare batteries, and in the warehouse or during transportation,
protection will be provided to prevent the consumption of the spare batteries.
8. Battery life: 6
9. operating temp.：-5~+ 85℃
10. LED indicator: indicates LORA event
11. Manual triggering lorawan uplink for testing
12. Wireless technology: lorawan in EU868
13. LoRaWAN class: class A
14. LoRaWAN reports regularly measured data for a period of 24 hours by default
The message payload includes
* the latest accumulated measured data
* statue of meter: valve,power, strong magnetic detection
* battery capacity
* lorawan downlink signal indicator RSSI/SNR
15. LoRaWAN fixed time metering data report (ON/OFFconfigurable).LoRaWAN metering data report is triggered every day at fixed time
(e.g. 23:00, configurable), and the message payload is the same as the periodic report
* the latest accumulated measured data
* statue of meter: valve,power, strong magnetic detection
* battery capacity
* lorawan downlink signal indicator RSSI/SNR
16. LoRaWAN alarming info. Uplink report
* low battery alarm
* spare battery switch alarm
* valve error alarm
* strong magnetic detection alarm
17. LoRaWAN downlink set/inquire
* Set up/query LoRaWAN periodic metering data report cycle
* Fixed time measurement data report/switch/set up/inquiry/time
* Modify accumulated water flow data for calibration
* read the data of current accumulated water flow
* battery capacity reading
* valve control switch
After the communication module is superimposed, if combined with the integrated energy
control platform software independently developed by the company，It can realize：
control platform software independently developed by the company，It can realize：
* Unmanned, reduced manpower.
●automatic data logging.
●Industrial-grade communication equipment ensures the safety and reliability of meter reading.
●Complete system log traceability is available.
●Visual graphics, data statistics.
●Meter status alarm；When low-power and low-volume magnetic attack sampling fault leakage alarm (external leakage alarm) occurs,
real-time alarm information is uploaded to the background application platform.
●Control the gasmeter valve switch through background application software (desktop WEB and mobile APP).
●When the meteris removed or attacked by external forces, the information will be transmitted to the background application
platform in real time
●The stability of data transmission can be monitored.
●automatic data logging.
●Industrial-grade communication equipment ensures the safety and reliability of meter reading.
●Complete system log traceability is available.
●Visual graphics, data statistics.
●Meter status alarm；When low-power and low-volume magnetic attack sampling fault leakage alarm (external leakage alarm) occurs,
real-time alarm information is uploaded to the background application platform.
●Control the gasmeter valve switch through background application software (desktop WEB and mobile APP).
●When the meteris removed or attacked by external forces, the information will be transmitted to the background application
platform in real time
●The stability of data transmission can be monitored.
Application：
Factory environment
Qualification：
Packing and delivery：
