High pressure acid leach hydrometallurgy Titanium reactor
Hydrometallurgy is the process of chemical treatment of metal mineral raw materials in acidic medium or aqueous solution of alkaline medium or organic solvent extraction, separation of impurities, extraction of metals and their compounds.
Mixing duties:
Fast dispersion of feed streams
Optimal blending of acid and slurry
Solid suspension
Applications of Titanium Reactors in hydrometallurgy:
Bioleaching reactor
Direct leaching
Pre-Oxidation Tank
Cyano detoxification
Arsenic Removal
Iron precipitation
Vaporized chloride leaching, for example, for nickel matte treatment
Recovery of scandium and rare earth elements (containing SO2 gas)
Production of battery-level lithium carbonate (containing CO2 gas)
![]()
Direct leaching
Pre-Oxidation Tank
Cyano detoxification
Arsenic Removal
Iron precipitation
Vaporized chloride leaching, for example, for nickel matte treatment
Recovery of scandium and rare earth elements (containing SO2 gas)
Production of battery-level lithium carbonate (containing CO2 gas)
MAIN SPECIFICATION | ||
Type | FCH1000~80,000L | |
Volume(L) | 1000~80,000L | |
Working pressure(MPa) | Negative pressure -0.1~20 | |
Working temperature(°C) | -196~350℃ | |
Stirring speed(rpm) | 0~1200 | |
Motor power(KW) | 80w~125kw | |
Heating power(KW) | 3~90 | |
Heating type | Heat oil heating, steam heating, Electric heating, Electromagnetic heating, far-infrared heating, | |
Charging type | Charging from above, discharging from bottom. | |
Stirring type | Customized propeller, turbine, paddle, anchor, frame, screw belt type. ...etc | |
Seal type | Magnetic seal, mechanical seal, | |
Motor | General DC motor, DC servomotor or explosion-proof motor according to customers’ requirements. | |
Construction materials （Wetted parts） | Stainless steel SUS304, SS316L, SS310S, 321, duplex steel 2205, Titanium, Nickel, Zirconium, or PTFE lining, Hastelloy C-276, C22, cladding plate. | |
Other Accessories | Condenser, storage vessel, constant pressure feed tank, receiving tank, thin film evaporator&Short path (molecular) distillation. | |
Product Features
![]()
Internal Designing
Internal Designing
Internal component design as per customer's requires, including:
*Internal condenser
*Agitator & impeller
*Dip tube
*Temperature measuring tube
*Various functional tube
*Cleaning device
*Bottom support & bearing
*Gas distributor
*Others
![]()
Customize for You
Customize for You
Reasonably customize the nozzle port and orientation, including:
*Manhole, liquid inlet, gas inlet, solid inlet, safety device, vent outlet... etc.
![]()
Agitator
*Different impeller type available for specific mixing mission.
*Special impeller design according to process condistions
Product Paramenters
Model No. | Vol. (L) | A (mm) | B (mm) | C (mm) | ||||
FCH1000 | 1000 | 1000 | 1100 | 3800 | ||||
FCH2000 | 2000 | 1200 | 1500 | 4200 | ||||
FCH3000 | 3000 | 1400 | 1700 | 4500 | ||||
FCH5000 | 5000 | 1600 | 2150 | 4700 | ||||
FCH6000 | 6000 | 1700 | 2350 | 5300 | ||||
FCH8000 | 8000 | 1900 | 2500 | 5700 | ||||
FCH10000 | 10000 | 2000 | 2800 | 5800 | ||||
FCH15000 | 15000 | 2400 | 2900 | 6100 | ||||
FCH20000 | 20000 | 2600 | 3300 | 7100 | ||||
FCH25000 | 25000 | 2800 | 3550 | 7600 | ||||
FCH30000 | 30000 | 2800 | 4350 | 9100 | ||||
Note: Larger size and specific data will be designed and confrimed according to your requires! | ||||||||
Details Images
![]()
![]()
![]()
![]()
Magnetic Coupling
* 100% Sealing. Zero leakage.
* Zero emission of hazardous fluids.
* Suitable for pressure fluctuations.
* Various capacities available.
* Compact Design.
Reducer
* Various explosion-proof grades, high efficiency and energy saving.
* Variable frequency speed regulation can adapt to all kinds of rotating speed occasions.
* Low noise and long service life.
Pressure Gauge
* The pointer display is intuitive and clear.
* Convenient installation, suitable for a variety of complex environments.
* Wide measuring range.
Agitator
* Different impeller type available for specific mixing mission.
* Special impeller design according to process condistions.
* Special impeller design according to process condistions.
Tubular Coil* The velocity of medium is fast and the contact time is short
* Large temperature difference of material medium
* Beautiful appearance
* It acts as a baffle
Spiral Coil* Long contact time of medium heat exchange
* Large heat exchange area
* It acts as a baffle
Pressure Vessel Barrel* Can withstand a variety of temperatures, media
* Various sizes and specifications
Upper Head * Customized according to customer requirements
* Set up safety monitoring devices, such as safety valve, bursting disc, etc
Fuel Port* Add oil and lubrication to the bearing of magnetic drive system, increase the bearing life
* The interface form can be connected with a variety of refueling equipment
Mechanical Seal * It is suitable for low pressure and slight leakage
* When the viscosity of material medium is high and the output torque is large
* High torque output efficiency, low loss
Magnetic Sealing * High reaction efficiency
* Full seal, zero leakage, reduce waste of leaking materials
* Simple maintenance, energy saving and consumption reduction
Equipment Transportation* Transport by special freight car
* Naked transportation, convenient fixation
Customization
Customized Specifications
If there has special process requires,HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not.
7. Internal cooling coil or not, exchange area?
8. Lifting device or not?
9. Your other requests
......Contact us
We like to help you to accomplish your plans.
If there has special process requires,HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not.
7. Internal cooling coil or not, exchange area?
8. Lifting device or not?
9. Your other requests
......Contact us
We like to help you to accomplish your plans.
Recommend Products
![]()

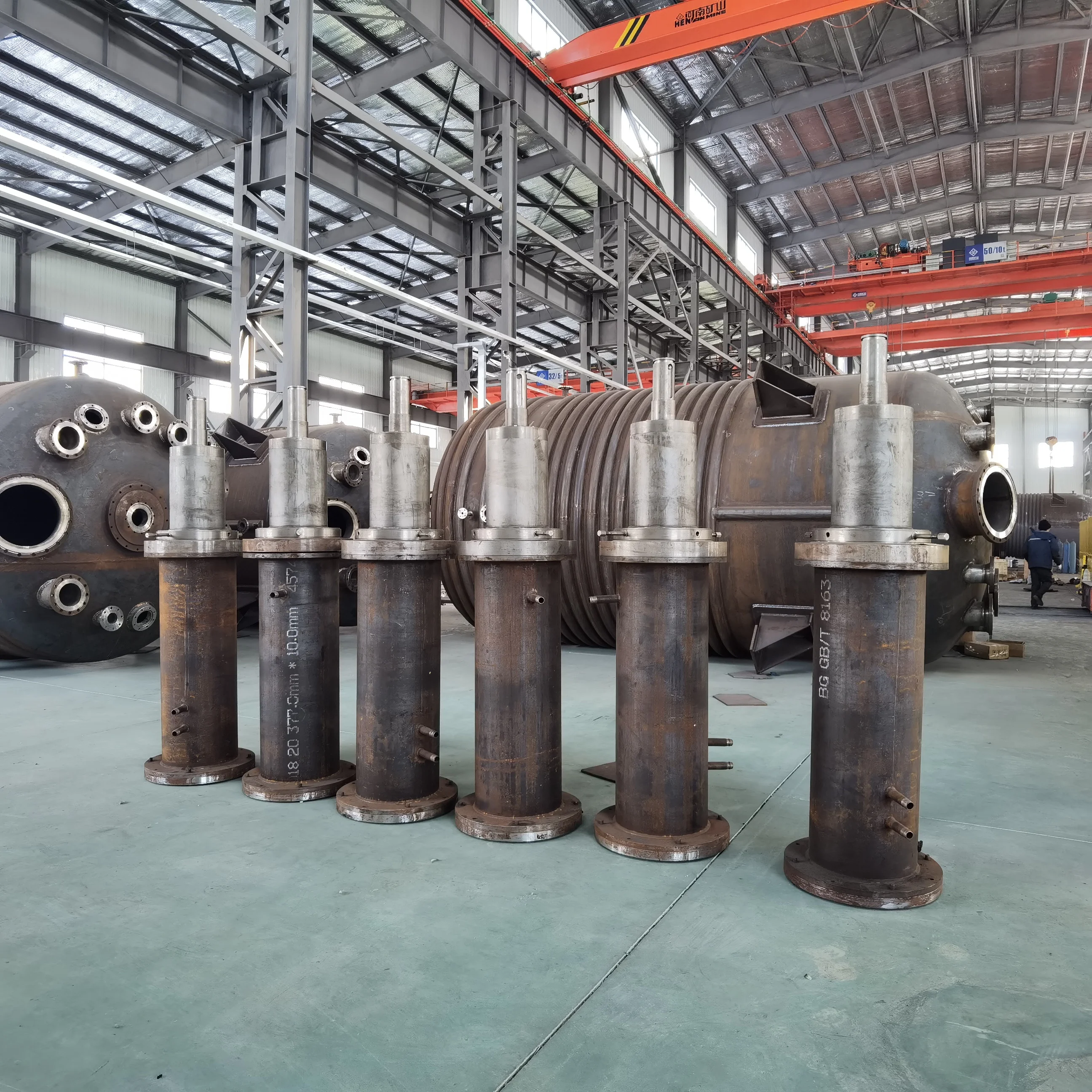

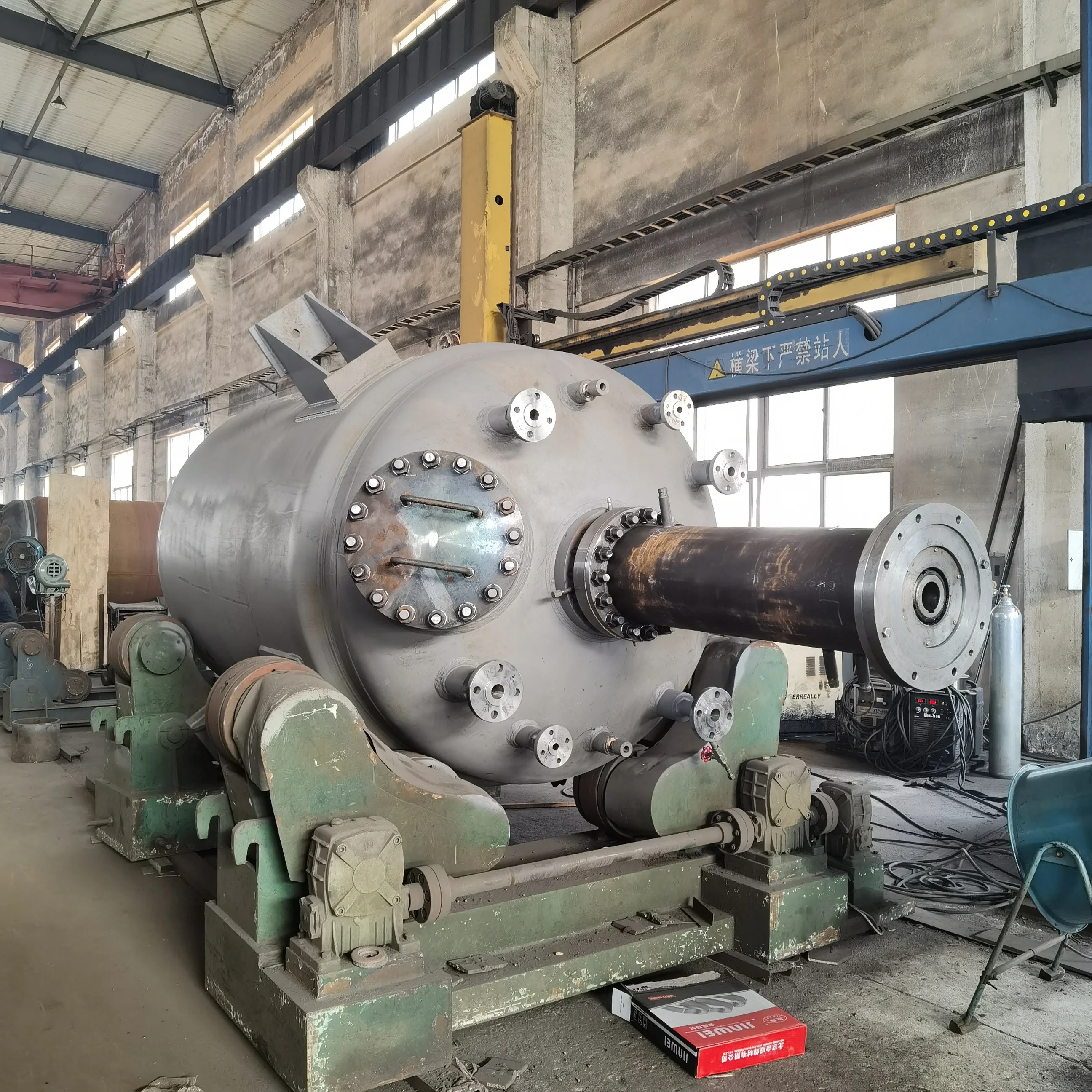

Workshop exhibition
