Высокая производительность изоляции амортизирующая пружина амортизатор кондиционера Весна
- Категория: Системы ОВКВ и запчасти >>>
- Поставщик: Bellking,Vibration,Reduction,Equipment,Manufacturing,(kunshan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 1779.78 $* | 1815.61 $* |
| Jul-20-2025 | 1443.46 $* | 1472.58 $* |
| Jun-20-2025 | 1751.70 $* | 1786.47 $* |
| May-20-2025 | 1737.55 $* | 1772.1 $* |
| Apr-20-2025 | 1387.76 $* | 1415.33 $* |
| Mar-20-2025 | 1709.76 $* | 1743.57 $* |
| Feb-20-2025 | 1695.23 $* | 1729.40 $* |
| Jan-20-2025 | 1681.32 $* | 1715.37 $* |
Характеристики
Product Description
| Product Name |

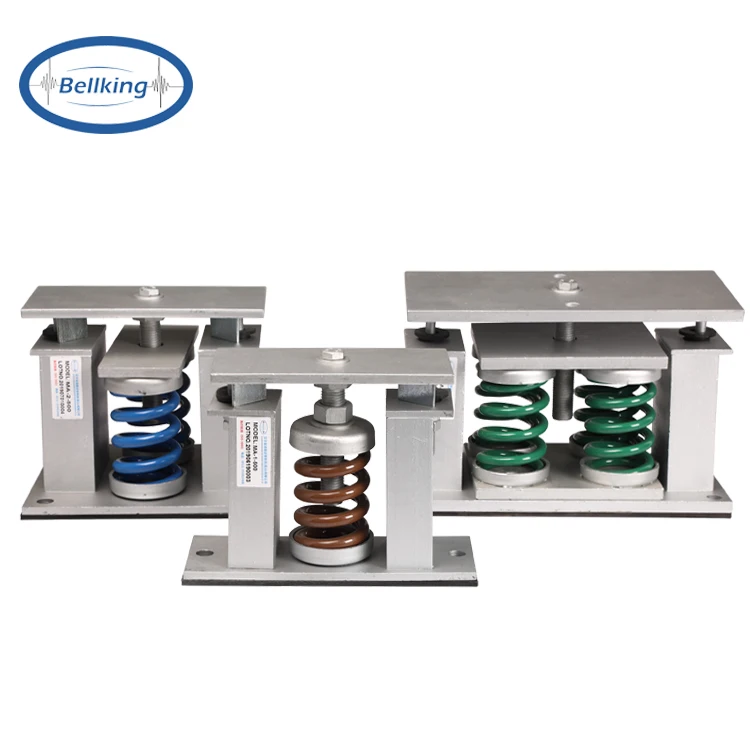

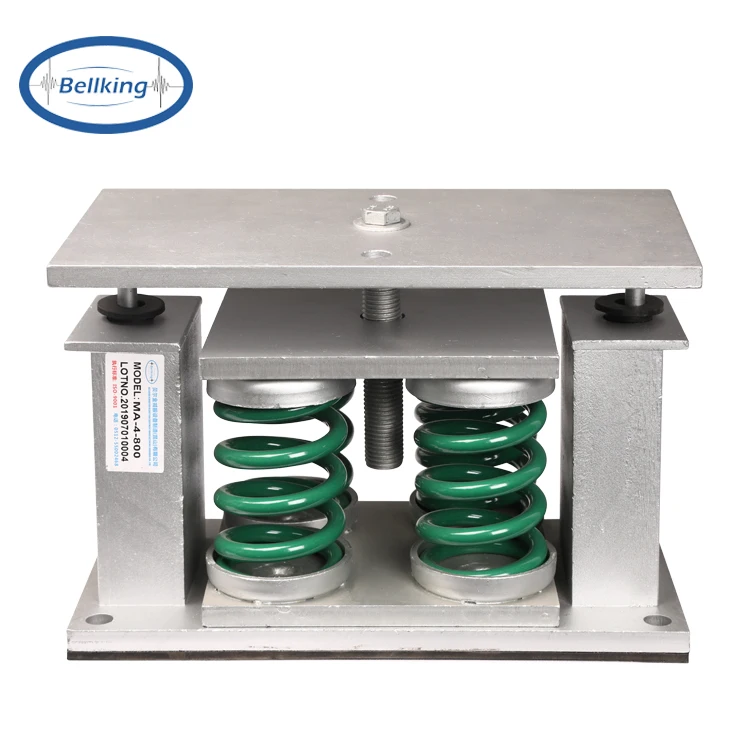

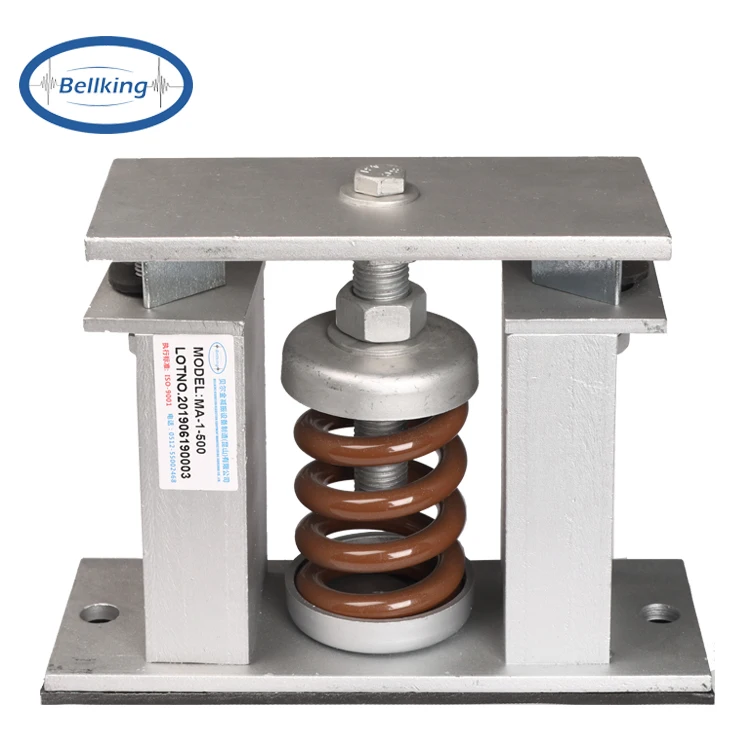

spring mount vibration isolator - type MA |
| Characteristics |
. The spring is designed with low natural frequency and surface treatment by ED and stoving varnish. . Spring has very long service life which is processed by heat treatment and stress removal. . The ontology is treated with longzine. . The bottom is anti-skid and stopper bolt design, which is very safety. . Simple installation and height adjustable according to actual need. . Good vibration attenuation and can increase the service life of equipment. . Deflection is 25mm under nominal load. |
| Application |
. Heavy machinery. . Chillers, water cooling tower. . Firing pump, Exhaust fan. . Generator, Air compressor |
| Spec | Size (mm) | Bolt | |||||||
| L | W | L1 | W1 | A | B | H |
BD |
||
|
MA-1 |
260 |
100 |
210 |
100 |
230 |
0 |
200 |
16 | M12 |
|
MA-2 |
235 |
220 |
235 |
120 |
195 |
180 |
200 |
16 | |
|
MA-4 |
320 |
165 |
320 |
165 |
290 |
135 |
220 | 14 | |
|
MA-6 |
400 |
170 |
400 |
170 |
370 |
140 |
220 | 18 | |
|
MA-9 |
420 |
250 |
420 |
250 |
384 |
214 |
220 | 18 | |
|
Type |
Rated Capacity Kg |
Spring Rate Kg/mm |
Rated Deflection mm |
|
MA-1-100 |
90-110 | 4.2 | 25 |
|
MA-1-200 |
160-210 | 7.1 | 25 |
| MA-1-300 | 220-320 | 10.8 | 25 |
|
MA-1-400 |
360-430 |
14.2 |
25 |
|
MA-1-500 |
470-530 |
19.2 |
25 |
|
MA-1-600 |
530-650 |
22.6 |
25 |
|
MA-1-700 |
650-700 |
26.0 |
25 |
|
MA-1-850 |
700-850 | 33.6 | 25 |
| MA-1-1000 | 850-1000 | 46.0 | 25 |
| MA-2-800 | 700-850 | 28.4 | 25 |
| MA-2-1000 | 950-1050 | 38.3 | 25 |
|
MA-2-1200 |
1050-1250 |
45.2 |
25 |
|
MA-2-1400 |
1250-1400 |
52.0 |
25 |
|
MA-2-1700 |
1400-1700 |
68.0 |
25 |
|
MA-2-2000 |
1850-2150 |
92.1 |
25 |
|
MA-4-1200 |
880-1300 |
43.2 |
25 |
|
MA-4-1600 |
1450-1700 | 56.8 | 25 |
| MA-4-2000 | 1800-2000 | 76.6 | 25 |
| MA-4-2400 | 2000-2400 | 90.3 | 25 |
| MA-4-2800 | 2400-2800 | 103.2 | 25 |
| MA-4-3400 | 2800-3400 | 136.0 | 25 |
|
MA-4-4000 |
3200-4000 |
184.1 |
25 |
|
MA-6-3600 |
3000-3600 |
135.5 |
25 |
|
MA-6-4200 |
3600-4200 |
155.9 |
25 |
|
MA-6-5100 |
4200-5100 |
204.0 |
25 |
|
MA-6-6000 |
4600-6100 |
276.0 |
25 |
|
MA-9-5400 |
4700-5800 |
216.0 |
25 |
|
MA-9-6300 |
5800-6400 |
252.0 |
25 |
|
MA-9-7500 |
6500-7500 | 305.0 | 25 |
| MA-9-9000 | 7600-9000 | 359.0 | 25 |
Packaging & Shipping
- Packaging Details:Carton Box with Pallet or Wooden Case
- Delivery Time:20 Working Days
Company Information
![-4.jpg]()
![company overview.jpg]()
![Njy0Ffq6xIsVXaC.jpg_.webp]()
![(1).jpg]()
Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available
Q: What do you need to know for fast quotation?
A: It would be highly appreciated if we have the details of detailed drawing for OEM order, model, end connection type, flange standard and material, medium, pressure, temperature and other working conditions.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Kunshan, Jiangsu Prov., China.
