Product Description
Plasma DBD Ionizer-DBD85-220V
DBD85-220V is a plasma discharge tube for air cleaning , which is designed to have all circuits inside the tube.
With high-energy and higher efficiency compared to other Ion Cluster modules, DBD85 series of products are the ideal cchoice for installation in HVAC systems , inside of diffusers , air conditioner for room cleaning or other Air Purification
products.

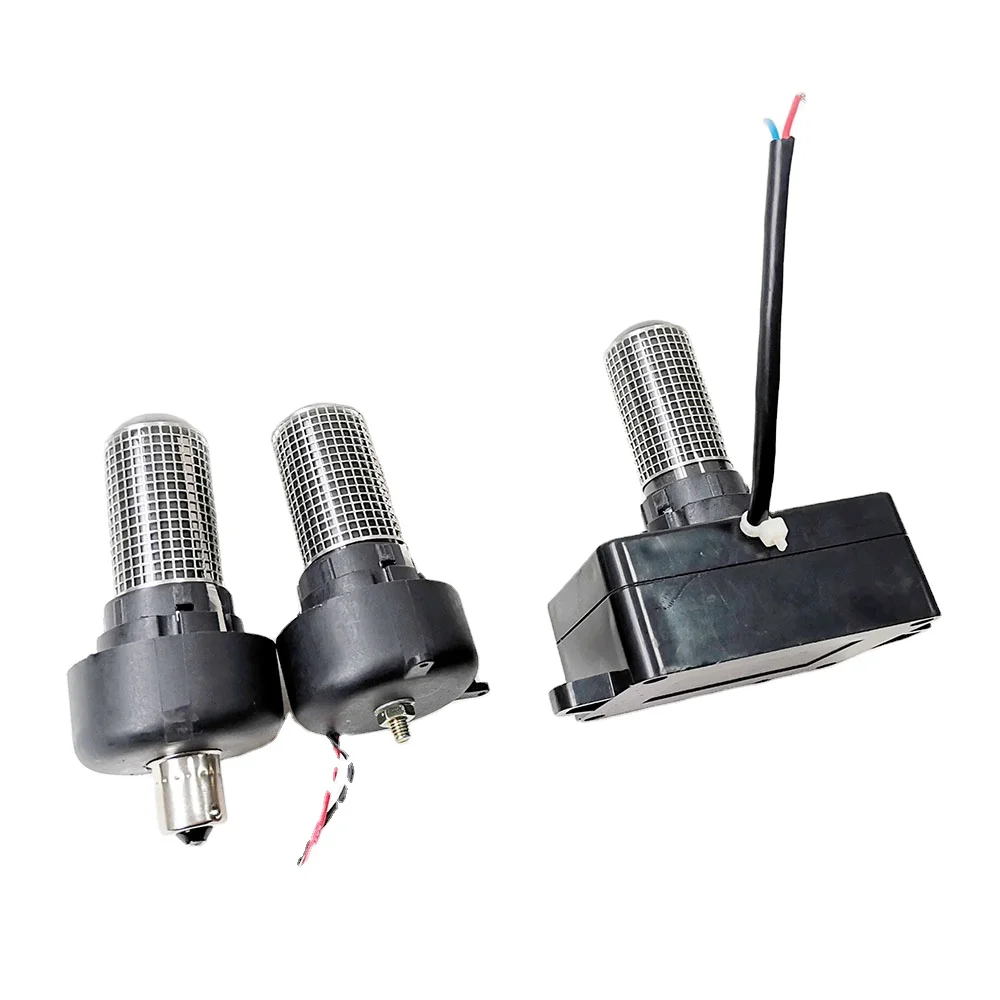

- A) DBD85-12V , input voltage is also 12VDC, but with B15 connecting head
- B) Ionizer DBD85S-12V , input voltage is 12VDC, connecting power by screw type of head
- C) DBD85-220V, the input voltage is 85~220V/50HZ, with one black case on the bottom
Indoor Air Solution
HVAC System or Diffusers
-There's a risk of virus infection because of the smell of
user in the room that many people use .
- In the case of central air conditioning , DBD85 series is
best choice to be used in the diffuser or HVAC Air Outlet,
effectively remove the residual odor, viruses and bacterias.
- Easy to install and optimized for use in about 15 sqm.of
room.
Bio-Clean Room
- In case of Bio-Clean room and Bio-Clean Booth,
we will adopt UV light and Ion Cluster DBD85 to sterilizer
the air.
- UV only sterilize and irradiated area, so it only sterilizes
the air that is inhaled.
- Ion Cluster DBD85 can spread all over the room to
sterilize.
Air Curtain
There're three types of DBD85 can be selected as follows:

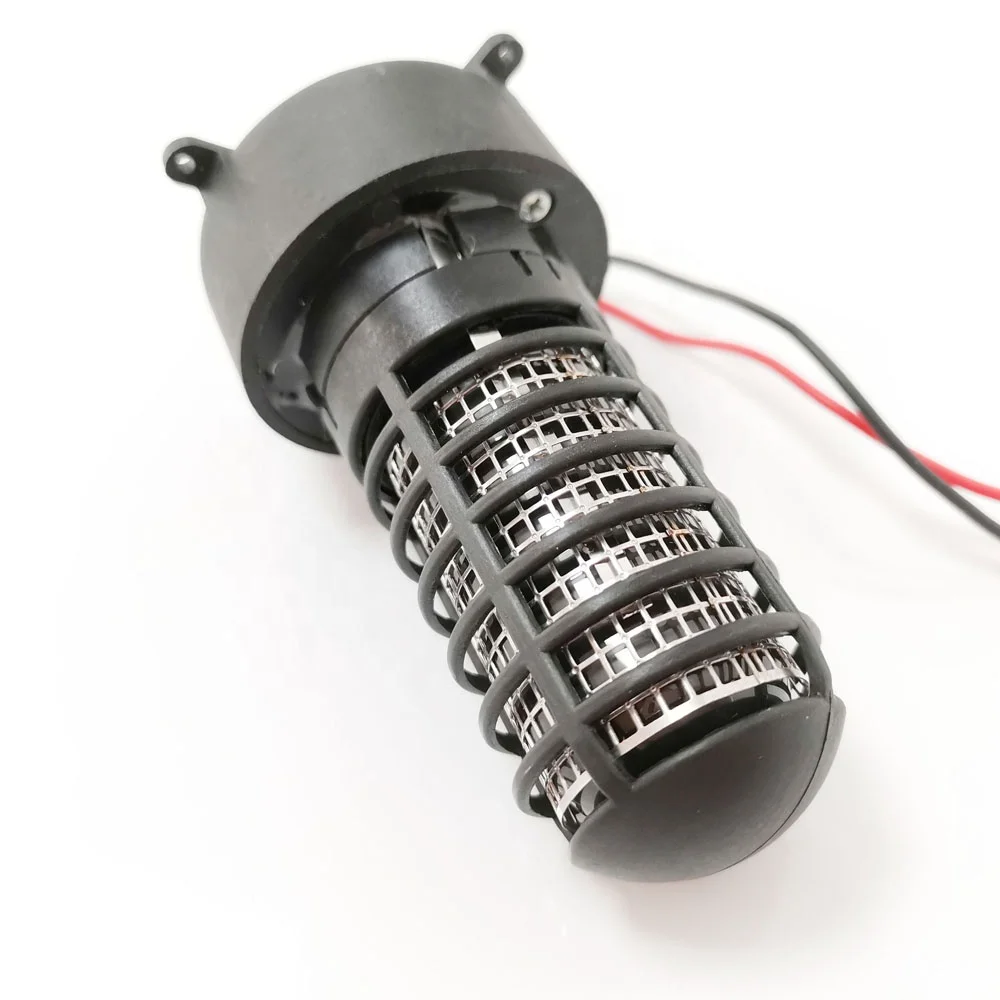

-DBD85S-12V is the bulb with M5 screw connecting head, .

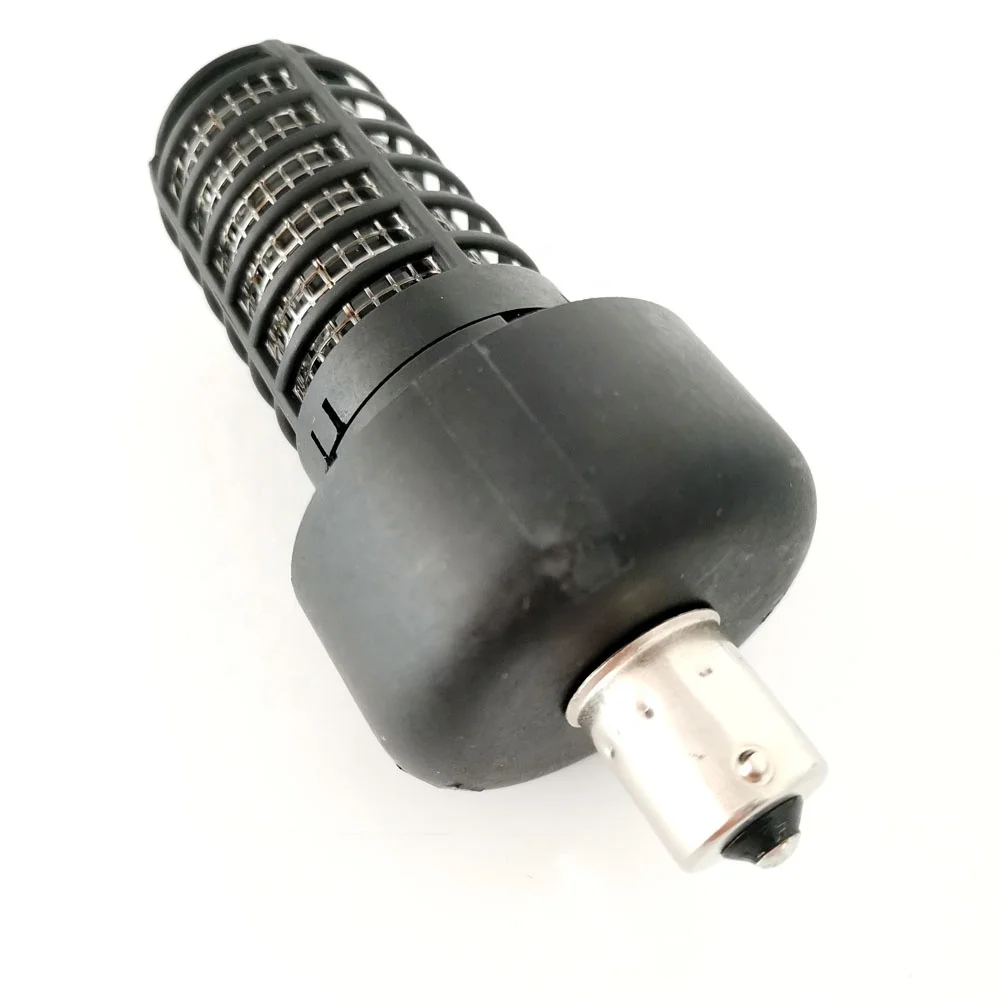

-DBD85-12V is the bulb with B15 connecting head.

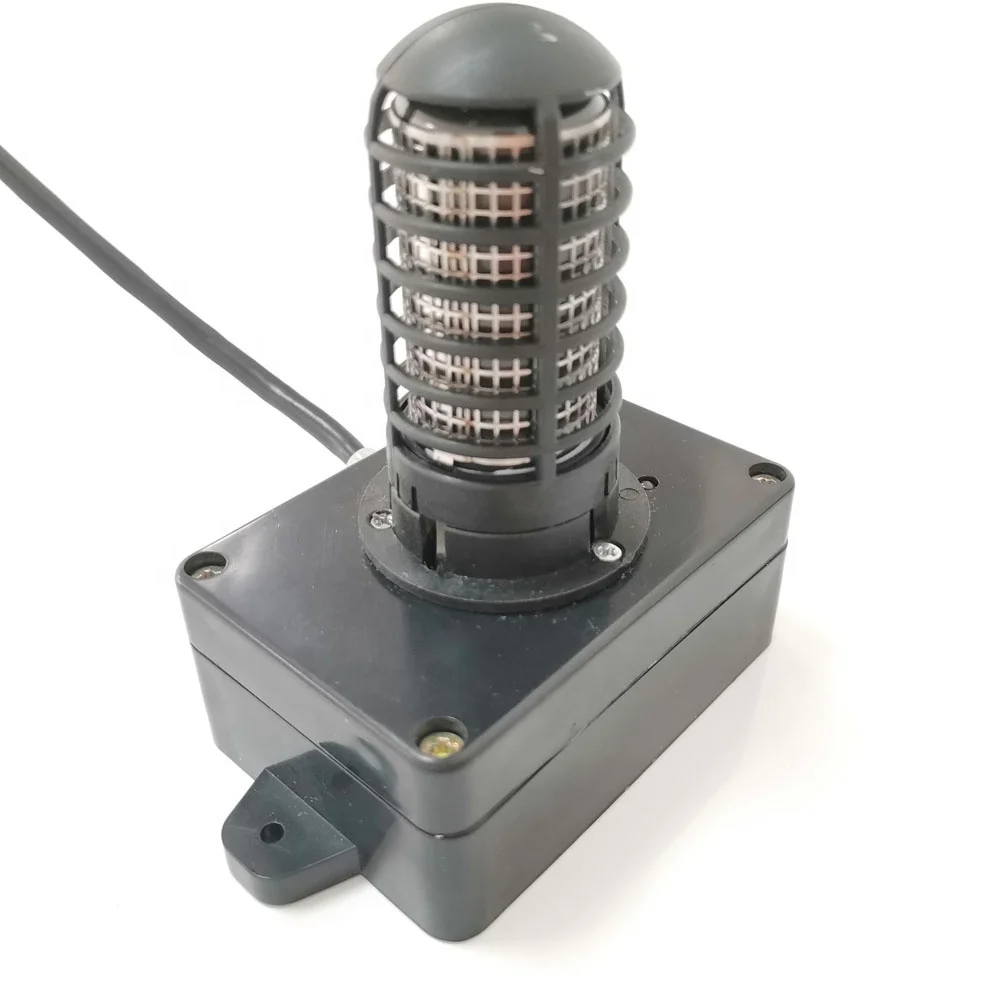

-DBD85-220V is the bulb with AC to DC converter case and power supply is 85VAC~265VAC.
- Air Sterilization for indoor room.
- Air Sterilization for the outside.

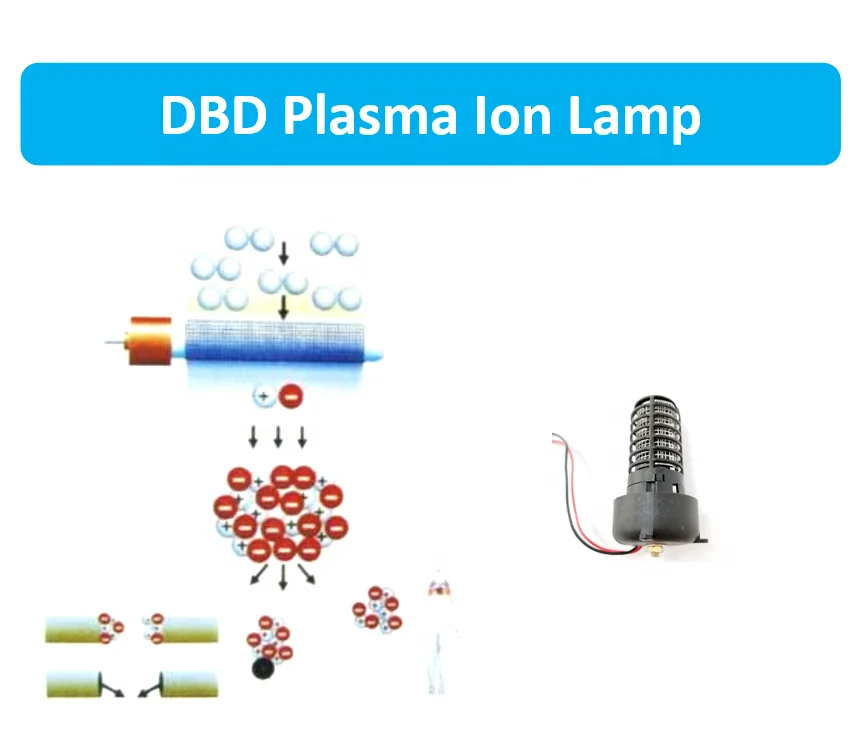

Much like sunlight does in the atmosphere, EcoHero Ion Generator technology produces a natural bio-climate rich in oxygen molecules.
It creates a measurable quantity of negative and positive air ions.These activate the oxygen molecules with uneven polarity and they form clusters of 10 to 60 molecules clinging together . This raises the air’s electrical potential , restoring its conductivity .
Typically, one to two million clusters are formed per liter of air passing by the Ion unit.
Room air is enriched when clusters interact with the stale air in the room. The higher energy ions and molecules start immediately to disinfect the air (kill bacteria) and nentralize odors without resorting to harmful means such as chemical additives or extra ozone.
It will keeping producing O+,O-,and OH into air.
Over 1million plasma Ions producing, The rate of negative ions: positive ions is 3:2.
It creates a measurable quantity of negative and positive air ions.These activate the oxygen molecules with uneven polarity and they form clusters of 10 to 60 molecules clinging together . This raises the air’s electrical potential , restoring its conductivity .
Typically, one to two million clusters are formed per liter of air passing by the Ion unit.
Room air is enriched when clusters interact with the stale air in the room. The higher energy ions and molecules start immediately to disinfect the air (kill bacteria) and nentralize odors without resorting to harmful means such as chemical additives or extra ozone.
It will keeping producing O+,O-,and OH into air.
Over 1million plasma Ions producing, The rate of negative ions: positive ions is 3:2.
Testing Result
Testing Feedback for DBD Ionizer | ||||||||||
Items | Flow speed | Distance | Negative Ions | Positive Ions | Ozone Output | |||||
M | CM | millions/cm3 | millions/cm3 | PPM | ||||||
2pcs of DBD85 | 1 | 40 | 7 | 4 | 0.5 | |||||
1pc of DBD85 | 1 | 40 | 1.5 | 1 | 0.4 | |||||
Product packaging
For Example for using DBD lamp
