100ton тяжелый мобильный дизельный Телескопический стреловой кран QY100K-I автокран с автокраном запасные
- Категория: Truck Cranes >>>
- Поставщик: Oriemac,Machinery,&,Equipment,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 653310.92 $* | 685976.45 $* |
| Aug-18-2025 | 647820.76 $* | 680211.13 $* |
| Jul-18-2025 | 543510.50 $* | 570686.66 $* |
| Jun-18-2025 | 636840.63 $* | 668682.46 $* |
| May-18-2025 | 554490.51 $* | 582215.40 $* |
| Apr-18-2025 | 625860.86 $* | 657153.85 $* |
| Mar-18-2025 | 620370.28 $* | 651389.79 $* |
| Feb-18-2025 | 614880.68 $* | 645624.66 $* |
| Jan-18-2025 | 609390.29 $* | 639860.87 $* |
Характеристики

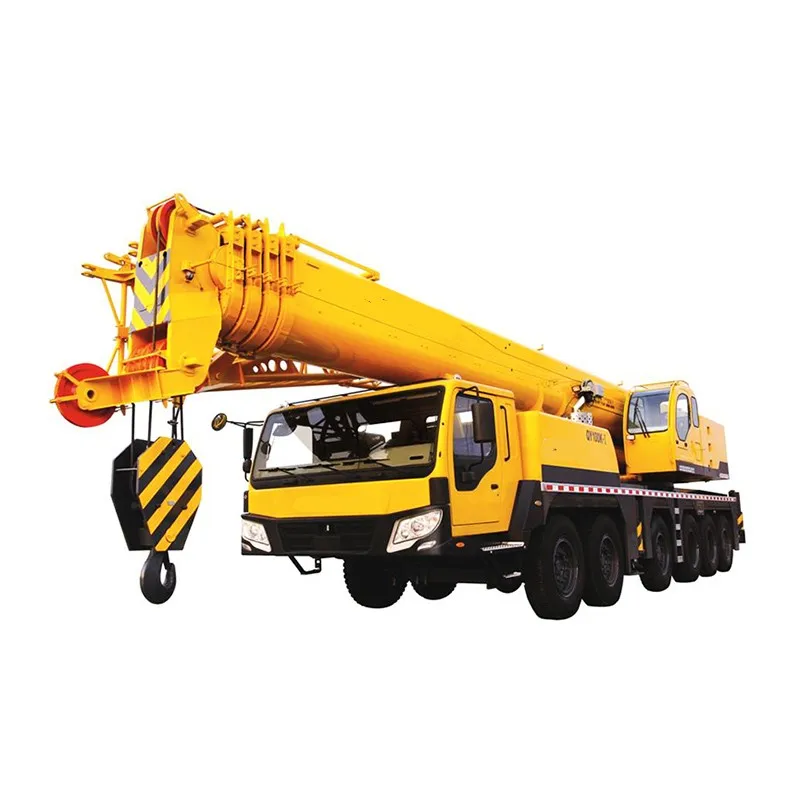

100ton Telescopic Boom Crane QY100K-I Truck Crane with Crane Spare Parts in Ghana
Product Description
-
Dimension Unit QY100K-I Overall length, width, height mm 15600×3000×3850 Wheel base mm 1420+2420+1800+1420+1505 Weight Total weight in travel kg 54900 58000 Axle load Axle 1 kg 7500 7500 Axle 2 kg 7500 7500 Axle 3 kg 8300 10000 Axle 4 kg 12000 12500 Axle 5 kg 12000 12500 Axle 6 kg 7600 8000 Power Engine rated power kW/(r/min) 360/1800 (306/1900) Engine rated torque N.m/(r/min) 2200/1300 (2010/1200) Engine rated speed r/min 1800 (1900) Min. ground clearance mm 310 Travel Approach angle ° 20 Departure angle ° 14 Braking distance (at 30km/h) m ≤10 Max. grade ability % 40 Min. turning diameter m 24 Fuel consumption for 100km L 70 Main performance Max. rated total lifting capacity m 100 Min. rated working radius 3 Turning radius at turntable tail Counterweight mm 4200 Aux. winch mm 4590 Max. lifting torque 3450 Base boom kN.m 3450(4m×88t) Fully extended boom kN.m 1950(24m×7.1t) Fully extended boom+ jib kN.m 1230(19.2m×6t) Outrigger span (full extension) Longitudinal m 7.56 Lateral m 7.6 Lifting height Base boom m 13.5 Fully extended boom m 50.9 Fully extended boom+ jib m 70.4 Boom length m 13.5 Fully extended boom m 51 Fully extended boom+ jib m 51+18.1+4 Working speed Jib setting angle ° 0,15,30 Boom luffing time s 75 Boom Boom telescoping time Full extension s 160 Max. swing speed r/min 2 Outrigger extension/retraction time Outrigger beam in extension/retraction s 25/15 Outrigger jack in extension/retraction s 45/25 Lifting speed (single rope, layer 4) Main winch m/min 105 Aux. winch m/min 104
Packaging & Shipping
Company Information
