Cruking маленький башенный кран SYT80 высокий для
- Категория: Tower Cranes >>>
- Поставщик: Cruking,Engineering,Equipment,(Xiamen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 53550.31 $* | 56228.36 $* |
| Aug-19-2025 | 53100.68 $* | 55755.23 $* |
| Jul-19-2025 | 44550.98 $* | 46778.64 $* |
| Jun-19-2025 | 52200.37 $* | 54810.66 $* |
| May-19-2025 | 45450.86 $* | 47723.91 $* |
| Apr-19-2025 | 51300.66 $* | 53865.83 $* |
| Mar-19-2025 | 50850.47 $* | 53393.44 $* |
| Feb-19-2025 | 50400.61 $* | 52920.15 $* |
| Jan-19-2025 | 49950.31 $* | 52448.73 $* |
Характеристики

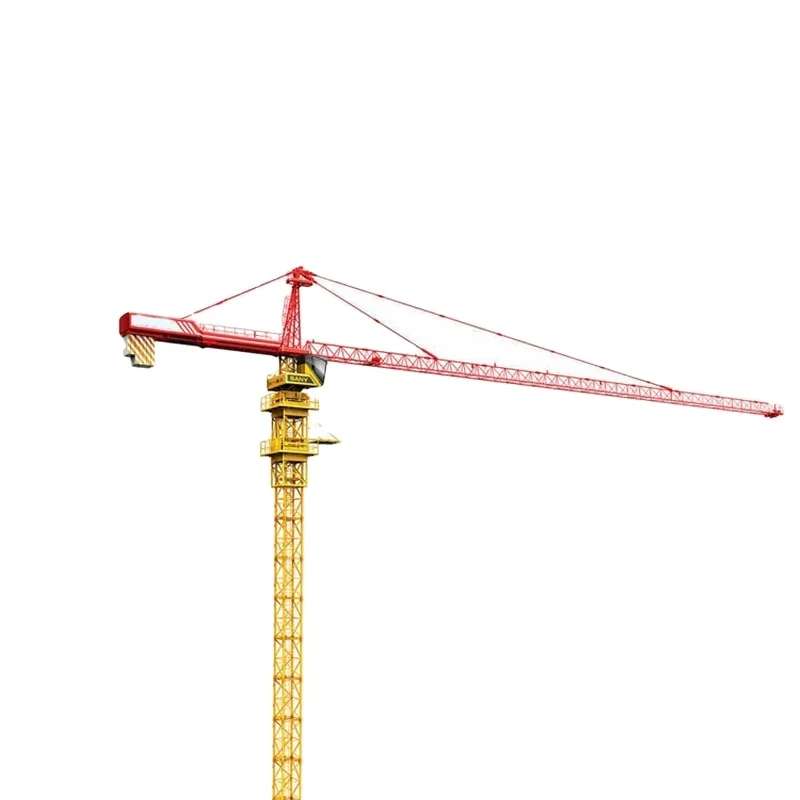

Topkit Tower Crane for Tall Building SYT80
FEATURES
- Tower group anti-collision technology
- Intelligent equipment management
- User-friendly structure design
- Intelligent manufacturing process
PARAMETERS
| Model | SYT80 (T5710-6) | SYT80 (T6012-6) | SYT80 (T6013-6) | SYT80 (T6510-6) | SYT80 (T6510-8) | SYT100 (T6515-6) |
| Country Standard | ||||||
| Power Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Power Voltage | 380V | 380V | 380V | 380V | 380V | 380V |
| Operation | ||||||
| Free Standing Height | 40.5m | 40.5m | 46m | 43m | 43m | 46m |
| Max Jib Length | 57m | 60m | 60m | 65m | 65m | 65m |
| Max Lifting Capacity | 6T | 6T | 6T | 6T | 8T | 6T |
| Max Lifting Moment | 80t·m | 80t·m | 80t·m | 80t·m | 80t·m | 100t·m |
| The Max Height under Hook | 230m | 230m | 230m | 230m | 230m | 230m |
| Tip Load at Max Jib Length | 1T | 1.2T | 1.3T | 1T | 1T | 1T |
| Working Speed | ||||||
| The Power of Hoisting Mechanism | 24/24/5.4kW | 24/24/5.4kW | 24/24/5.4kW | 24/24/5.4kW | 30kW | 25kW |
| The Power of Luffing Mechanism | 3.3/2.2kW | 3.3/2.2kW | 3.3/2.2kW | 3.3/2.2kW | 4.0kW | 4kW |
| The Power of Slewing Mechanism | 7.5kW | 2*4.0kW | 2×5.5kW | 2×5.5kW | 2×5.5kW | 2×5.5kW |
| The Speed of Hoisting Mechanism | 4.4-80r/min | 4.4-80r/min | 4.4-80r/min | 4.4-80r/min | 0-80r/min | 0-80r/min |
| The Speed of Luffing Mechanism | 50/25r/min | 50/25r/min | 50/25r/min | 50/25r/min | 0-55r/min | 0-55r/min |
| The Speed of Slewing Mechanism | 0-0.7r/min | 0-0.75r/min | 0-0.75r/min | 0-0.75r/min | 0-0.75r/min | 0-0.8r/min |
