4.5M Crawler Asphalt Paver With The Electrical Hearting System



Features



1. Small pavers are widely used for municipal roads, indoor work, small area projects, etc.
2. Dongfeng Top brand EFI engine, strong power, high reliability; good low temperature start-up performance.
3. Equipped with full hydraulic automatic telescopic screed, paving width 1.8-4.5m stepless adjustable.
4. The travel drive system adopts the imported hydraulic piston pump, planetary reducer and plunger motor, which has high reliability; the closed control controls the left and right independent drive modes to ensure stable running of the track drive system, flexible steering and convenient transition.
5. External multi-point propane gas heating device, reliable ignition, fast heating speed and uniform heat distribution, and automatic flame-off function for flameout, improving safety of use.



Specification



Model	GYA4500
Length*Width*Height (mm):	5500*2050*3415
Total weight (kg):	10500
Engine	Top brand QSB 3.9-C125
Rated output (kw)	93
Basic paving width (mm)	2000
Max. paving width (mm)	4500
Max. paving thickness (mm)	200
Travelling type	Crawler
Travelling speed (km/h)	0-4.5
Paving speed (m/min)	0-20
Hoper capacity (t)	8

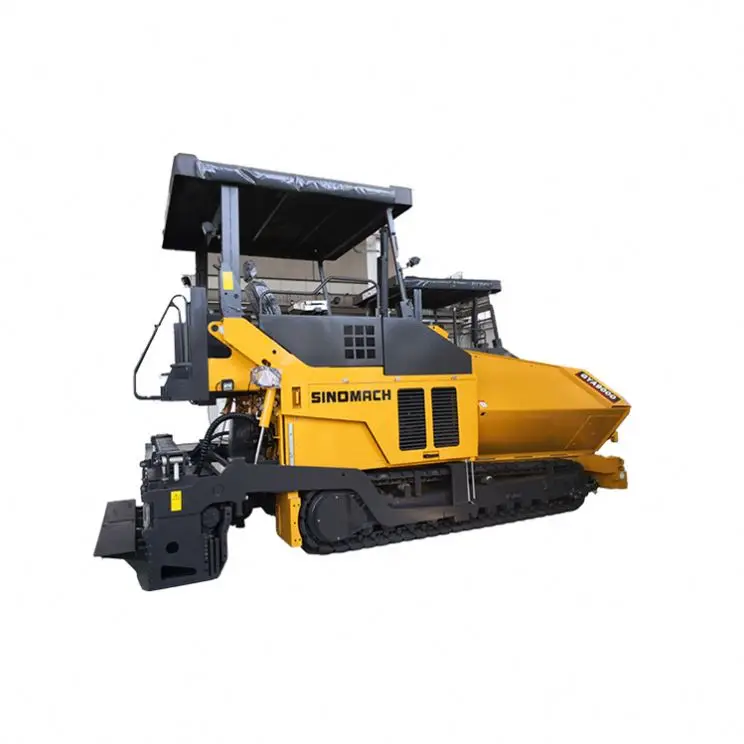

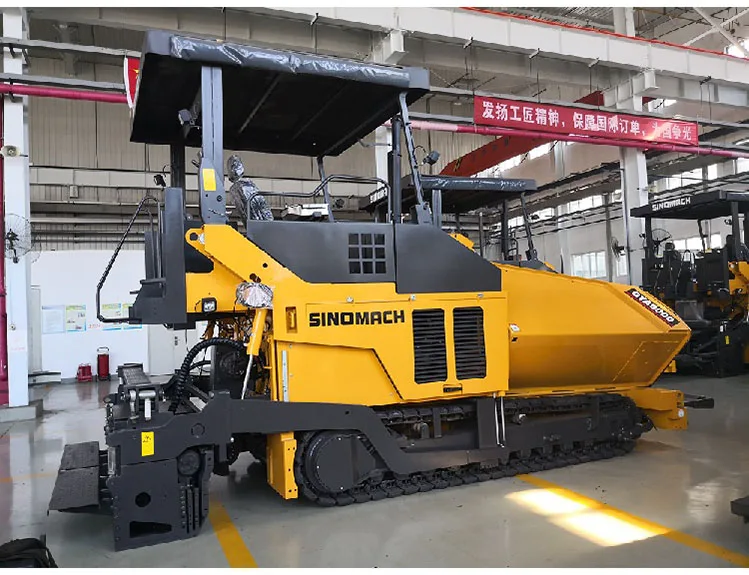

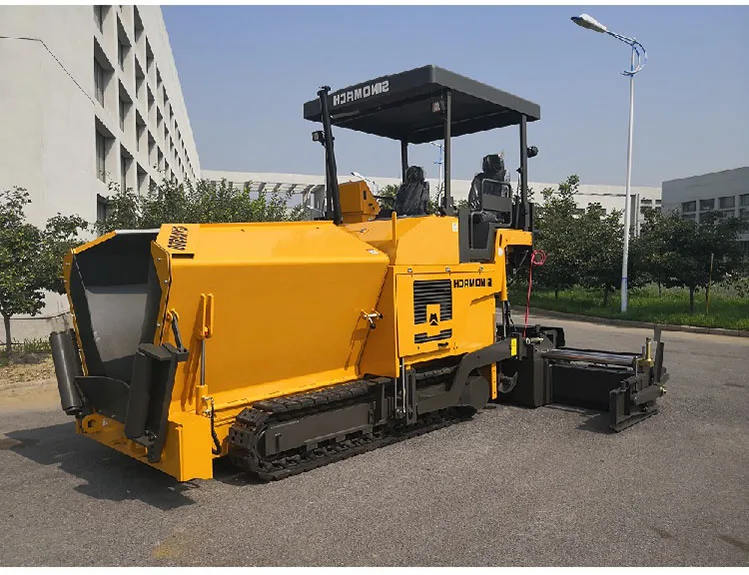

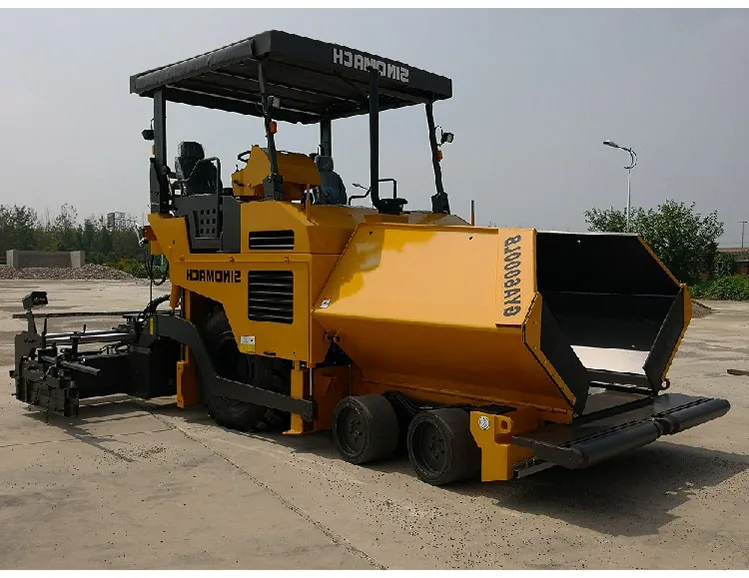

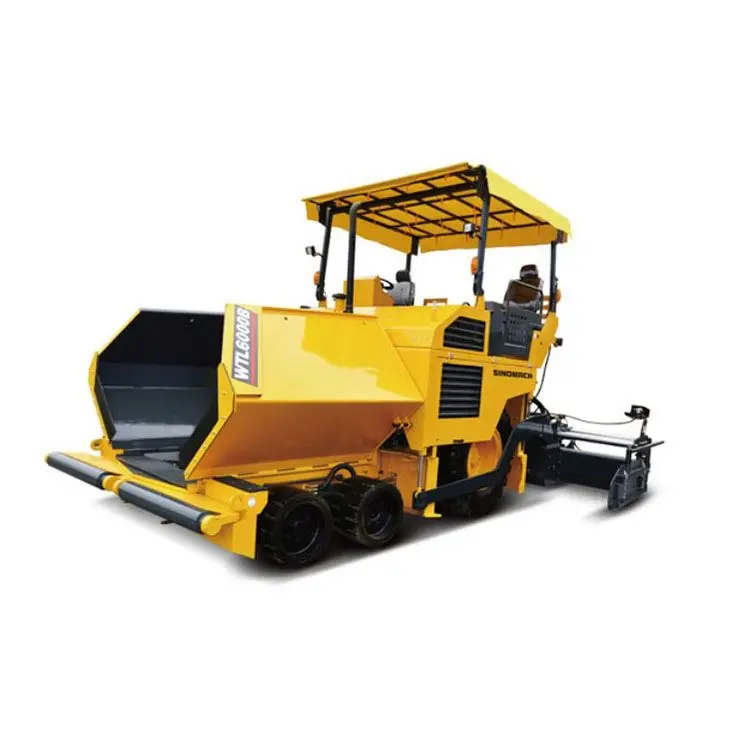

Product Pictures







---
