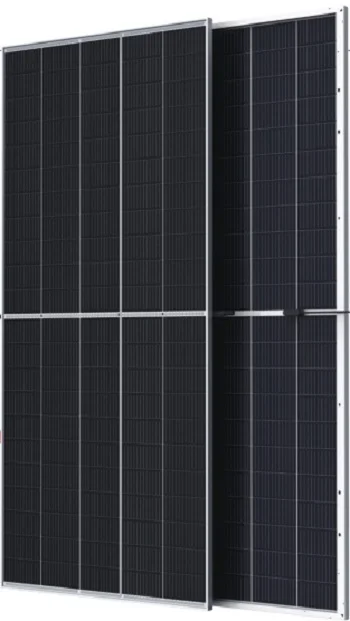

Тринасолярный бифаический двойной стеклянный Монокристаллический Модуль 550 Вт
- Категория: Солнечные батареи для сварочного шлема >>>
- Поставщик: Jiangsu,Morel,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.93 $* | 0.80 $* |
| Aug-17-2025 | 0.60 $* | 0.93 $* |
| Jul-17-2025 | 0.74 $* | 0.94 $* |
| Jun-17-2025 | 0.23 $* | 0.12 $* |
| May-17-2025 | 0.31 $* | 0.5 $* |
| Apr-17-2025 | 0.57 $* | 0.63 $* |
| Mar-17-2025 | 0.43 $* | 0.16 $* |
| Feb-17-2025 | 0.71 $* | 0.31 $* |
| Jan-17-2025 | 0.6 $* | 0.59 $* |
Характеристики
Product Description
Specification
Electrical Data (STC) | |||||||||
Peak Power Watts-PMax(WP)* | 530 | 535 | 540 | 545 | 550 | ||||
Power Tolerance-PMax(W) | 0~+5 | ||||||||
Maximum Power Voltage -Vmmp(V) | 31.0 | 31.2 | 31.4 | 31.6 | 31.8 | ||||
Maximum Power Current-Immp(A) | 17.11 | 17.16 | 17.21 | 17.24 | 17.29 | ||||
Open Circuit Voltage- Voc(V) | 37.3 | 37.5 | 37.7 | 37.9 | 38.1 | ||||
Short Circuit Current- ISC(A) | 18.19 | 18.24 | 18.30 | 18.35 | 18.39 | ||||
Module Efficienty η m(%) | 20.3 | 20.5 | 20.7 | 20.9 | 21.0 | ||||
STC:Irradiance 1000W/ ㎡,Cell Temperature 25 ℃,Air Mass AM1.5.
*Measuring tolerance: ±3%
Electrical characteristics with different power bin (reference to 10% Irradiance ratio) | ||||||||||
Total Equivalent Power-Pmax(WP) | 567 | 573 | 578 | 583 | 589 | |||||
Maximum Power Voltage -Vmmp(V) | 31.0 | 31.2 | 31.4 | 31.6 | 31.8 | |||||
Maximum Power Current-Immp(A) | 18.31 | 18.36 | 18.41 | 18.45 | 18.50 | |||||
Open Circuit Voltage-Voc(V) | 37.3 | 37.5 | 37.7 | 37.9 | 38.1 | |||||
Short Circuit Current-Isc(A) | 19.46 | 19.52 | 19.58 | 19.63 | 19.68 | |||||
Irradiance ratio(rear/front) | 10% | |||||||||
Power Bifaciality:70 ±5% | ||||||||||
ELECTRICAL DATA(NOCT) | ||||||||||
Maximum Power-Pmax(Wp) | 401 | 405 | 409 | 413 | 416 | |||||
Maximum Power Voltage-Vmpp(V) | 28.8 | 29.0 | 29.2 | 29.4 | 29.5 | |||||
Maximum Power Current-Immp(A) | 13.93 | 13.97 | 14.02 | 14.08 | 14.10 | |||||
Open Circuit Voltage-Voc(V) | 35.1 | 35.3 | 35.5 | 35.7 | 35.9 | |||||
Short Circuit Current-Isc(A) | 14.65 | 14.70 | 14.75 | 14.79 | 14.82 | |||||
NOCT:Irradiance at 800W/㎡,Ambient temperatuer 20℃,Wind Speed 1m/s | ||||||||||
MECHNICAL DATA | ||
Solar Cells | Monocrystalline | |
No.of Cells | 110 Cells | |
Module Dimensions | 2384X1096X35mm(93.86x43.15x1.38 inches) | |
Weight | 32.6kg(71.9lb) | |
Front Glass | 2.0 mm(0.08 inches),High Transmission,AR Coated Heat Strengthened Glass | |
Encapsulant material | POE/EVA | |
Back Glass | 2.0 mm(0.08 inches),Heat Strengthened Glass (With Grid Glass) | |
Frame | 35mm(1.38 inches),Anodized Aluminium Alloy | |
Junction Box | IP 68 rated | |
Cables | Photovoltaic Technology Cable 4.0 m㎡(0.006 inches²) | |
Portrait:280/280mm(11.02/11.02 inches) | ||
Landscape:1400/1400mm(55.12/55.12 inches) | ||
Connector | MC4 EVO2/T54* | |
*Please refer to regional datasheet for specified connector. | ||
TEMPERATURE RATINGS | MAXIMUM RATINGS | ||||
NOCT(Norminal Operatiing Cell Temperature) | 43℃(±2℃) | Operational Temperature | -40~+85℃ | ||
Temperature Coefficient of Pmax | -0.34%/℃ | Maximum System Voltage | 1500V DC(IEC) | ||
Temperature Coefficient of Voc | -0.25%℃ | Max Series Fuse Rating | 35A | ||
Temperature Coefficient of Isc | 0.04%℃ | ||||
WARRANTY | PACKING CONFIGURATION | ||||
12 year Product Workmanship Warranty | Modules per box:31 pieces | ||||
30 year Power Warranty | Modules per 40' container:558 pieces | ||||
2% first year degradation | |||||
0.45% Annual Power Attenuation | |||||
(Please refer to product warranty for details) | |||||
***The above parameters are for your reference only, if you have any special requirements ,please feel free to contact us in time***

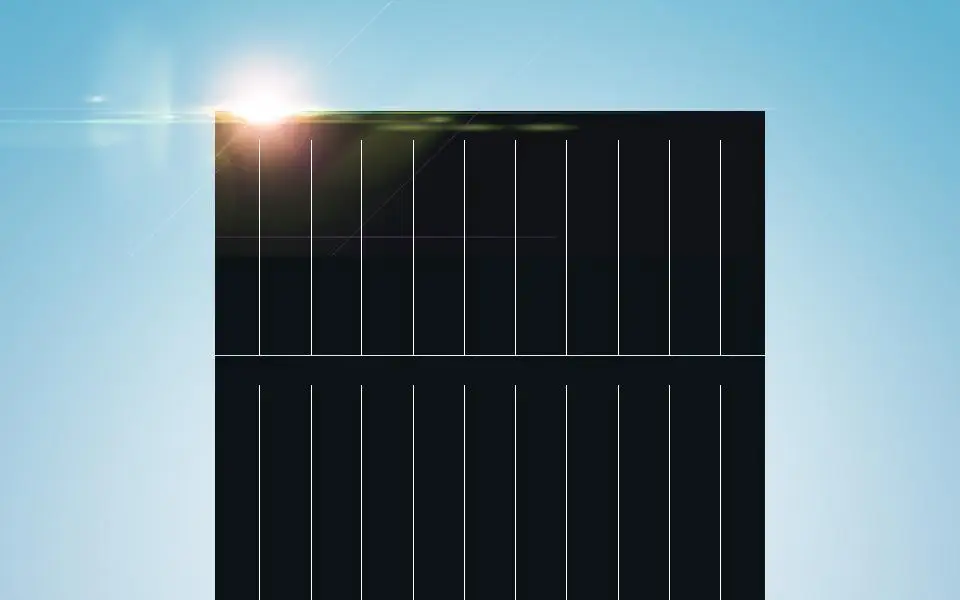

Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

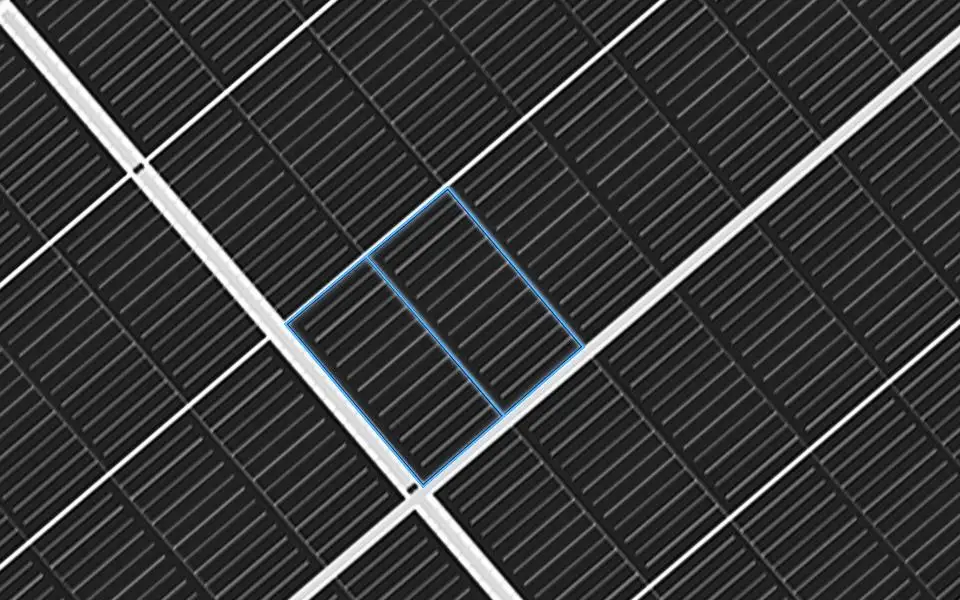

Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip design glue injection
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip design glue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Humanized design
>More protection with practical and effective design
>Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
>More protection with practical and effective design
>Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module

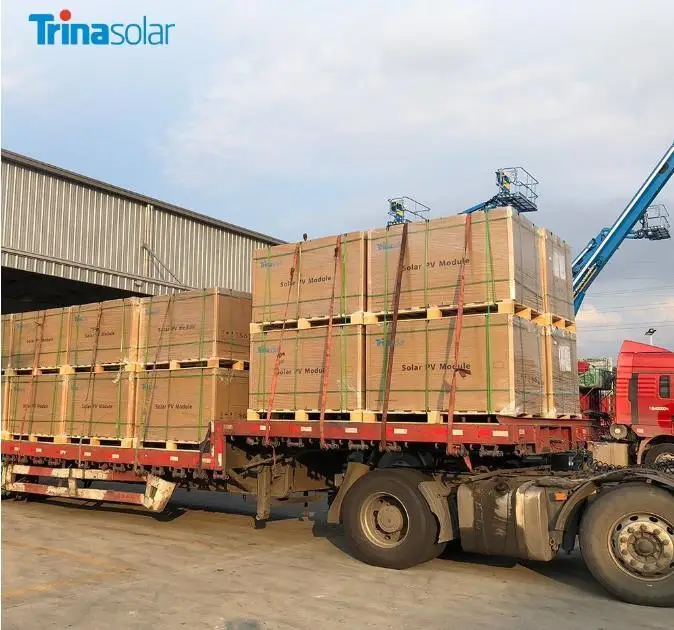

Packing & Delivery
In well protected carton with pallet
Projects
Company Profile
About us
Jiangsu Morel Energy Co.,Ltd is specializing in producing and providing the total solar power solution for Domestic and
International solar power market .Except for our main products such as solar panels, inverter, array box,combiner box ,battery etc, we can also provide the total solutions which include the whole solar mounting brackets, roof solar mounting accessories, solar carport,1-10KW off-grid solar system etc.for residence ,commercial or public utilities.
Our technical experts and consultants have rich experience in engineering,manufacturing and international building standards, which can ensure Morel to provide the most advanced and reliable products for PV industry.
Each Morel product is strictly monitored and inspected or tested according to ISO9001 standard and our client’s requirements.Hence we enjoy high reputation among our customers in Europe,Australia,Americas,Japan,Thailand etc for the superior quality and exquisite workmanship.
Integrity, efficiency, perfect service is our life.We will continually improve our new product design and quality or service to
meet the demands of the global market.
.
Our company is located in Jingjiang City,Jiangsu province with convenient transportation, for only 2 hours by car from Shanghai.
You are most welcome to visit our company and we will be there at your service any time.
International solar power market .Except for our main products such as solar panels, inverter, array box,combiner box ,battery etc, we can also provide the total solutions which include the whole solar mounting brackets, roof solar mounting accessories, solar carport,1-10KW off-grid solar system etc.for residence ,commercial or public utilities.
Our technical experts and consultants have rich experience in engineering,manufacturing and international building standards, which can ensure Morel to provide the most advanced and reliable products for PV industry.
Each Morel product is strictly monitored and inspected or tested according to ISO9001 standard and our client’s requirements.Hence we enjoy high reputation among our customers in Europe,Australia,Americas,Japan,Thailand etc for the superior quality and exquisite workmanship.
Integrity, efficiency, perfect service is our life.We will continually improve our new product design and quality or service to
meet the demands of the global market.
.
Our company is located in Jingjiang City,Jiangsu province with convenient transportation, for only 2 hours by car from Shanghai.
You are most welcome to visit our company and we will be there at your service any time.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Domestic Market(5.00%),Eastern Europe(3.00%),Southeast Asia(15.00%),Mid-East(15%),North America(15.00%),South America(15.00%),Africa(10.00%). There are total about 350 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Cells/ Solar Panels/ Solar Inverter/ Solar Systems
4. why should you buy from us not from other suppliers?
1.25-year service life, 25-year warranty
2.Professional team
3.Fast delivery speed
4:high power efficiency
5;good price
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Jiangsu, China, start from 2019,sell to Domestic Market(5.00%),Eastern Europe(3.00%),Southeast Asia(15.00%),Mid-East(15%),North America(15.00%),South America(15.00%),Africa(10.00%). There are total about 350 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Cells/ Solar Panels/ Solar Inverter/ Solar Systems
4. why should you buy from us not from other suppliers?
1.25-year service life, 25-year warranty
2.Professional team
3.Fast delivery speed
4:high power efficiency
5;good price
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
