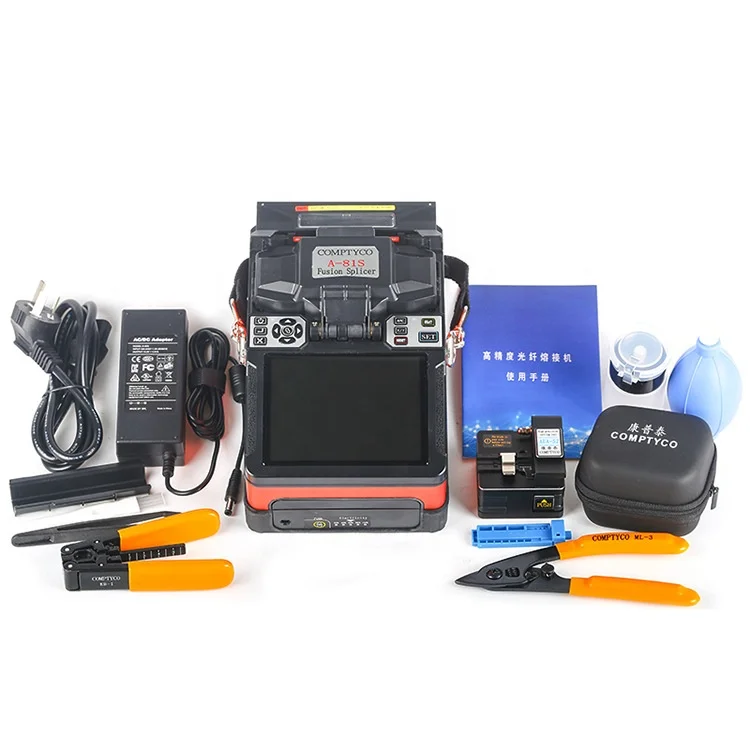

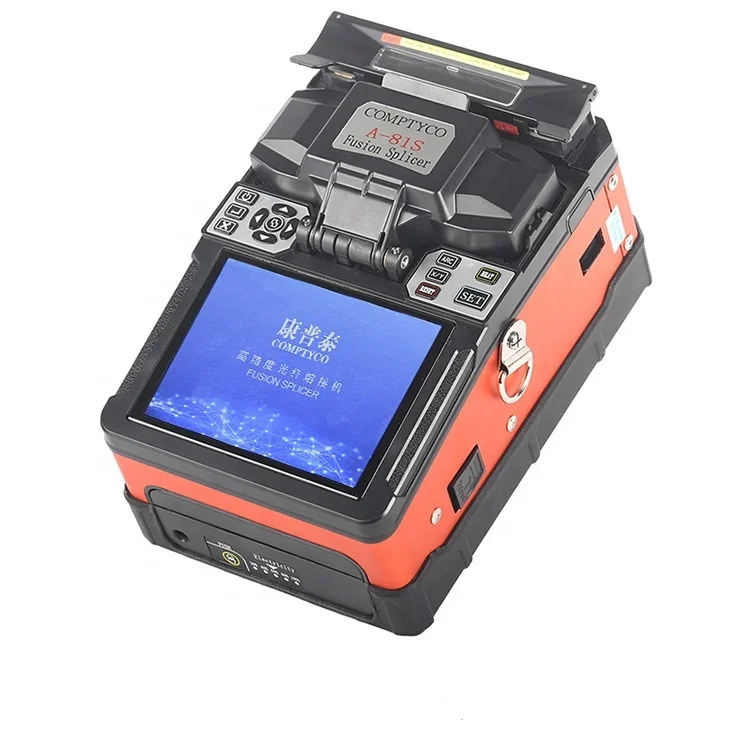

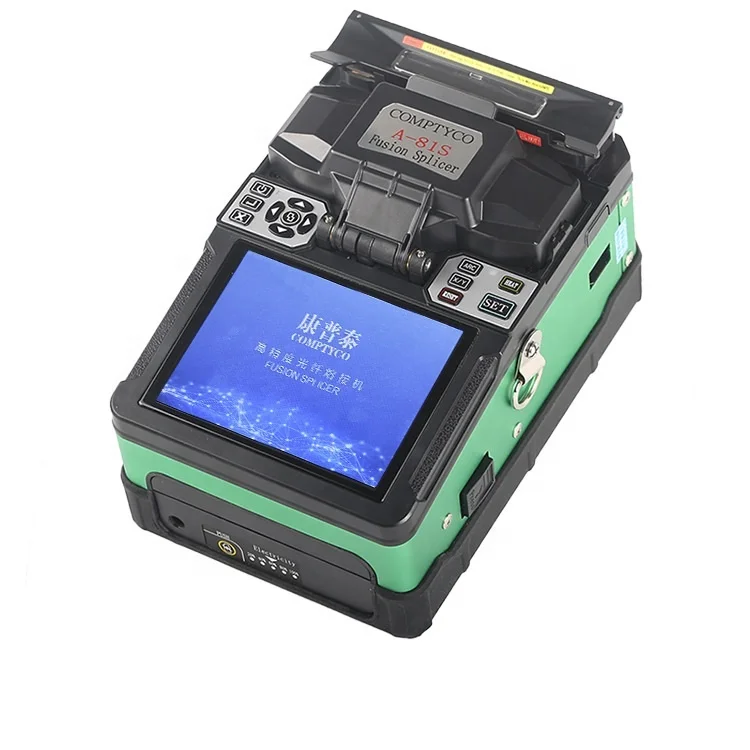

Полностью автоматическая машина для оптического сращивания comptyco A-81S волокна ftth сварочный аппарат сварочного
- Категория: Оптоволоконное оборудование >>>
- Поставщик: Changzhou,Xuyan,Optoelectronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 666.17 $* | 699.72 $* |
| Aug-18-2025 | 661.80 $* | 694.27 $* |
| Jul-18-2025 | 554.90 $* | 582.42 $* |
| Jun-18-2025 | 650.87 $* | 683.80 $* |
| May-18-2025 | 566.12 $* | 594.55 $* |
| Apr-18-2025 | 638.57 $* | 670.18 $* |
| Mar-18-2025 | 633.42 $* | 665.51 $* |
| Feb-18-2025 | 627.12 $* | 658.88 $* |
| Jan-18-2025 | 622.92 $* | 653.4 $* |
Характеристики
Technical Specifications
Applicable optical fiber | SM(G.652&G.657),MM(G.651),DS(G.653),NZDS(G.655) and self-defined optical fiber types |
Splicing loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS/NZDS) |
Return loss | Over 60dB |
Typical splicing duration | 9 seconds |
Typical heating duration | 26 seconds(configurable heating time and adjustable heating temperature) |
Optical fiber alignment | Precise alignment, fiber core alignment, cladding alignment |
Optical fiber diameter | Cladding diameter 80-150μm, coating layer diameter 100-1000μm |
Cutting length | Coating layer below 250μm:8-16mm;coating layer 250-1000μm:16mm |
Tension test | Standard 2N(Optional) |

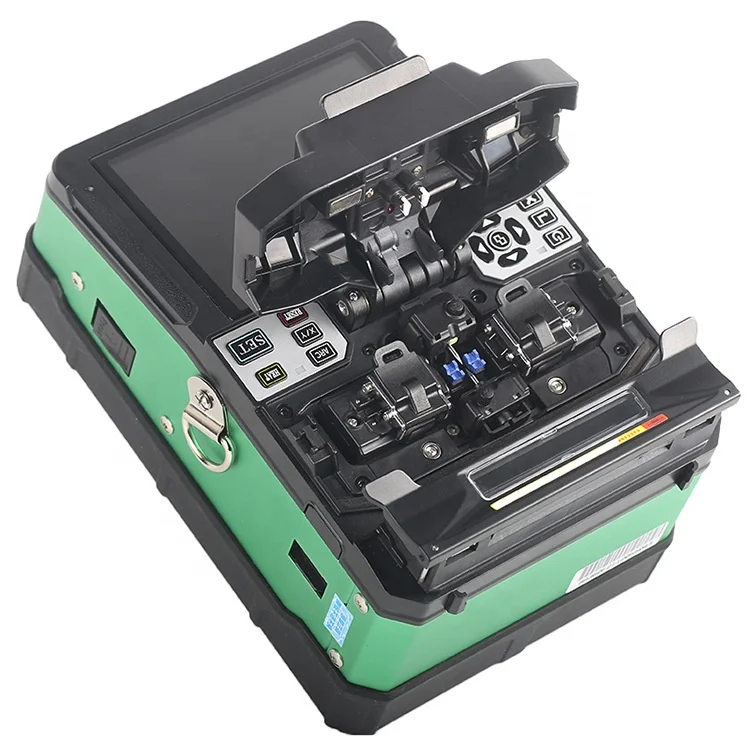

Optical fiber clamp | Multi-function clamp for bare fiber, tail fiber, jumpers, leather line; changing clamp applicable for SC and other connectors for a variety of FTTX optical fiber and cable. |
Amplification factor | 400times(X axis or Y axis) |
Heat Shrink bush | 60mm,40mm and a series of minature bush |

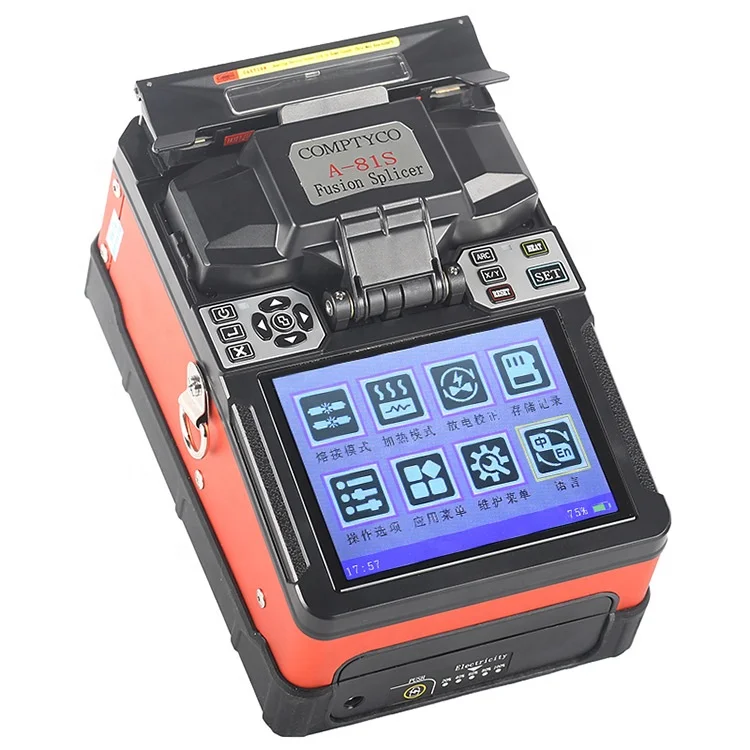

Display | 5.0 inches TFT color LCD display |
External interface | USB interface, convenient for data download and software upgrade |
Splicing mode | 17 groups of operation modes |
Heating mode | 9 groups of operation modes |
Splicing loss storage | 5000 latest splicing results are stored in the built-in storage |
Built-in battery | Supports continuous splicing and heating for less than 200 times |
Power supply | The built-in lithium battery 11.8V supplies the power, charging time≤3.5h; External adapter , input AC 100-240V 50/60Hz, output DC 13.5V/4.81A |
Power saving | 15% of the power of the lithium battery can be saved in a typical environment |
Working environment | Temperature:-10~+50℃, Humidity: <95%RH(no condensation), Working altitude:0-5000m, Max. wind speed: 15m/s |
Outer dimension | 158mm(long)x130mm(wide)x156mm(high) |
Lighting | Convenient for optical fiber installation in the evening |
Weight | 1.77kg(excl.battery) 2.14kg(incl.battery) |
Product Description
Features
* High-resolution true color 5inch LCD display
* The advanced core to core fiber profile alignment system(PAS)
* Real time calibrating system ,parameter needn’t be adjusted
* X/Y axes were displayed meanwhile, Magnification up to 300 times
* 8 seconds splicing time, 30 seconds Heat-Shrinking
* Battery capacity was display in real time, precisely
* Built-in high capacity battery, support 300 times splicing and heating, to meet one days’ work
* Long Electrode Lifetime, up to 3000 times
* The new wind-cover design, enhance the ability to prevent the dust & wind, Max. wind velocity of 15m/s
* Three Splicing modes: auto, half-auto, manual
* Built-in super high-brightness LED supply convenience for night work
* Auto calculate splicing loss
* 8000 results Storage
* USB data interface
* One button operation to finish results download or software update
* Close shield splice automatically, Close heater lid heat automatically
* The advanced core to core fiber profile alignment system(PAS)
* Real time calibrating system ,parameter needn’t be adjusted
* X/Y axes were displayed meanwhile, Magnification up to 300 times
* 8 seconds splicing time, 30 seconds Heat-Shrinking
* Battery capacity was display in real time, precisely
* Built-in high capacity battery, support 300 times splicing and heating, to meet one days’ work
* Long Electrode Lifetime, up to 3000 times
* The new wind-cover design, enhance the ability to prevent the dust & wind, Max. wind velocity of 15m/s
* Three Splicing modes: auto, half-auto, manual
* Built-in super high-brightness LED supply convenience for night work
* Auto calculate splicing loss
* 8000 results Storage
* USB data interface
* One button operation to finish results download or software update
* Close shield splice automatically, Close heater lid heat automatically
