Product Description
SIMCOM SIM8970 series LTE Cat 6 Smart Module with Android System Adopts Qualcomm 8-core 64-bit ARM V-8 Processor
The SIM8970 series is the LTE Cat 6 smart module with Android system, it adopts Qualcomm 8-core 64-bit ARM V-8 processor, with frequency up to 2.0GHz and AdrenoTM 610 GPU. It supports multiple high resolution camera and high definition touch display, and has powerful high data transfer and multimedia processing capability. With smart module operation system and high performance advantage, the module is ideal for rapid development of multimedia wireless communication products and applications.
The SIM8970 series highly integrates wireless communication, short distance communication and multiple satellite positioning receiver function. MIMO technology is used to support LTE Cat 6 and 2 × 20MHz carrier aggregation. It supports multiple communication modes such as GSM/GPRS/EDGE, WCDMA/HSPA+, LTE-FDD and LTE-TDD. It supports GNSS multi-mode satellite positioning and short distance communication including Wi-Fi 802.11 a/b/g/n/ac and BT5.x BLE.
The SIM8970 series has abundant interfaces, it can be connected with camera, display screen, audio, sensors and other equipments. It supports multi-dimensional data collection and man-machine interaction. The interfaces including
MIPI_DSI/CSI/UART/SPI/I2C/GPIO/USB greatly expand smart module applications, and make the module suitable for smart POS, advertising media, automotive electronics, smart diagnostics, smart security devices and industry.
Product Advantages
- Cat 6 / Wi-Fi / BT
- Support 4K@30fps video recording and playing
- Built in charging management function, supporting QC3.0
- Integrate GNSS function, supports rapid accurate positioning under different environment
- 4-lane MIPI_ DSI(up to 2520*1080 @60fps) and DP over USB Type-C for Dual Independent Display
- Can carry 4 cameras. The main camera can support up to 25MP pixels, and the secondary camera can support up to 16MP pixels
The SIM8970 series highly integrates wireless communication, short distance communication and multiple satellite positioning receiver function. MIMO technology is used to support LTE Cat 6 and 2 × 20MHz carrier aggregation. It supports multiple communication modes such as GSM/GPRS/EDGE, WCDMA/HSPA+, LTE-FDD and LTE-TDD. It supports GNSS multi-mode satellite positioning and short distance communication including Wi-Fi 802.11 a/b/g/n/ac and BT5.x BLE.
The SIM8970 series has abundant interfaces, it can be connected with camera, display screen, audio, sensors and other equipments. It supports multi-dimensional data collection and man-machine interaction. The interfaces including
MIPI_DSI/CSI/UART/SPI/I2C/GPIO/USB greatly expand smart module applications, and make the module suitable for smart POS, advertising media, automotive electronics, smart diagnostics, smart security devices and industry.
Product Advantages
- Cat 6 / Wi-Fi / BT
- Support 4K@30fps video recording and playing
- Built in charging management function, supporting QC3.0
- Integrate GNSS function, supports rapid accurate positioning under different environment
- 4-lane MIPI_ DSI(up to 2520*1080 @60fps) and DP over USB Type-C for Dual Independent Display
- Can carry 4 cameras. The main camera can support up to 25MP pixels, and the secondary camera can support up to 16MP pixels
Specification
Frequency Bands | Media & Software Feature | Interfaces |
SIM8970EU* LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900 CA: TBD SIM8970SA* LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE-TDD: B41 WCDMA: B2/B4/B5 CA: TBD SIM8070(No 4G) 2.4G /5G 802.11 a/b/g/n/ac BT 5.x BLE | USB Drive: Win7/Win8/Win10 Operating System: Android 10.1 Video encoding and decoding: Encode: 4K30 HEVC/H264/VP8/MPEG4 Decode: 4K30 8-bit: H.264/VP8/VP9 4K30 10-bit: HEVC Wireless display(decode + encode): 4Kp30 Dec + 1080p30 Enc Audio encoding and decoding: G.711, G.729A/AB; EVRC, EVRC-B, EVRC-WB; AMR-NB, AMR-WB, AMR-eAMR, AMR-BeAMR; GSM-EFR/-FR/-HR; MP3; AAC; He-AAC v1, v2; WMA 9/Pro; Dolby AC-3, eAC-3, DTS-HD, FLAC, APE, ALAC, AIFF Firmware pgrade: USB/OTA/TF card | LCM: 4-lane MIPI_DSI FHD 2520 * 1080 @ 60fps DP over USB Type-C for Dual Independent Display Capacitive Touch Panel Camera: 3 groups of Mipi_ CSI Combined dphy 1.2 / cphy 1.0 Configurable to 3 or 4 cameras up to 25MP pixels Audio: 2 channel digital mic interface 3 channel analog audio input & output 4 digital microphones USB: Compliant with USB 3.0/2.0 UART *6 I2C *9 SPI *4 ADC *2 UIM Card: *2, dual cards dual standby GPIO ≥*40 Charging: QC3.0 Antenna: Main & Diversity & GNSS & Wi-Fi/BT |
Data Transfer | General Feature | Certification |

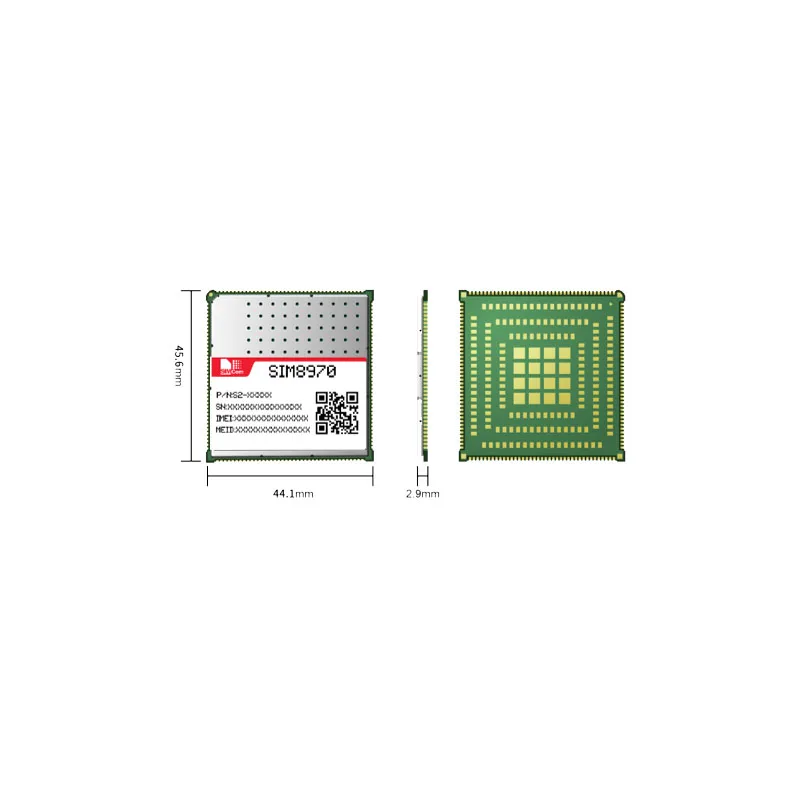

LTE: 50Mbps(UL) 300Mbps(DL) HSPA+: 5.76Mbps(UL) 42 Mbps (DL) UMTS: 384Kbps(UL/DL) EDGE: 236.8Kbps(UL/DL) GPRS: 85.6Kbps (UL/DL) | WLAN: 2.4G /5G 802.11 a/b/g/n/ac BT: BT 5.x BLE GNSS: BeiDou/GPS/GLONASS Sudivdivly Voltage: 3.4V ~ 4.4V Memory: 64GB eMMC + 4GB LPDD4（TBD） Temdiverature Range: -35℃ ~ +75℃ Dimensions: 44.1*45.6*2.9mm Form Factor: LCC+LGA Weight: Approx. 13.5g | RoHS*/REACH* |
