Бесшовный пневматический цилиндр cy3b Ultran от
- Категория: Пневматические детали >>>
- Поставщик: Guangzhou,Vilop,Pneumatic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.51 $* | 0.3 $* |
| Aug-19-2025 | 0.62 $* | 0.42 $* |
| Jul-19-2025 | 0.55 $* | 0.78 $* |
| Jun-19-2025 | 0.53 $* | 0.23 $* |
| May-19-2025 | 0.8 $* | 0.44 $* |
| Apr-19-2025 | 0.65 $* | 0.60 $* |
| Mar-19-2025 | 0.13 $* | 0.35 $* |
| Feb-19-2025 | 0.50 $* | 0.12 $* |
| Jan-19-2025 | 0.8 $* | 0.87 $* |
Характеристики
Product Overview

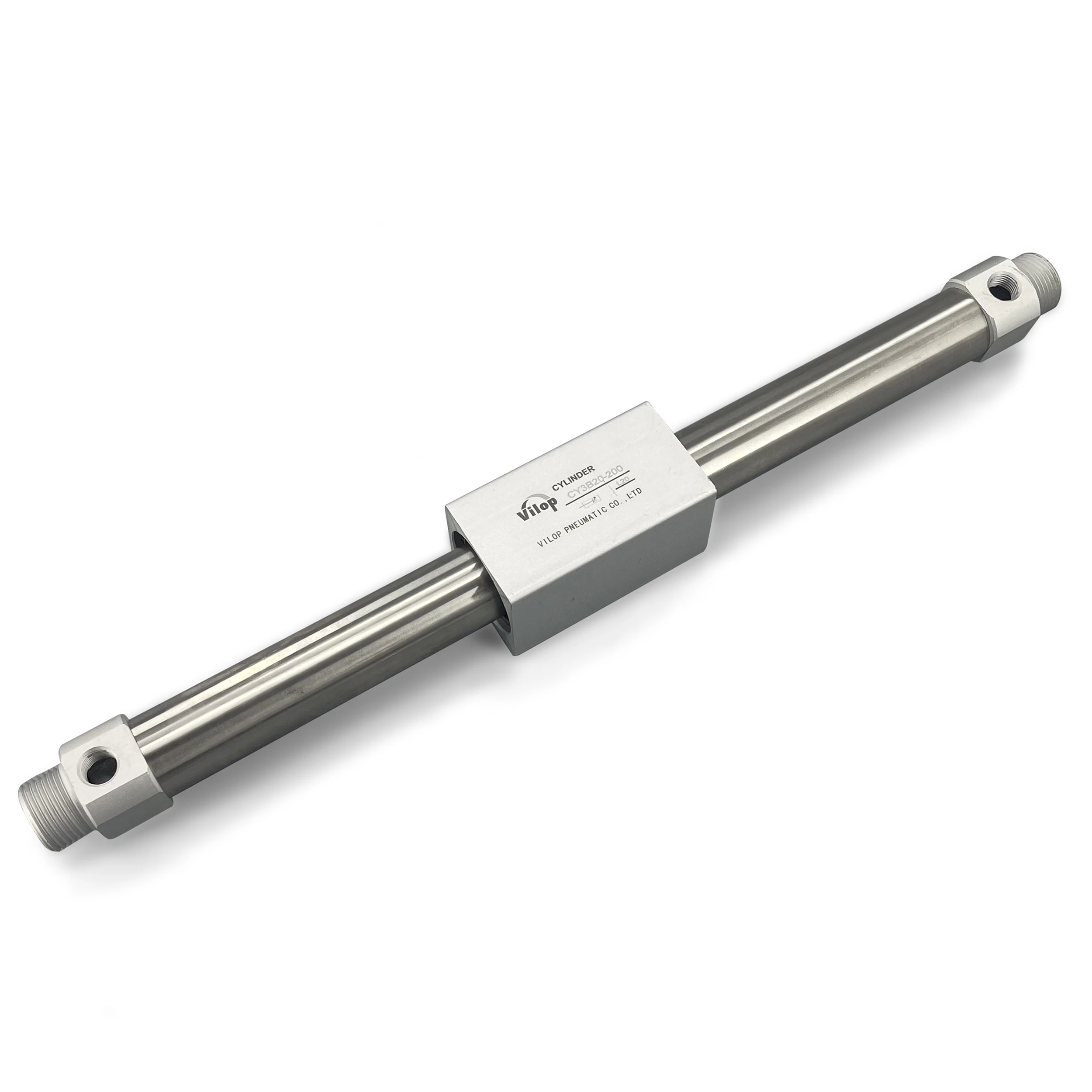

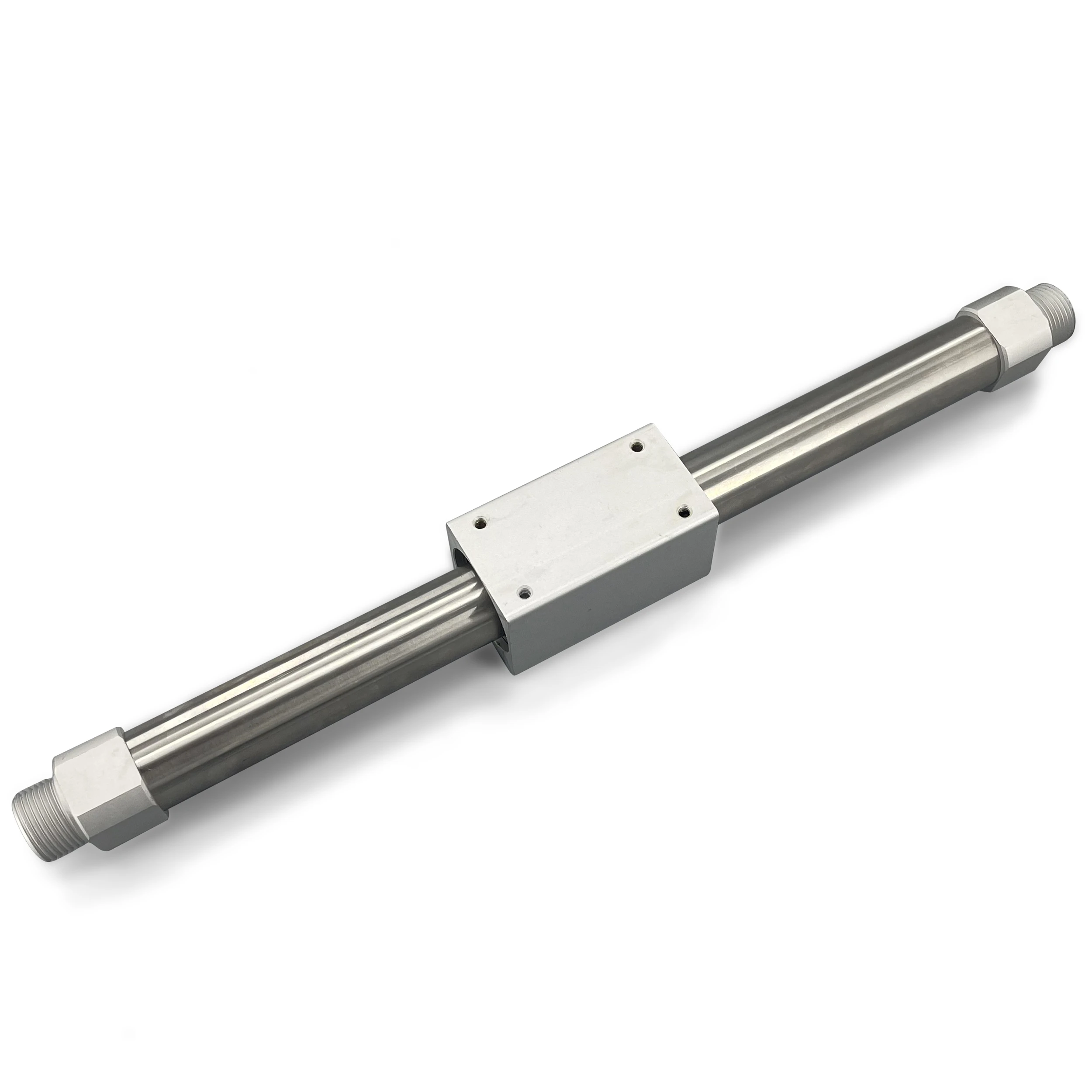

Rodless cylinders
Rodless cylinders feature magnets on the carriage and piston that form a strong bond that holds them together. When the cylinder is actuated, the piston and carriage move back and forth as one unit. Common application uses for this cylinder include transferring product, feeding, opening doors, cutting, and more.
FEATURES AT A GLANCE
* Bore sizes: 5/16", 7/16", 9/16", 3/4", 7/8", 1-1/16", 1-1/4", 1-1/2", 2"
* Space savings of nearly 50% in most models
* Composite self-lubricating bearings
* Carriage magnetically coupled to the piston
* Pressure rating: 100 PSI (air or hydraulic)
* Temperature range: 0°F to 170°F
* Space savings of nearly 50% in most models
* Composite self-lubricating bearings
* Carriage magnetically coupled to the piston
* Pressure rating: 100 PSI (air or hydraulic)
* Temperature range: 0°F to 170°F
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Bore size | 5/16", 7/16", 9/16", 3/4", 7/8", 1-1/16", 1-1/4", 1-1/2", 2" | ||
2 | Cushion | Air cushion or rubber | ||
3 | Pressure range | 0.1-1Mpa | ||
4 | Temperature range | -20°C-120°C | ||
5 | Speed | 50mm/s-400mm/s | ||
6 | port size | M5 1/8 1/4 | ||
7 | Acting | double acting | ||
8 | Stroke | 10mm-1000mm |
