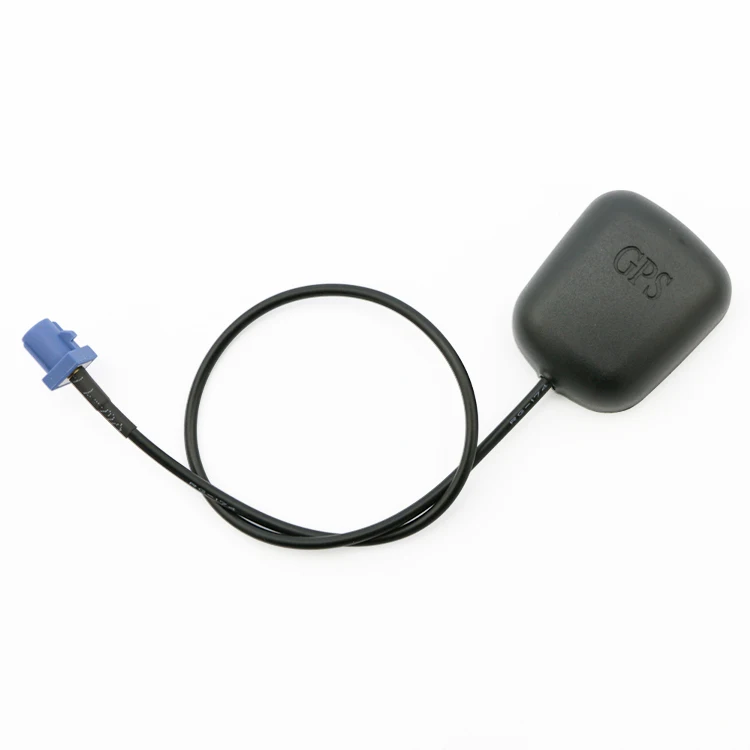

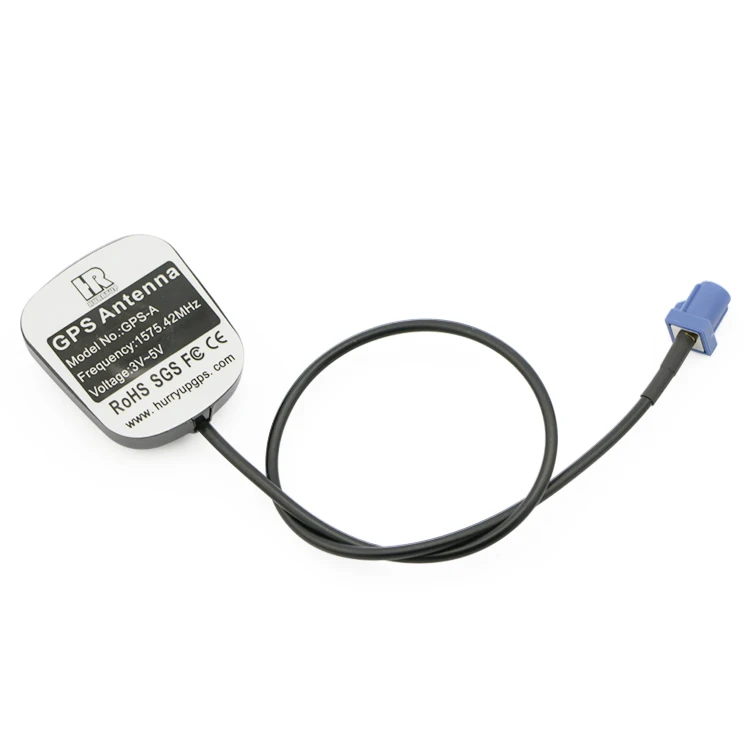

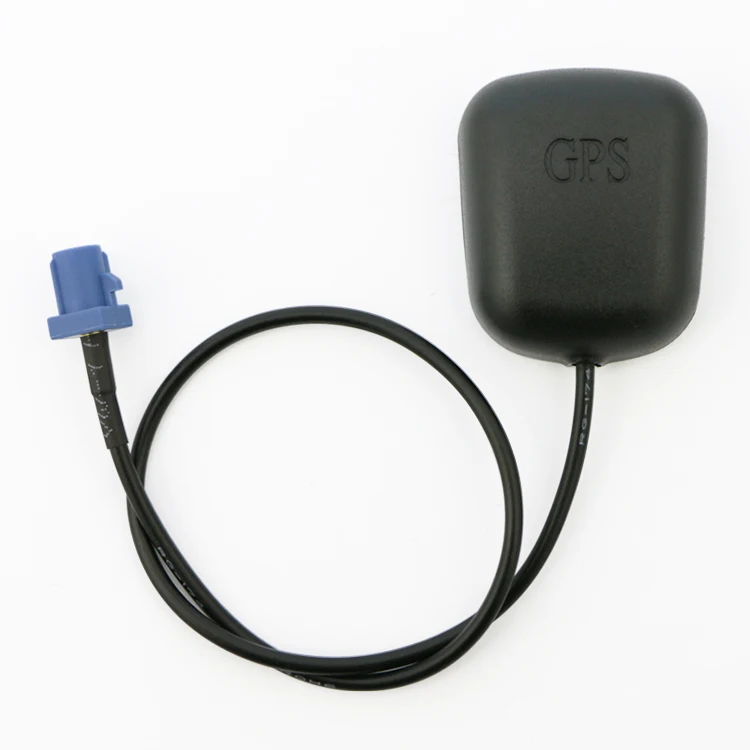

Gps-антенна 1575,42 МГц для автомобиля
US $2.30-$2.70
1575 42 МГц водонепроницаемая внешняя активная Автомобильная GNSS навигационная Антенна GPS антенна с разъемом
- Категория: GNSS и GPS антенна >>>
- Поставщик: Shenzhen,Hurryup,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.48 $* | 0.8 $* |
| Aug-18-2025 | 0.3 $* | 0.18 $* |
| Jul-18-2025 | 0.24 $* | 0.87 $* |
| Jun-18-2025 | 0.10 $* | 0.9 $* |
| May-18-2025 | 0.12 $* | 0.37 $* |
| Apr-18-2025 | 0.9 $* | 0.46 $* |
| Mar-18-2025 | 0.60 $* | 0.86 $* |
| Feb-18-2025 | 0.96 $* | 0.26 $* |
| Jan-18-2025 | 0.45 $* | 0.26 $* |
Характеристики
Description
Hightlights:
1) High Qulity with 1 year warranty;
2) GPS+GLONASS or GPS+BEIDOU Combo Antenna is also available for GNSS Function;
3) Support magnetic or adhesive mounting options;
4) Antenna cable type and length as well as cable connector can be customized.
Applications:
Car Vehicle Satellite Navigation, GPS Tracking, Car GPS Antenna, ect.
1) High Qulity with 1 year warranty;
2) GPS+GLONASS or GPS+BEIDOU Combo Antenna is also available for GNSS Function;
3) Support magnetic or adhesive mounting options;
4) Antenna cable type and length as well as cable connector can be customized.
Applications:
Car Vehicle Satellite Navigation, GPS Tracking, Car GPS Antenna, ect.
Custom:
(1) Details of the antenna, such as frequency band, cable length, connector type, and appearance can be customized.

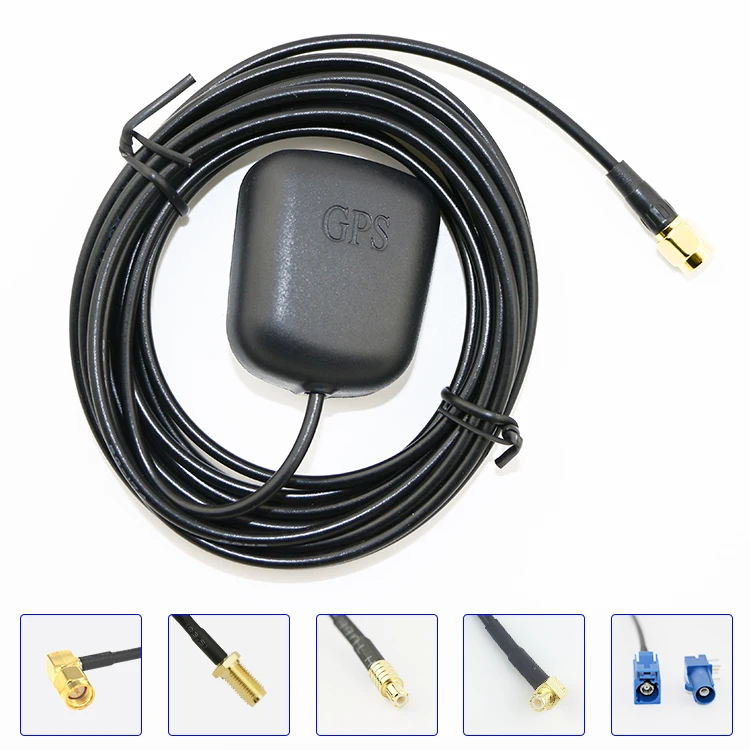

(2) Connector Supported: Fakra, SMA, SMB, BNC, TNC, MCX, MMCX, N-Type, ect
(2) Connector Supported: Fakra, SMA, SMB, BNC, TNC, MCX, MMCX, N-Type, ect
Model No. | GPS-A | |
Cable | RG174, Length=3M or customized | |
Cable Gain | ±2dBi | |
Dielectric | ||
Center Frequency | 1575.42±3 MHz | |
V.S.W.R | 2:1 | |
Band Width | ±5 MHz | |
Impendence | 50Ω | |
Peak Gain | >3dBic Based on 7×7cm ground plane | |
Gain Coverage | >-4dBic at -90°<0<+90°(over 75% Volume) | |
Polarization | RHCP | |
LNA/Filter | ||
LNA Gain Without Cable | 28dB Typical | |
Noise Figure | 2.0dB | |
Filter Out Band Attenuation | (f0=1575.42MHz) 7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz | |
V.S.W.R | <2.0 | |
DC Voltage | 3V to 5V | |
DC current | 7-10MA | |
Mechanical | ||
Weight | 60 gram | |
Size | 45X38X15mm | |
Cable Type | RG174 Cable, 3 Meters (customized) | |

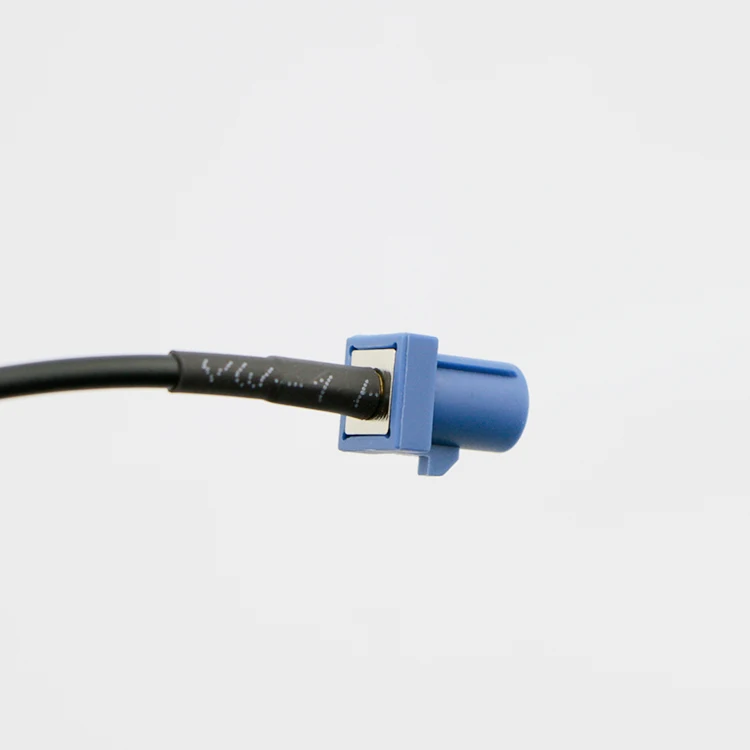

Connector | Fakra (SMA, SMB, MCX, MMCX, ect customized) | |
Mounting | Magnetic Mounting (Adhesive Mouting customized) | |
Housing | Black | |
Environmental | ||
Working Temp | -40℃~+105℃ | |
Vibration | Sine sweep 1g(0-p)10~50~10Hz each axis | |
Humidity | 95%~100% | |
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
