Прямая продажа с завода, металлический ручной токарный станок
US $2000-$10000
CNC металлическая вращающаяся машина для алюминиевых кухонных принадлежностей и кухонной
- Категория: Токарный станок >>>
- Поставщик: Jiangmen,Zhuosheng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.14 $* | 0.73 $* |
| Aug-19-2025 | 0.86 $* | 0.72 $* |
| Jul-19-2025 | 0.72 $* | 0.57 $* |
| Jun-19-2025 | 0.80 $* | 0.45 $* |
| May-19-2025 | 0.24 $* | 0.35 $* |
| Apr-19-2025 | 0.79 $* | 0.69 $* |
| Mar-19-2025 | 0.30 $* | 0.84 $* |
| Feb-19-2025 | 0.24 $* | 0.57 $* |
| Jan-19-2025 | 0.63 $* | 0.30 $* |
Характеристики

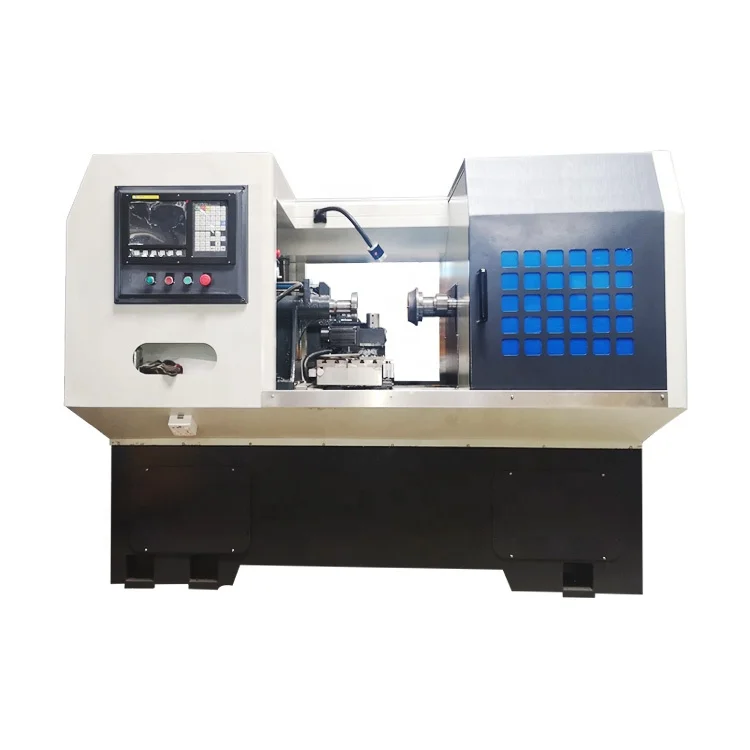

CNC Metal Spinning Machine For Aluminum Kitchenware And Cookware
Product Description
Product manual:
1. With mature CAD drawing programming software function, the motion track of the rotary wheel can be straight line, circular arc, multi-arc connecting line and combined curve, etc., and input into the computer for standardized programming of passes.
2. The operator can input process parameters and spinning passes through the keyboard and operation panel, and can edit, store and recall at will.
3. It has the "copy" protection function of the core mold contour, that is, the rotating wheel will not collide with the
core mold during process adjustment and recording and teaching. 4. The machine tool can pause the feed rate and spindle speed in the automatic program. It has travel limit protection, software and hardware limit protection in the control system, fault detection and alarm functions.
5. Automatic detection of failures, automatic and overload protection functions for each unit when starting up.
6. According to the requirements of users, spinning forming of parts of various special shapes can be realized, and
the relevant dimensions of the workpiece shape, diameter, and thinning rate meet the requirements.
the relevant dimensions of the workpiece shape, diameter, and thinning rate meet the requirements.
7. Finish trimming, flanging, crimping, necking, and rolling processing functions in the same machine tool.
Warm reminder: The above picture parameters are for reference only. Different workpiece specifications, different equipment models, different prices, please contact customer service for details, thank you!
Specification
Power supply type | AC 380v three-phase four-wire | Spinning product diameter | with center hole 600MM,No center hole 400MM |
Spindle speed | 0-3000 rpm | Spinning thickness (iron plate) | 1.8mm |
Air pressure | 0.5-0.8Mpa | Spinning thickness (aluminum plate) | 2.5MM |
Spindle center height | 240MM | Spinning thickness (stainless steel plate) | 1.2mm |
Axial stroke | 400mm | Spinning product height | 300mm |
Longitudinal stroke | 350MM | Pressing power | hydraulic |
Top stroke | 320mm | Control system | Keyuan/Kanedi/Siemens etc. optional |
Positioning accuracy | 0.01mm | Spinning structure form | horizontal |
Automatic refueling system | AC220V 25W1 | Warranty period | 1 year |
Installed | 7 positions can be installed | Servo type | Servo |
Input method | Handwheel teaching/CAD map | Equipment weight | 1500KG |
Equipment appearance size | 2300x1200x1700 | Mold mounting thread | M42x4 |
