Станок для плазменной резки труб с

Категория: Другое оборудование для резки металла >>>
Поставщик: Wuxi,Zhouxiang,Complete,Set,Of,Welding,Equipment,Co.,Ltd.

Цена:20 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	23800.29 $*	24990.77 $*
Aug-16-2025	23600.52 $*	24780.90 $*
Jul-16-2025	19800.44 $*	20790.74 $*
Jun-16-2025	23200.61 $*	24360.87 $*
May-16-2025	20200.73 $*	21210.32 $*
Apr-16-2025	22800.64 $*	23940.3 $*
Mar-16-2025	22600.78 $*	23730.38 $*
Feb-16-2025	22400.95 $*	23520.7 $*
Jan-16-2025	22200.82 $*	23310.47 $*

Характеристики

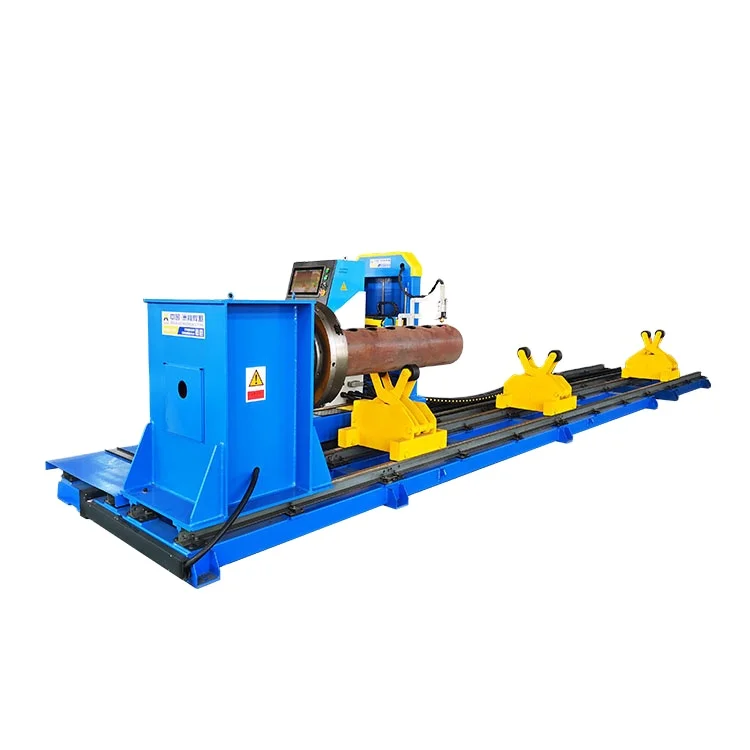

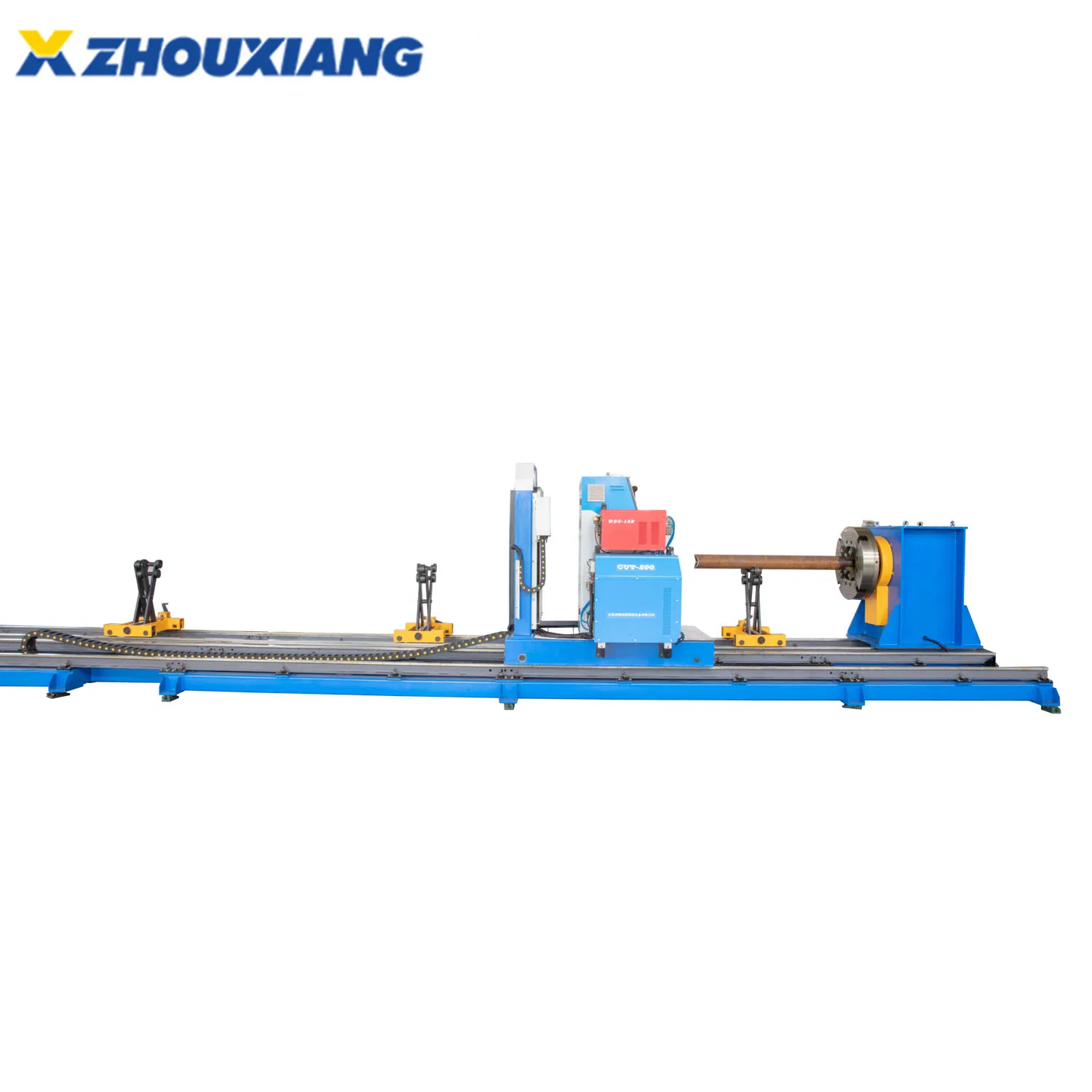

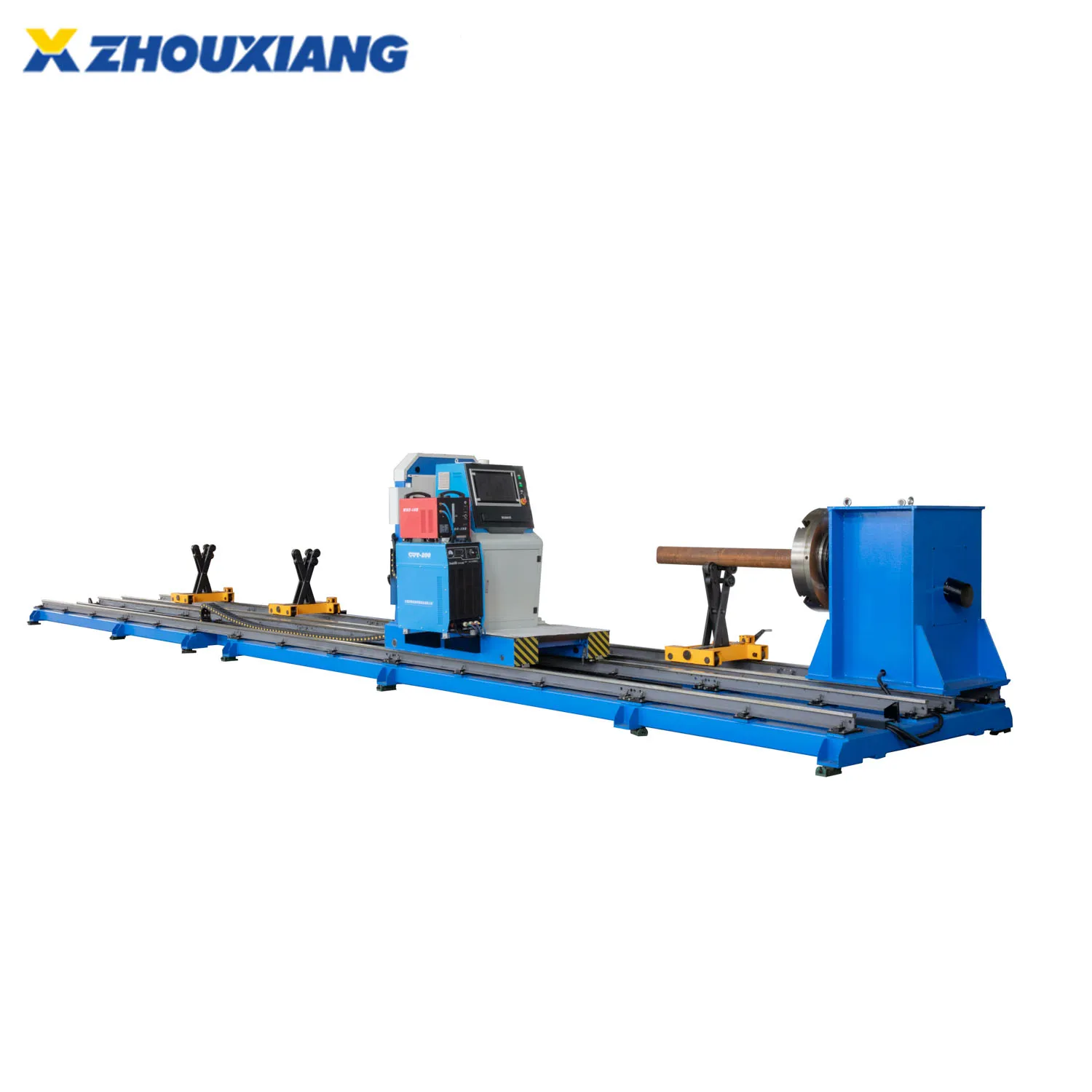

CNC Automatic Pipe Tube Plasma Cutting Machine

Product Description

1. ZPB series multiaxial intersection cutting is mainly applied for thermal cutting of intersection line and end of various pipe system. Suitable work-piece material is mild steel and stainless steel, with wide range pipe diameter: 60mm~1.4m. The cutting head can changed to flame head or plasma head according to customers’ requirement. The supporting roller is self-aligned, which will prevent work-piece bouncing.

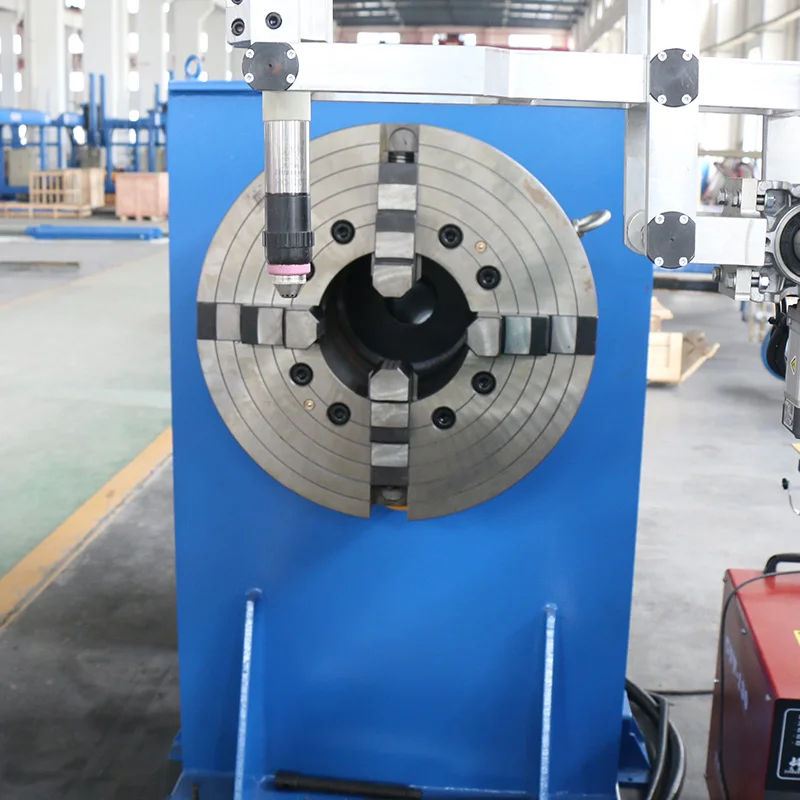

2. The pipe transmission of this cutting machine is chuck supporting roller combined type, cutting minimum cross angle is 20°, provide three kinds of groove dealing function:

(1) Fixed angle groove: according to the angle which user input to cut groove (Max groove angle 60°)

(2) Changed angle groove: groove changed according to two intercross face angle

(3) Fixed point groove: user can set several special point angle (4point or 8point),groove angle will change among these point smoothly.

3. Continuous cutting function: this machine has function of several intercross line continuous cutting, only need to input data for pipe cutting to machine one time, the machine can finish cutting for several intercross line automatically. During the procedure, there’s no need any person to control

4. Configuration of key components:

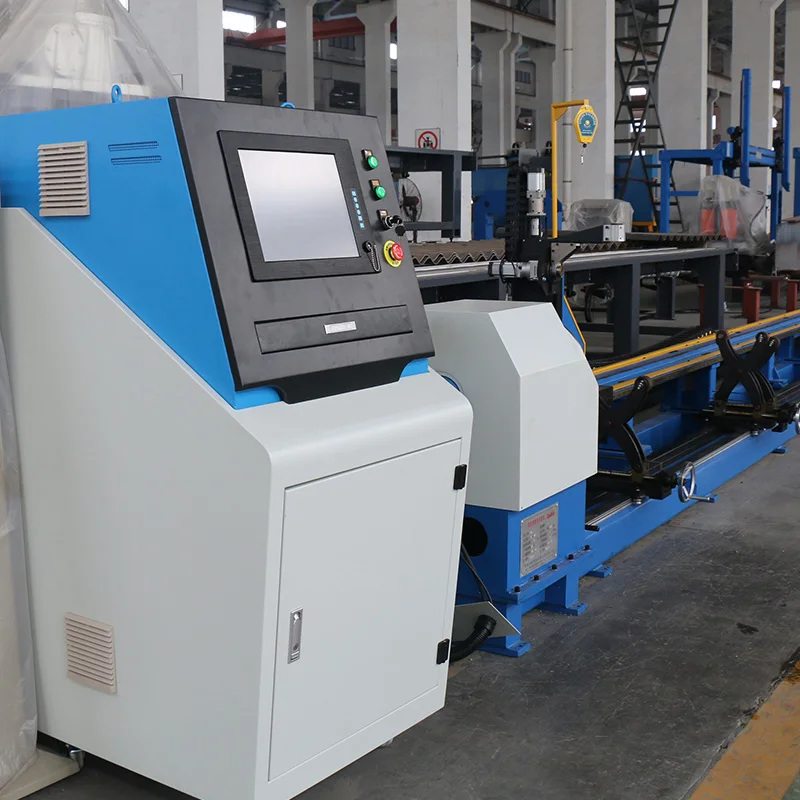

Motion position control card	Googol GE-400-PCI
AC servo system	A4 series Japan Panosonic AC servo motor and driver
Gear box	Precision planetary reducer

Specifications:

Model	ZPB-440	ZPB-560	ZPB-680	ZPB-6140
Moving axle number	4 axle	5 axle	6 axle	6 axle
Cutting pipe dia. (mm)	ø=60-400	ø=60-600	ø=120-800	ø=200-1400
Plasma cutting pipe thickness	δ1=depend on plasma power
Effective cutting work-piece length (mm)	L1=12000mm(according to customer’s requirement)
Ellipticity of work-piece	≤1%
Cutting speed (mm/min)	V=10-3000
Moving speed (mm/min)	V0=10-6000			V0=10-7900

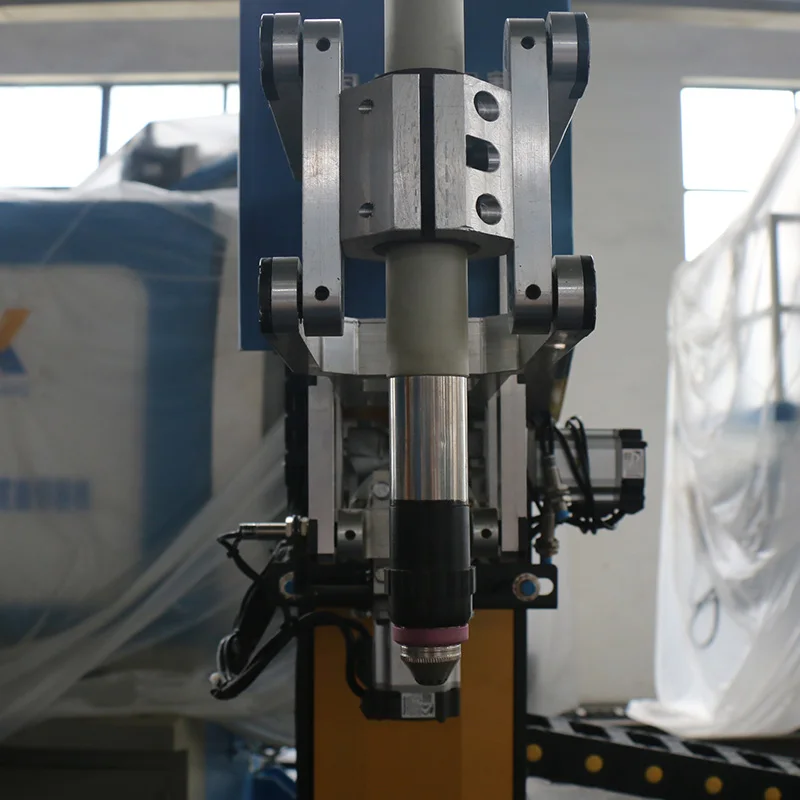

Cutting torch axial swing angle	α=±45°(Plasma should not have current interruption)
Flame torch cutting thickness (mm)	50

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc. We have high sincerity to do business with customers all over the world and establish good friendships.
