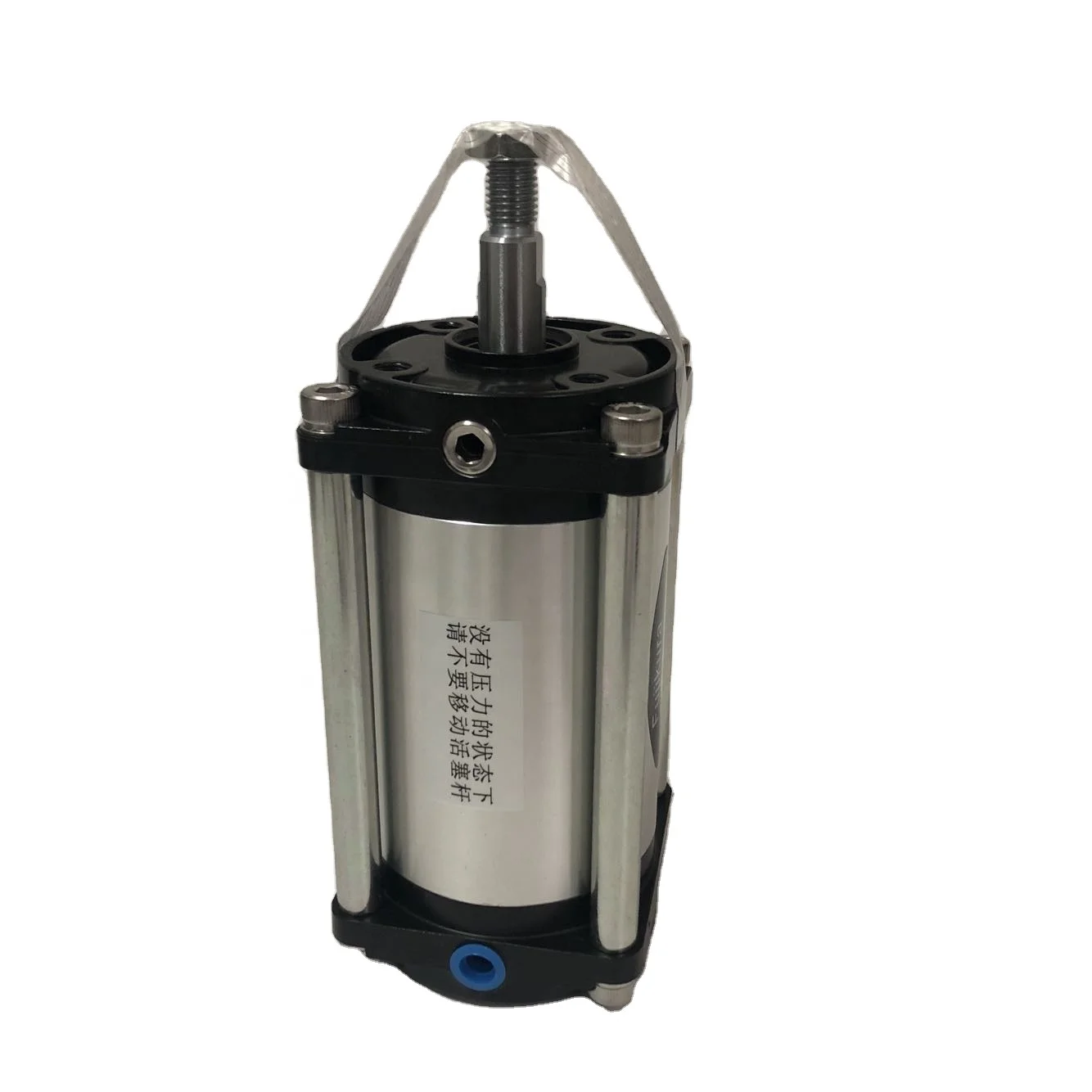

Japan Fujikura Low Friction Cylinder FCS-63-78-SO-BO BF Cylinder



BF Cylinders are bound together by unique unrivaled common features, which are all attributable to the rolling action of BF Diaphragms.



Feature :

1.Perfect Leak-proof: No Blow-By Leakage.

2.Low Friction: Responsive to minute pressure variations , Virtually no hysteresis-loss in movement, Low start up pressure as low as 0.01MPa, Smooth "Non-Jarring" action, Ready to start even after long interval.

3.Lubrication-Free: No Lubricator required in the air line. Excellent resistance to pressure: Assured by the rolling principle of BF Diaphragms.



ALL Model SPECIFICATIONS

Operating Style	Single Action (Push)/Double Action
Cylinder Diameter mm	10 to 200
Stroke mm	6 to 320
Working Fluid	Compressed Air (Non-Lubricated)
Working Pressure Range MPa	0.01-0.7
Working Temperature Range	0 to 60
Rod Bearing	Dry Bearing
Mounting	Direct, L, Front Flange, Rear Flange, Trunnion, Pivot-Mounting



Application

BF Cylinders find its best applications in such cases where air leakage is not allowed and/or sensitive response is desired to minute pressure variations, it is Widely used in  tension controller ,gravure printing , leather and paper industry
