Цанговый патрон HSK63A SHK100A держатель инструмента конус
US $50.00-$65.00

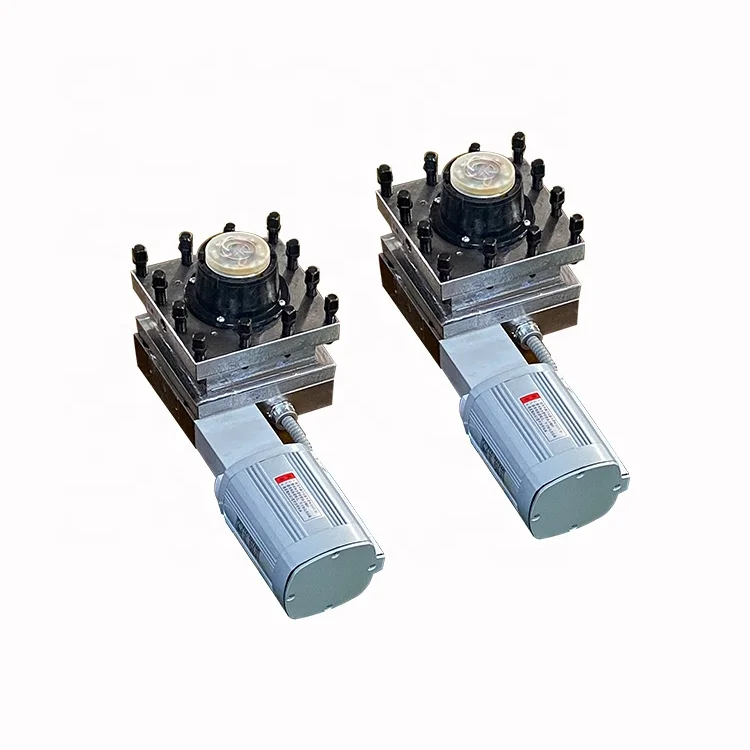

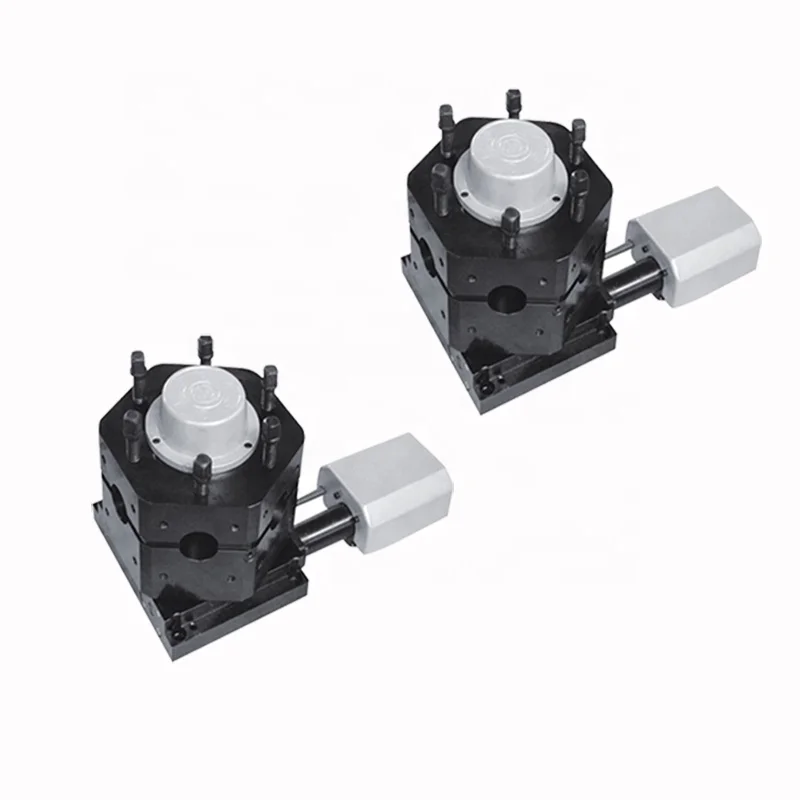

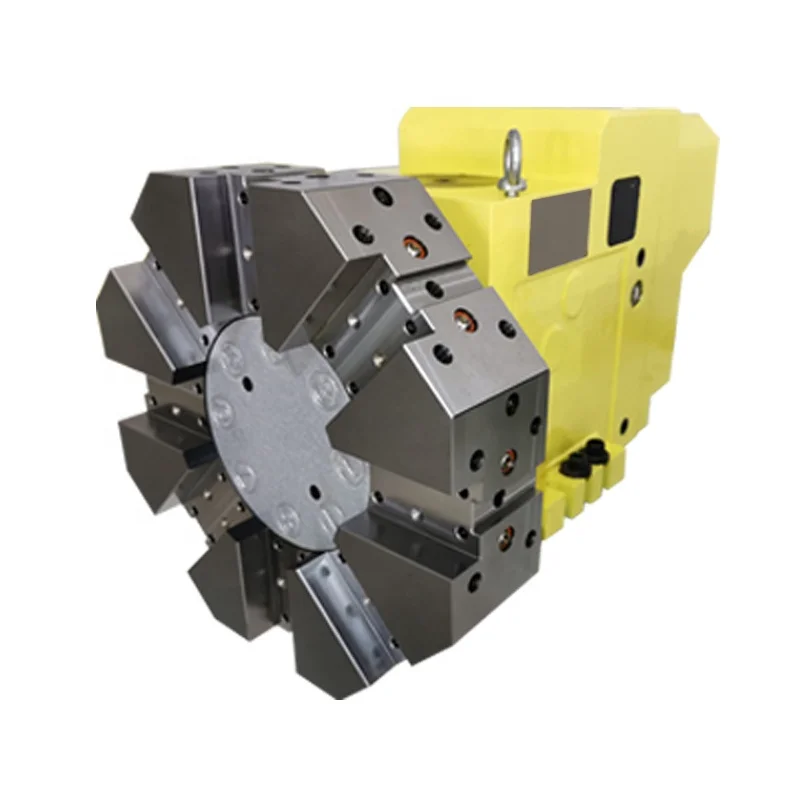

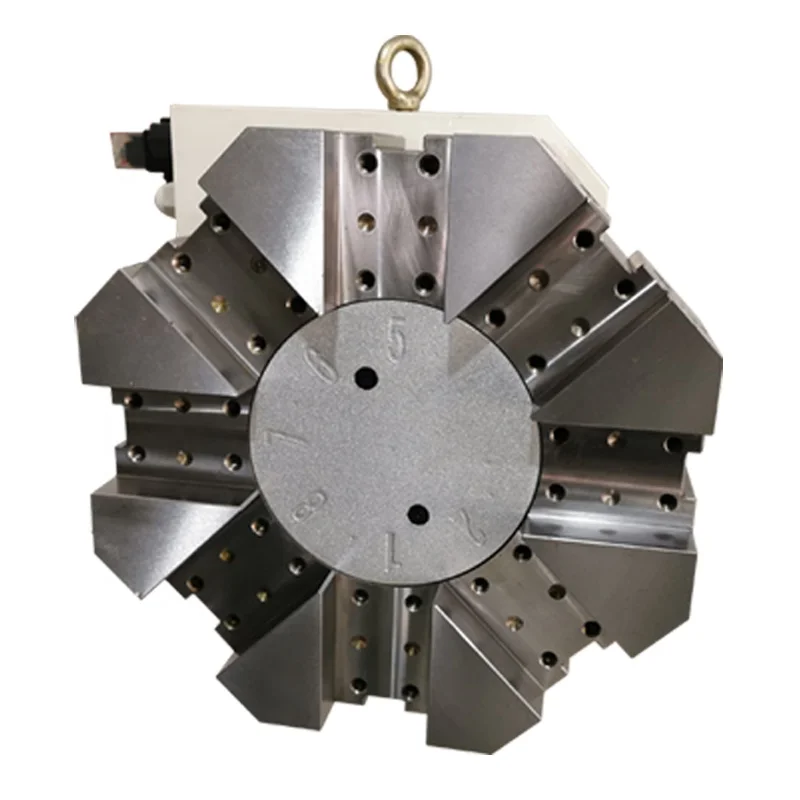

Серия WD/XWD/BWD быстросменный держатель для инструментов с ЧПУ револьвер токарного станка мощная револьверная установка
- Категория: Держатель инструмента >>>
- Поставщик: Wuxi,Fagor,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1012.82 $* | 1063.17 $* |
| Aug-18-2025 | 1003.68 $* | 1053.25 $* |
| Jul-18-2025 | 842.98 $* | 884.23 $* |
| Jun-18-2025 | 986.97 $* | 1035.60 $* |
| May-18-2025 | 859.26 $* | 902.83 $* |
| Apr-18-2025 | 969.50 $* | 1017.12 $* |
| Mar-18-2025 | 961.75 $* | 1009.70 $* |
| Feb-18-2025 | 952.54 $* | 1000.75 $* |
| Jan-18-2025 | 944.87 $* | 991.75 $* |
Характеристики
Product Description
Item | PARAMETER | ||
Center height | mm | 63/80/100 | |
Allowed number of tools | N | 6;8 | |
Time for 45°ratation and clamping | sec. | 1.8/1.8/2.1 | |
Time for 180°ratation and clamping | sec. | 2.9/2.9/3.2 | |
Max tangential torque | KNm | 0.7/1.5/3.0 | |
Max axial torque | KNm | 0.8/1.6/3.5 | |
The max bias torque | Nm | 10/12/25 | |
Repeatability accuracy | mm | ≤0.005 | |
Indexing accuracy | ±7" | ||
Motor power | W | 90/140/140 | |
Motor speed | r/min | 900/1400/1400 | |
Net weight (Without tool disc) | Kg | 35/50/80 | |
Model | Dimension | ||||||||
H | A | B | C | D | E | F | G | I | |
BWD63-8 | 63 | 20 | 8-φ11 | 26 | 145 | 55 | 323 | 205 | 140 |
BWD80-8 | 80 | 25 | 6-φ11 | 26 | 149 | 65 | 314 | 238 | 160 |
BWD100-8 | 100 | 32 | 8-φ13 | 32 | 172 | 80 | 350 | 280 | 205 |
J | K | L | M | N | O | P | Q | R | |
BWD63-8 | 272 | 20 | 17 | 20 | 20 | 190 | / | 175 | 24 |
BWD80-8 | 376 | 25 | 22 | 25 | 32 | 270 | 11 | 215 | 32 |
BWD100-8 | 456 | 25 | 22 | 30 | 40 | 330 | / | 252 | 34 |
S | T | U | V | W | X | ||||
BWD63-8 | 30 | 30 | 134 | 165 | 185 | G1/4" | |||
BWD80-8 | 32 | 32 | 149 | 190 | 210 | G3/8" | |||
BWD100-8 | 40 | 30 | 188 | 220 | 250 | G3/8" |
FAQ
Q: How long is the quality guarantee?
A: One year guarantee.
Q: How long is the delivery time?
A: Generally it is 3-7 days. If the goods are in stock. If the goods are not in stock, it will take 8-20 days.
Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.
Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q: What kind of packing do you send?
A: We use high quality cartons, internal environmental protection buffer material.
Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.
