Устройство для сушки мяса рыбы
US $6500-$7000
Сушилки для труб сушилки опилок горячего воздуха
- Категория: Hot Air Furnace >>>
- Поставщик: Zhengzhou,Leabon,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.92 $* | 0.82 $* |
| Aug-16-2025 | 0.80 $* | 0.38 $* |
| Jul-16-2025 | 0.31 $* | 0.60 $* |
| Jun-16-2025 | 0.33 $* | 0.2 $* |
| May-16-2025 | 0.2 $* | 0.32 $* |
| Apr-16-2025 | 0.39 $* | 0.95 $* |
| Mar-16-2025 | 0.0 $* | 0.70 $* |
| Feb-16-2025 | 0.77 $* | 0.51 $* |
| Jan-16-2025 | 0.30 $* | 0.78 $* |
Характеристики
Product Description
Introduction
* It issuitable for drying sensitive material like sawdust, rice hull, milled wheat straw, milled cotton/ corn stalks and so on.
* It is made up of heat stove, tube, impulse jar, function tube, fan, and cyclone separator;
* The Airflow Sawdust Dryer can reduce the humidity of wood materials below 12%;
* It is professionally designed for drying different kinds of wood sawdust.
* It has advantages of low cost, low consumption, easy maintainace.
* In addition, the round places of pipes can be changed to any angle which can save space and solve plant dimension limitation.
* It is made up of heat stove, tube, impulse jar, function tube, fan, and cyclone separator;
* The Airflow Sawdust Dryer can reduce the humidity of wood materials below 12%;
* It is professionally designed for drying different kinds of wood sawdust.
* It has advantages of low cost, low consumption, easy maintainace.
* In addition, the round places of pipes can be changed to any angle which can save space and solve plant dimension limitation.
Size Information
(kw) | (for wet wood sawdust ) | (m) | (kg) | |||
35-40% humidity | HGJ-I | One stove | 4 | 300-400 | 2.44*1.72*1.91 | 960 |
HGJ-II | One stove | 7.5+1.5+0.75 | 600-700 | 2.45*1.72*1.91 1.45*1.42*1.41 | 2280 | |
HGJ-III | One stove | 11+1.5+0.75 | 800-900 | 2.45*1.72*1.91 1.45*1.42*1.41 | 2300 | |
40-55% humidity | HGJ-IV | Two stoves | 5.5+1.5 | 300-400 | 2.44*1.23*1.9 1.4*1.3*1.4 | 1190 |
HGJ-V | Two stoves | 7.5+1.5 | 400-500 | 2.44*1.23*1.9 1.4*1.3*1.4 | 1600 | |
HGJ-VI | Two stoves | 11+1.5+0.75 | 1000-1200 | 2.45*1.72*1.91 1.42*1.42*1.41 1.23*1.24*1.73 | 3080 | |
HGJ-VII | Two stoves | 15+1.5+0.75 | 1100-1300 | 2.45*1.72*1.91 1.42*1.42*1.41 1.23*1.24*1.73 | 3090 |
Working principle:
* The whole system consists of fan blower, motor engine, fuel boiler, steel pipe, cyclone and air lock.
* In this system, wet material is input into hopper by screw feeder.
* Fuel furnace produces large volume of hot air.
* The hot air is driven into steel pipes, mixed with wet sawdust and moved through curving pipes and drying chamber by the power of fan blower.
* In this system, wet material is input into hopper by screw feeder.
* Fuel furnace produces large volume of hot air.
* The hot air is driven into steel pipes, mixed with wet sawdust and moved through curving pipes and drying chamber by the power of fan blower.
* Fast moving hot air sustains and is mixed with raw material sent by spiral feeder in the suspending state through the steel pipe;
* Moisture evaporates as the material traverses along the steel pipe and is rendered dry at the discharge end. Humid air is
continuously exhausted, thus the material is dried.
continuously exhausted, thus the material is dried.
Raw Material & Final Products
Raw Material

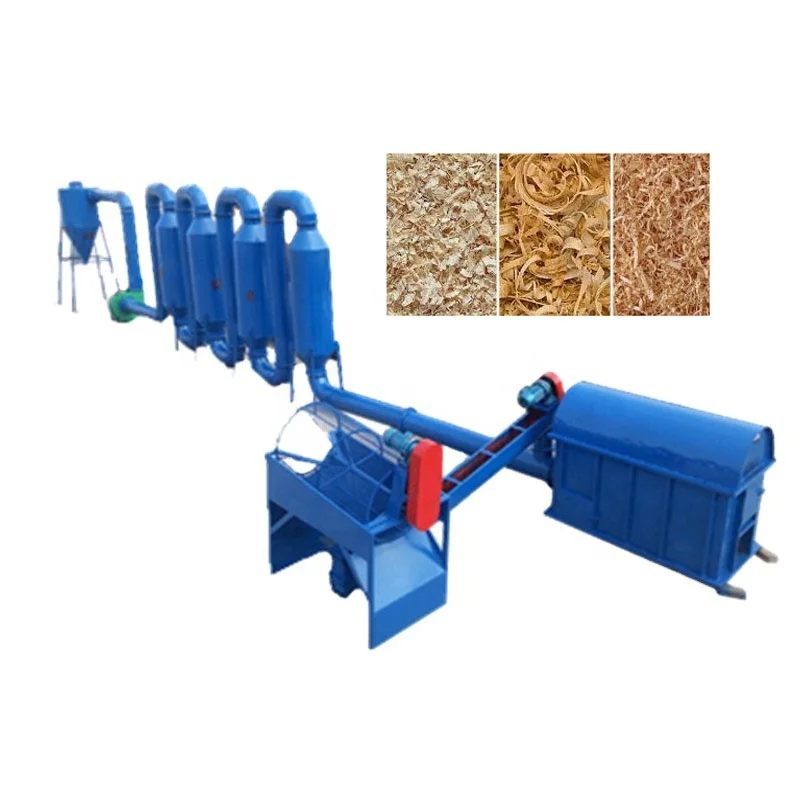

Pipe Dryer in Biomass Pellets Production Line
Detailed Images

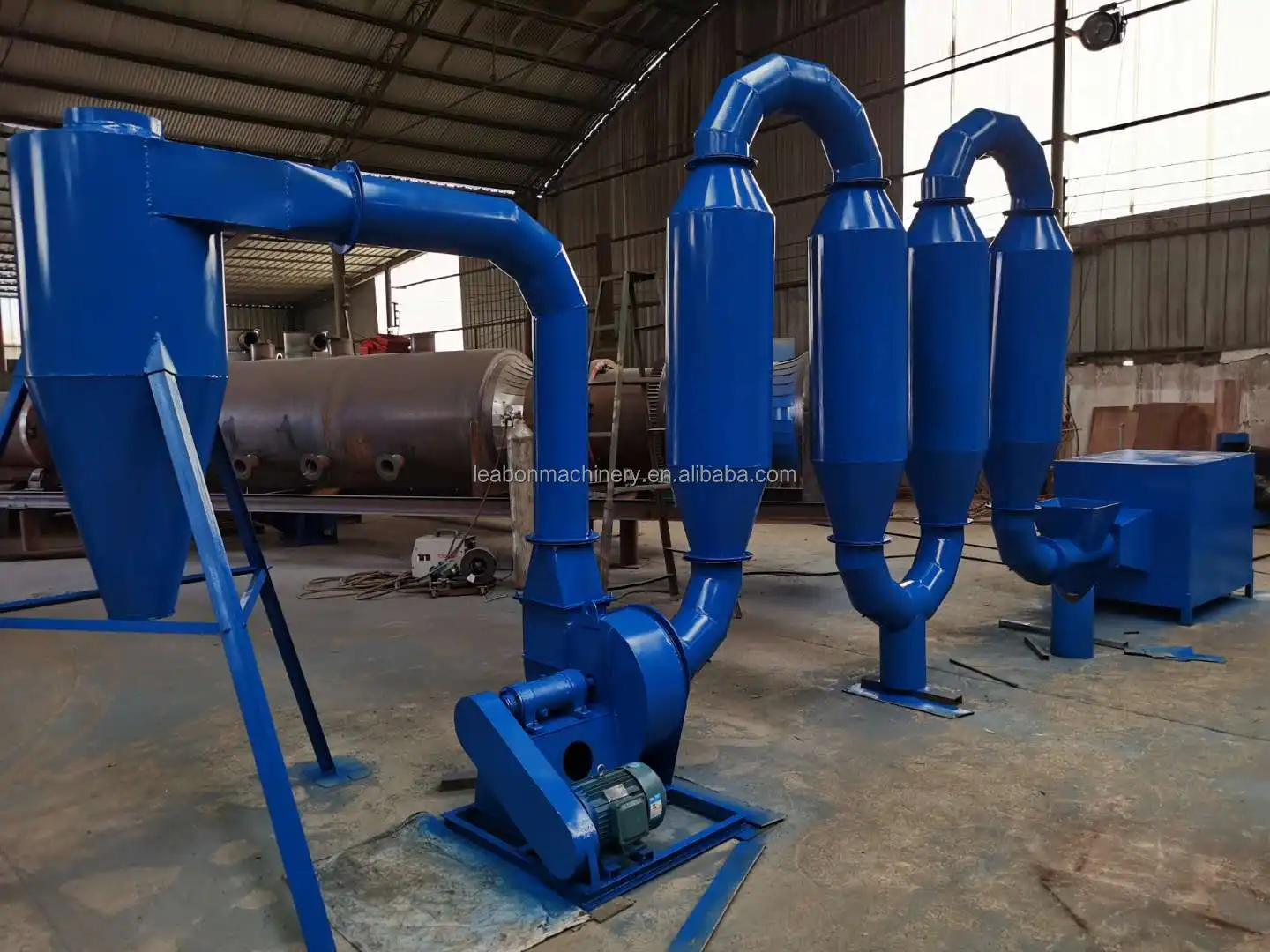

Single Stove:
The Moisture reducing rate of the sawdust dryer is 8-12%. This sawdust dryer is equipped with one hot air boiler, it is suitable for drying raw material with moisture content less than 20-25%.If the moisture content of the raw material is higher than that, it will need several times of drying to achieve the requested moisture content for briquetting, pelletizing.

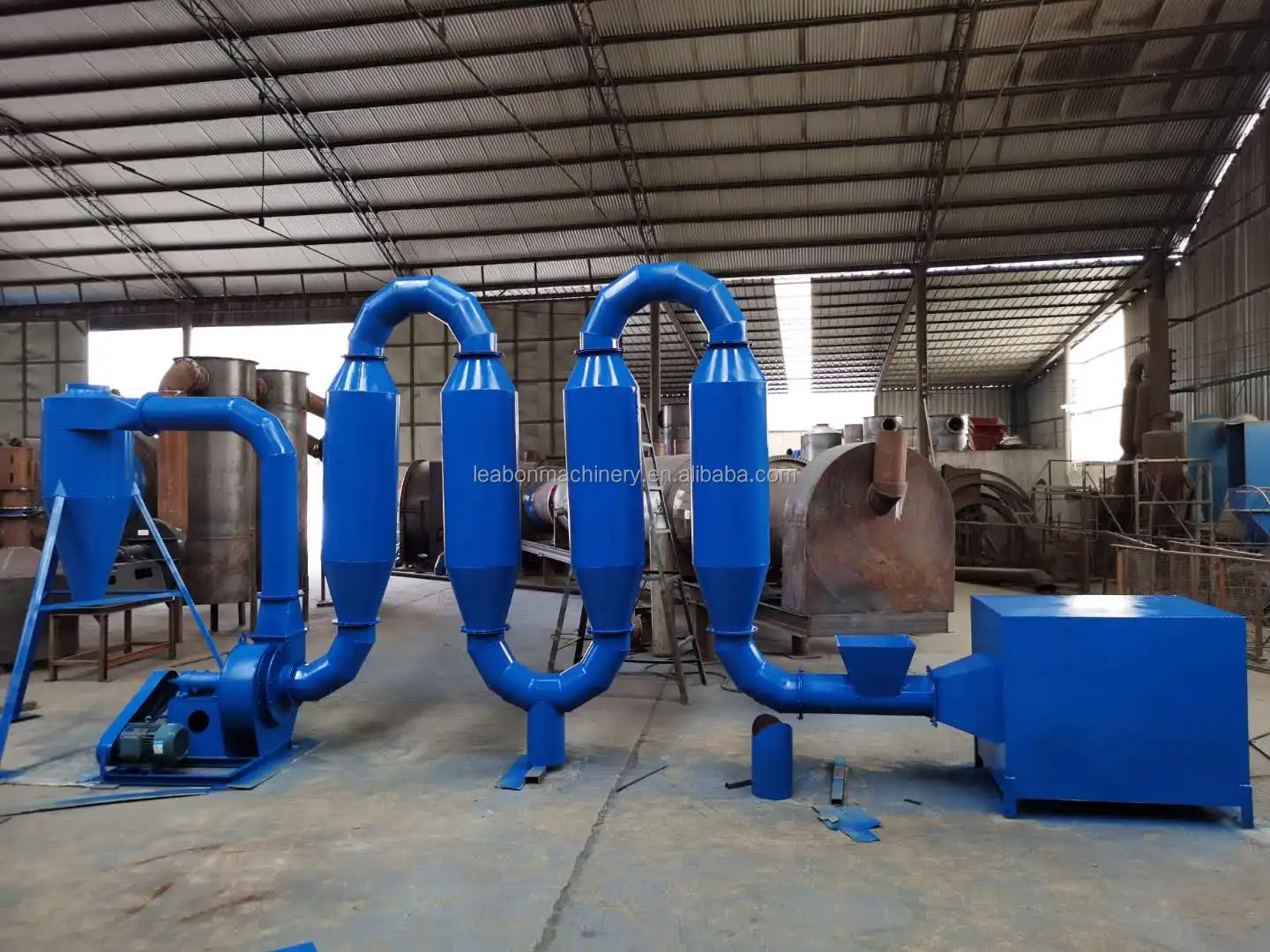

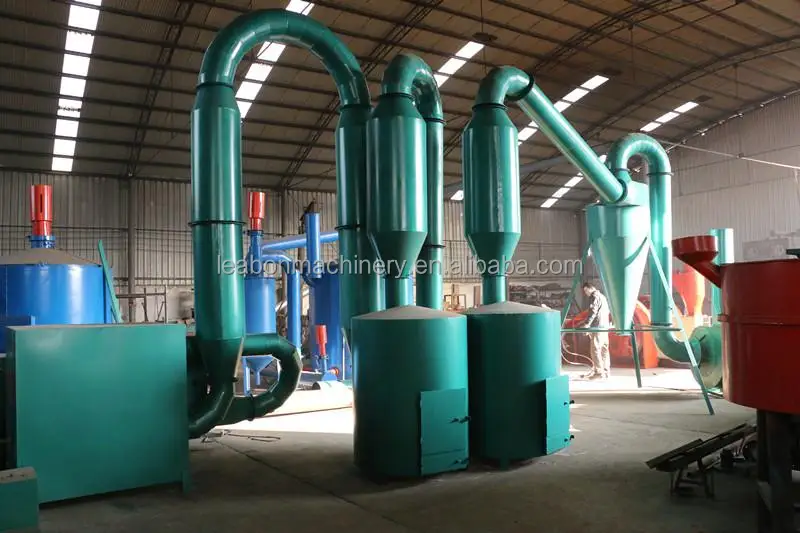

Double-Stove:
This double stove sawdust dryer is a newly developed dryer with two hot air boilers, it is suitable for drying raw material with moisture content of 20% -50%, it can reduce moisture from 20%-50% to 8-12% via only one passage.
This double stove sawdust dryer is a newly developed dryer with two hot air boilers, it is suitable for drying raw material with moisture content of 20% -50%, it can reduce moisture from 20%-50% to 8-12% via only one passage.
Rotary Type Dryer Machine
Packing&Shipping
Packing Details: International standard package of Pipe Dryer in wood case.
Shipping Time: Shipped in 7-15 days after payment.
Shipping Time: Shipped in 7-15 days after payment.
Company Introduction
Zhengzhou Leabon Feed Machinery Co., Ltd. is a professional and advanced supplier which mainly supply oil press machine, corn milling machine, corn peeling machine, ice cream machine, juice making machine, etc. Leabon has extensive expertise in the areas of engineering. The continuous research helps us to develop the latest technology in biomass new energy field more effectively.
Our factory workshop:
Our Services & Strength
Leabon has professional international sales team and service team that ensure fast, effective communication and cooperation with different clients more successful and satisfactory.
CE Certification
