Характеристики
Product Parameter
Radio Shuttle System

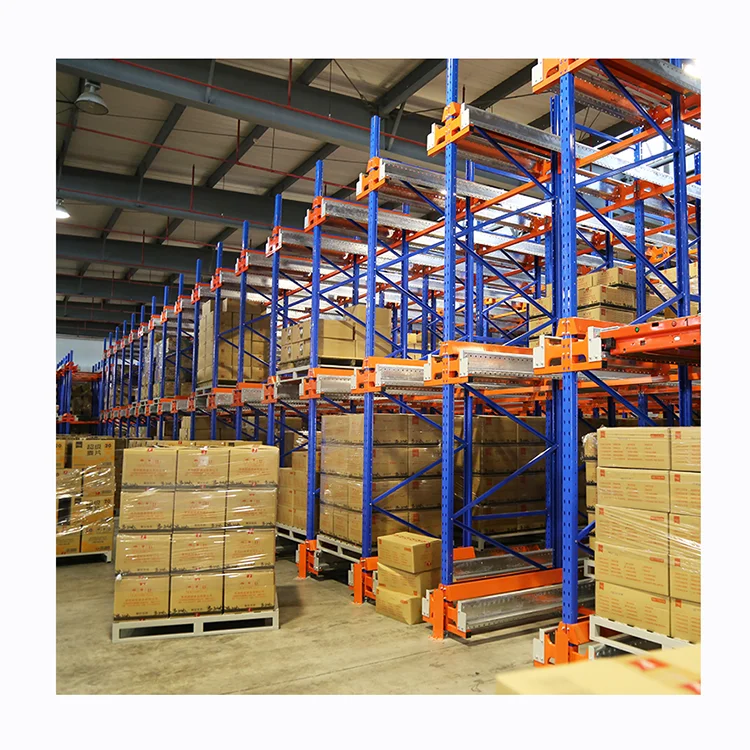

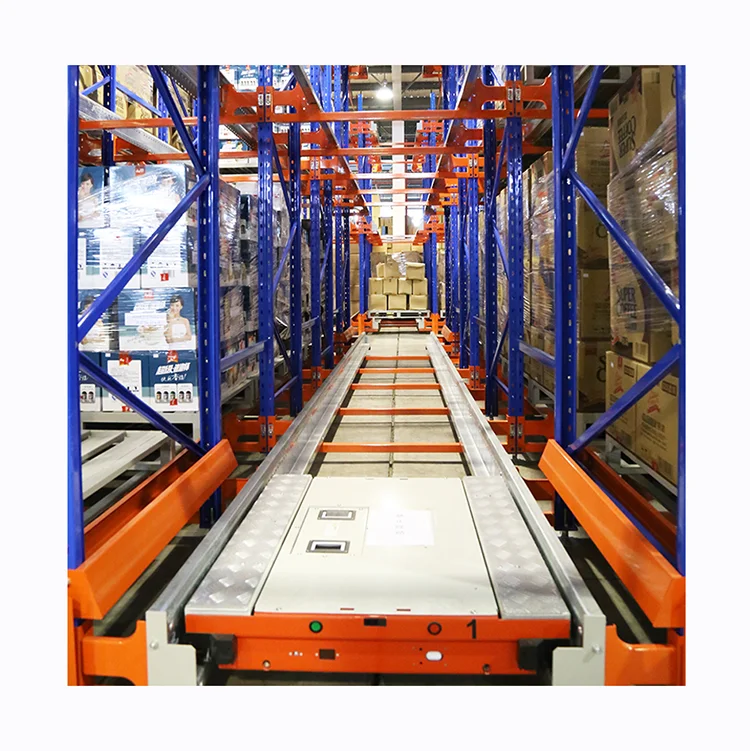

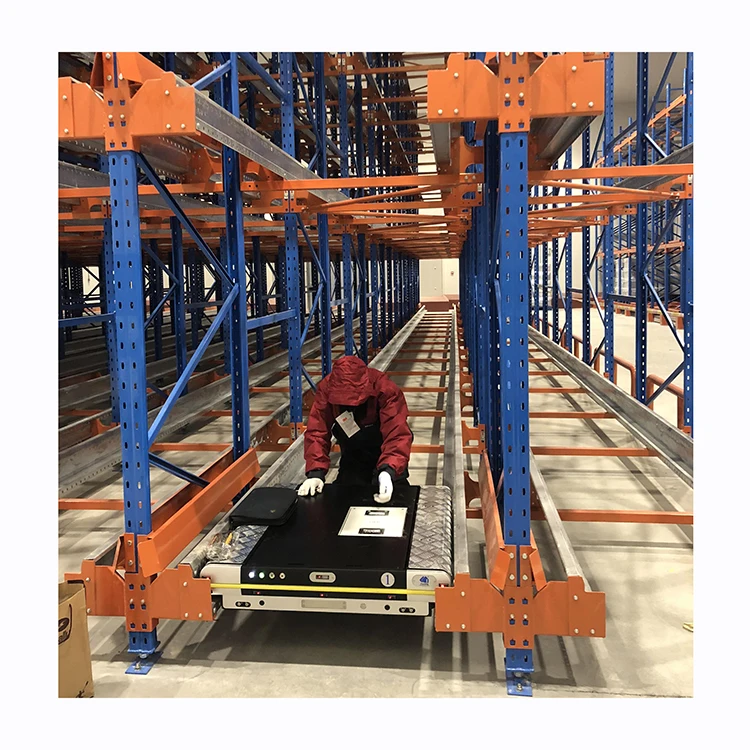

Jracking Shuttle Racking System is a high-density storage system. The shuttle cart, which is controlled by a wireless remote, takes the pallets in and out of the racking system. The forklift don’t need to enter the storage area. The first pallet’s location at either end is where the forklift loads and unloads the goods.
Name | Radio shuttle system | Material | Q235a | ||
Size | Customized Size | Color | Customized | ||
Depth | Customized | Weight Capacity | 500~5000kg | ||
Width | Customized | Height | Customized | ||
Finish | Powder Coated | ||||
Usage | Warehouse Storage System | ||||
Packing | Customers' Request | ||||
Certification | AS4084-2012 /CE/ ISO/RMI | ||||
Free Sample | Available (Delivery Cost on Buyer) | ||||
OEM | Available | ||||
Product Introduction
Technical Characteristic | ||||||
Running Speed | Standard type | Low temperature type | Advanced type | |||
Vmax_empty:1.2m/s Vmax_full:0.8m/s | Vmax_empty:1.0m/s Vmax_full:0.8m/s | Vmax_empty:1.5m/s Vmax_full:1.0m/s | ||||
The Highest in China | The Highest in the world | |||||
Loading | 1.5T (Heavy Load Type 2T) Leading in China | |||||
Operating Efficiency | Closed-loop control of servo system is adopted to reach faster speed, which is 1.5~2 times faster than that in other counterparts. | |||||
Rapidity & stability | Motion parameter and curve of equipment are configured to realize both rapidity and stability. | |||||
Direction for use
1. The shuttle has a high precision of parts that move along the aisles between shelves according to computer instructions.
2. The forklift don’t need to enter the storage area. The first pallet’s location at either end is where the forklift loads and unloads the goods.
3. The system could achieve both FIFO and FILO modes.
Description of application effect
1. Can make full use of to 90% of the total area
2. Can store with both last in first out and first in first out system
3. Reduce crashes between forklift and rack, Decreased incidents and maintenance costs
4. Can reach 40meters deep
2. The forklift don’t need to enter the storage area. The first pallet’s location at either end is where the forklift loads and unloads the goods.
3. The system could achieve both FIFO and FILO modes.
Description of application effect
1. Can make full use of to 90% of the total area
2. Can store with both last in first out and first in first out system
3. Reduce crashes between forklift and rack, Decreased incidents and maintenance costs
4. Can reach 40meters deep
Installation, Maintenance & Repair
Installation
Jracking will provide detailed installation drawing and on-site installation guidance for your project. Professional technician will adjust and test the shuttle cart for at least one week to ensure the shuttle racking system could work well.
Maintenance
Regular maintenance shall be made in accordance with application manual and maintenance manual.
Jracking’s technician will train the responsible person in your warehouse how to do the routine maintenance.
Lifelong maintenance is provided for guaranteeing customer interests. Jracking is willing to provide lifelong paid service beyond the warranty period. Spare parts for the racking or shuttle cart would be supplied at the most favorable prices.
Repair
One year warranty is promised by Jracking after successful installation and commissioning, excluding natural disaster and man-made damage.
Jracking’s technician will train the responsible person in your warehouse some basic fault conditions and handling methods. If meeting difficult situations, the technician would go and solve the problems on site.
We really appreciate your trust for Jracking and Jracking’s product.
Please kindly keep us posted if you have any suggestion or requirement for our products.
Jracking will provide detailed installation drawing and on-site installation guidance for your project. Professional technician will adjust and test the shuttle cart for at least one week to ensure the shuttle racking system could work well.
Maintenance
Regular maintenance shall be made in accordance with application manual and maintenance manual.
Jracking’s technician will train the responsible person in your warehouse how to do the routine maintenance.
Lifelong maintenance is provided for guaranteeing customer interests. Jracking is willing to provide lifelong paid service beyond the warranty period. Spare parts for the racking or shuttle cart would be supplied at the most favorable prices.
Repair
One year warranty is promised by Jracking after successful installation and commissioning, excluding natural disaster and man-made damage.
Jracking’s technician will train the responsible person in your warehouse some basic fault conditions and handling methods. If meeting difficult situations, the technician would go and solve the problems on site.
We really appreciate your trust for Jracking and Jracking’s product.
Please kindly keep us posted if you have any suggestion or requirement for our products.
Product Categories
Company Profile
Certifications
Production Process
FAQ
Q: What’s your trading terms?
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C O/A also available.
2) Lead time: normally in 20-25 days after deposit received.
3) Sample policy: samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanjing China.
5) Discounts: we offer good discount for large quantity.
Q: How I can delivery my goods?
1) Sea freight: we will update sea freight once we know your sea port where goods will be delivered.
2) Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Q: What is your service?
1) Your inquiry related to our products or price will be replied in 12 hours.
2) Well-trained and experienced staffs to answer all your inquiries in fluent English.
3) OEM & ODM, any your customized racking we can help you to design product.
4) We have very experienced professional engineers to make best solutions.
Q: What to purchase your product?
Design drawing →Confirm drawing→Quotation→PI→Confirm PI→Arrange 30%deposit→Manufacture→QC inspect→Pay balance→Shipping
Q: What’s your advantage?
1) Payment: we can do O/A 40-60 days.
2) Lead time: rush order we can fast delivery.
3) Factory price: factory direct sale competitive price.
4) Warranty: Two years warranty, the broken parts will be replaced and sent to you.
Q: Does Jracking have MOQ (minimum order quantity) limitation?
A: No, but good quantity comes with good price. We recommend the order quantity for regular products of Jracking to fit at least one 20ft. container, which is about 15 tons.
Q: How does Jracking charge tooling fee (cost of opening new mold)?
A: For the production of necessary tooling requirement, Jracking charges the cost before the first order for opening new mold, and the cost will be partially or fully refunded after certain quantity of orders.
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C O/A also available.
2) Lead time: normally in 20-25 days after deposit received.
3) Sample policy: samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanjing China.
5) Discounts: we offer good discount for large quantity.
Q: How I can delivery my goods?
1) Sea freight: we will update sea freight once we know your sea port where goods will be delivered.
2) Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Q: What is your service?
1) Your inquiry related to our products or price will be replied in 12 hours.
2) Well-trained and experienced staffs to answer all your inquiries in fluent English.
3) OEM & ODM, any your customized racking we can help you to design product.
4) We have very experienced professional engineers to make best solutions.
Q: What to purchase your product?
Design drawing →Confirm drawing→Quotation→PI→Confirm PI→Arrange 30%deposit→Manufacture→QC inspect→Pay balance→Shipping
Q: What’s your advantage?
1) Payment: we can do O/A 40-60 days.
2) Lead time: rush order we can fast delivery.
3) Factory price: factory direct sale competitive price.
4) Warranty: Two years warranty, the broken parts will be replaced and sent to you.
Q: Does Jracking have MOQ (minimum order quantity) limitation?
A: No, but good quantity comes with good price. We recommend the order quantity for regular products of Jracking to fit at least one 20ft. container, which is about 15 tons.
Q: How does Jracking charge tooling fee (cost of opening new mold)?
A: For the production of necessary tooling requirement, Jracking charges the cost before the first order for opening new mold, and the cost will be partially or fully refunded after certain quantity of orders.
