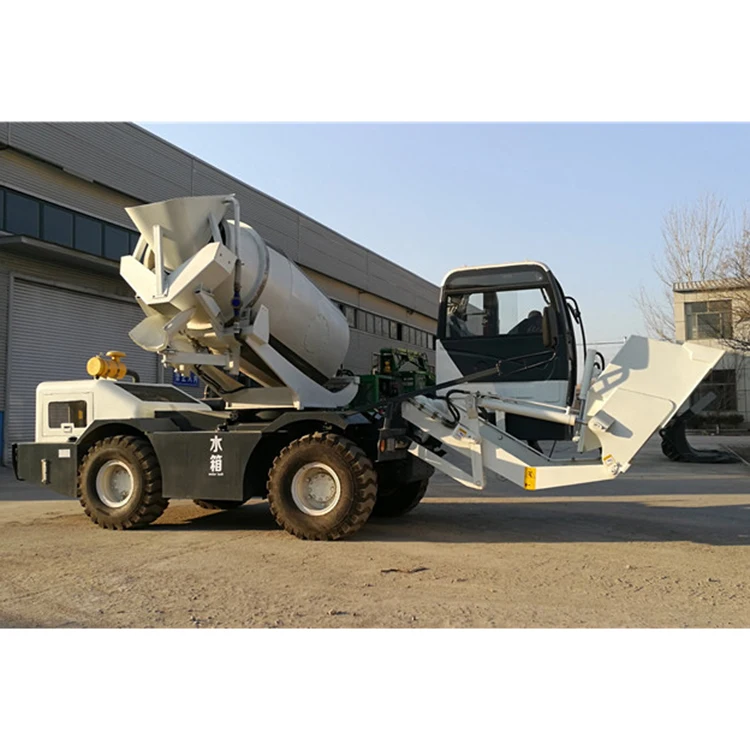

Китайский поставщик качества URM4000 самозагружающийся мини грузовик

Mixing unit

Geometrical drum volume

8.2 M3

Concrete output

5.5 M3/ batch, 22 M3 / hour

Drum rotation speed

20 rpm

Features

Drum is rotated by means of dual gear pump and hydraulic piston motor in closed circuit. Mixing and discharging speed is
independent from rpm of diesel engine. The discharging process is achieved by reversing operation of drum. The mixing drum can be

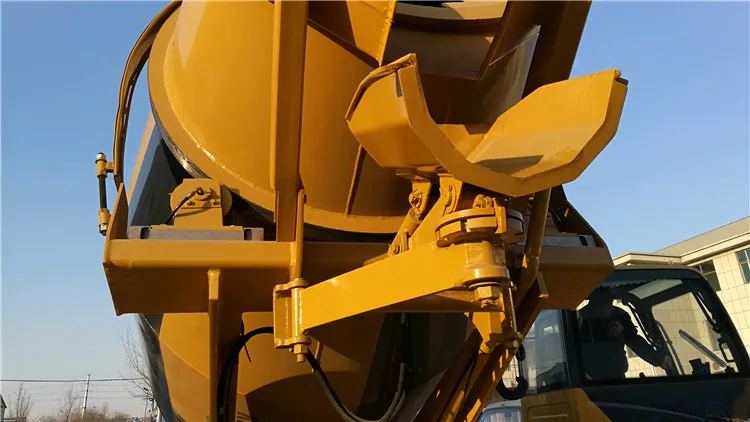

slewed through 270 degrees for high discharge over 2.0m on the four sides of the vehicle. The drum can also be lifted up 16
degrees from the bottom by two hydraulic cylinders for the convenience of concrete discharge.

Model

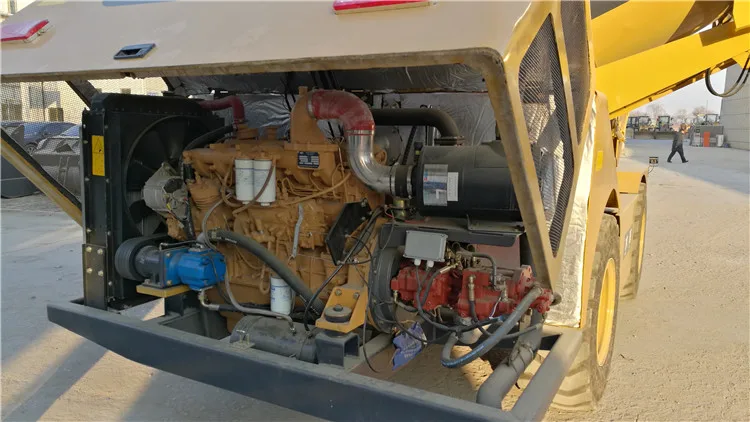

YUCHAI, YCD4P22T Turbo Charged and Water Cooled (4-Cylinder)

Rated power

95 KW(130HP)

Mounting position

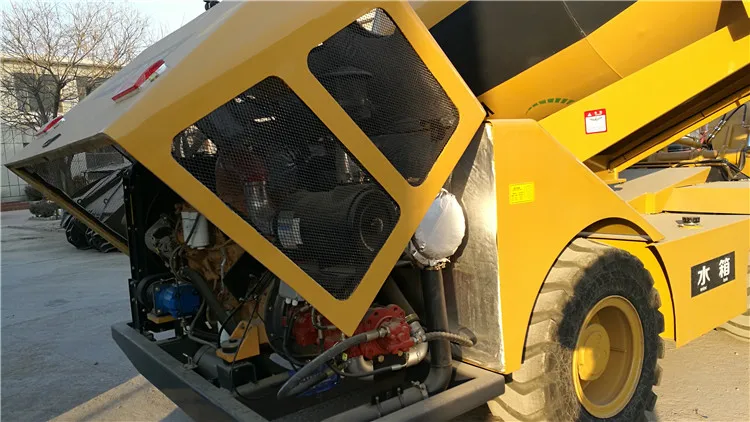

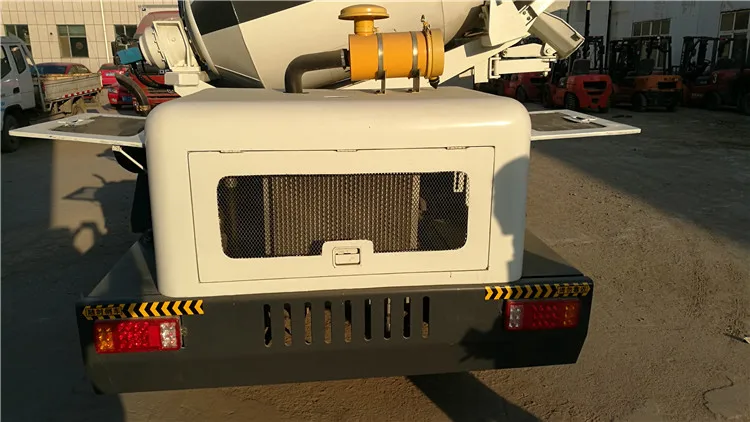

Engine is mounted transversally on the rear.

Model

Full hydraulic transmission with gear pump and hydraulic motor with hydraulic control. It is a kind of 4 wheel drive and
articulated steering.

Transmission

Gear

Automatic, 4F+ 4R shift

Outsize wheel-side reducer driving axle, with oil bath disk brakes and planetary reducers

Speed

4F+2R shift

1st:0-3.0km/h;0-3.0km/h

2nd:0-7.2km/h;0-3.0km/h

3rd:0-10.0km/h;0-10.0km/h

4th:0-25.0km/h;0-10.0km/h

Cabin

The ROPS & FOPS type closed front cab is suited in the front, which can slew together with drum base through 270 degrees, and this
makes bidirectional driving available. Air conditioner, tiling front window and anatomic seat with flexible suspension are
available.

Joymix

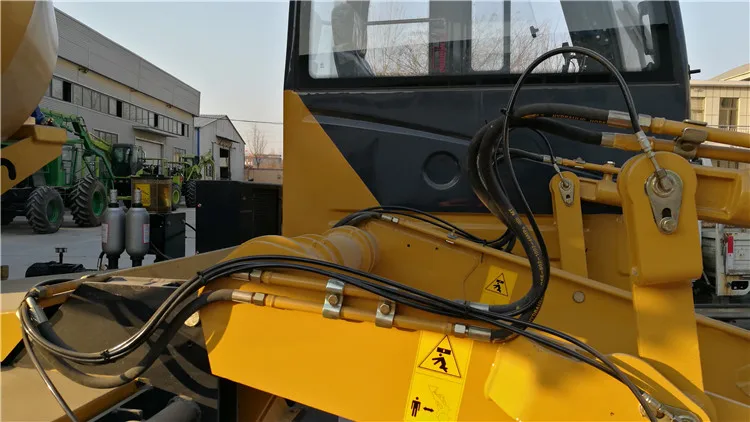

The function of drum mixing, arm lifting, drum revolving and lifting are controlled by different hydraulic joysticks and operating
handles.

Weighing

Electronic weighing system is optional. The “loading cells” are acting on the drum, and technical data are displayed on the shovel
loader weigher inside the cabin.
