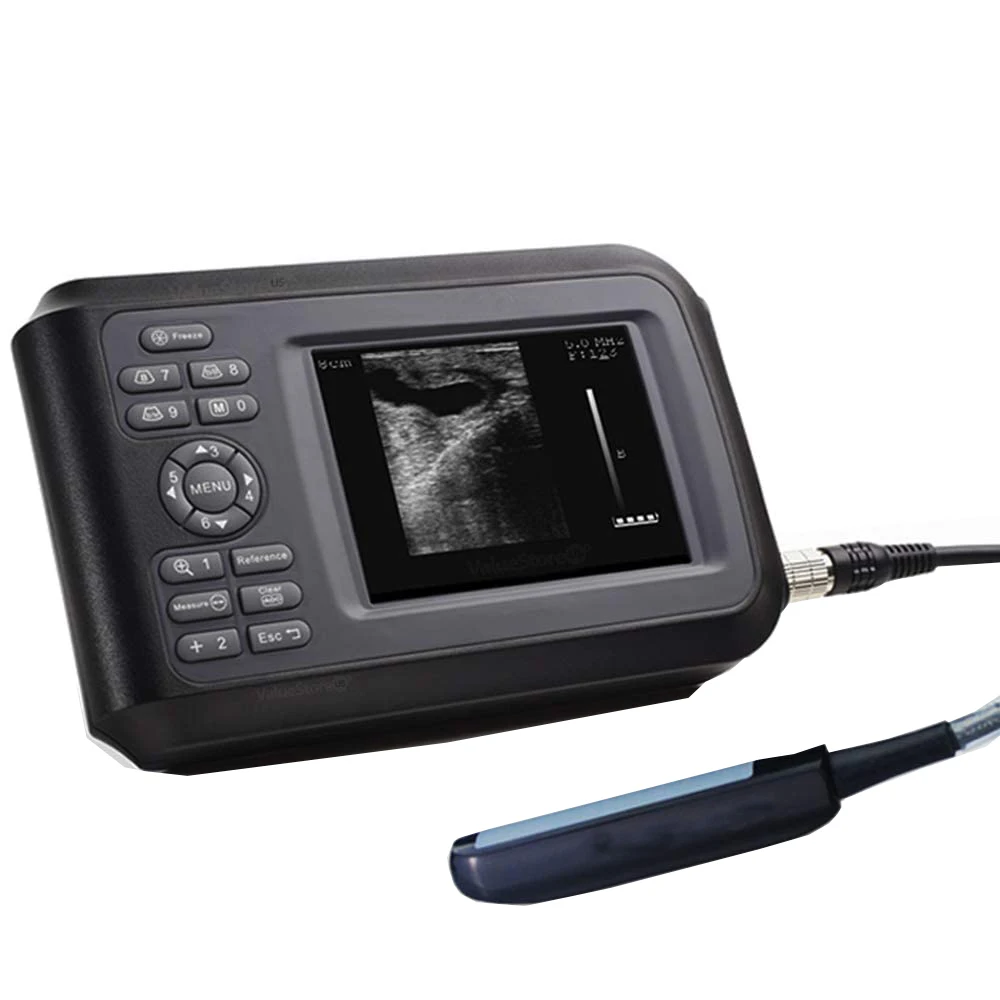

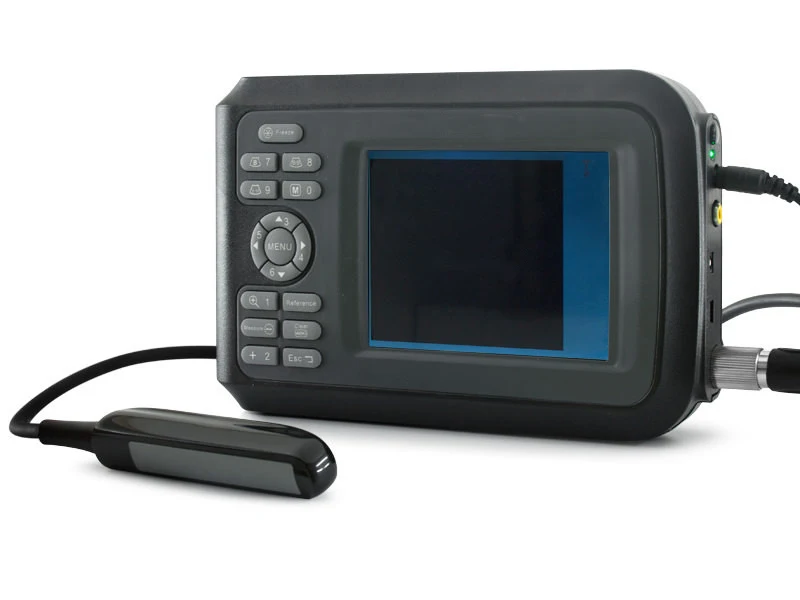

Ручной ультразвуковой сканер Handscan v8 для ветеринарных животных с ректальным зондом

Handheld vet veterinary ultrasound

v8 is with light weight, long-time battery work, unique ring design, multiple use method, very convenient for long-time using but
eliminating operating fatigue, different probes available for different animals.

Net weight

1.1kg. Smart and light

Battery

High-capacity lithium Battery ,more than 6 hours work

 sunshine cover

Standard configuration 1 pc of sunshine cover, suitable for use in outdoor strong sunshine.

operate fatigue

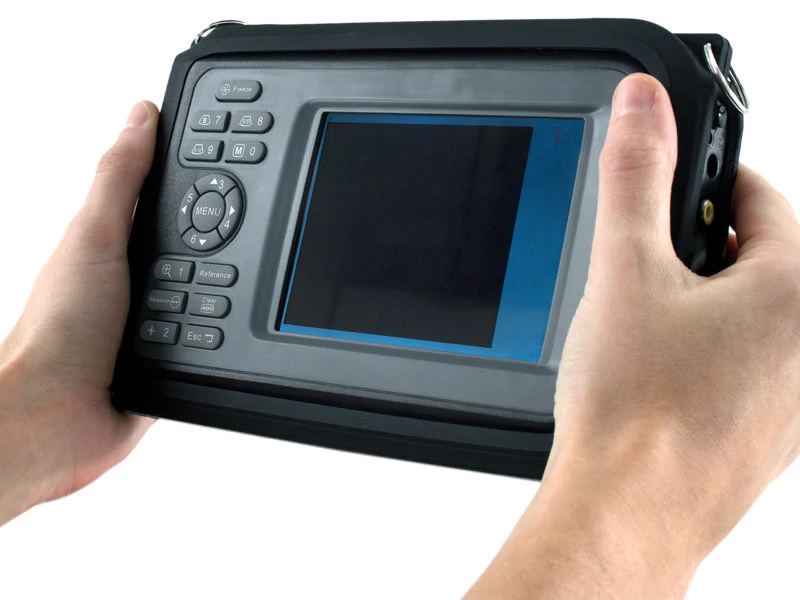

Available for left/right hand alternative use, eliminating operate fatigue

Multiple use method

hand-held, chest hanging, back hanging , waist hanging, etc.

Optional

Optional professional ultrasound goggle, convenient for outdoor use, meet different need.

Sophisticated craft, have soft rubber coat, splash-proof, dust-proof

Screen Size

5.5 inch, TFT color LCD

Display Mode

B, B+B, B+M, M, 4B

Gray Shade

256 levels

Scan Depth

70~240mm, adjustable

Cine Loop

≥ 400 frames

Built-in Memory

64 images

Focus Position

2 points adjustable

Annotation

date, clock, name, Sex, ID, Age full screen editor.

Battery Working Time

≥ 3 hrs

Battery Charging Time

≥ 2hr

Net Weight

600g

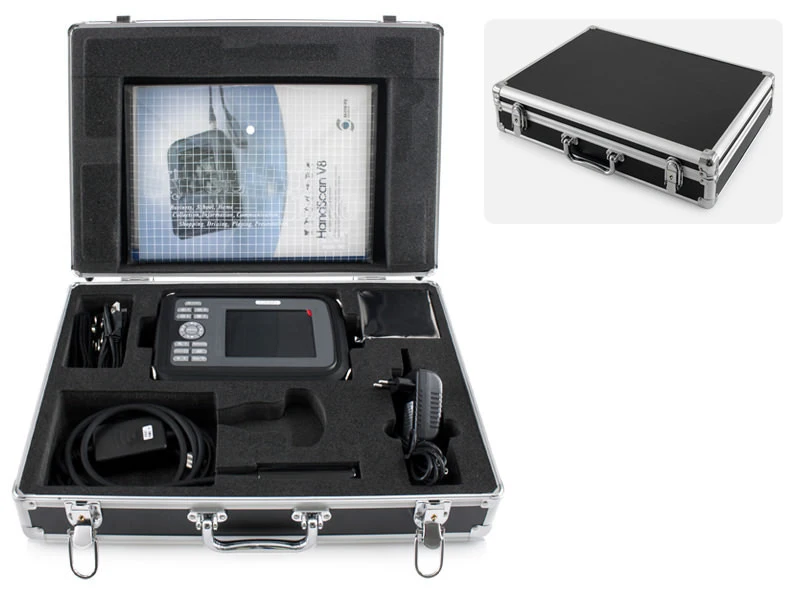

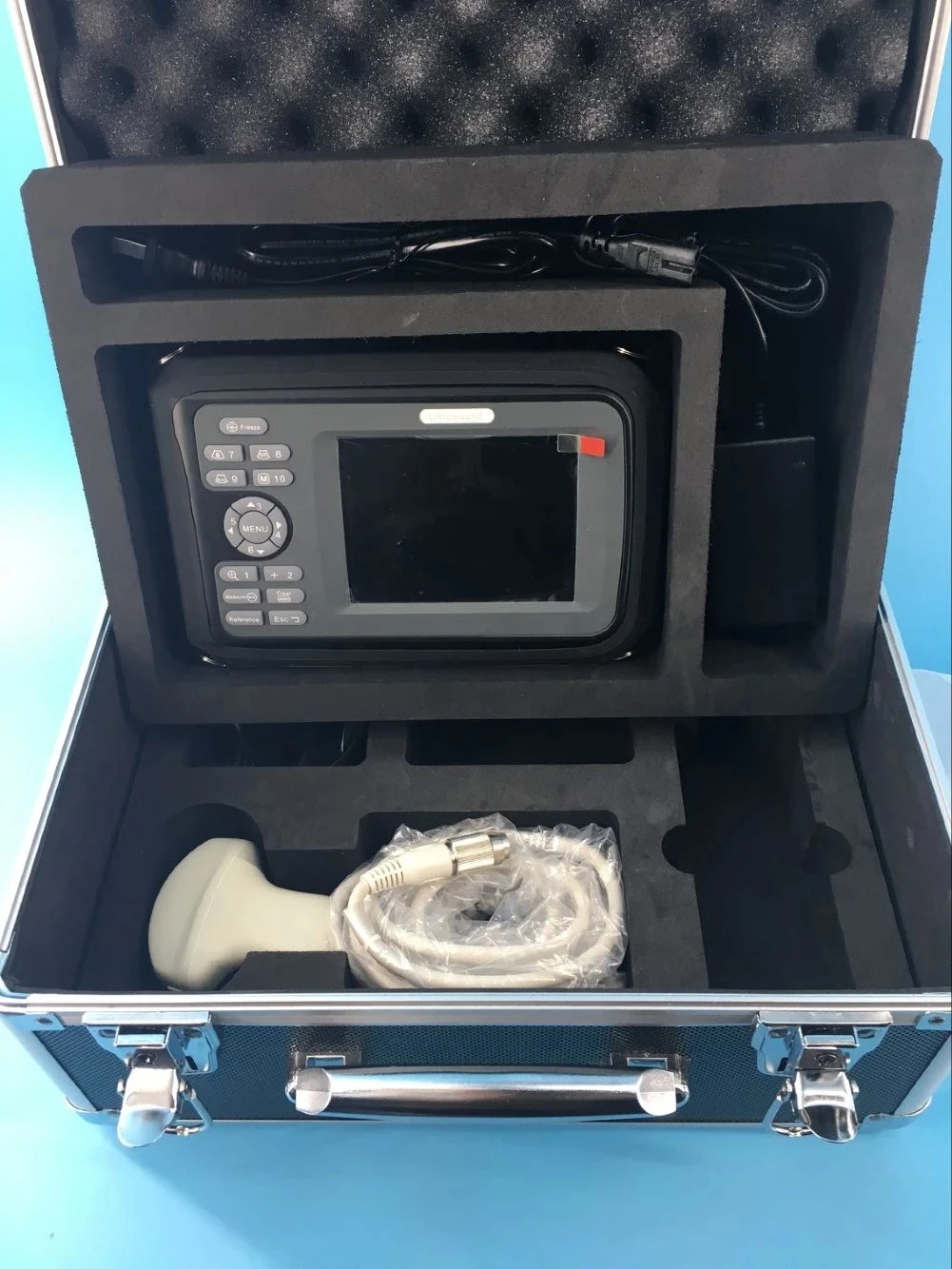

Package

metallic case in a carton box

Image Reservation

up/down, left/right

Image Procession

Coded color, GAMA, Histogram And Image Smoothen,
TCG: N.G (near gain) adjustable
F.G.(far gain) adjustable
O.G (overall gain) adjustable

Language

English/Chinese switchable

Measurement

Distance, Circumference, Area,
Volume and Heart Rate
OB Measurement: Swine -- HL
Sheep/Goat -- USD
Cat – HD, BD
