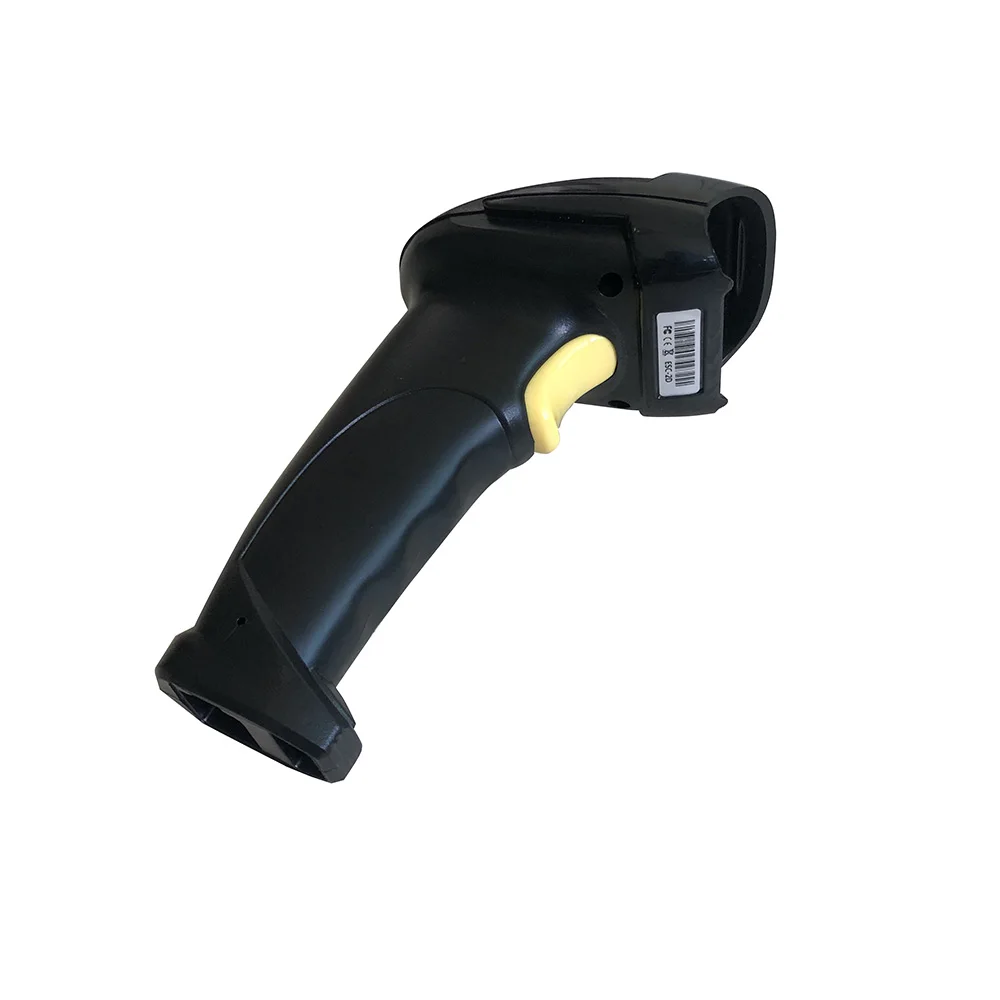

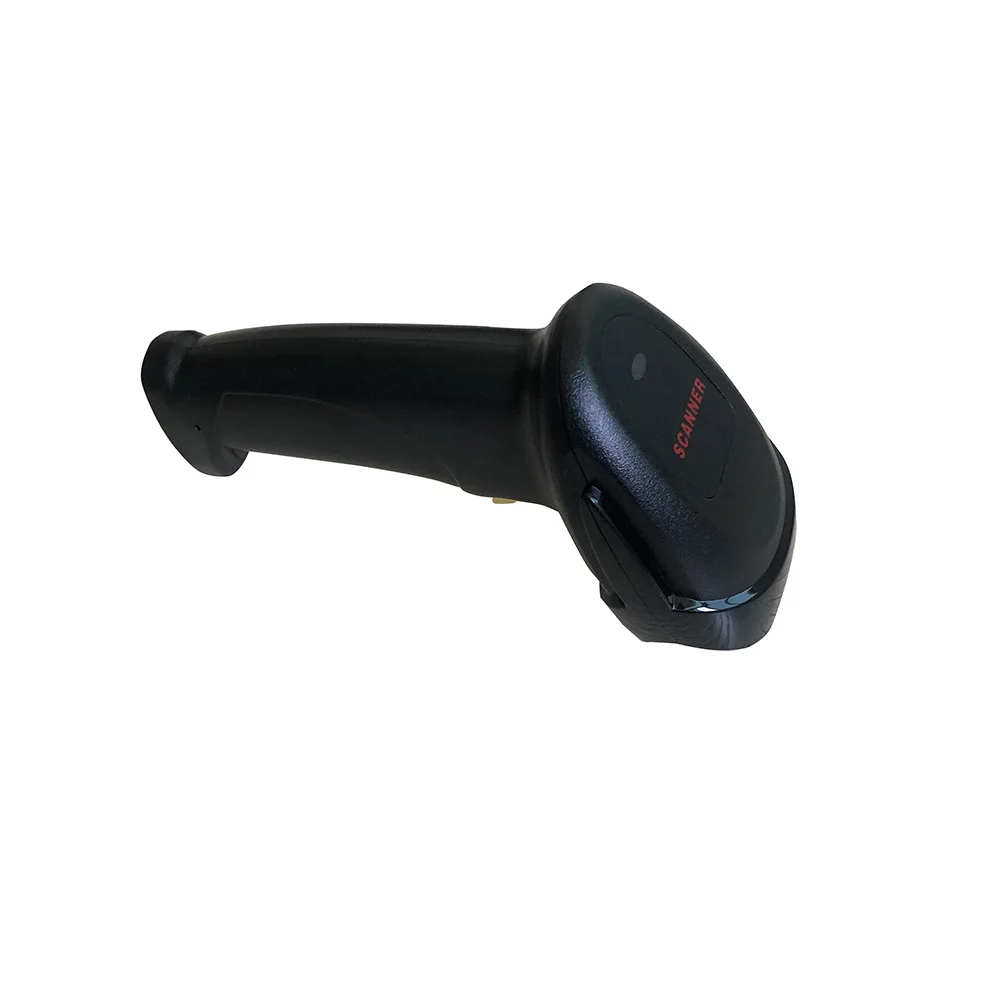

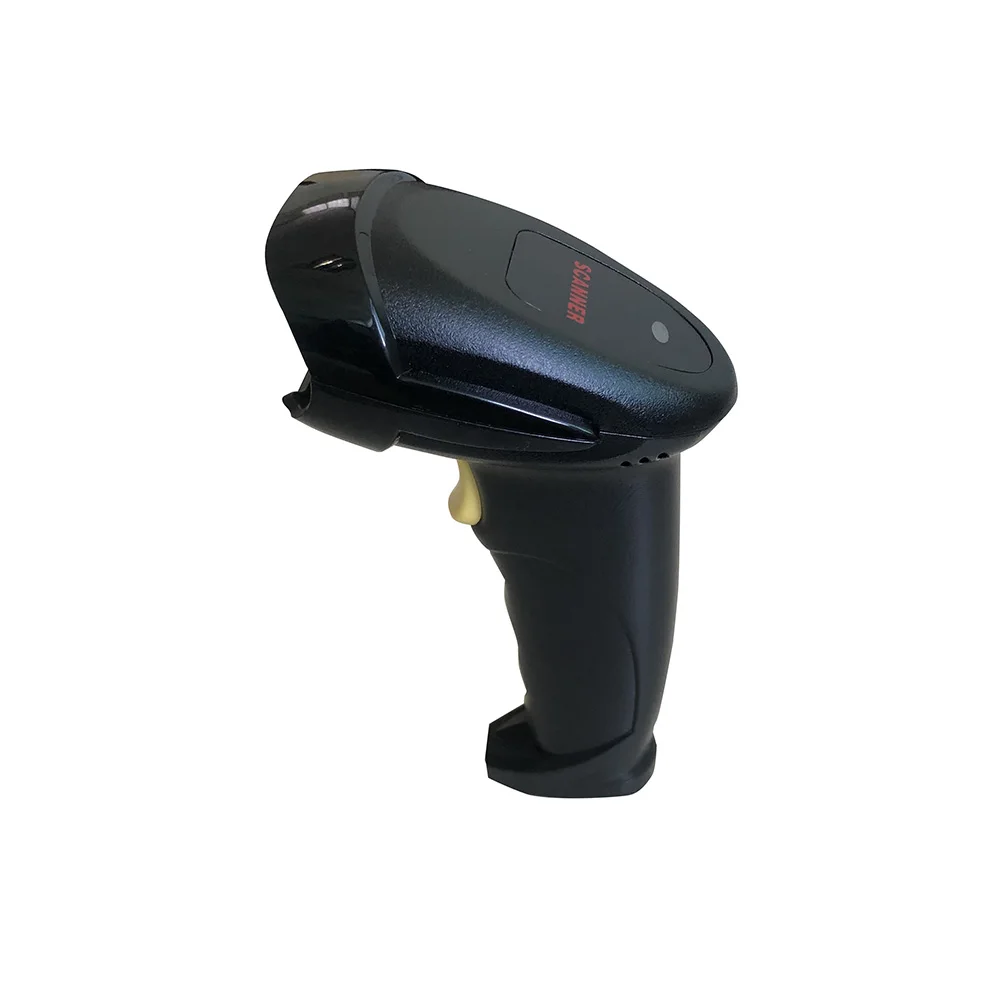

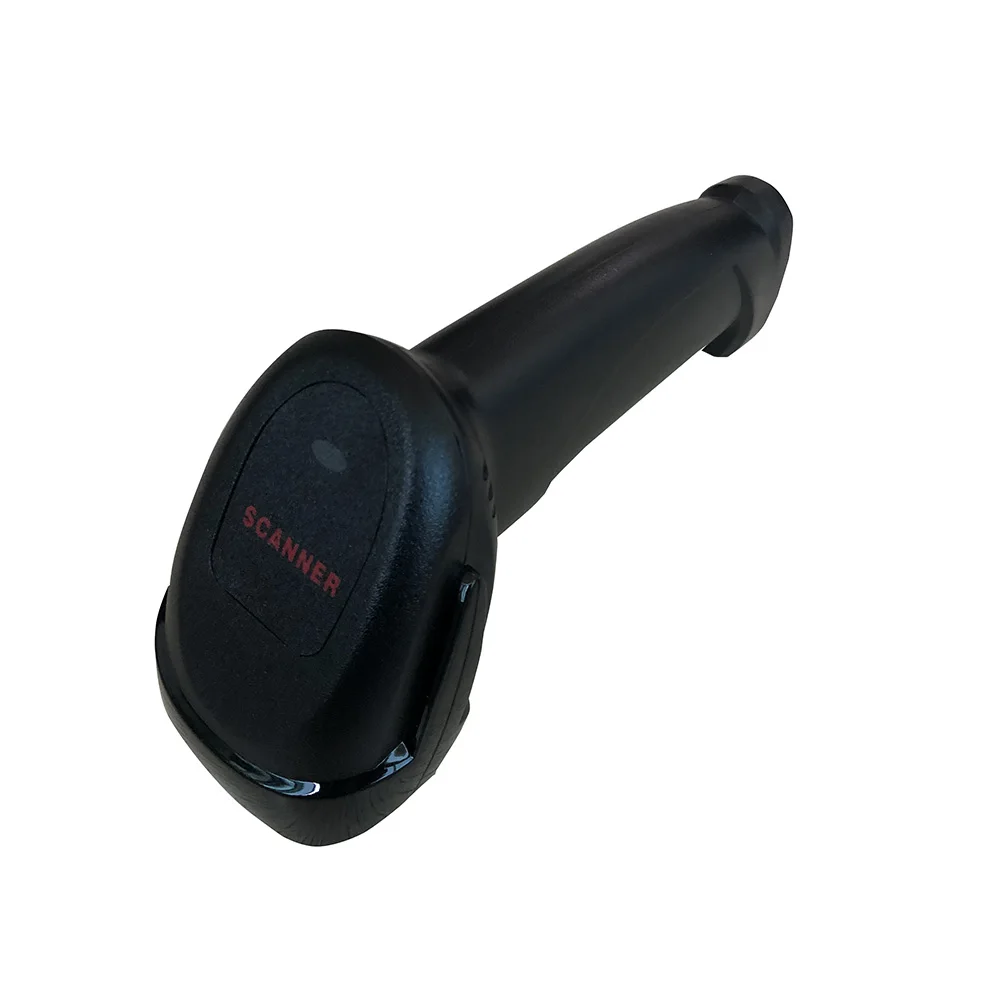

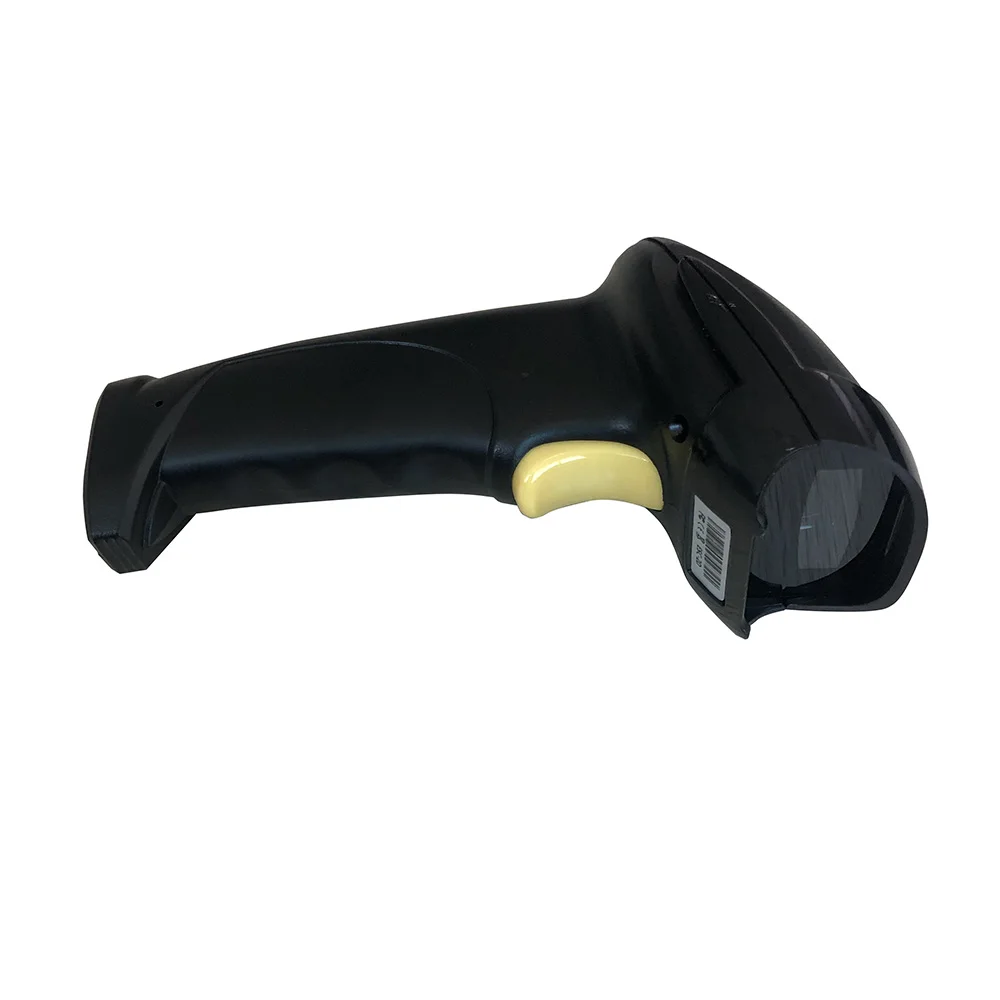

Ручной Проводной 1D 2D 32 бит USB сканер штрих-кода супермаркет qr-код считыватель пистолет для POS машины

Product Specification:ESC-2D  2D Wired Barcode Scanner

Scanner parameters:

Material

ABS+PVC+PC

Size

L*W*H: 157mm*71mm*90mm

Power Supply

DC 5V/300mA

Weight

120±5g (without cable)

Interface Supported

USB, RS-232

Sensor

Flat CMOS Sensor

Light Source

Red LED (Aiming) + White LED(Lighting)

Processor

32-bit MCU

Decode Capability

1D: Codabar,Code11,Code39/Code93,UPC/EAN, Code128/EAN128, Inter Leaved2

of 5, Matrix2 of 5,MSI CODE, Standard2of5, etc.

2D: QR CODE,PDF 417,Data Matrix,etc.

Resolution

Code39 5mil, QR 8.7mil, PCS45%

Depth of Field

5MIL   CODE39:       5--12   CM

15MIL  CODE39 :      4--25   CM

10MIL  CODE93 :      4--21   CM

15MIL  UPC/EAN:      4--25   CM

20MIL  QR :           4--25   CM

Decoding Speed

200 scans/sec

Trigger mode

Handheld,Continuous, Auto-Induction

Scanning Area

5*5 cm² - 30*30 cm²

Prompting Mode

Buzzer, Indicator light(LED)

Print Contrast

35%

Scan Angles

Roll 0-360°, Pitch±65°, Yaw±60°

IP level

IP 54

Operating Temp.

0 to 50 ºC / 32 to 122 ºF

Storage Temp.

0 to 50 ºC / 32 to 122 ºF

Operating Humidity

5 - 95% (non-condensing)

Electrostatic protection

15KV

Shock Resistance

1.5m free fall on concrete surface
