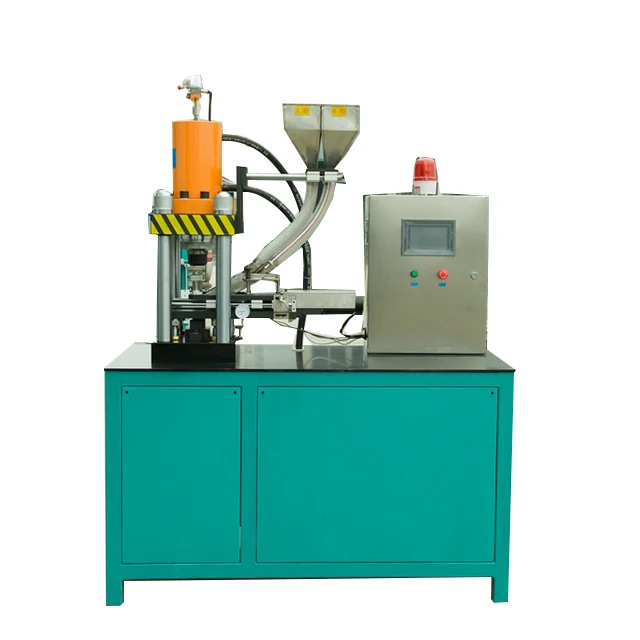

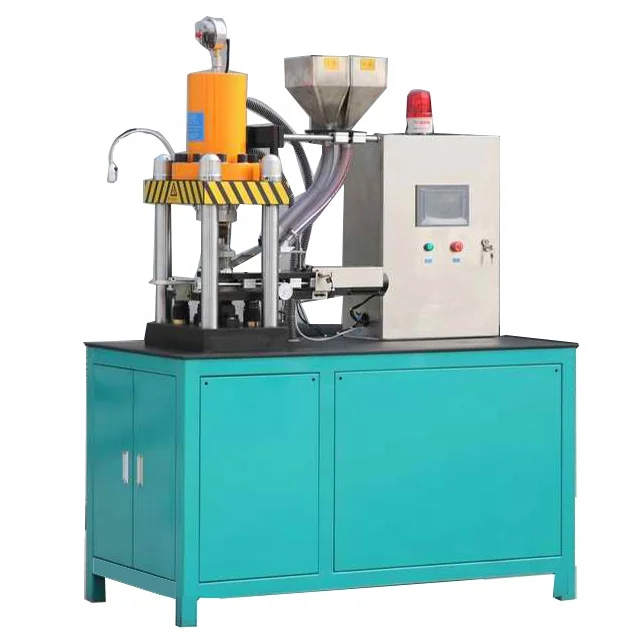

Automatic cold pressing synthetic diamond making machine for metal powder

 Main features of Automation cold press machine:

•

  It is mainly used to make segment base from diamond metallurgy powder by cold press.




•

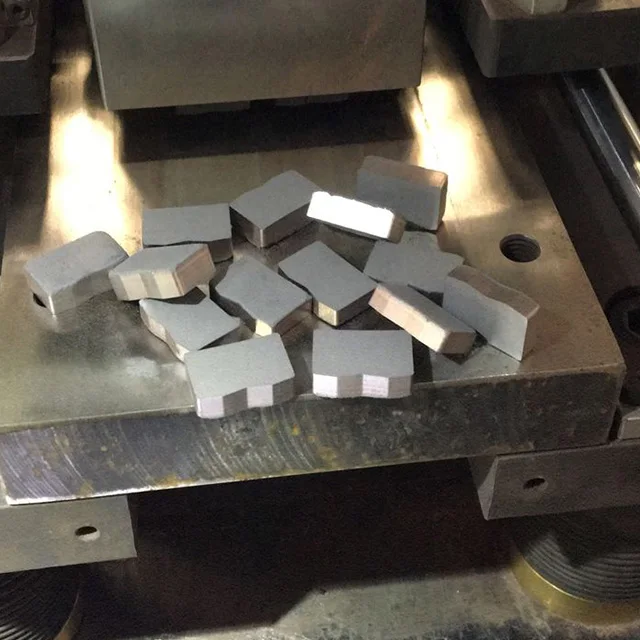

  It can be used to make segments for all sorts of saw blades by putting mixtures of powder with different proportion of diamond.




•

  The powder no need granulated, which saves the production cost and is convenient for customers.




•

  It can automatically measure the thickness and show the height of segments, which can release the operator.




•

  It can correct the error of weight which is caused by the error of powder density.




•

  It is acommensurable equipment with high ourput Cold press sandwich segments(segments for diameter 350 saw blade) 6000pcs/8h,segments 7 layers(segments for diameter 1600 saw blade)3000pcs/8h}, which can save a lot of labour force.




•

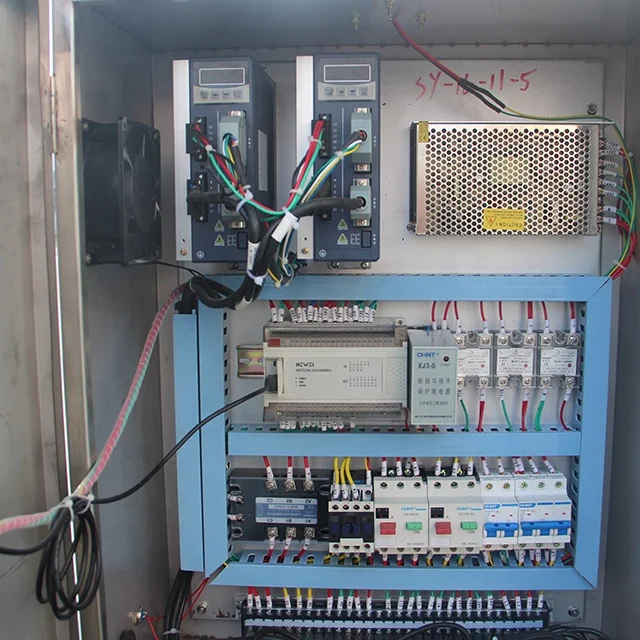

  The electrical system is designed according to the national standard with high reliability and convenient maintenance.




•

  There’re buttons on the screen, which makes it easier to operate and set the program.




•

  It can be used to store 50 pieces of technics, which is convenient for operator






Specification

Power	7.5kw	Rated Voltage	380V
Rated Current	15A	Working Pressure	63T
Finished Error	±0.1g	Head Travel	50-75MM
Work Efficiency	6 times/min(3 layers)	Product Thickness	0.5-20MM
Pressing Layers	1-9 Layers	Loading Depth	1-40MM
Equipment Size	L1450*W850*H1750MM	Net Weight	1.3T
