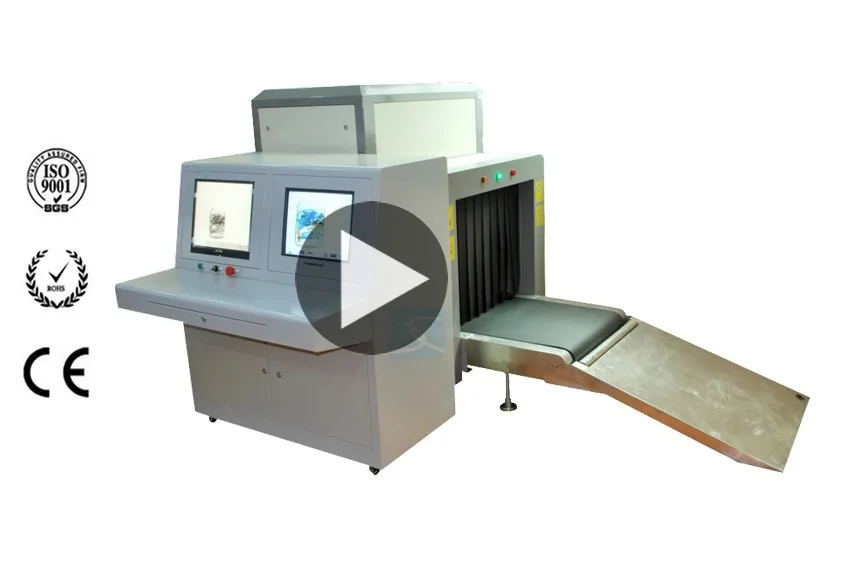

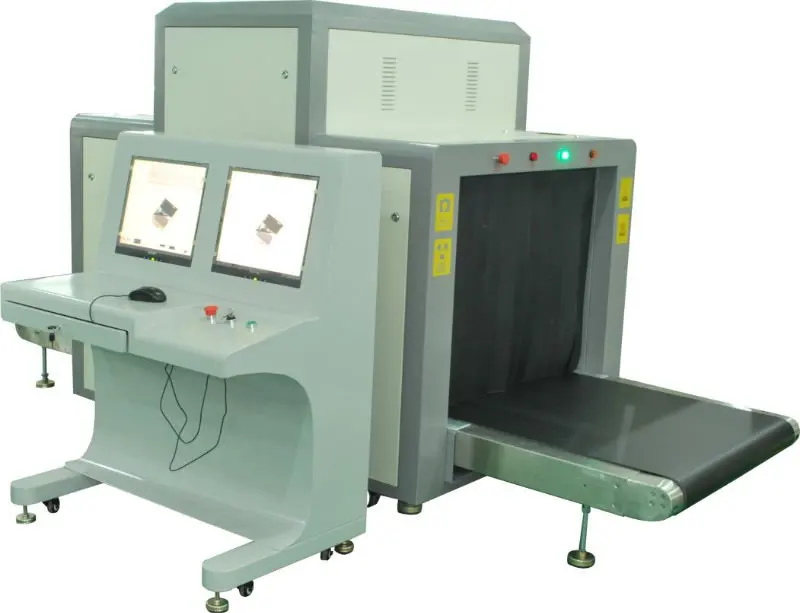

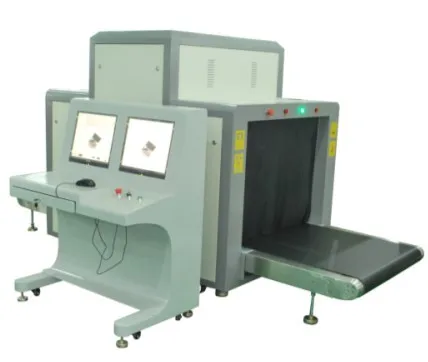

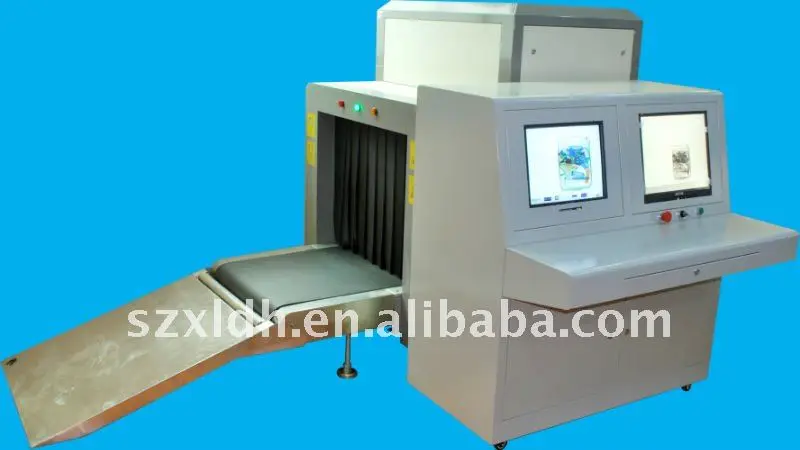

Best option digital x-ray security luggage scanner for airport XLD-8065





Specification

Tunnel Size:800(W)*650(H)mm

Conveyor Speed:0.22m/s

Conveyor Max Load……200kg

Dose per Inspection……< 1.6μGy/h

Resolution……………< 0.0787mm Copper Wire

Spatial resolution…………Level: dia1.3mm, Vertical: dia1.0mm

Penetrate  resolution………Dia 0.511mm

Penetration…………34mm Steel

Film Safety…………Guarantee ISO1600 Film

X-ray Leakage………<0.1μGy/h (at a distance of 5cm From external housing)



X-ray Generator

Generate direct: Bottom to up

Generate anger: 80 degree

Anode Voltage…………100~160Kv

Anode power…………0.4 to 1.2mA

Cooling / Duty Cycle………Oil Cooling /100%

Image System

X-ray Sensor………………L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Monitor……………………High Resolution Color, LCD Accord, 17 inch

Image Processing…………Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

Image Grey Level……………4096

Image Max Resolution………1024 * 1280 pixel

Image Processing……………24bit for processing real time

Image storage……………Storage 60000 pictures in real time

Zones & Zoom……………1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Multi-energetic distinguish objects …………organic objects in orange, inorganic objects in blue, mixture  in green

High-energy/low energe       ………………………switch from high energy to low energy

Assist to detect drug and explosive powder



Installation Data

Operation temperature/Humidity…… 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity……… -20°C-60°C/20%-95%(non-condensing)

Operation Power………………………220VAC(±10%)50±3Hz

Power Consumption……………………1.0 KW (max)

Noise: <58db

Specifications:

Dimension	2020mm(H)X39mm(W)X160mm(D)
Gross Weight :	About 24kg
Work environment :	-20- +45℃
Complied standards	GB15210-94
Power supply:	100-220V,AC
Power:	<30W
Material of panel:	Water-proof ABS
Count detecting	Infrared sensor, mechanical anti-interference
Sensitivity:	Adjustable from 0 to 255
Alarm time:	1-25s
Alarm tone:	10
Alarm volume	0-255
Frequency:	4-8K
